Model # JTP85WW2WW Official GE electric range

Here are the diagrams and repair parts for Official GE JTP85WW2WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Range Bake Element WB44K5018
#251

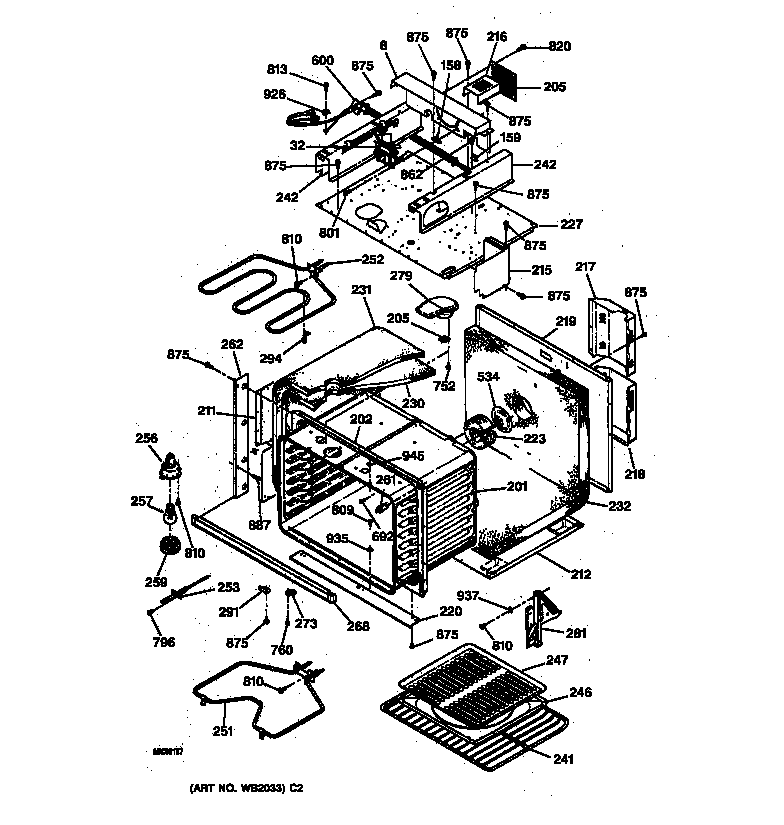

Oven body diagram

Range bake element

Part #WB44K5018

BEST SELLER
$68.76 |
7% OFF Phone Price : $73.76
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
#294

Oven body diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hinge Assembly WB14K5015
#281A

Oven body diagram

Hinge assembly

Part #WB14K5015

Replaced by #WB14T10006

?
Manufacturer substitution
This part replaces WB14K5015. Substitute parts can look different from the original.
BEST SELLER
$66.07 |
7% OFF Phone Price : $71.07
In Stock
Range Oven Door Handle (black) WB15T10030
#136

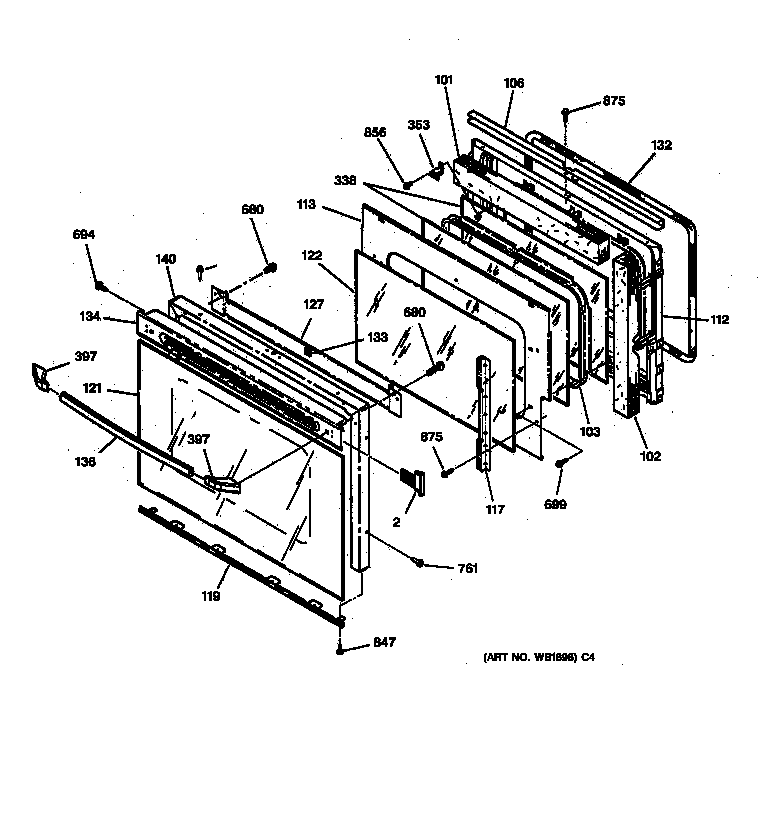

Oven door diagram

Range oven door handle (black)

Part #WB15T10030

$43.32 |
10% OFF Phone Price : $48.32
In Stock
Screw-10-32 WB1X1253
#810

Oven body diagram

Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1K5200
#752

Oven body diagram

Screw

Part #WB1K5200

This item is not returnable
$8.11
In Stock
Range Screw WB1K5173
#887

Oven body diagram

Range screw

Part #WB1K5173

This item is not returnable
$8.11
In Stock
Broiler Pan WB48T10007
#246

Oven body diagram

Broiler pan

Part #WB48T10007

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48T10007. Substitute parts can look different from the original.
$26.63 |
16% OFF Phone Price : $31.63
In Stock
Owner's Manual 31-13253
#999D

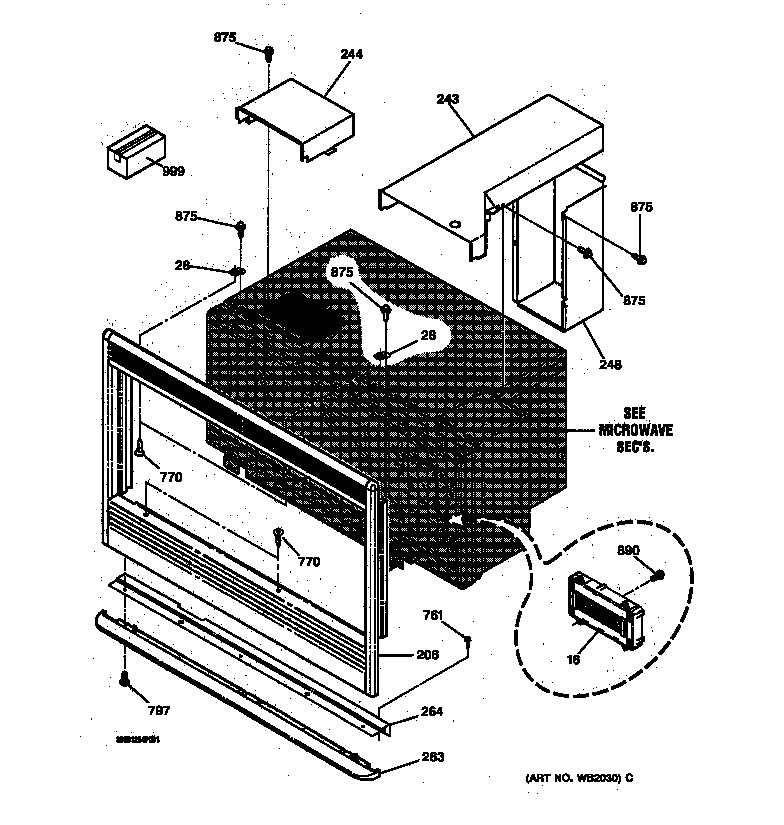

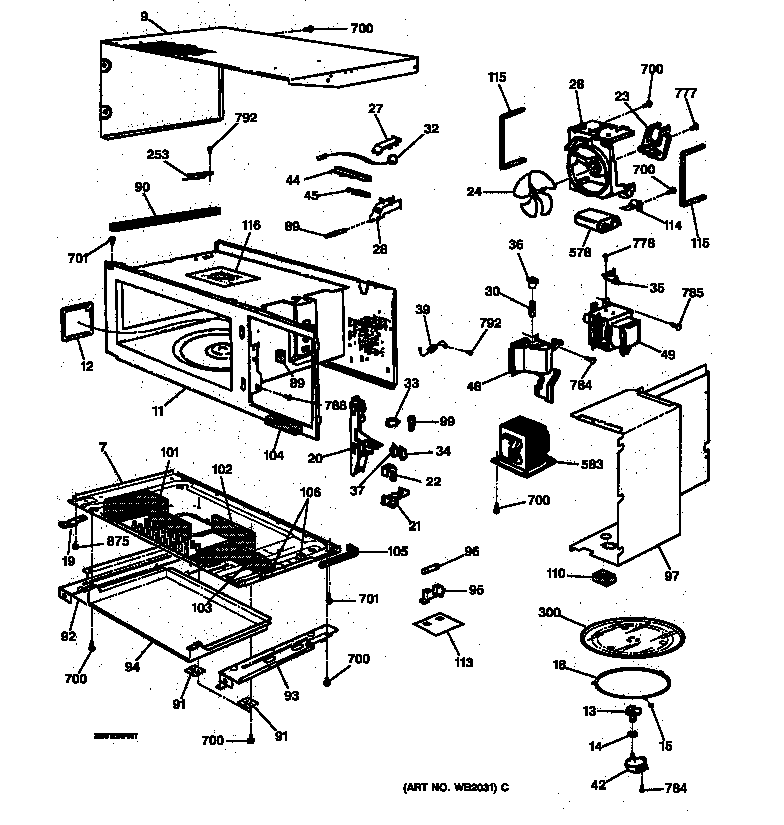

Microwave inclosure section diagram

Owner's manual

Part #31-13253

$21.99
In Stock
Owner's Manual 31-13275
#999C

Microwave inclosure section diagram

Owner's manual

Part #31-13275

$21.99
In Stock
