Frigidaire GRSC2352AD3 side-by-side refrigerator Parts

Yes. Manufacturers do make 30-inch-wide side-by-side refrigerators, but they are less common than 33-inch and 36-inch models. For your Frigidaire GRSC2352AD3, we recommend measuring your cabinet opening and comparing it to the refrigerator’s published width, depth, and hinge clearance before choosing a 30-inch replacement.

What “30-inch wide” really means

Most “30-inch” refrigerators are designed to fit a 30-inch cabinet opening, but the actual case width can vary slightly, and door swing needs extra space.

• Measure the opening width at the front and back (walls are often not perfectly square)
• Allow clearance for door swing and handle depth
• Check depth limits if you have a tight walkway or island
• Confirm height clearance if you have overhead cabinets
• Plan for airflow clearance behind and above the unit

Quick sizing guide (typical ranges)

These are common planning numbers for 30-inch class refrigerators.

Spec to compare	Typical 30-inch class range	Why you care
Cabinet opening width	30 in	Fit without forcing the cabinet
Actual refrigerator width	~29 1/2 to 30 in	Prevents rubbing or binding
Door/hinge clearance	~1/2 to 1 in+	Doors open fully without hitting walls
Depth (case vs. with handles)	varies widely	Avoids sticking out too far

If you are replacing a side-by-side like GRSC2352AD3

Side-by-side refrigerators often need more door-swing clearance than you expect because both doors are full height.

• If your current unit is wider than 30 inches, a true 30-inch model may reduce interior capacity
• If your opening is exactly 30 inches, choose a model specifically rated for a 30-inch opening
• If you have a water/ice dispenser, confirm the water line location and access

Why it matters

A refrigerator that is even slightly too wide (or that cannot open its doors fully) can lead to poor usability, door seal problems, and installation headaches. Planning for clearance is just as important as the advertised width.

For water and ice features on many Frigidaire refrigerators, we also recommend reviewing how to replace the water filter in a Frigidaire refrigerator so you can match the correct filter style and replacement interval.

Last updated: January 2026

For the Frigidaire GRSC2352AD3 side-by-side refrigerator, “better” depends on how you use your space: side-by-side designs keep both fresh and frozen foods at eye level and often make freezer organization easier, while French door models usually give you wider refrigerator shelves for platters and large containers.

Quick comparison: side-by-side vs. French door

Feature	Side-by-side (like GRSC2352AD3)	French door
Fresh food access	Narrower shelves, easy reach	Wide shelves, great for trays
Freezer access	Eye-level shelves and bins	Lower drawer, more bending
Organization	Strong for frozen items	Strong for fresh items
Door swing clearance	Often needs less width per door	Often needs more clearance

When a side-by-side is the better choice

• You want frozen foods at eye level (less bending for daily use).
• You like separate vertical zones for freezer and refrigerator items.
• Your kitchen has tight aisle space, so narrower doors help.
• You use the door dispenser frequently for ice and water.

When a French door is the better choice

• You store wide items (pizza boxes, party platters, sheet pans).
• You keep lots of fresh produce and meal prep containers.
• You prefer a full-width refrigerator shelf layout.

Why it matters

The “best” style is the one that matches your habits. If you use ice and water daily, keeping the dispenser system maintained helps performance and taste. For GRSC2352AD3, staying on schedule with the Frigidaire refrigerator water filter FPPWFU01 is one of the simplest ways to protect water flow and reduce off-tastes.

Practical tip for side-by-side owners

• Keep frequently used items between shoulder and waist height.
• Avoid overpacking vents; airflow matters for even temperatures.
• Replace the water filter on schedule and flush the dispenser after changes.
• If you ever see a display or cooling issue, use Frigidaire refrigerator error codes to narrow down the cause.

Last updated: January 2026

On the Frigidaire GRSC2352AD3 side-by-side refrigerator, CF typically points to a communication fault between the dispenser/user interface and the main control system. The most common causes are a loose or damaged wire connection, a failing user interface, or a problem with the main control.

What to check first (quick, safe steps)

• Power reset: Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Confirm cooling symptoms: Note whether the unit is also warm, not making ice, or the dispenser is unresponsive.

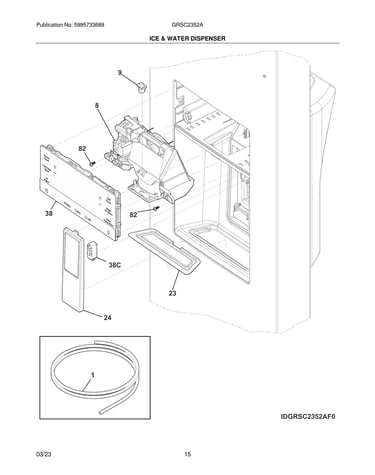

• Check the dispenser panel behavior: If buttons do not respond or the display flickers, the interface circuit is a prime suspect.
• Look for obvious harness issues: Pinched wiring at the door hinge area is a common failure point on side-by-side designs.
• Rule out simple airflow issues: If the freezer is warm and the fan is silent, cooling problems can trigger control-related faults.

Parts that commonly relate to a CF communication fault

If the CF code returns after a reset, these model-compatible parts are the most relevant starting points.

Symptom you notice	Most likely area	Example model-compatible part
Dispenser display dead or erratic	Dispenser interface/control	Refrigerator dispenser user interface control 5304527031
Unit warm, fan noise missing, poor airflow	Evaporator fan circuit	Frigidaire refrigerator evaporator fan motor 809069206
Intermittent temps, odd cycling	Temperature sensing feedback	Refrigerator temperature sensor 5303918775

Why it matters

A CF code is often the refrigerator telling you the controls are not “talking” reliably. When communication drops, you can see symptoms like inconsistent temperatures, dispenser problems, or ice maker interruptions. Fixing the underlying connection or control issue helps restore stable cooling and normal dispenser operation.

When to stop and schedule service

• The CF code returns immediately after a reset
• You smell burning plastic, see melted connectors, or hear repeated clicking
• The refrigerator is not cooling and food safety is at risk

For additional code context and related Frigidaire display messages, use our Frigidaire refrigerator error codes reference.

Last updated: January 2026
