Model # AWS75NW Official Alliance top-loading washer

Here are the diagrams and repair parts for Official Alliance AWS75NW top-loading washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

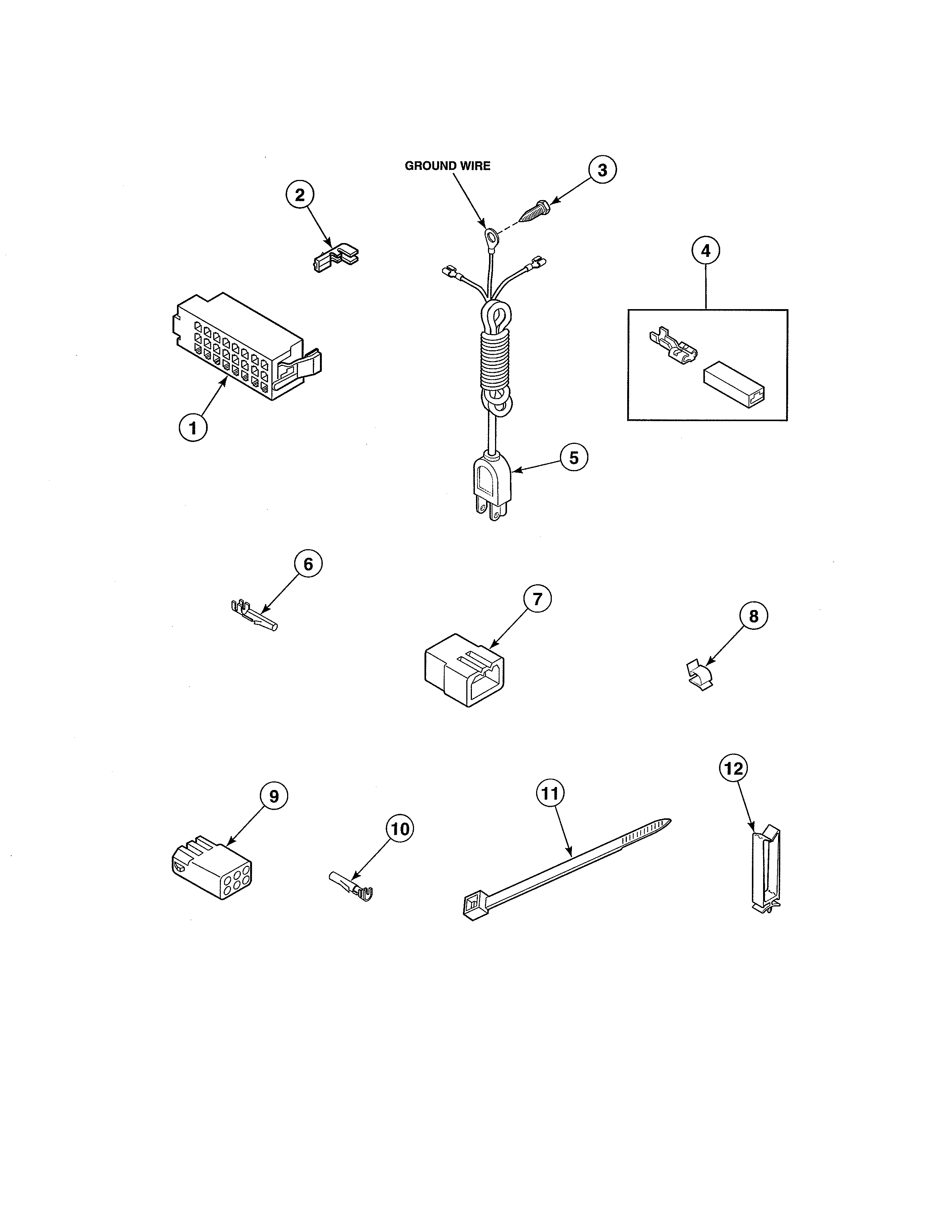

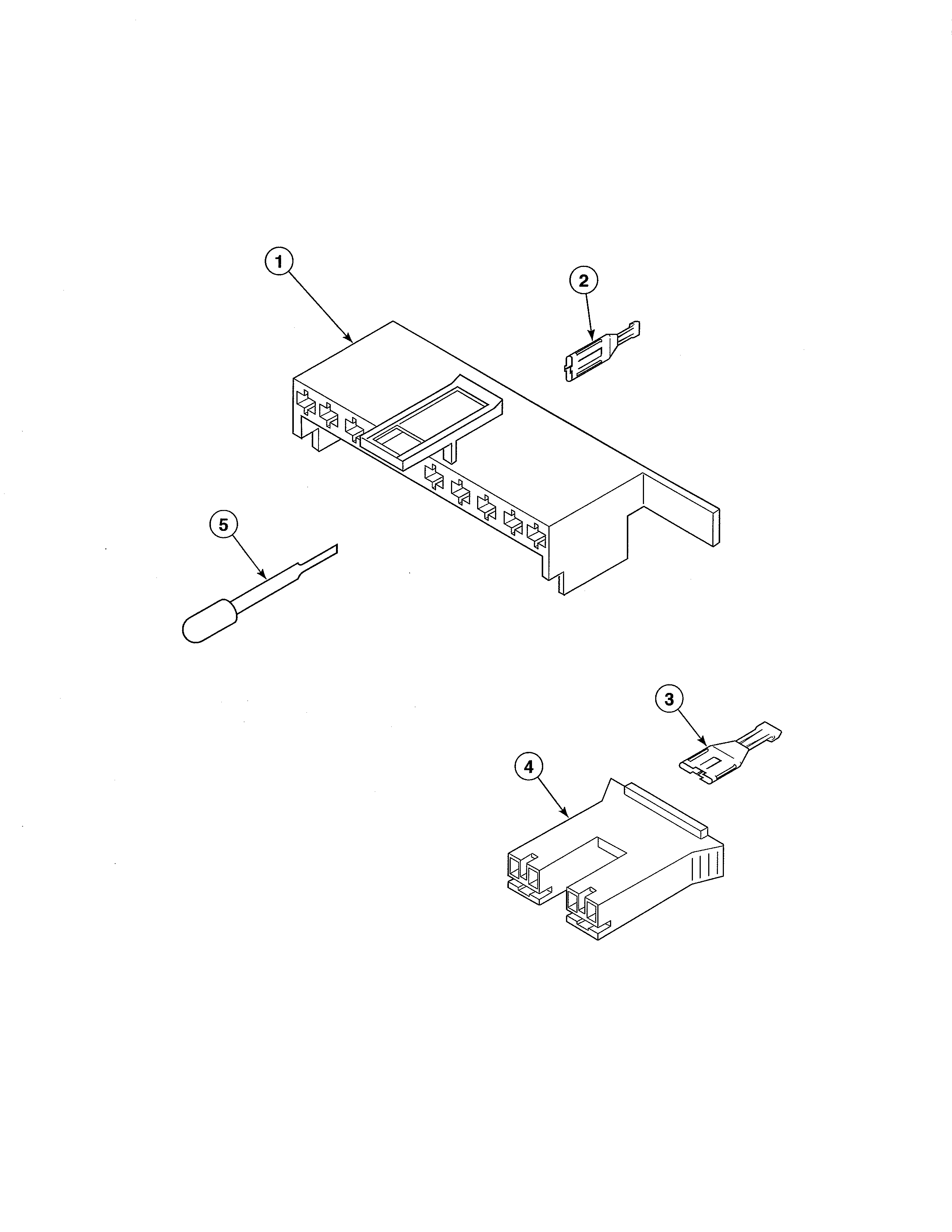

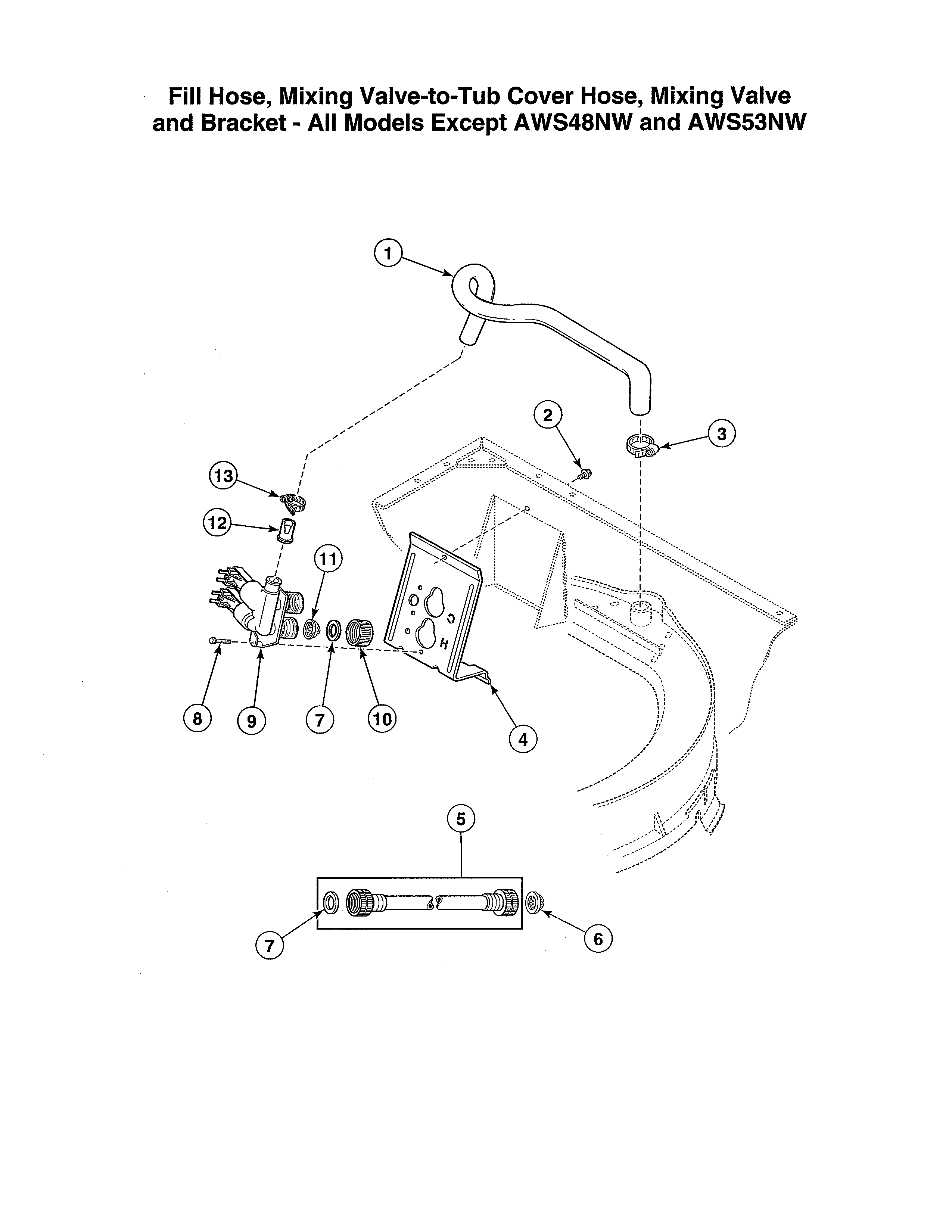

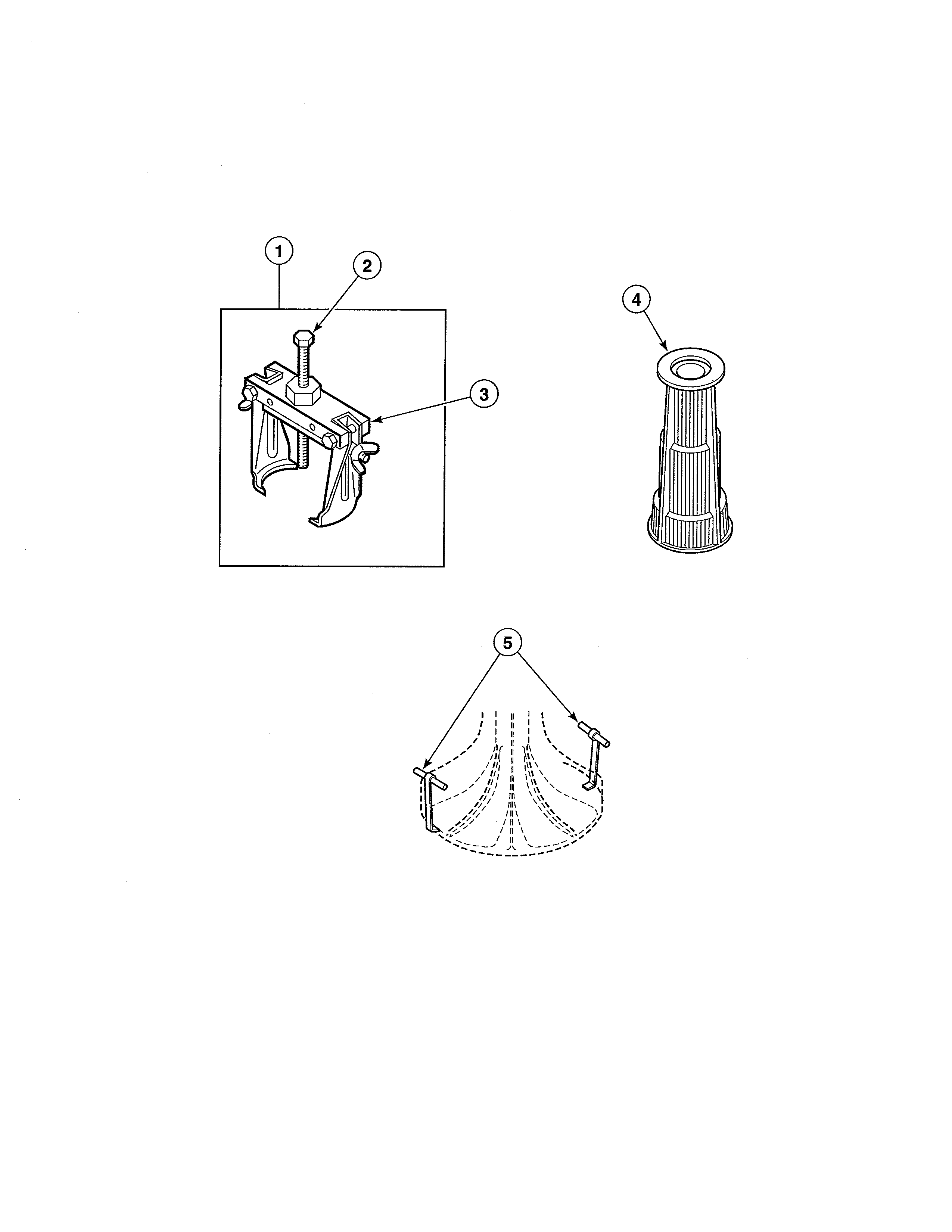

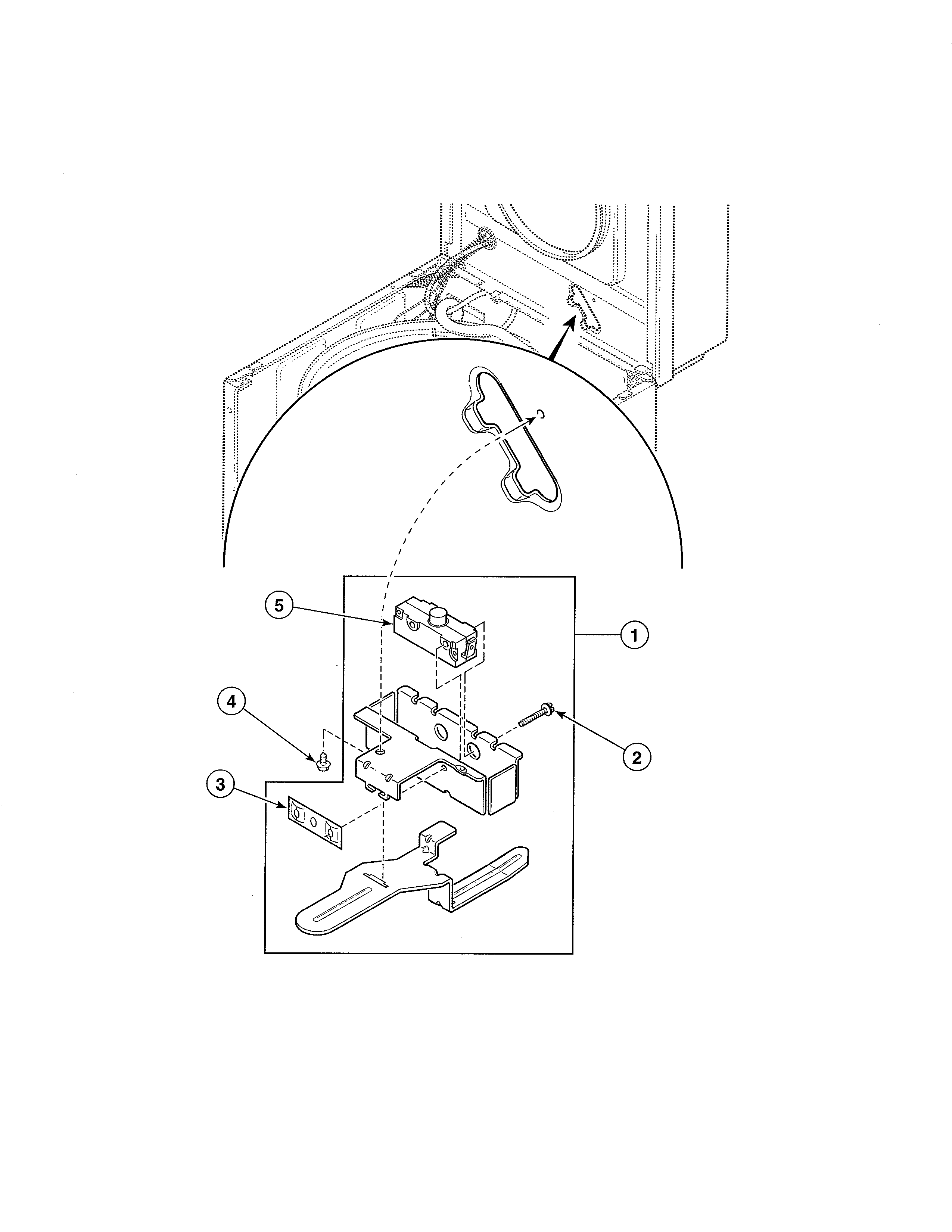

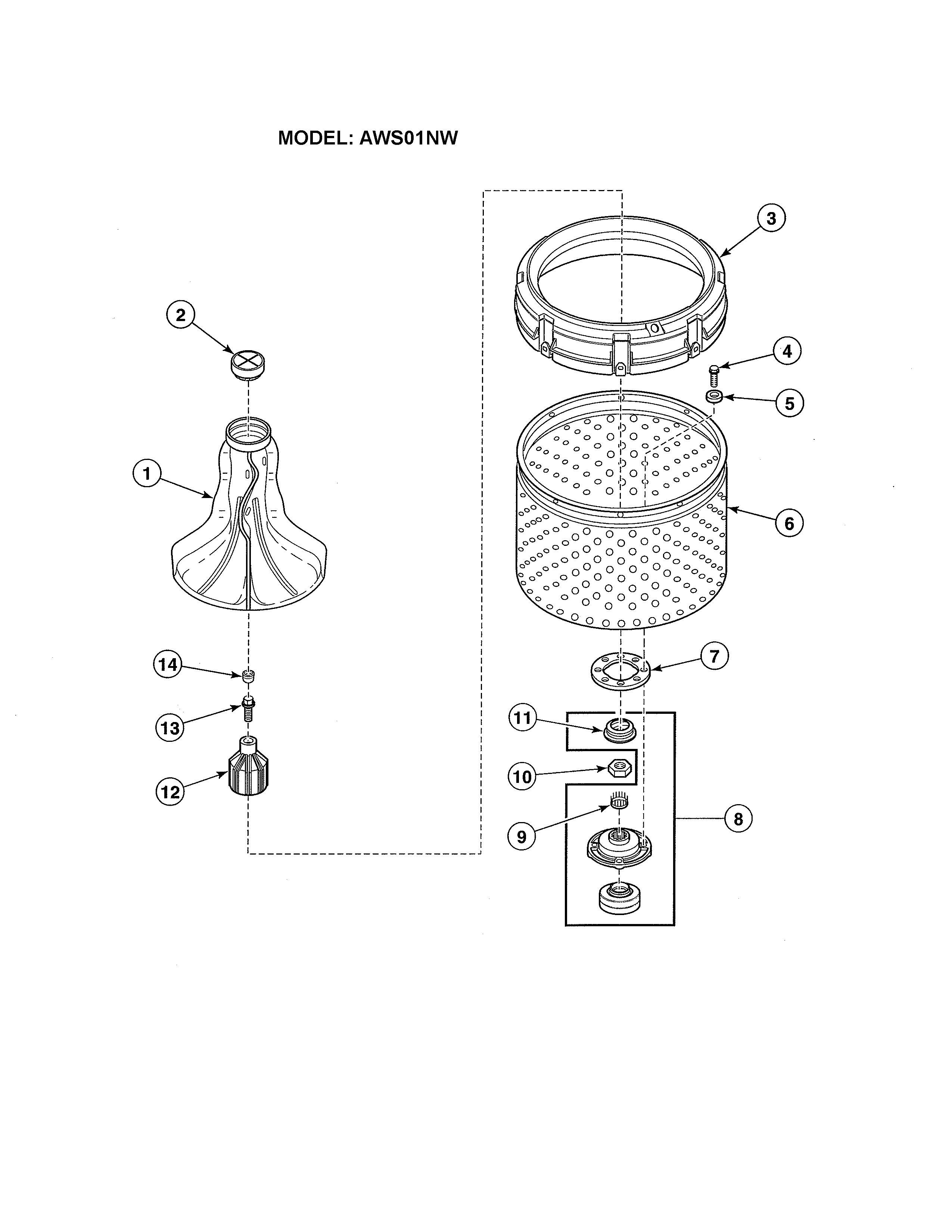

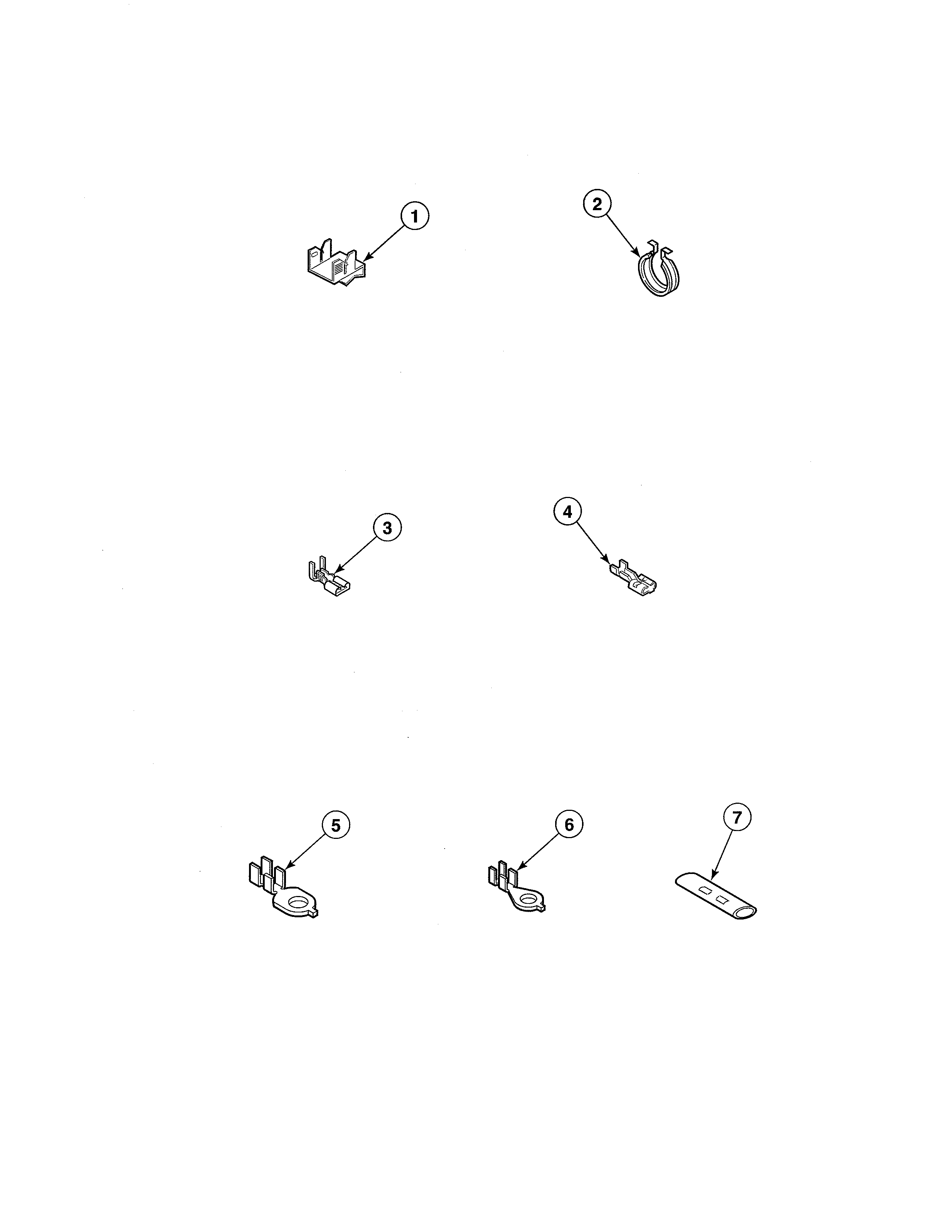

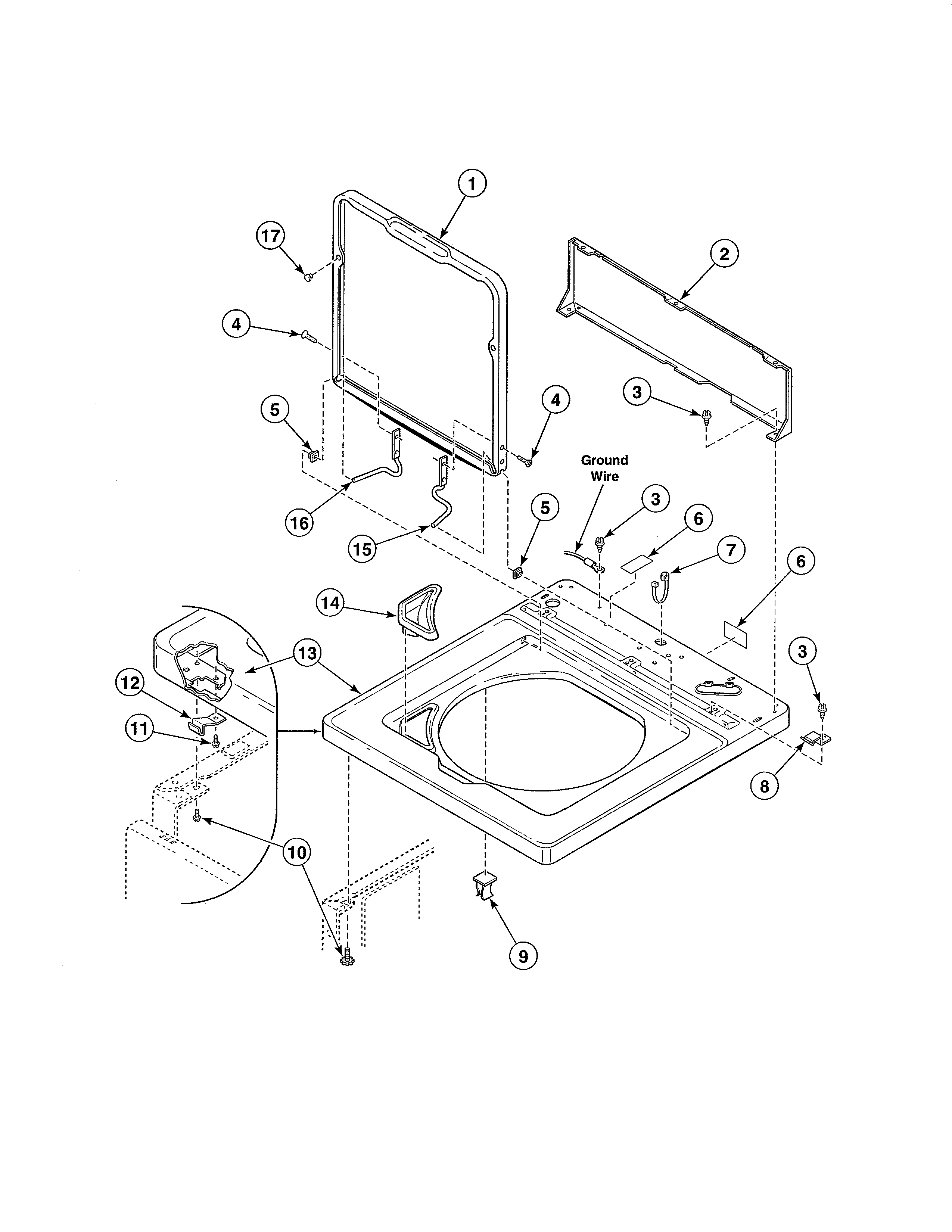

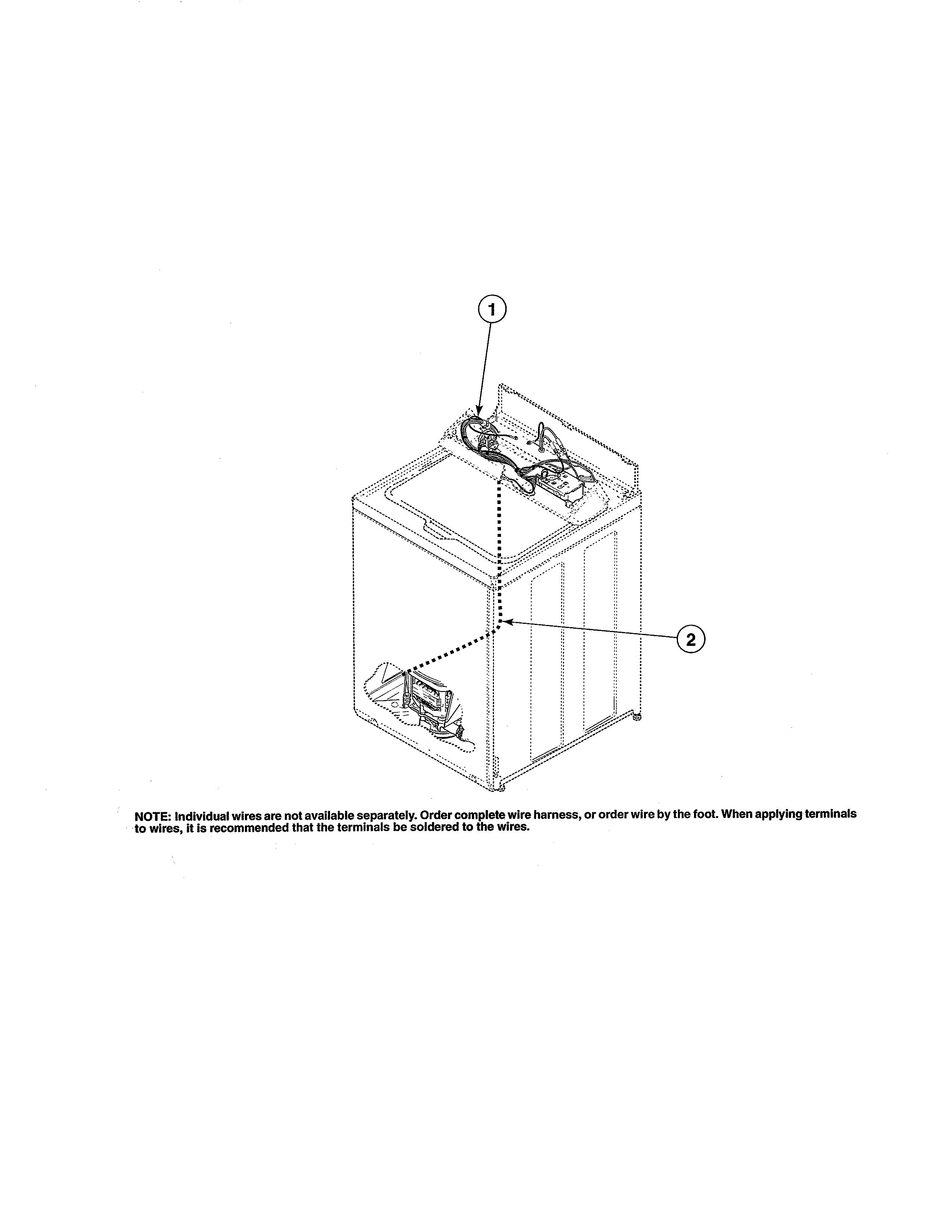

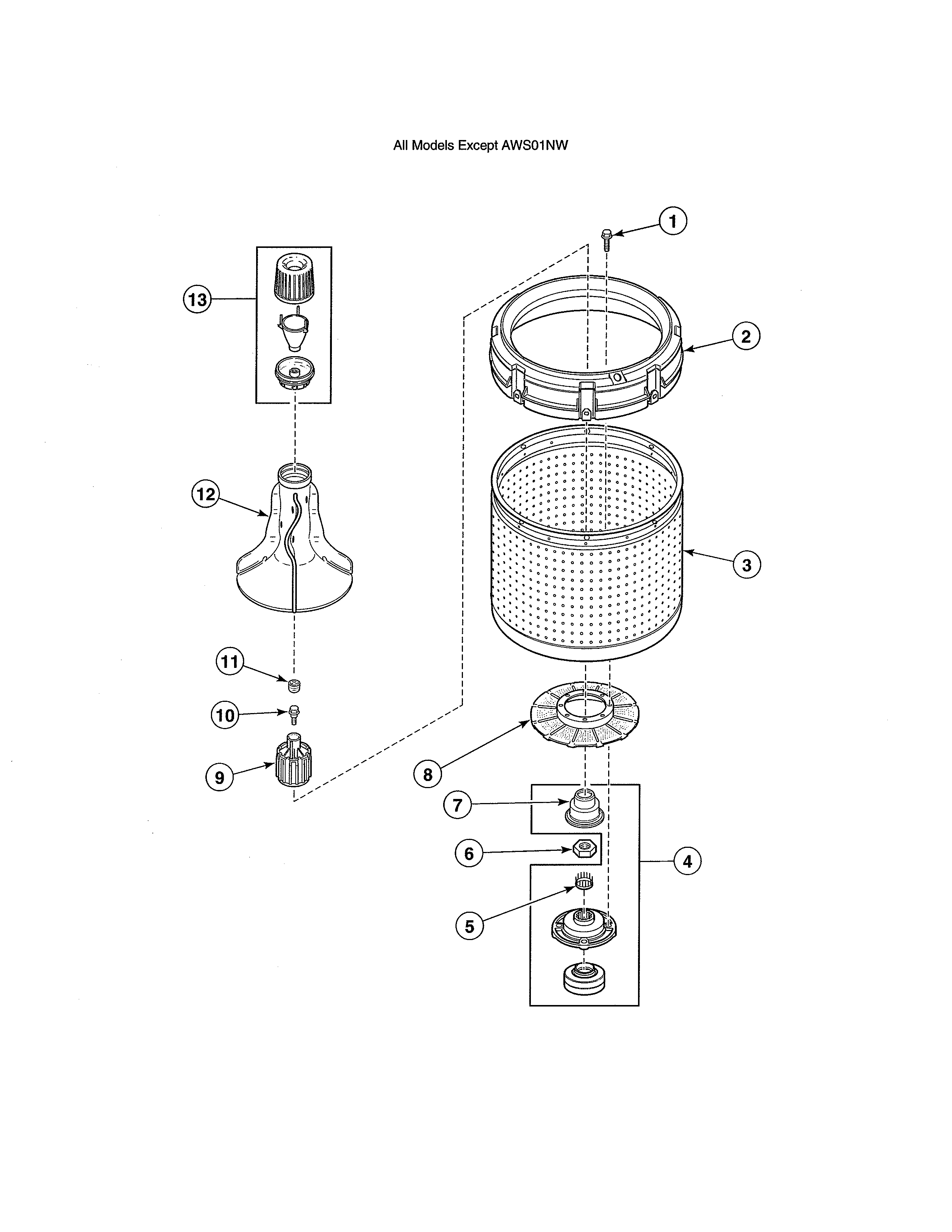

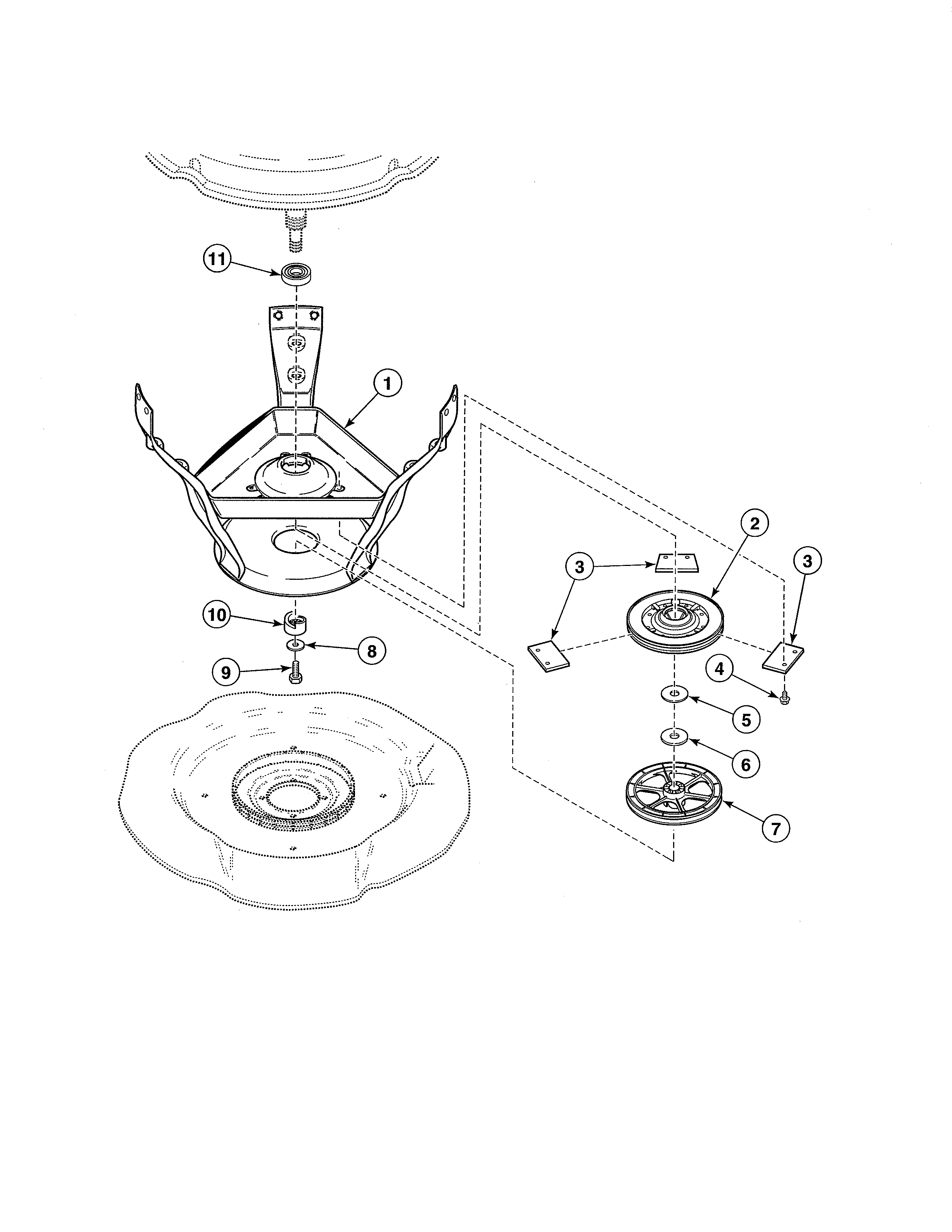

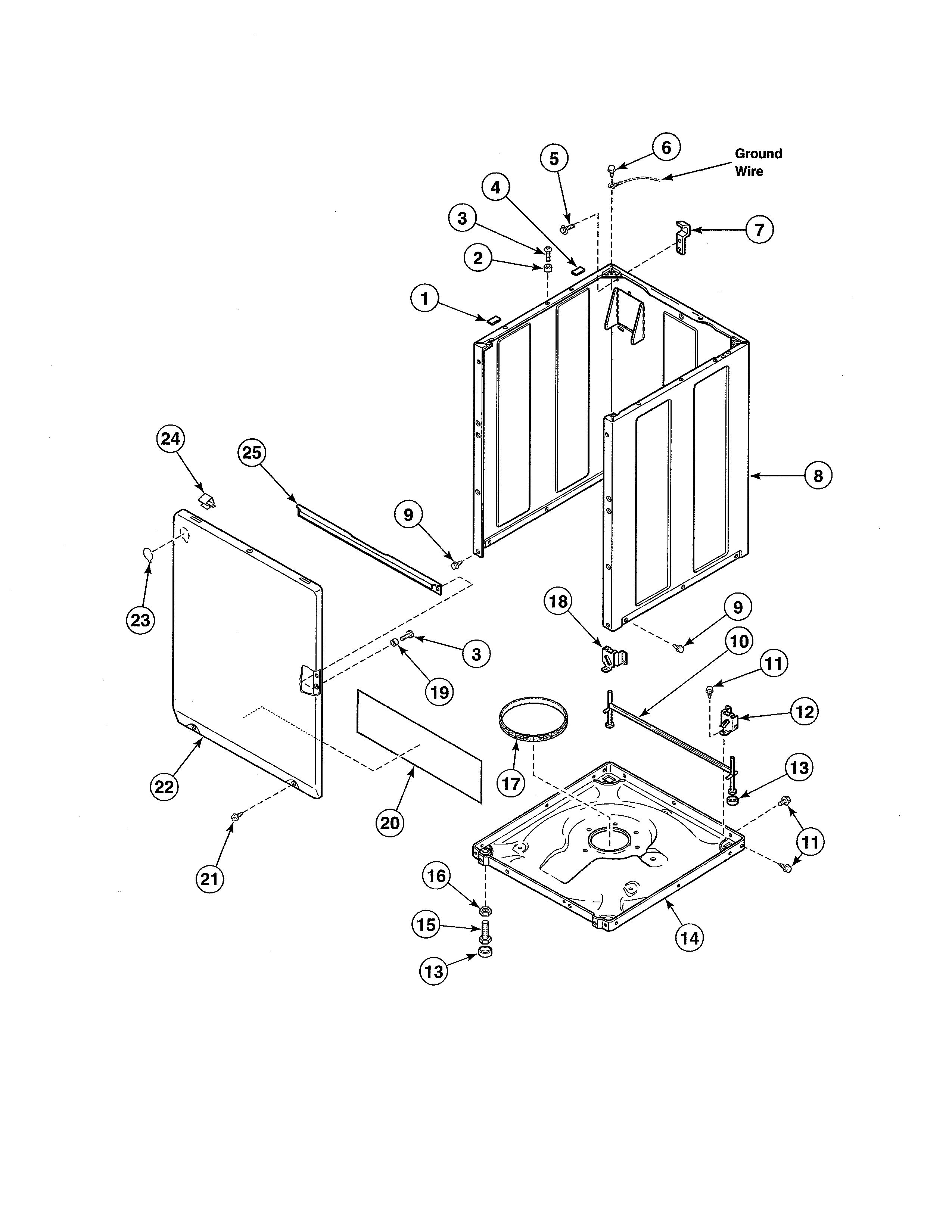

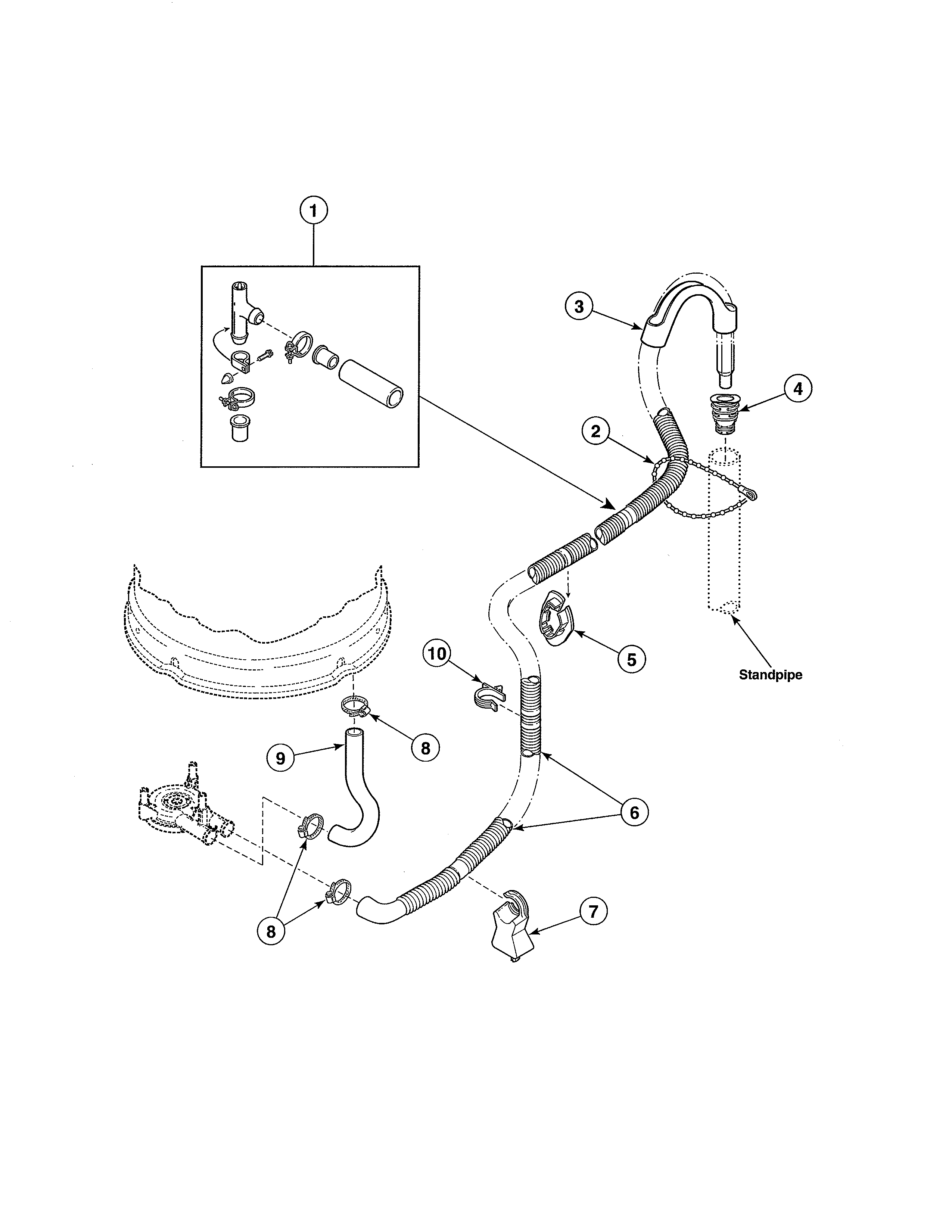

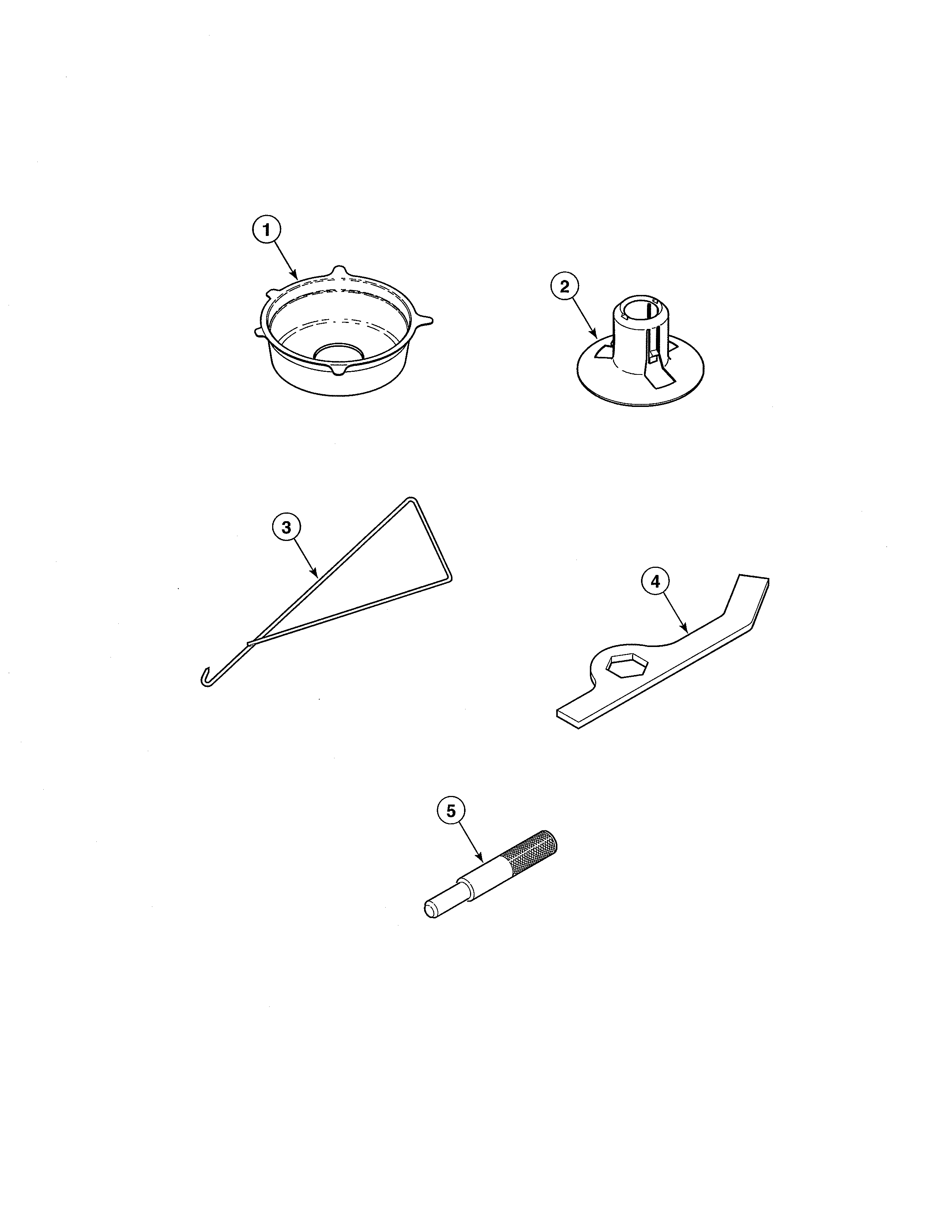

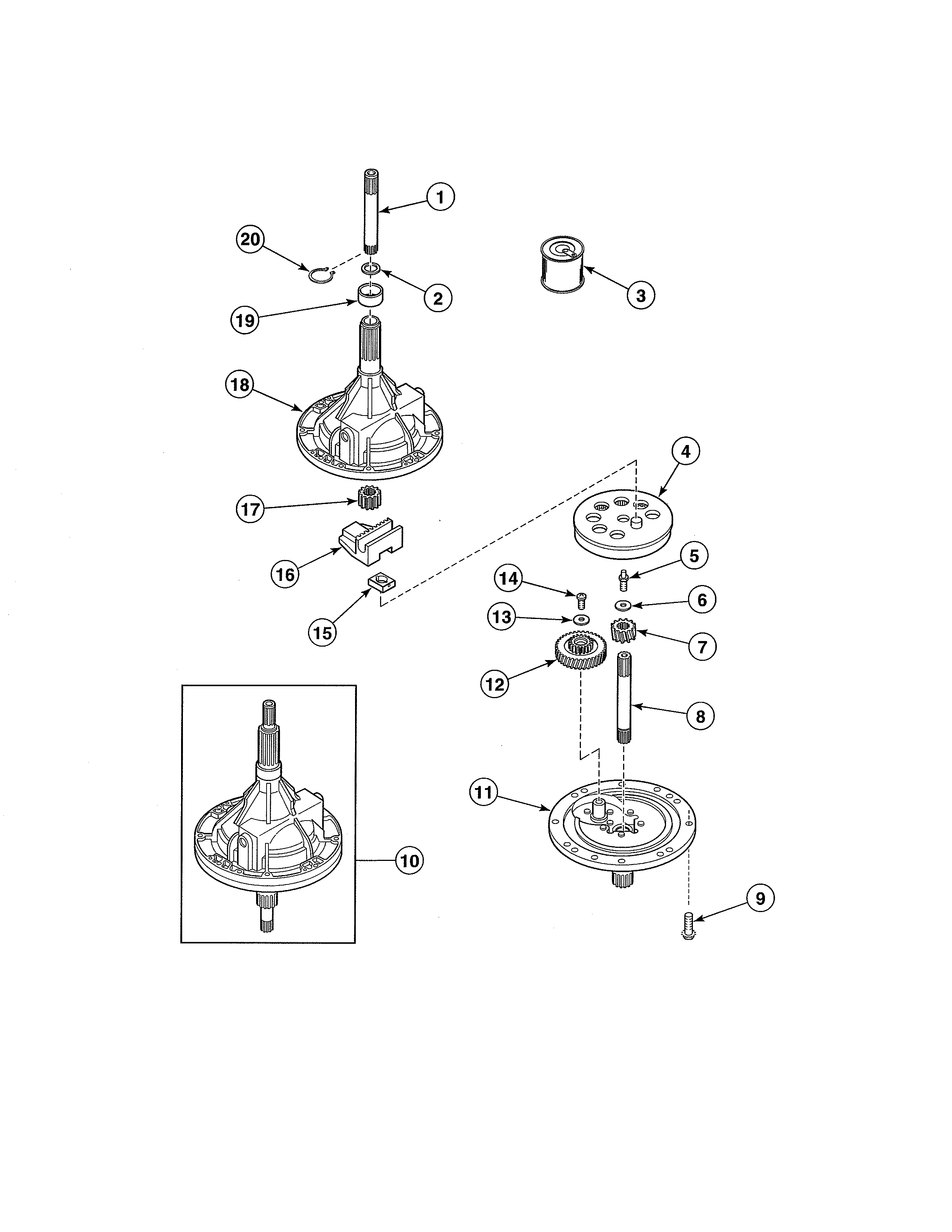

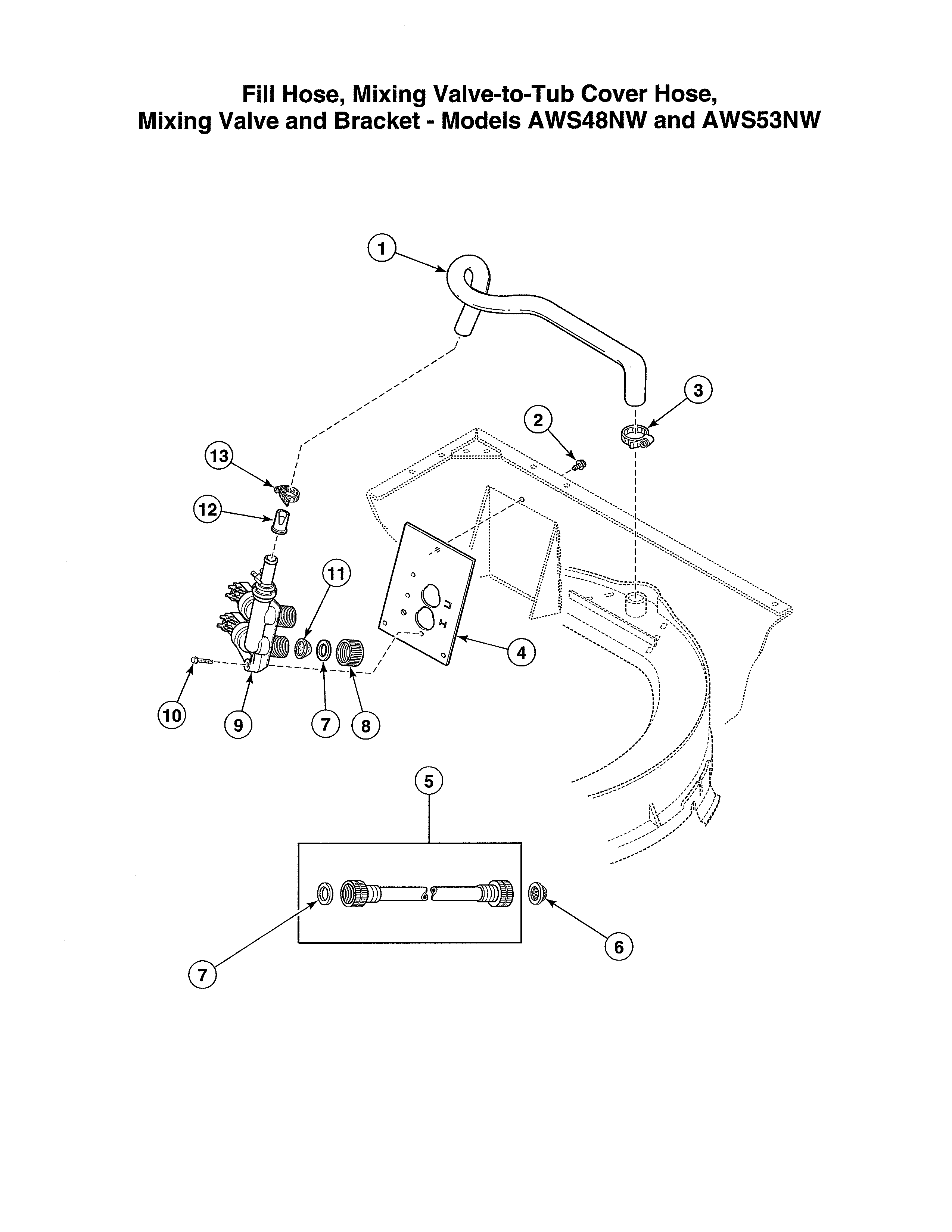

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Washer Timer 37922P
#9C

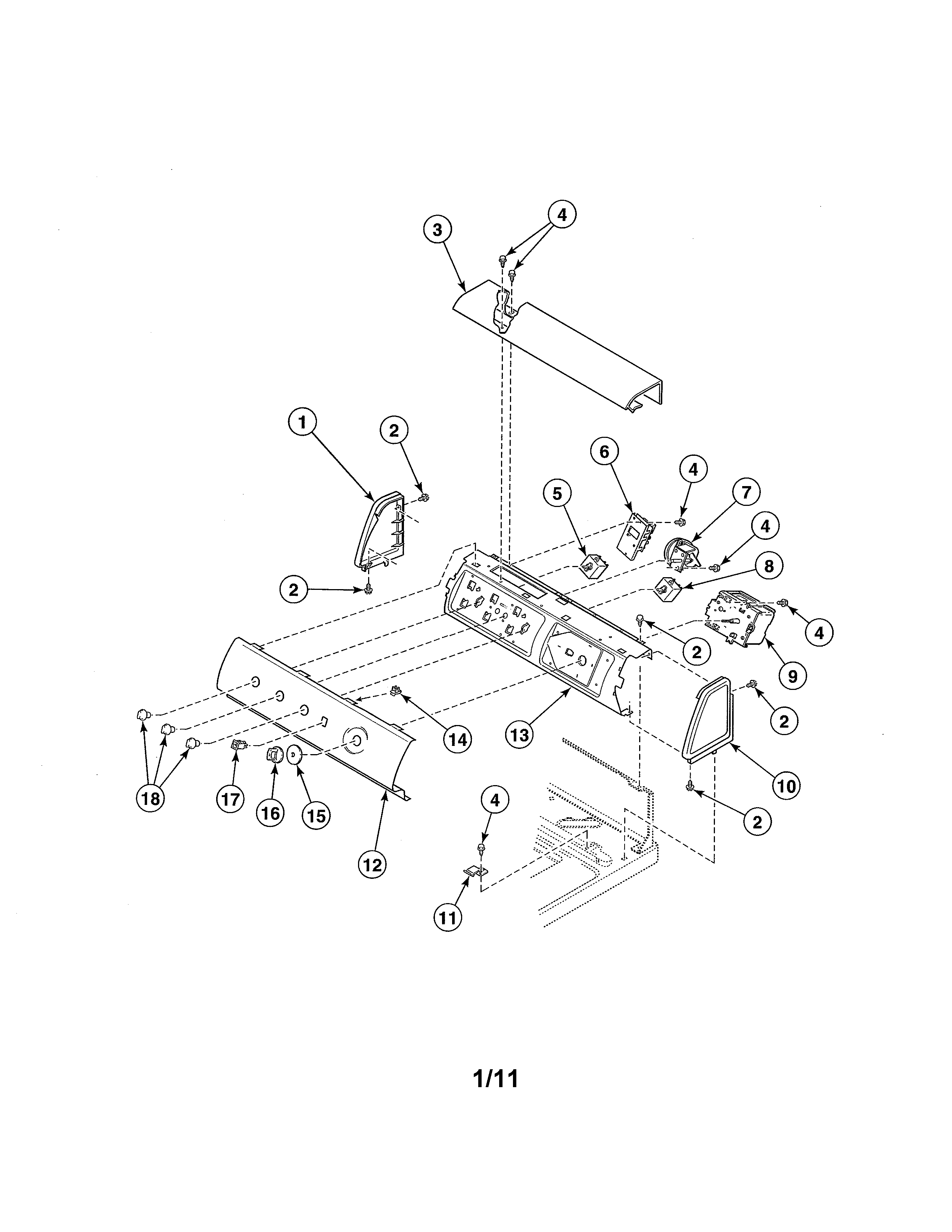

Graphic panel/control support panel diagram

Washer timer

Part #37922P

$261.39 |
$10.00 OFF Phone Price : $271.39
In Stock
Washer Counterweight Spring 37575
#6A

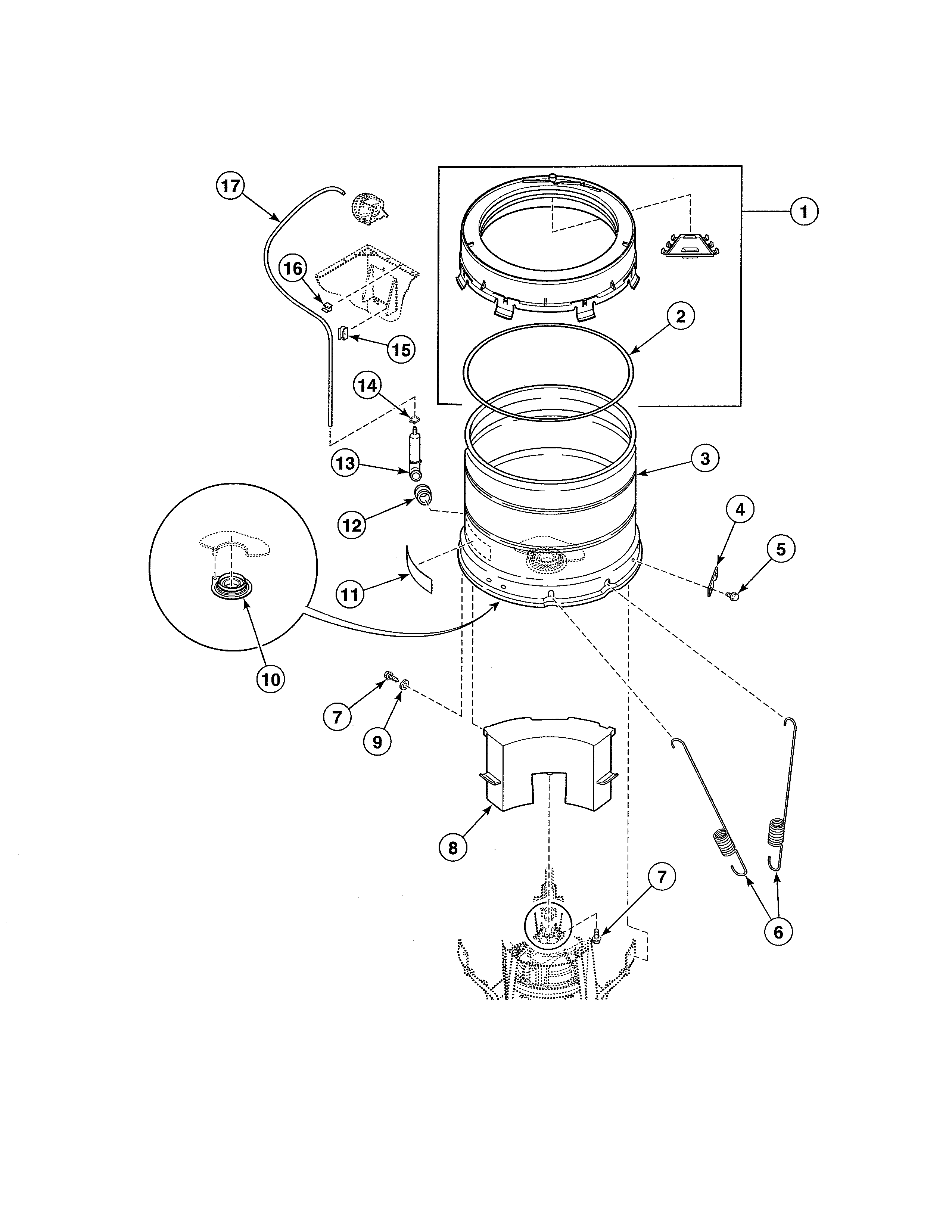

Outer tub/cover/counterweight diagram

Washer counterweight spring

Part #37575

The manufacturer no longer makes this part, and there's no substitute part

Washer Drive Belt 38174
#17

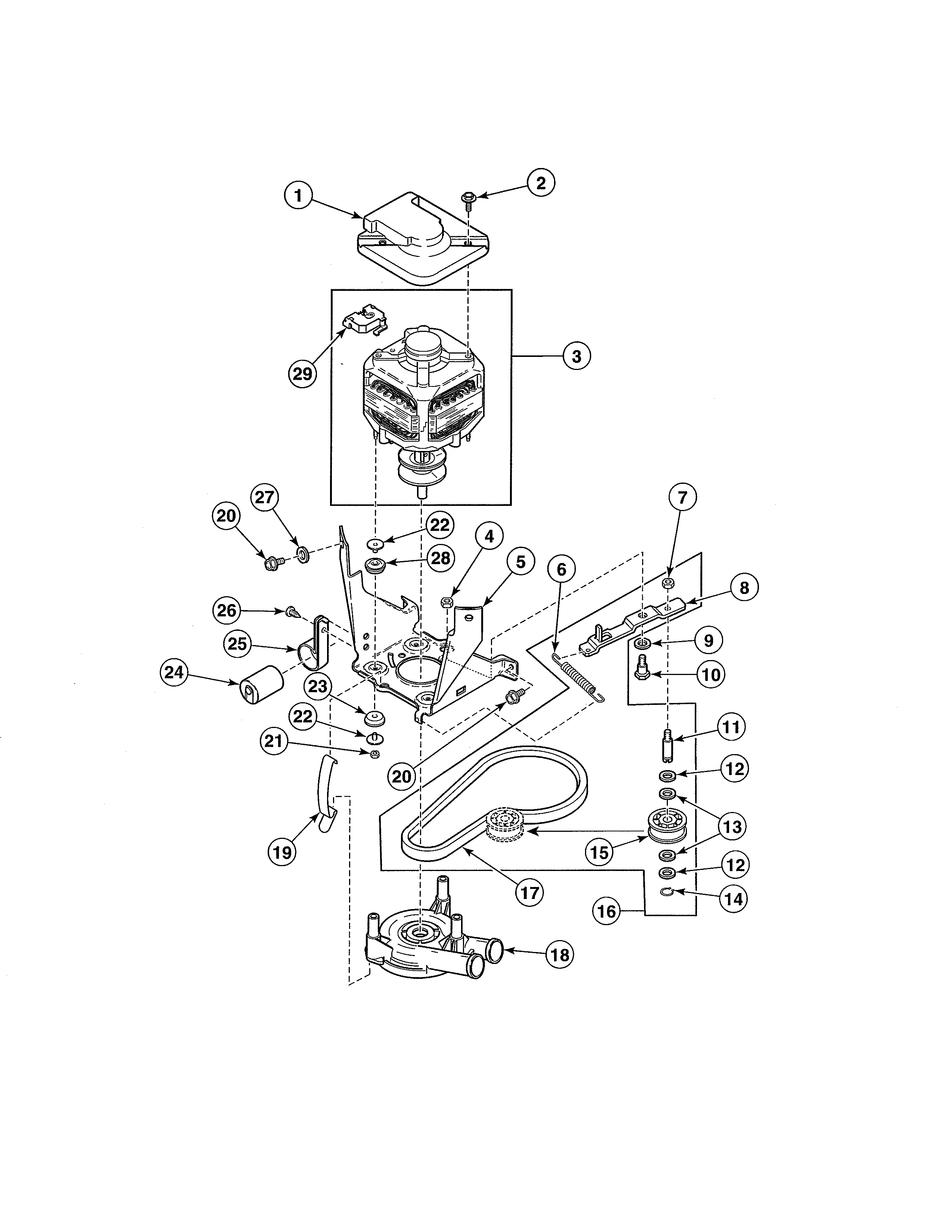

Motor/belt/pump/idler diagram
