GE AHD06LZQ1 room air conditioner

GE AHD06LZQ1 room air conditioner Parts

Here are the diagrams and repair parts for GE AHD06LZQ1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AHD06LZQ1 Room Air Conditioner

  • Accessory As for GE AHD06LZQ1 - Part WJ01X23637

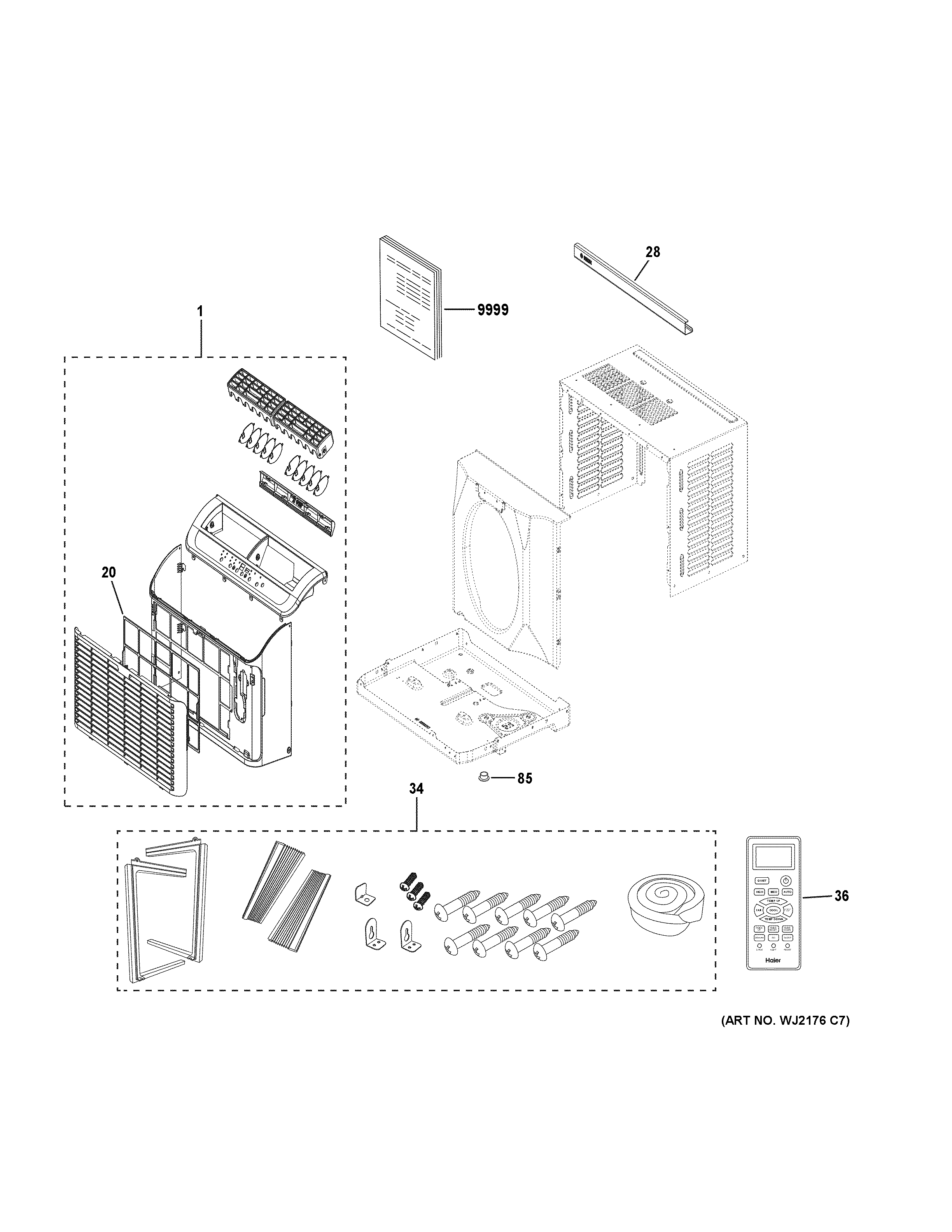

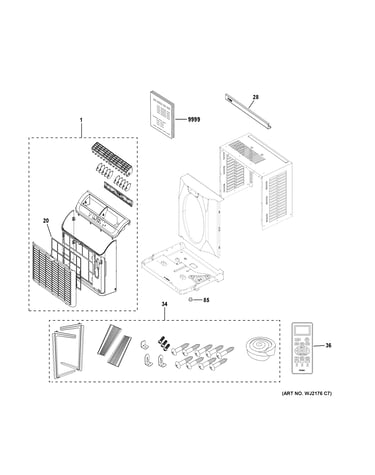

    Room air conditioner diagram

    Accessory As

    In Stock
    $26.43
    19% OFF Phone Price : $32.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Remote Contr for GE AHD06LZQ1 - Part WJ26X23464

    Room air conditioner diagram

    Remote Contr

    In Stock
    $22.23
    21% OFF Phone Price : $28.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Filter Net for GE AHD06LZQ1 - Part WJ85X22902

    Room air conditioner diagram

    Filter Net

    In Stock
    $21.11
    22% OFF Phone Price : $27.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Front Panel for GE AHD06LZQ1 - Part WJ71X25913

    Room air conditioner diagram

    Front Panel

    In Stock
    $36.86
    14% OFF Phone Price : $42.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Top Rail for GE AHD06LZQ1 - Part WJ65X25914

    Room air conditioner diagram

    Top Rail

    In Stock
    $37.23
    Minus Item
    Qty
    Plus Item
  • Drain Plug for GE AHD06LZQ1 - Part WJ01X27453

    Room air conditioner diagram

    Plug

    Part #WJ05X20122

    Replaced by #WJ01X27453

    Info Icon
    Manufacturer substitution
    This part replaces WJ05X20122. Substitute parts can look different from the original.
    In Stock
    $31.44
    Minus Item
    Qty
    Plus Item
  • Pm Use And Care for GE AHD06LZQ1 - Part 49-7778

    Room air conditioner diagram

    Pm Use And Care

    Part #49-7778

    The manufacturer no longer makes this part, and there's no substitute part

GE Room Air Conditioner AHD06LZQ1 FAQs

If your GE AHD06LZQ1 window air conditioner runs but is not getting cold, the most common causes are restricted airflow (dirty filter or blocked coils), incorrect settings, or a sealed-system problem such as low refrigerant. Start with filter and coil cleaning, then confirm the unit is set to Cool with a low temperature.

Quick checks that fix most “not cooling” complaints
  • Set Mode = Cool (not Fan or Eco) and set temperature to the lowest setting.
  • Clean or replace the air filter; a clogged filter can make the evaporator get too cold and reduce cooling.
  • Make sure the front intake and rear exhaust are not blocked by curtains, furniture, or a dirty outdoor coil.
  • Verify the unit is level or slightly tilted to the outside so heat and condensate move out correctly.
  • After changing settings, wait 5 to 10 minutes; many units have a compressor delay.
Parts to inspect on this model

For the AHD06LZQ1, start with the filter and front cover because they directly affect airflow.

What you check What you might notice What to do
Air filter Weak airflow, icing, musty smell Clean or replace the filter net WJ85X22902
Front grille/panel Air can’t enter freely Remove and clean the front panel WJ71X25913 and intake area
Remote/settings Wrong mode or temp Confirm settings; replace batteries if commands lag
When it points to a bigger problem

These symptoms usually mean the compressor is not running correctly or the sealed system is not performing.

  • Compressor hums, then clicks off repeatedly
  • Airflow is strong but air is never cold
  • Coils ice up quickly even with a clean filter
  • Unit cools briefly, then stops cooling for long periods

In these cases, we recommend service by a qualified technician because refrigerant and sealed-system repairs require specialized tools.

Why it matters

A window air conditioner cools by moving heat through the evaporator and condenser coils. When airflow is restricted or the coils are dirty, the system cannot transfer heat efficiently, so the room stays warm and the compressor works harder.

Last updated: January 2026

A true portable air conditioner (compressor-based) always needs a way to exhaust hot air, so it still needs a vent path (usually a window kit). If you have no window access, the practical alternatives are an evaporative cooler (best in dry climates) or venting the portable AC through a wall, drop ceiling, or door using a proper kit.

What “no window” really means

Most products marketed as “windowless AC” fall into one of these categories:

  • Evaporative cooler (swamp cooler): Uses water evaporation; no exhaust hose.
  • Portable AC (single-hose or dual-hose): Cools well but must exhaust heat outdoors.
  • “Personal air cooler” fan units: Moves air and may feel cooler nearby, but does not lower room temperature like an AC.
Best options for rooms without a window

If you cannot use a window, these are the setups that work most reliably:

  • Through-the-wall venting: Cut-in vent or sleeve to the outdoors (best long-term solution).
  • Door venting: A sliding door kit or a panel insert for a standard door opening.
  • Drop-ceiling venting: Only if it truly vents outdoors and meets building rules.
  • Evaporative cooler: Works well when indoor humidity stays low.
Quick comparison
Option Needs exhaust to outdoors Works in humid climates Cooling strength
Evaporative cooler No No Low to medium
Portable AC (single-hose) Yes Yes Medium
Portable AC (dual-hose) Yes Yes Medium to high
Why it matters

An air conditioner removes heat from the room; that heat has to go somewhere. Without an outdoor exhaust path, a compressor-based “portable AC” will recirculate heat back into the space and you will not get real room cooling.

Related troubleshooting and setup help

If you are comparing cooling options or diagnosing performance issues on a GE room air conditioner like model AHD06LZQ1, we recommend starting with room air conditioner installation and operation tips and, for display or diagnostic issues, GE error codes.

Last updated: January 2026

A 10,000 BTU room air conditioner typically cools about 400 to 450 square feet in average conditions. For best results, match BTU to your room size and heat load; even a properly sized unit can struggle if the filter is clogged or airflow is blocked.

Quick sizing guide (10,000 BTU)

Use room square footage first, then adjust for real-world conditions:

  • Best-fit range: 400 to 450 sq ft
  • High sun exposure (south or west windows): size up one step
  • High ceilings (over 8 ft): size up
  • Kitchen use or heavy cooking heat: size up
  • Many occupants (more than 2 regularly): size up
  • Shaded room, good insulation: 10,000 BTU often performs closer to the top of the range
Adjustments that change the “right” BTU

Even if your room is 400 to 450 sq ft, these factors can change performance:

Condition in the room What you’ll notice What to do
Strong afternoon sun Runs constantly, still warm Close blinds, consider higher BTU
Poor airflow (dirty filter, blocked grille) Weak air output, icing risk Clean or replace the filter
Open doors to other rooms Cools slowly, uneven temps Close doors, seal gaps
High humidity Feels clammy even when cooler Use “Dry” mode if available
Why it matters

Correct BTU sizing helps your GE room air conditioner run efficiently, control humidity, and avoid issues like short cycling (too large) or nonstop running (too small). Airflow maintenance is just as important as BTU rating.

Helpful maintenance tip for better cooling

If cooling seems weak, start with airflow:

  • Remove and clean the air filter regularly
  • Make sure the front intake is not blocked by curtains or furniture
  • Confirm the unit is level and installed securely

For the GE AHD06LZQ1, the correct replacement air filter is the filter net WJ85X22902.

Related help: room air conditioner installation and operation tips

Last updated: January 2026

Yes, a “mini air conditioner” can work, but what it does depends on the type. For real air conditioning like your GE AHD06LZQ1 room air conditioner, the unit must remove heat and send it outside; many “mini AC” gadgets are evaporative coolers that only provide mild cooling in small, dry spaces.

What people mean by “mini air conditioner”

Most products marketed as mini ACs fall into one of these categories:

  • Evaporative cooler (swamp cooler): blows air across water; best in low humidity
  • Personal “desktop” cooler: small fan plus water pad; limited temperature drop
  • True portable air conditioner: uses a compressor and must vent hot air outside
  • Window room air conditioner: like the GE AHD06LZQ1; vents heat outdoors through the window
What to expect: quick comparison
Type sold as “mini AC” Needs venting? Best use case Typical result
Evaporative cooler No Dry climates, spot cooling Slight cooling, adds humidity
Desktop personal cooler No Very small personal area Feels cooler only in the airflow
Portable AC (single-hose) Yes Small rooms with a window Cools, but less efficient
Window AC (GE AHD06LZQ1) Built-in (window) Bedrooms, offices True room cooling
Why it matters

If you want dependable cooling, you need a system that moves heat out of the room. Evaporative “mini AC” units do not remove heat the same way; they mainly change how the air feels and can raise indoor humidity.

Tips to get better cooling from a window AC like GE AHD06LZQ1

These steps improve airflow and heat transfer, which directly improves cooling performance:

  • Clean the air filter regularly; a clogged filter reduces airflow and can lead to icing
  • Make sure the front grille and louvers are not blocked by curtains or furniture
  • Confirm the unit is level and securely installed so it can manage condensate properly
  • Use a lower fan speed for better dehumidification in humid weather
  • If the unit runs but does not cool, check for dirty coils, icing, or a control issue

If you need a replacement filter for this model, use the correct part such as the filter net WJ85X22902. For troubleshooting display or performance issues, use our GE error codes reference.

Last updated: January 2026
