Panasonic NN-L530BF microwave

Panasonic NN-L530BF microwave Parts

Here are the diagrams and repair parts for Panasonic NN-L530BF microwave, as well as links to manuals and error code tables, if available.

By Schematic

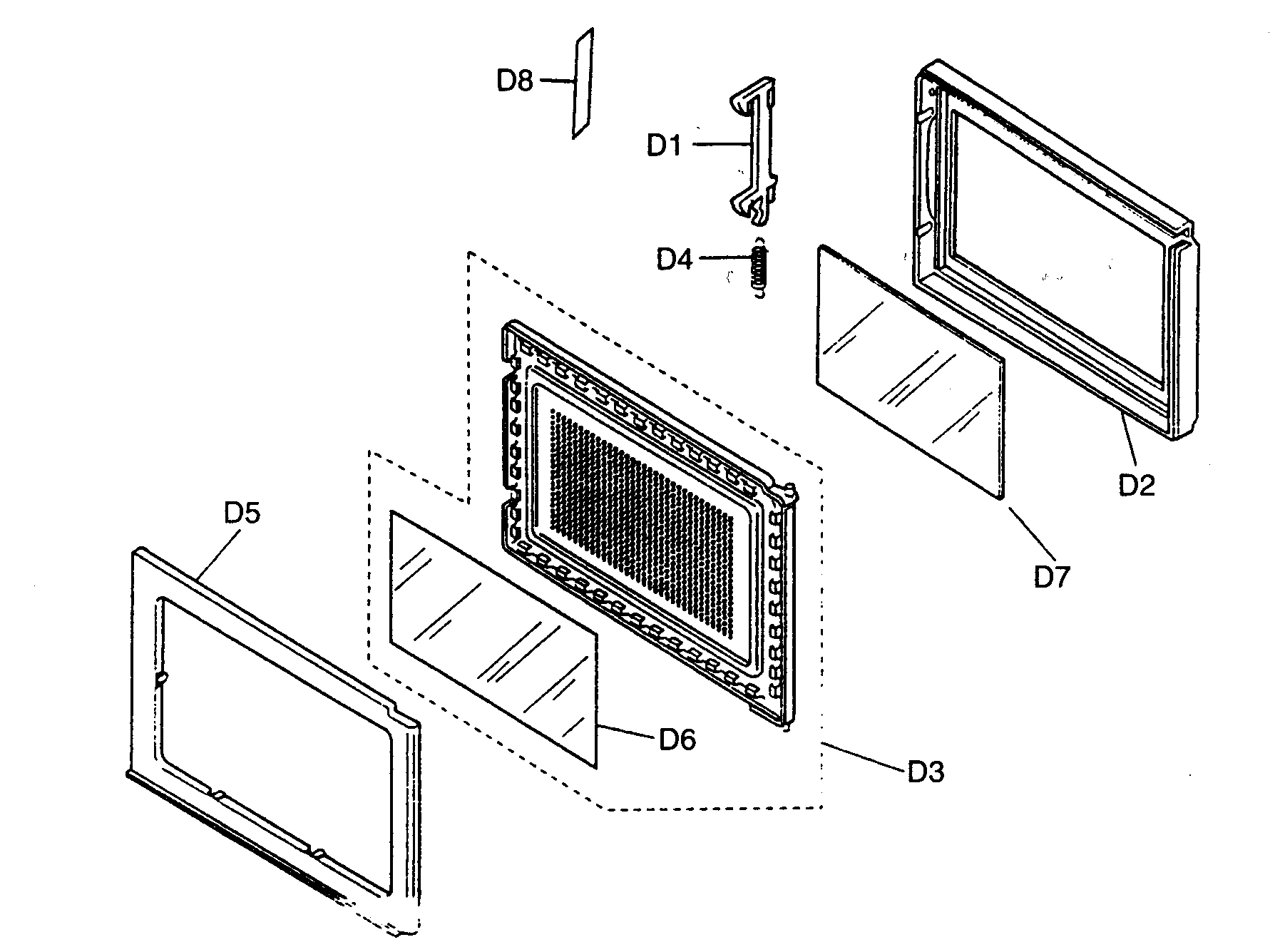

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

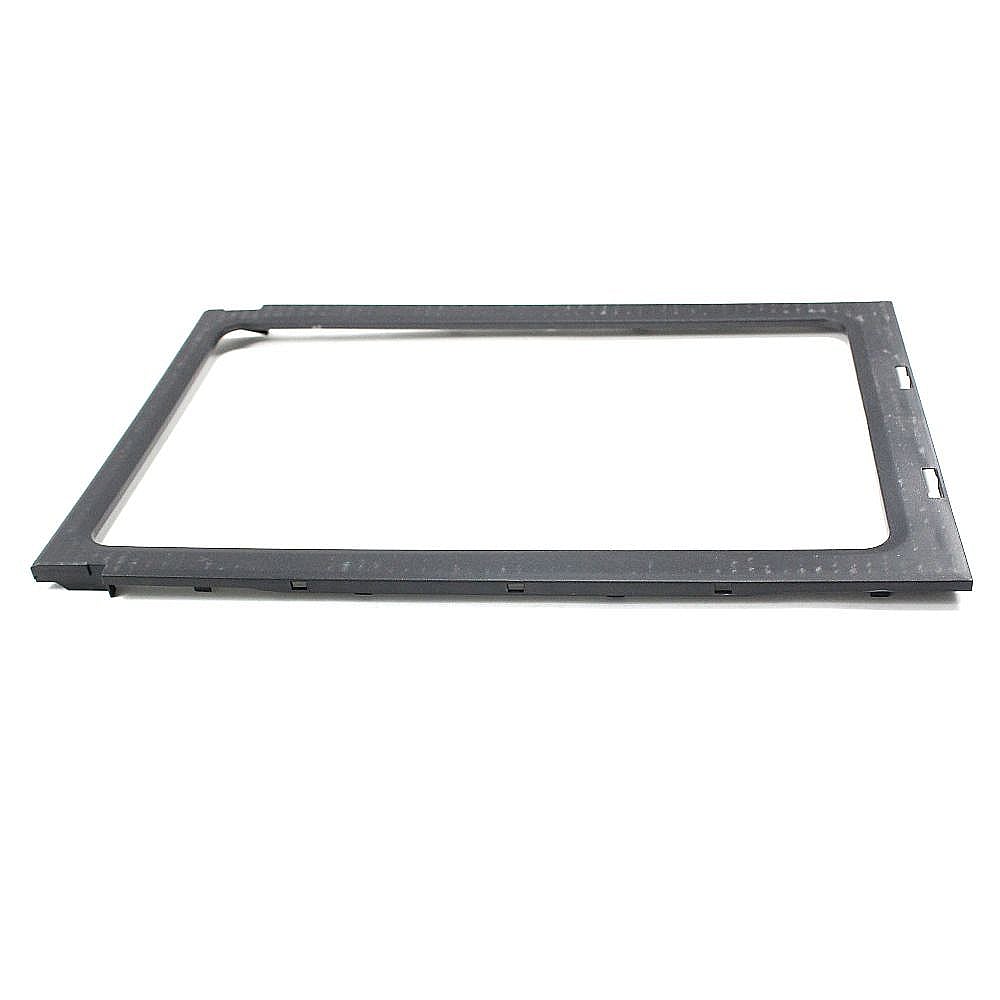

Browse Parts for NN-L530BF Microwaves

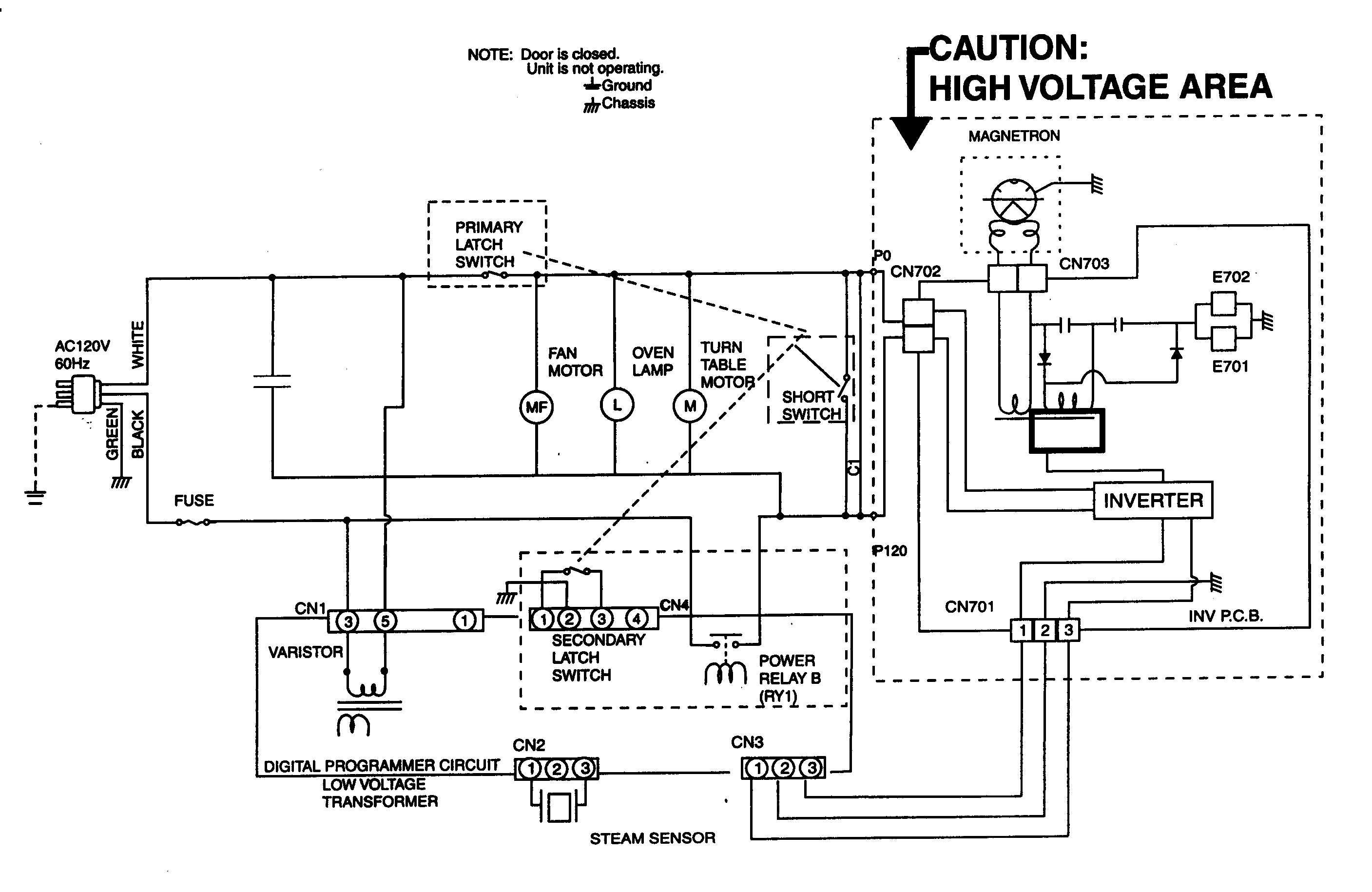

  • Lead Wire Harness for Panasonic NN-L530BF - Part F030A4T20AP

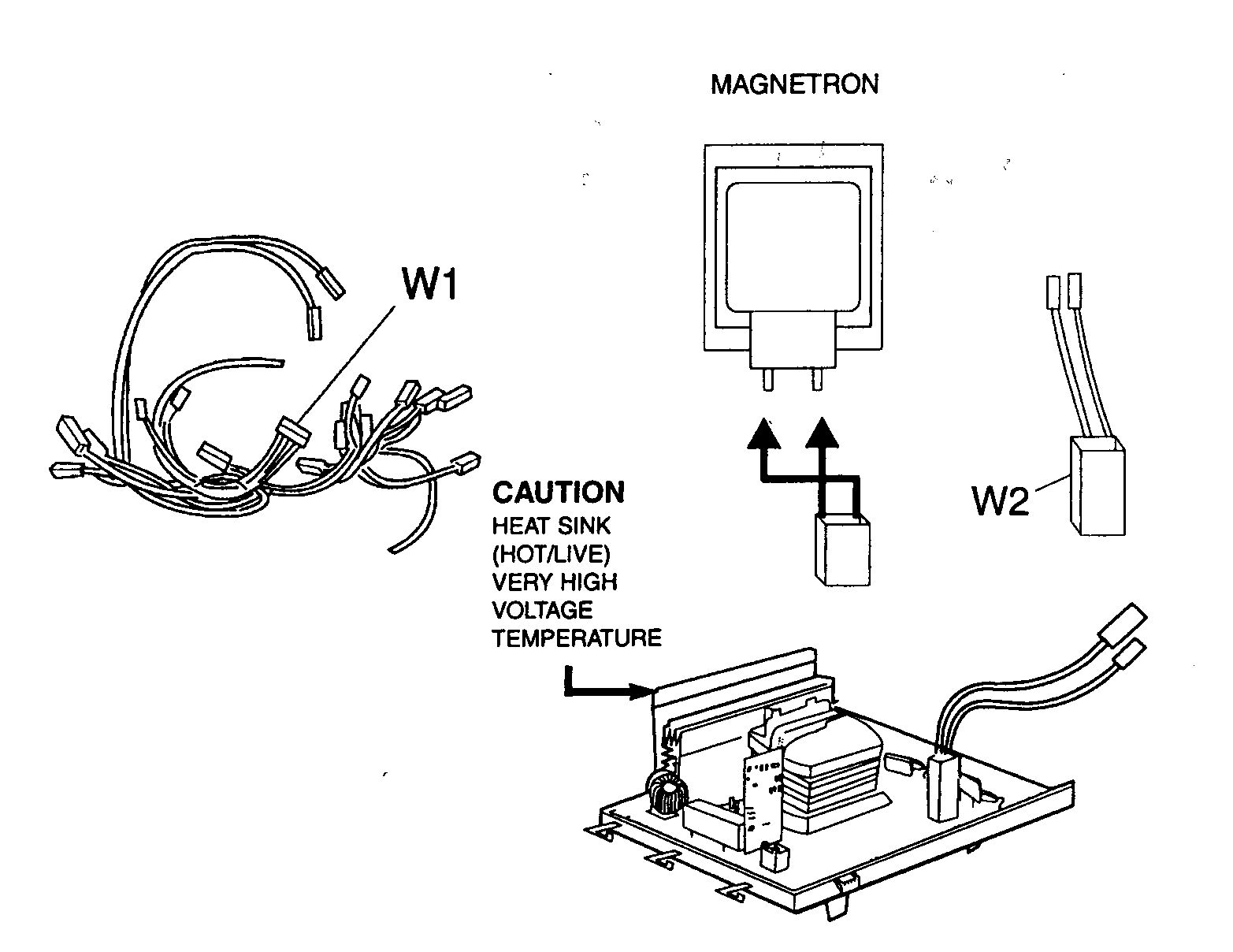

    Wiring material diagram

    Lead Wire Harness

    Part #F030A4T20AP

    The manufacturer no longer makes this part, and there's no substitute part

  • Touch Pad for Panasonic NN-L530BF - Part F630Y4T30BAP

    Escutheon base assy diagram

    Touch Pad

    Part #F630Y4T30BAP

    The manufacturer no longer makes this part, and there's no substitute part

  • Base for Panasonic NN-L530BF - Part F80344T00BAP

    Escutheon base assy diagram

    Base

    Part #F80344T00BAP

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch for Panasonic NN-L530BF - Part A61785180AP

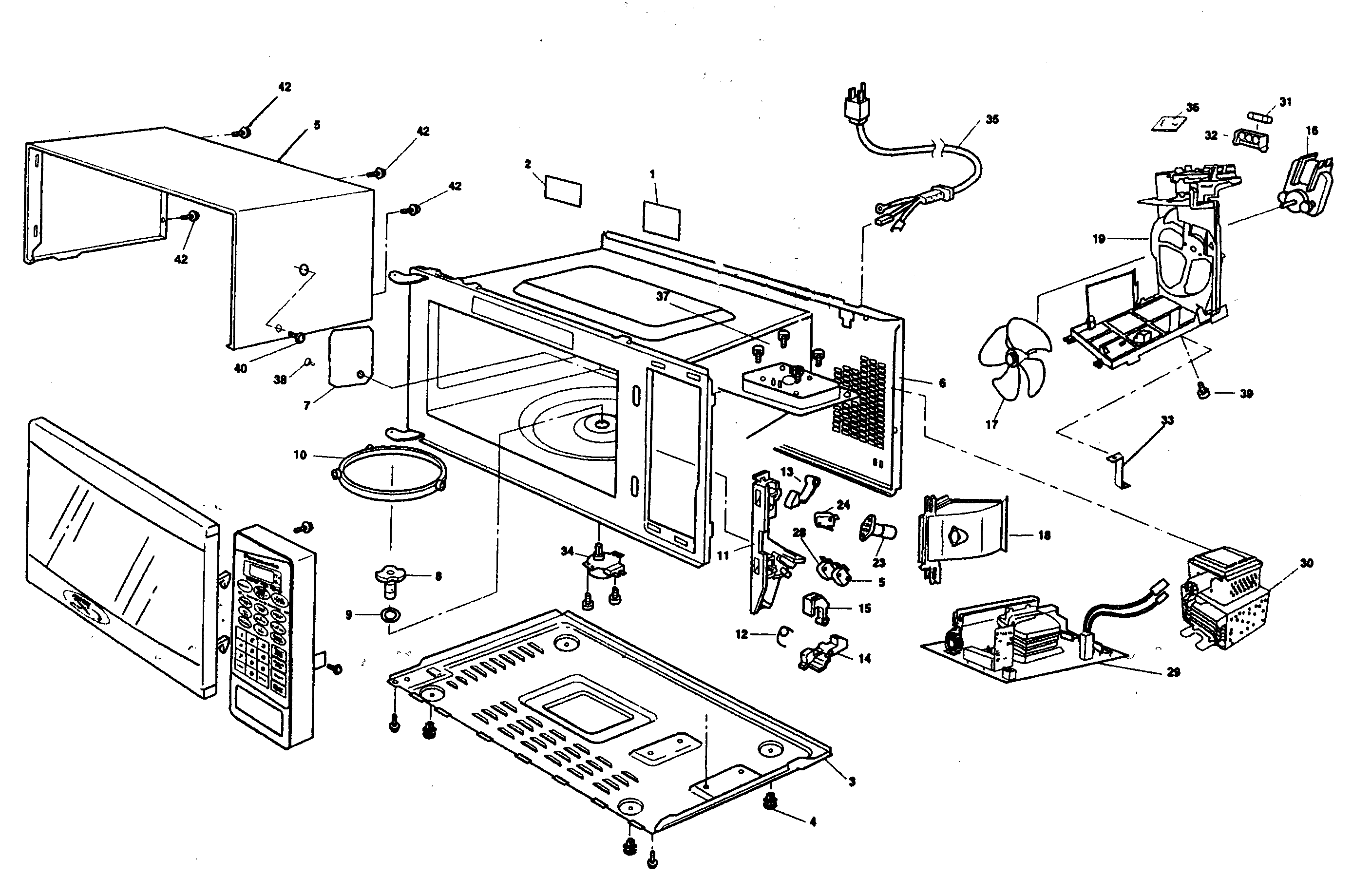

    Cabinet parts diagram

    Switch

    Part #A61785180AP

    The manufacturer no longer makes this part, and there's no substitute part

  • Keyboard for Panasonic NN-L530BF - Part F630Y4T30HAP

    Escutheon base assy diagram

    Keyboard

    Part #F630Y4T30HAP

    The manufacturer no longer makes this part, and there's no substitute part

  • Lamp for Panasonic NN-L530BF - Part F612E9660AP

    Cabinet parts diagram

    Lamp

    Part #F612E9660AP

    The manufacturer no longer makes this part, and there's no substitute part

  • Panasonic Inverter for Panasonic NN-L530BF - Part A606Y4T00AP

    Cabinet parts diagram

    Panasonic Inverter

    Part #A606Y4T00AP

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb for Panasonic NN-L530BF - Part F603L4T30AP

    Escutheon base assy diagram

    Pcb

    Part #F603L4T30AP

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb for Panasonic NN-L530BF - Part F603L4T30CP

    Cabinet parts diagram

    Pcb

    Part #F603L4T30CP

    The manufacturer no longer makes this part, and there's no substitute part

  • Glass Tray for Panasonic NN-L530BF - Part A06014T00AP

    Cabinet parts diagram

    Glass Tray

    Part #A06014T00AP

    The manufacturer no longer makes this part, and there's no substitute part
