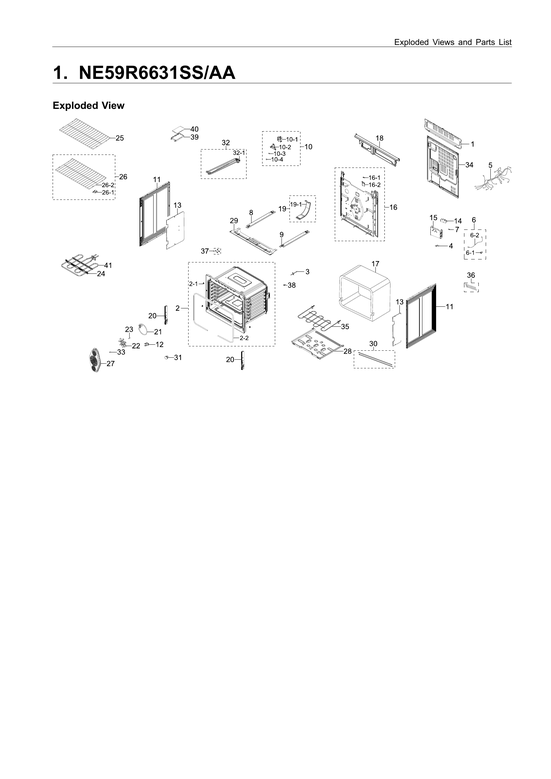

Samsung NE59R6631SS/AA-00 free standing electric range Parts

For the Samsung NE59R6631SS free standing electric range, the plug and outlet depend on your home’s range circuit: most installations use either a 3-prong (3-wire) or 4-prong (4-wire) range cord on a 120/240V (or 120/208V) single-phase, 60 Hz circuit. The power cord is typically not included; confirm the exact connection requirements in the NE59R6631SS owner's manual.

What you’ll typically see in U.S. homes

Most electric ranges are connected to a dedicated range receptacle using one of these cord types:

• 4-prong (4-wire): common in newer installations; separate neutral and ground
• 3-prong (3-wire): common in older installations; neutral and ground are combined
• High-amperage range circuit: commonly 40A or 50A (your breaker and wiring determine this)

How to choose the correct cord for your outlet

Use your wall outlet shape as the deciding factor. Match the cord to the receptacle you already have.

• If your outlet has 4 slots, use a 4-prong range cord
• If your outlet has 3 slots, use a 3-prong range cord
• If the outlet looks damaged, loose, or heat-marked, stop and correct the electrical issue before using the range

Quick comparison

Outlet/cord style	Wires	Most common in	What it means
4-prong range cord	4	Newer homes	Separate neutral and ground
3-prong range cord	3	Older homes	Neutral and ground combined

Why it matters

Using the correct cord and wiring method helps prevent overheating at the terminal connections and reduces the risk of electrical shock. The manual also emphasizes unplugging the range (or switching off the breaker) before servicing or if you notice cracking, burning smells, smoke, or other electrical symptoms.

Related part that’s often involved in power-connection issues

If you see arcing, melting, or a burnt smell at the cord connection point (with power OFF at the breaker), the range’s connection hardware may need attention. A commonly replaced component is the range terminal block DG96-00173A.

For ordering, use the parts list for NE59R6631SS on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. Samsung makes electric ranges, including the Samsung NE59R6631SS free standing electric range. This model uses a glass cooktop with radiant surface elements and an electric oven with features like convection, as shown in the NE59R6631SS owner's manual.

What “electric range” means for this model

An electric range combines an electric cooktop and an electric oven in one appliance. On NE59R6631SS, you typically have:

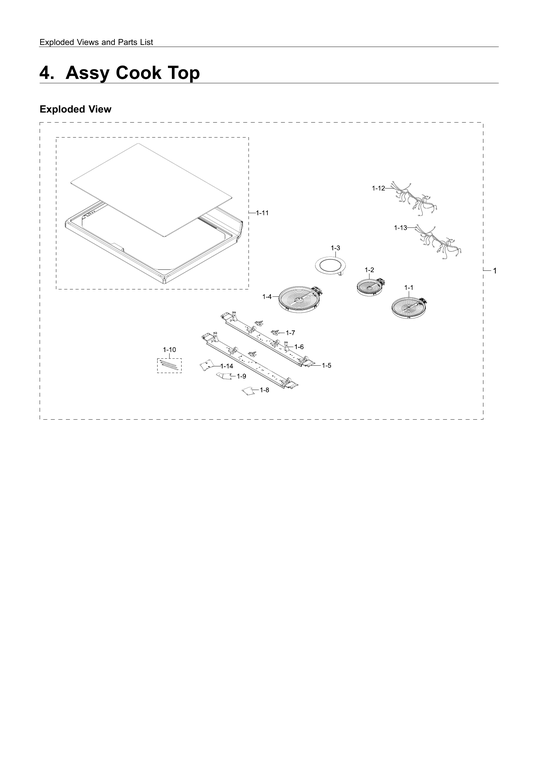

• Radiant surface cooking zones under a smooth glass surface

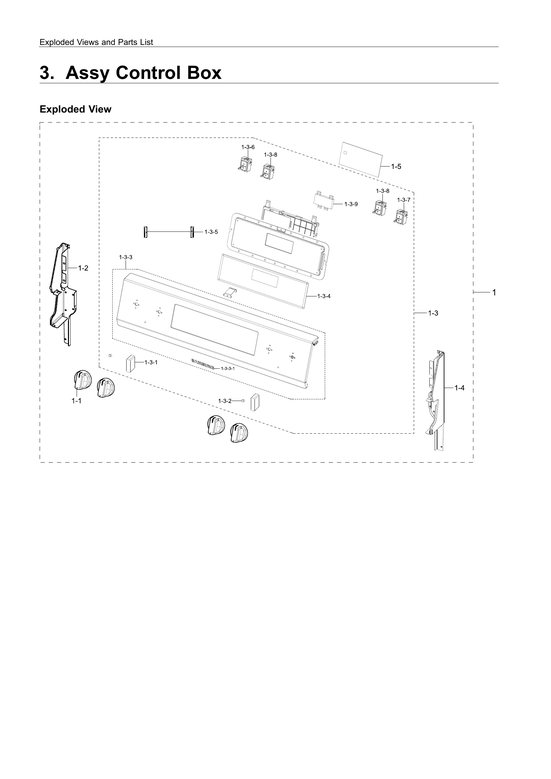

• Surface control knobs for the cooktop
• An oven control panel for bake, broil, and other modes

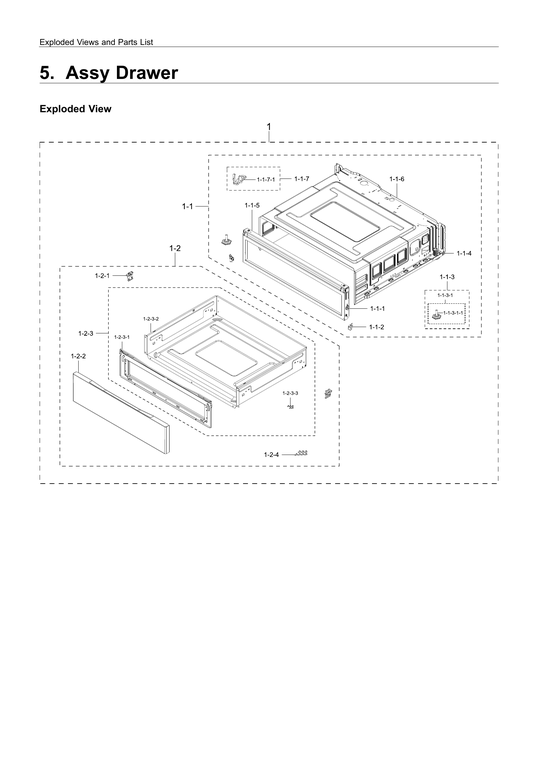

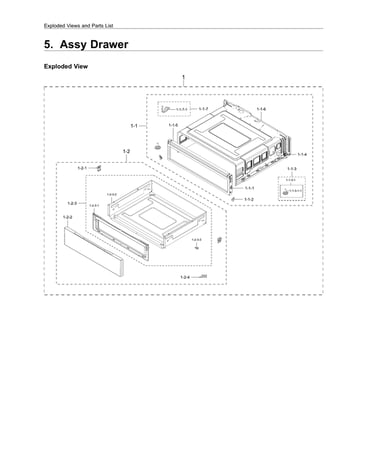

• A storage drawer below the oven

Common parts you may replace on an electric range

If a burner will not heat, heats erratically, or a knob setting does not respond correctly, these are common repair areas for NE59R6631SS:

• Surface element control switch (for a specific burner)
• Radiant surface element (6-in, dual, or triple element depending on position)

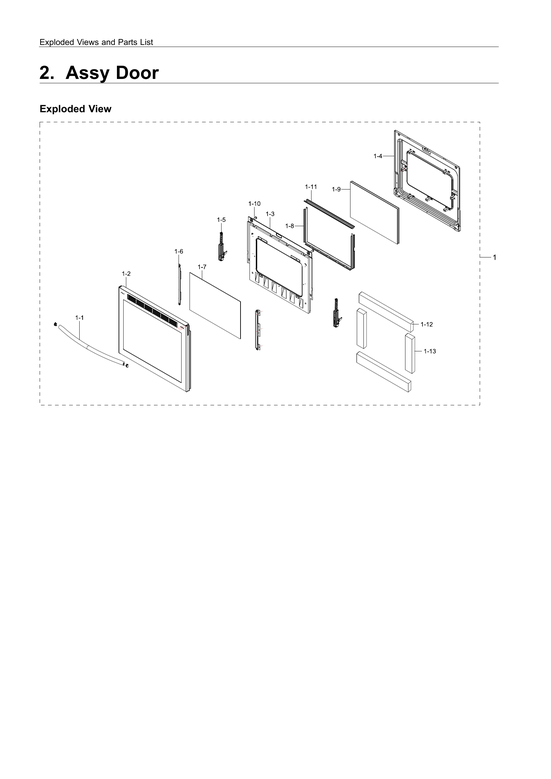

• Oven door switch or door lock assembly (often tied to light, cleaning, or door sensing)
• Oven control board or display board (when the control panel is blank or unresponsive)

Examples of model-matched parts on this page

Symptom	Common related part	What it affects
Burner will not regulate heat	Range surface element control switch DG44-01006A	Power cycling and heat control for a surface element
One surface zone will not heat	Range dual radiant surface element DG47-00067A	The heating element under the glass
Range appears dead or has control issues	Range oven control board DG92-01084A	Oven operation and electronic control functions

Why it matters

Samsung electric ranges use high-voltage components (typically 240 VAC). Using the correct model-matched part helps restore safe heating performance and prevents repeat failures from mismatched switches, elements, or boards.

Quick safety reminders before troubleshooting

• If the cooktop glass is cracked, switch off the cooking zones and unplug the range to reduce shock risk.
• Shut off power at the breaker before accessing internal wiring or controls.
• Let the oven and surfaces cool before inspecting or servicing.

You can order replacement parts for Samsung NE59R6631SS from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

If your Samsung NE59R6631SS electric oven is not heating, the most common causes are a power supply problem (tripped breaker or blown fuse), incorrect control settings, or a failed heating circuit component such as the oven control board or a burned power connection. Use the troubleshooting steps in the NE59R6631SS owner's manual to narrow it down safely.

Quick checks first (no tools)

• Confirm the range is fully plugged into a live, properly grounded outlet.
• Check your home electrical panel; reset the circuit breaker or replace a blown fuse.
• Verify the oven controls are set correctly for Bake or Broil (not just the cooktop).
• If the oven was just used, let it cool and try again (some functions will not start when the oven is too hot).
• After a power outage, reset the clock, then retry heating.

What to check next (power off)

Turn off power at the breaker before removing panels or touching wiring.

What you observe	Likely cause	What to do
Oven will not turn on at all	No power to range or a bad connection	Recheck breaker/fuse and outlet; inspect the power cord connection area
Oven turns on but does not heat	Control not sending power to bake/broil circuit	Check for loose or overheated wiring connections; test components with a multimeter
Intermittent heat or random shutoff	Heat-damaged connection or failing control	Inspect for discoloration, melted insulation, or loose terminals

Parts that commonly affect heating

If basic power and settings are correct, these model-matched parts are often involved in “no heat” complaints:

• Range oven control board DG92-01084A (can prevent bake or broil from energizing)
• Range terminal block DG96-00173A (burned or loose power connections can reduce or stop oven heat)

Why it matters

An electric oven needs full incoming voltage and tight, clean electrical connections to deliver consistent heat. A weak power feed or overheated terminal connection can cause slow preheat, no heat, or repeated shutdowns.

If you need to order replacement parts for NE59R6631SS, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026
