GE JRP20SK4SS electric oven Parts

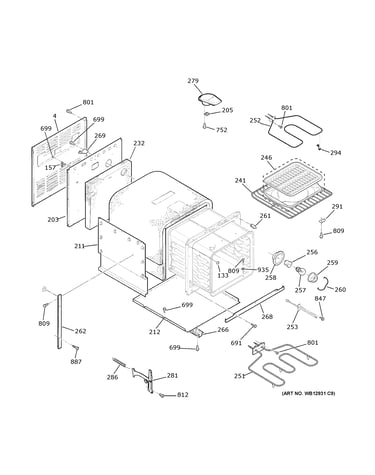

Here are the diagrams and repair parts for GE JRP20SK4SS electric oven, as well as links to manuals and error code tables, if available.

GE JRP20SK4SS electric oven
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JRP20SK4SS Wall Ovens

  • Range Screw for GE JRP20SK4SS - Part WB1K5173

    Screw St

    Part #WB01K5173

    Replaced by #WB1K5173

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5173. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Reinforcement Plate for GE JRP20SK4SS - Part WB2K5395

    Reinforcement Plate

    Part #WB02K5395

    Replaced by #WB2K5395

    Info Icon
    Manufacturer substitution
    This part replaces WB02K5395. Substitute parts can look different from the original.
    In Stock
    $12.42
    14% OFF Phone Price : $14.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Technician Range Screw for GE JRP20SK4SS - Part WB1X1261

    Screw

    Part #WB01X1261

    Replaced by #WB1X1261

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1261. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JRP20SK4SS - Part WB1X1137

    Screw

    Part #WB01X1137

    Replaced by #WB1X1137

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1137. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer for GE JRP20SK4SS - Part WB1K5174

    Washer

    Part #WB01K5174

    Replaced by #WB1K5174

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5174. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $36.54
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for GE JRP20SK4SS - Part WB36X192

    Wall Oven Light Lens

    Part #WB36X0389

    Replaced by #WB36X192

    Info Icon
    Manufacturer substitution
    This part replaces WB36X0389. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.39
    12% OFF Phone Price : $17.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Pm Owners Ma for GE JRP20SK4SS - Part 49-80715-1

    Wall Oven Owner's Manual

    Part #49-80715

    Replaced by #49-80715-1

    Info Icon
    Manufacturer substitution
    This part replaces 49-80715. Substitute parts can look different from the original.
    In Stock
    $22.86
    Minus Item
    Qty
    Plus Item
  • Odr Lin S for GE JRP20SK4SS - Part WB2K5132

    Odr Lin Stif

    Part #WB02K5132

    Replaced by #WB2K5132

    Info Icon
    Manufacturer substitution
    This part replaces WB02K5132. Substitute parts can look different from the original.
    In Stock
    $16.73
    11% OFF Phone Price : $18.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Spacer for GE JRP20SK4SS - Part WB2K5147

    Spacer

    Part #WB02K5147

    Replaced by #WB2K5147

    Info Icon
    Manufacturer substitution
    This part replaces WB02K5147. Substitute parts can look different from the original.
    In Stock
    $37.52
    Minus Item
    Qty
    Plus Item
  • Wire Cover for GE JRP20SK4SS - Part WB2X9665

    Wire Cover

    Part #WB02X9665

    Replaced by #WB2X9665

    Info Icon
    Manufacturer substitution
    This part replaces WB02X9665. Substitute parts can look different from the original.
    In Stock
    $54.75
    Minus Item
    Qty
    Plus Item
