Model # C1805 Official Hoover professional conquest cleaner

Here are the diagrams and repair parts for Official Hoover C1805 professional conquest cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

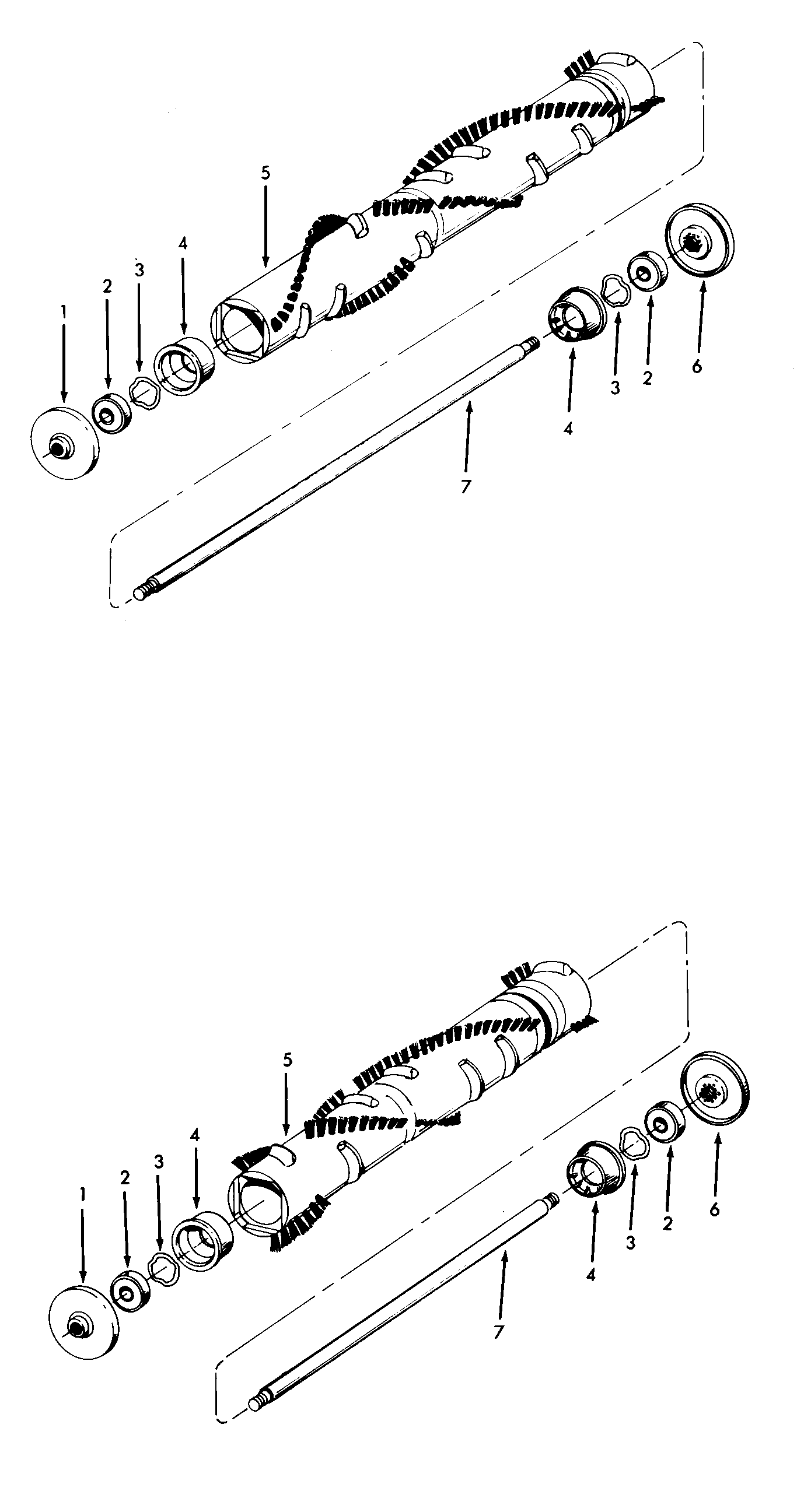

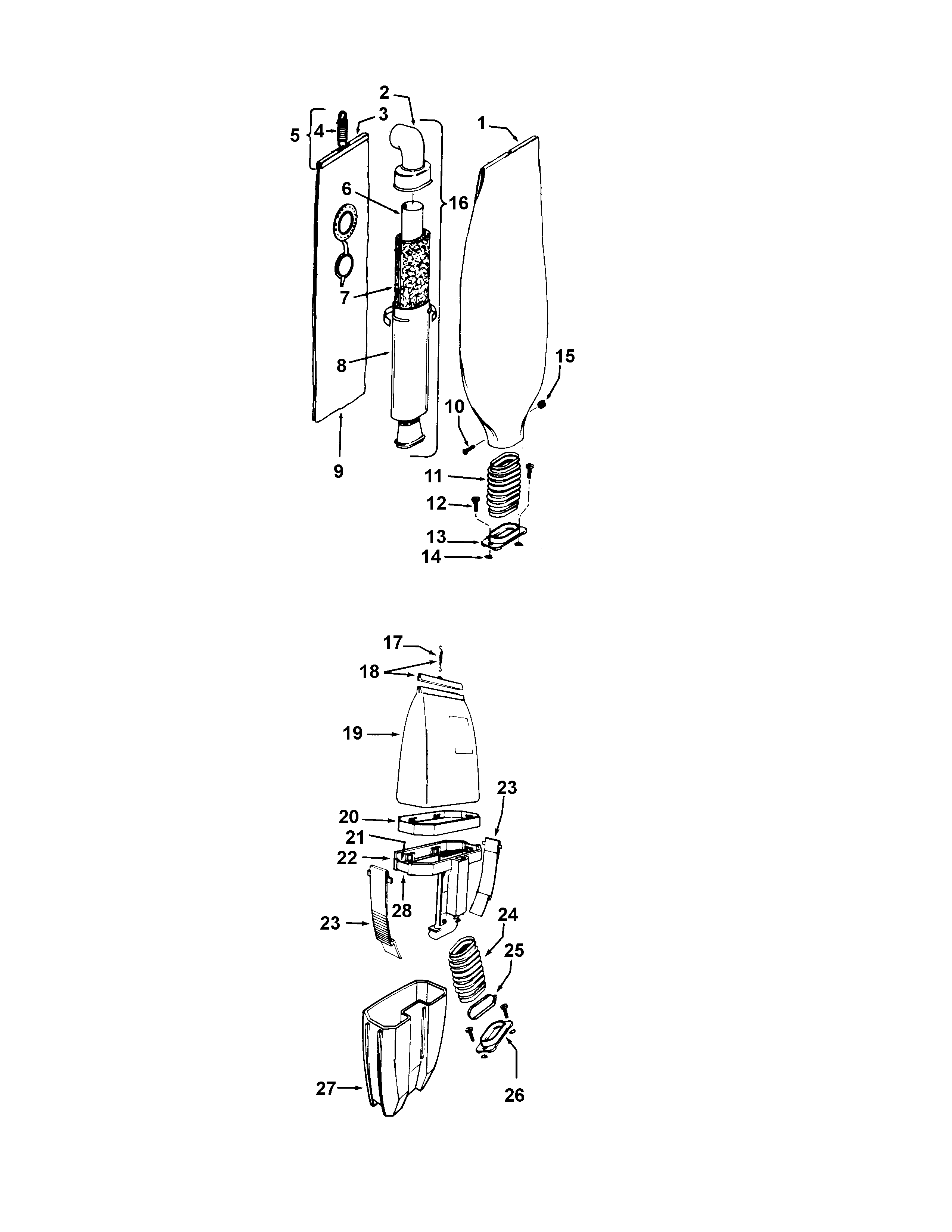

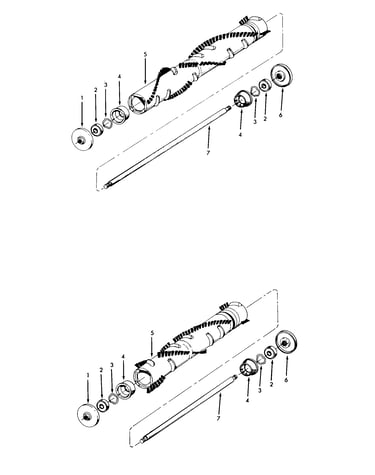

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |

Pulley Arm 43256007
#62

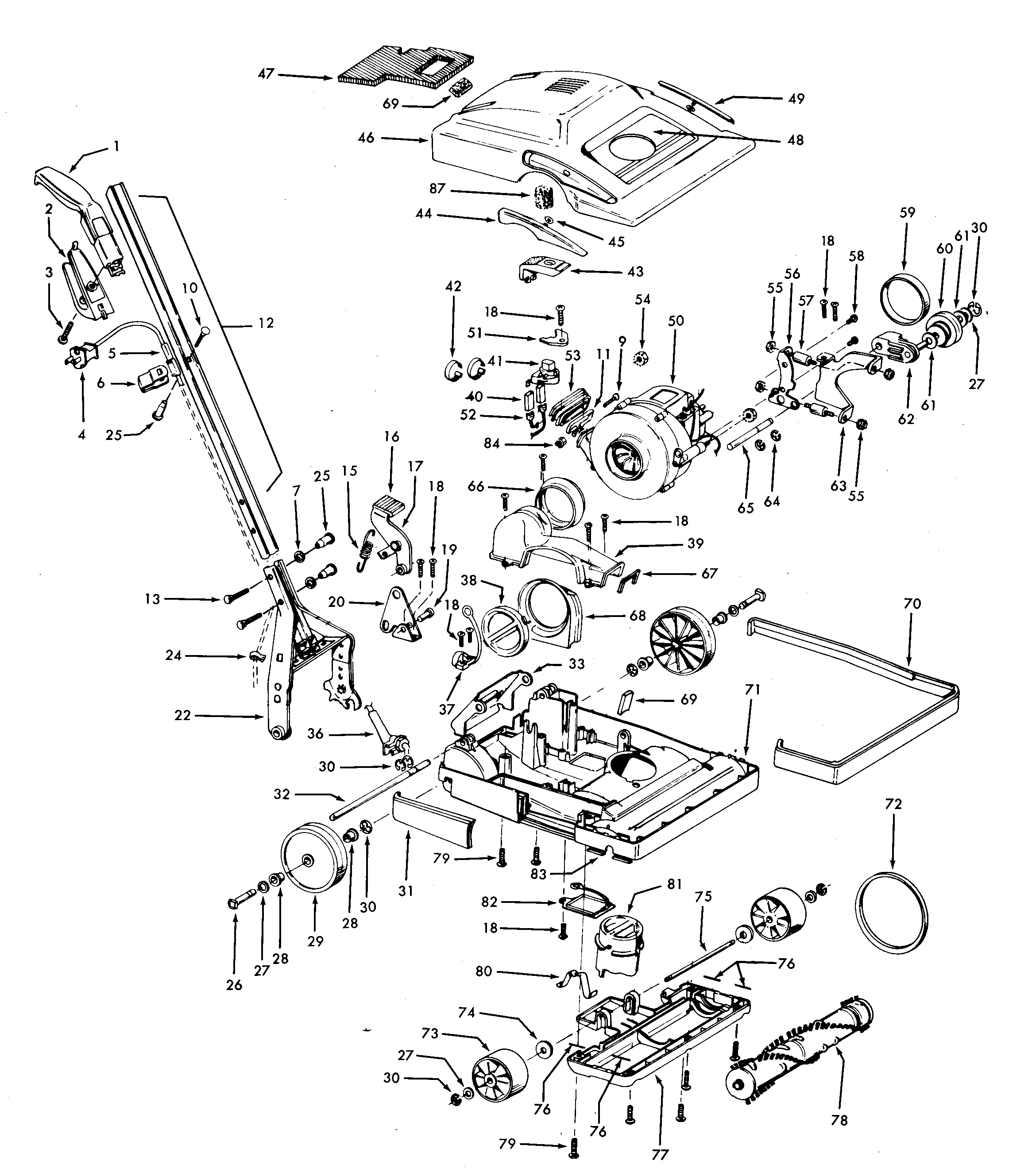

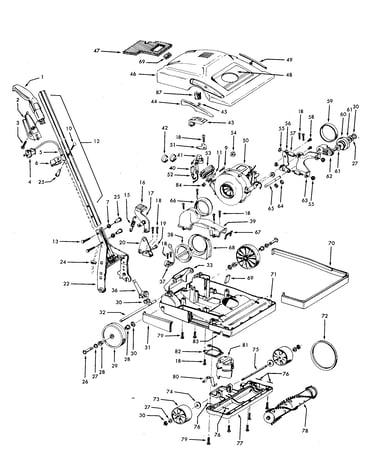

Handle, mainbody, hood diagram

Pulley arm

Part #43256007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447041
#17

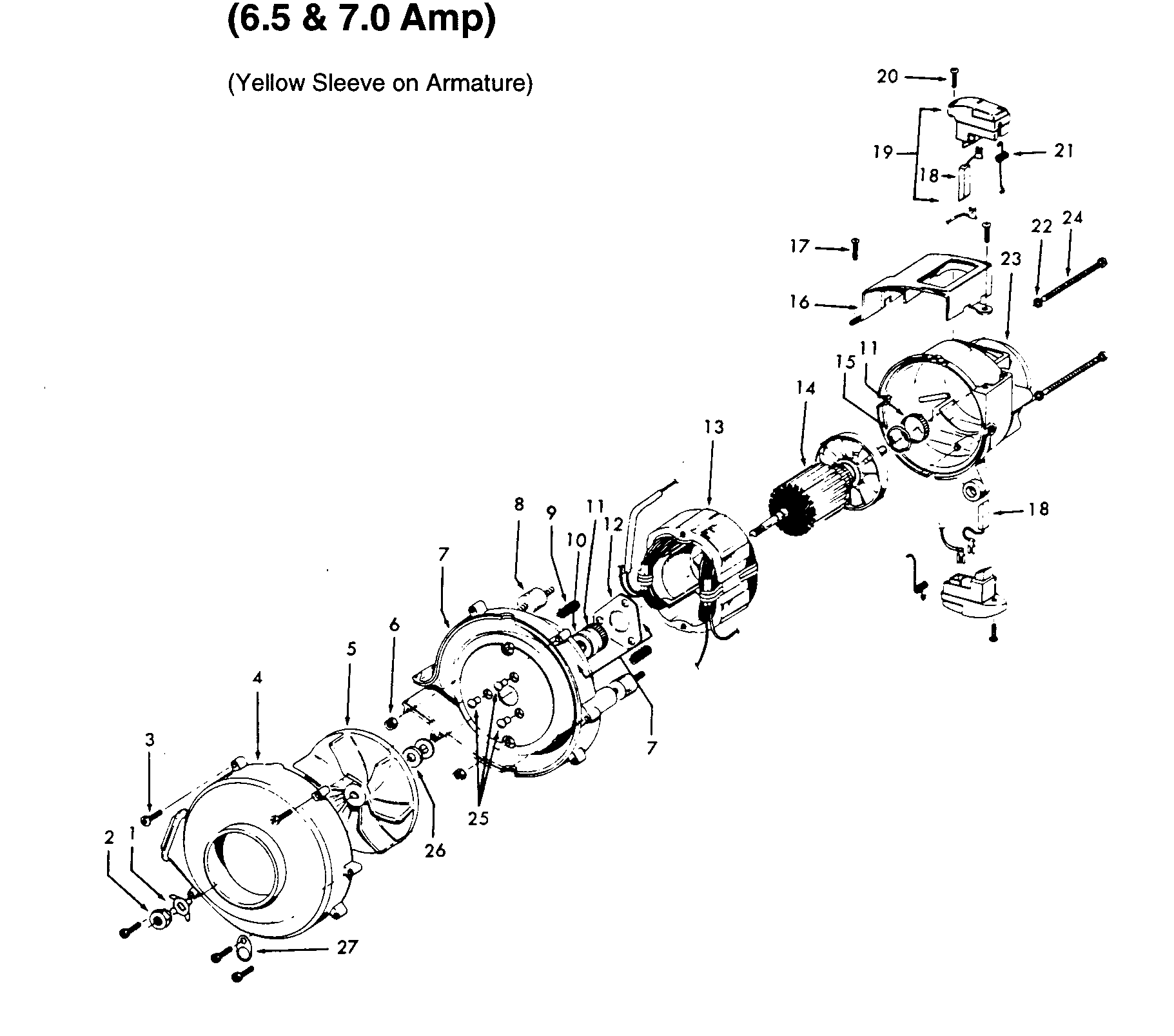

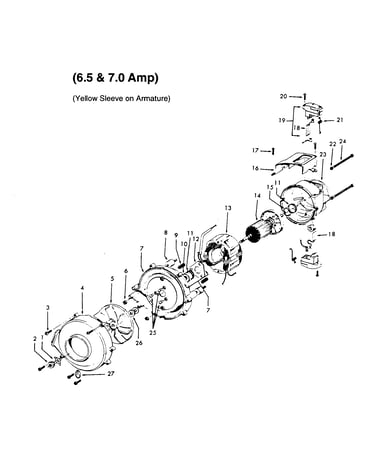

Motor assembly diagram

Vacuum screw

Part #21447041

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#2

Motor assembly diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Sndwh Mount 32724010
#57

Handle, mainbody, hood diagram

Sndwh mount

Part #32724010

The manufacturer no longer makes this part, and there's no substitute part

Wheel 38522036
#29

Handle, mainbody, hood diagram

Wheel

Part #38522036

The manufacturer no longer makes this part, and there's no substitute part

Screw 21765140
#9

Handle, mainbody, hood diagram

Screw

Part #21765140

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447003
#18

Handle, mainbody, hood diagram

Vacuum screw

Part #21447003

The manufacturer no longer makes this part, and there's no substitute part

Air Intk Dct 37257086
Air intk dct

Part #37257086

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 36321006
#63

Handle, mainbody, hood diagram

Mounting bracket

Part #36321006

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38783005
#47

Handle, mainbody, hood diagram

Gasket

Part #38783005

The manufacturer no longer makes this part, and there's no substitute part
