Model # LC195EMX Official Emerson lcd television

Here are the diagrams and repair parts for Official Emerson LC195EMX lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Jack Pcb 1ESA19748
#PCB3

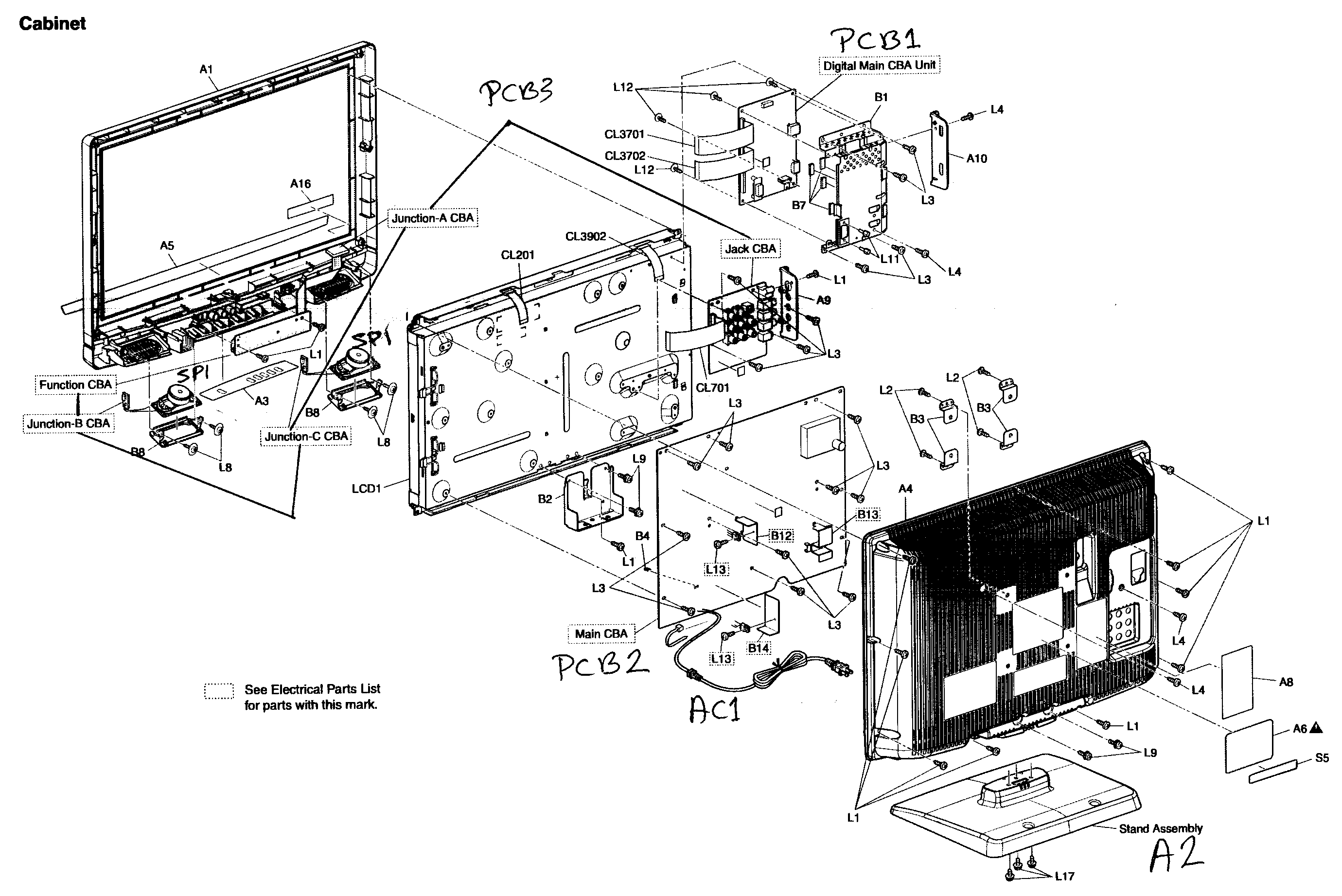

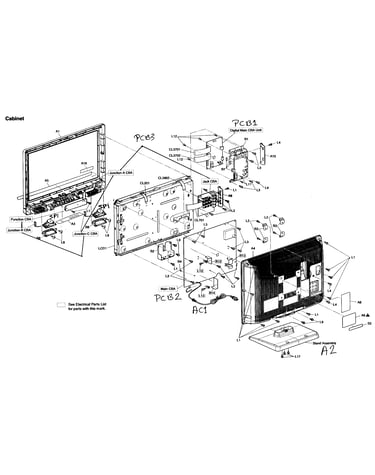

Cabinet parts diagram

Jack pcb

Part #1ESA19748

The manufacturer no longer makes this part, and there's no substitute part

Pcb Stud 1EM326198
#B4

Cabinet parts diagram

Pcb stud

Part #1EM326198

The manufacturer no longer makes this part, and there's no substitute part

Diode NDTB036BST26
#NI

Cabinet parts diagram

Diode

Part #NDTB036BST26

The manufacturer no longer makes this part, and there's no substitute part

Cap,200pf CA2E222MR101
#NI

Cabinet parts diagram

Cap,200pf

Part #CA2E222MR101

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NPECLTV817MF
#NI

Cabinet parts diagram

Integrated circuit

Part #NPECLTV817MF

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NSZBA0TJY030
#NI

Cabinet parts diagram

Integrated circuit

Part #NSZBA0TJY030

The manufacturer no longer makes this part, and there's no substitute part

Jk.holder 1EM222783
#A9

Cabinet parts diagram

Jk.holder

Part #1EM222783

The manufacturer no longer makes this part, and there's no substitute part

Cap Ceramc CA2E472MR101
#NI

Cabinet parts diagram

Cap ceramc

Part #CA2E472MR101

The manufacturer no longer makes this part, and there's no substitute part

Television Power Transformer LTT2PC0XB044
#NI

Cabinet parts diagram

Television power transformer

Part #LTT2PC0XB044

The manufacturer no longer makes this part, and there's no substitute part

Screw 1EM420633A
#L8

Cabinet parts diagram

Screw

Part #1EM420633A

The manufacturer no longer makes this part, and there's no substitute part
