Model #53690525 Craftsman 26" snow blower

Here are the diagrams and repair parts for Craftsman 53690525 26" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 208 parts

    Snowblower Shear Bolt Kit

    #22

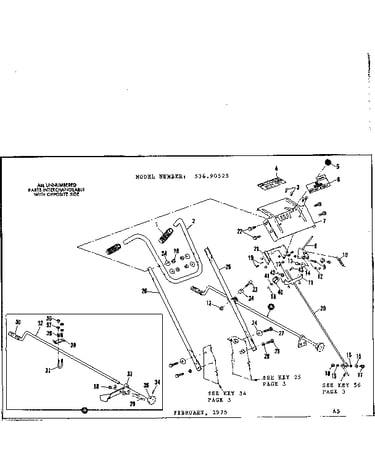

    Handle assembly Diagram

    Snowblower shear bolt kit

    Part #578794MA
    ?
    Manufacturer substitution
    This part replaces 122052. Substitute parts can look different from the original.
    This part replaces 122052
    This item is not returnable
    $5.49 |
    22% OFF MSRP:$7.00

    In Stock

    Snowblower Hex Bolt

    #64

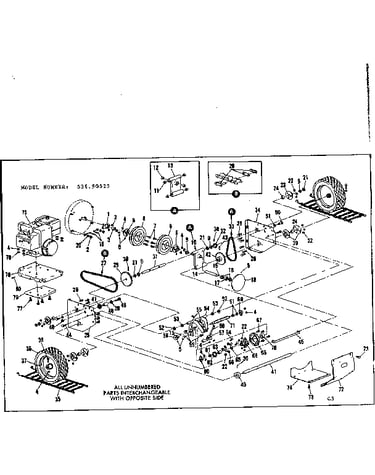

    Wheel assembly Diagram

    Snowblower hex bolt

    Part #001X38MA
    ?
    Manufacturer substitution
    This part replaces 180018. Substitute parts can look different from the original.
    This part replaces 180018
    This item is not returnable
    $3.29 |
    6% OFF MSRP:$3.50

    In Stock

    Snowblower Gearbox Oil Seal

    #71

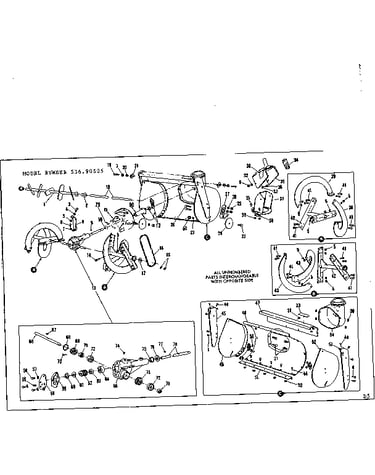

    Auger housing assembly Diagram

    Snowblower gearbox oil seal

    Part #21922MA
    ?
    Manufacturer substitution
    This part replaces 21922. Substitute parts can look different from the original.
    This part replaces 21922
    $22.27 |
    30% OFF MSRP:$32.00

    In Stock

    Chain Assembly

    #27

    Wheel assembly Diagram

    Chain assembly

    Part #43505

    The manufacturer no longer makes this part, and there's no substitute part

    Snowblower Impeller Shaft Bearing

    #1

    Wheel assembly Diagram

    Snowblower impeller shaft bearing

    Part #53266MA
    ?
    Manufacturer substitution
    This part replaces 40616. Substitute parts can look different from the original.
    This part replaces 40616
    $34.99 |
    22% OFF MSRP:$45.00

    In Stock

    Snowblower Flange Bearing

    #60

    Wheel assembly Diagram

    Snowblower flange bearing

    Part #40632MA
    ?
    Manufacturer substitution
    This part replaces 40632. Substitute parts can look different from the original.
    This part replaces 40632
    $20.53

    In Stock

    Snowblower Ground Drive Belt

    #15

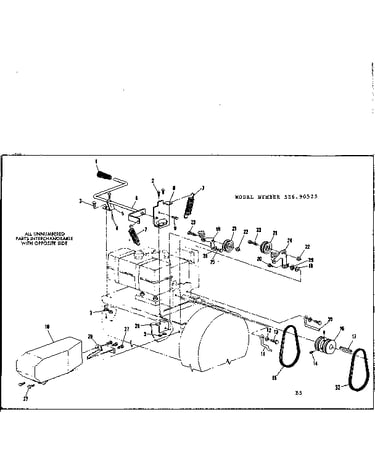

    Throwout handel Diagram

    Snowblower ground drive belt

    Part #49570MA
    ?
    Manufacturer substitution
    This part replaces 40899. Substitute parts can look different from the original.
    This part replaces 40899
    $24.99

    In Stock

    Washer

    #20

    Auger housing assembly Diagram

    Washer

    Part #2307

    The manufacturer no longer makes this part, and there's no substitute part

    Snowblower Gearbox Oil Seal

    #76

    Auger housing assembly Diagram

    Snowblower gearbox oil seal

    Part #9566MA
    ?
    Manufacturer substitution
    This part replaces 24274. Substitute parts can look different from the original.
    This part replaces 24274
    $16.99

    In Stock

    Lock Nut

    #36

    Handle assembly Diagram

    Lock nut

    Part #997319

    The manufacturer no longer makes this part, and there's no substitute part
