Model #JV332V1AD GE 30" range hood

Here are the diagrams and repair parts for GE JV332V1AD 30" range hood, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

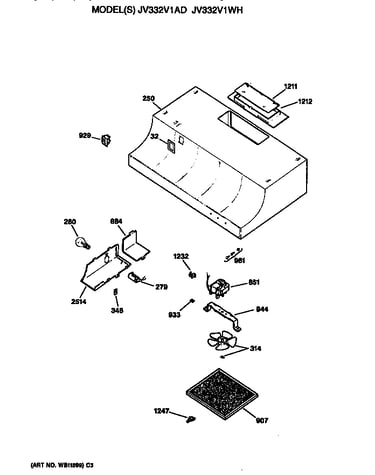

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 27 parts

    Range Hood Switch Assembly

    #929

    All parts Diagram

    $35.36

    In Stock

    Ground Pl

    #348

    All parts Diagram

    Ground pl

    Part #WB2X646
    $18.51

    In Stock

    Owner's Manual

    #LITR

    All parts Diagram

    Owner's manual

    Part #49-8664
    $8.49

    In Stock

    Range Hood Grease Filter

    #907

    All parts Diagram

    $21.40

    In Stock

    Light Box

    #2514

    All parts Diagram

    Light box

    Part #WB13X5016
    This item is not returnable
    $3.49

    In Stock

    Range Hood Filter Clip

    #1247

    All parts Diagram

    Range hood filter clip

    Part #WB2X8392
    ?
    Manufacturer substitution
    This part replaces WB2X8401. Substitute parts can look different from the original.
    This part replaces WB2X8401
    This item is not returnable
    $6.40

    Back Order

    FUSTAT 15AMP TYPE S

    #741

    All parts Diagram

    Fustat 15amp type s

    Part #OBT LOCAL

    The manufacturer no longer makes this part, and there's no substitute part

    MAGNETRON

    #1428

    All parts Diagram

    Magnetron

    Part #NOT AVAIL

    The manufacturer no longer makes this part, and there's no substitute part

    Fan Blade

    #314

    All parts Diagram

    Fan blade

    Part #WB2X8393

    The manufacturer no longer makes this part, and there's no substitute part

    Sw Trim A

    #32

    All parts Diagram

    Sw trim a

    Part #WB7X7264

    The manufacturer no longer makes this part, and there's no substitute part
