Model #0513 Hoover washer

Here are the diagrams and repair parts for Hoover 0513 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 12 parts

    SPRING-1060

    #14

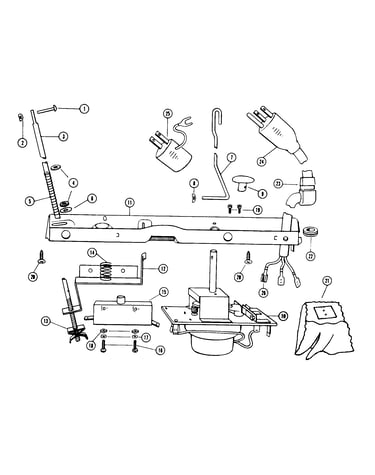

    Microswitch, bearings Diagram

    Spring-1060

    Part #012559FW

    The manufacturer no longer makes this part, and there's no substitute part

    Wire Holder

    #27

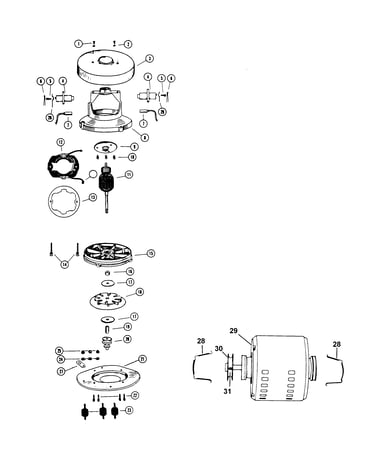

    Motor assembly Diagram

    Wire holder

    Part #045517--

    The manufacturer no longer makes this part, and there's no substitute part

    MOTOR BRUSH ASSEM -

    #7

    Motor assembly Diagram

    Motor brush assem -

    Part #046100--

    The manufacturer no longer makes this part, and there's no substitute part

    WASHER-CUPPED (COMPONENT OF MOLDED PULSATOR PULLEY)

    #28A

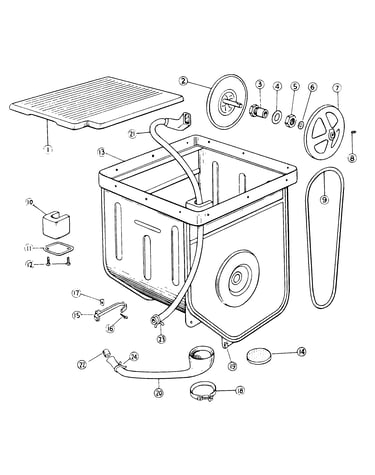

    Pump, pulsatorbelt, outlethose Diagram

    Washer-cupped (component of molded pulsator pulley)

    Part #31325003

    The manufacturer no longer makes this part, and there's no substitute part

    Pulley

    #27

    Pump, pulsatorbelt, outlethose Diagram

    Pulley

    Part #160910--

    The manufacturer no longer makes this part, and there's no substitute part

    Pulsator

    #34

    Pump, pulsatorbelt, outlethose Diagram

    Pulsator

    Part #161047AG

    The manufacturer no longer makes this part, and there's no substitute part

    PULSATOR PULLEY/CUP

    #27A

    Pump, pulsatorbelt, outlethose Diagram

    Pulsator pulley/cup

    Part #43251005

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #31

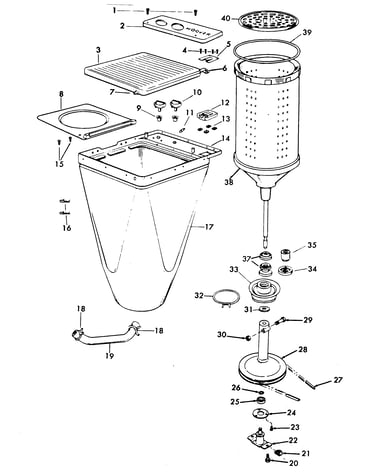

    Switch, spinbelt, hoses Diagram

    Washer

    Part #21312708

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #4

    Microswitch, bearings Diagram

    Washer

    Part #21312710

    The manufacturer no longer makes this part, and there's no substitute part

    "ON" LIGHT

    #1

    Microswitch, bearings Diagram

    "on" light

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
