Admiral A8241RS gas counter unit cooktop

Admiral A8241RS gas counter unit cooktop Parts

Here are the diagrams and repair parts for Admiral A8241RS gas counter unit cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for A8241RS Cooktops

  • Range Spark Module for Admiral A8241RS - Part 12001596

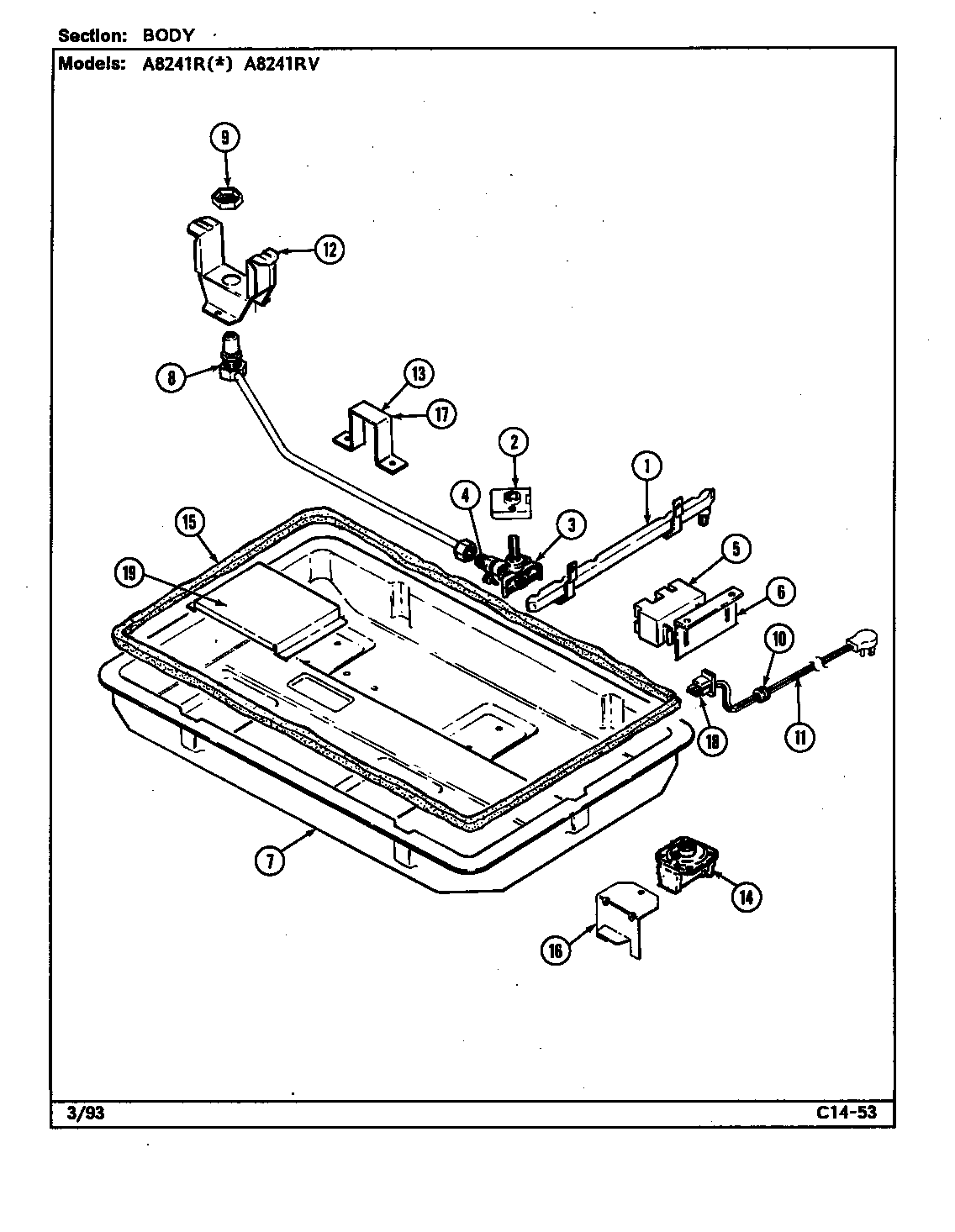

    Body diagram

    Spark Module

    Part #7431P023-60

    Replaced by #12001596

    Info Icon
    Manufacturer substitution
    This part replaces 7431P023-60. Substitute parts can look different from the original.
    In Stock
    $81.97
    7% OFF Phone Price : $87.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Admiral A8241RS - Part W11233072

    Body diagram

    Screw

    Part #7118P018-60

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 7118P018-60. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Stand Mixer Screw, #10-24 X 1/4-in for Admiral A8241RS - Part WP4159193

    Body diagram

    Grounding Screw

    Part #7101P027-60

    Replaced by #WP4159193

    Info Icon
    Manufacturer substitution
    This part replaces 7101P027-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.00
    14% OFF Phone Price : $7.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Bushing, Sna for Admiral A8241RS - Part 8007P003-60

    Body diagram

  • Range Surface Burner Igniter Switch for Admiral A8241RS - Part WP7403P190-60

    Body diagram

    Burner Switch

    Part #7403P190-60

    Replaced by #WP7403P190-60

    Info Icon
    Manufacturer substitution
    This part replaces 7403P190-60. Substitute parts can look different from the original.
    In Stock
    $70.07
    8% OFF Phone Price : $76.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner for Admiral A8241RS - Part WP3412D024-26

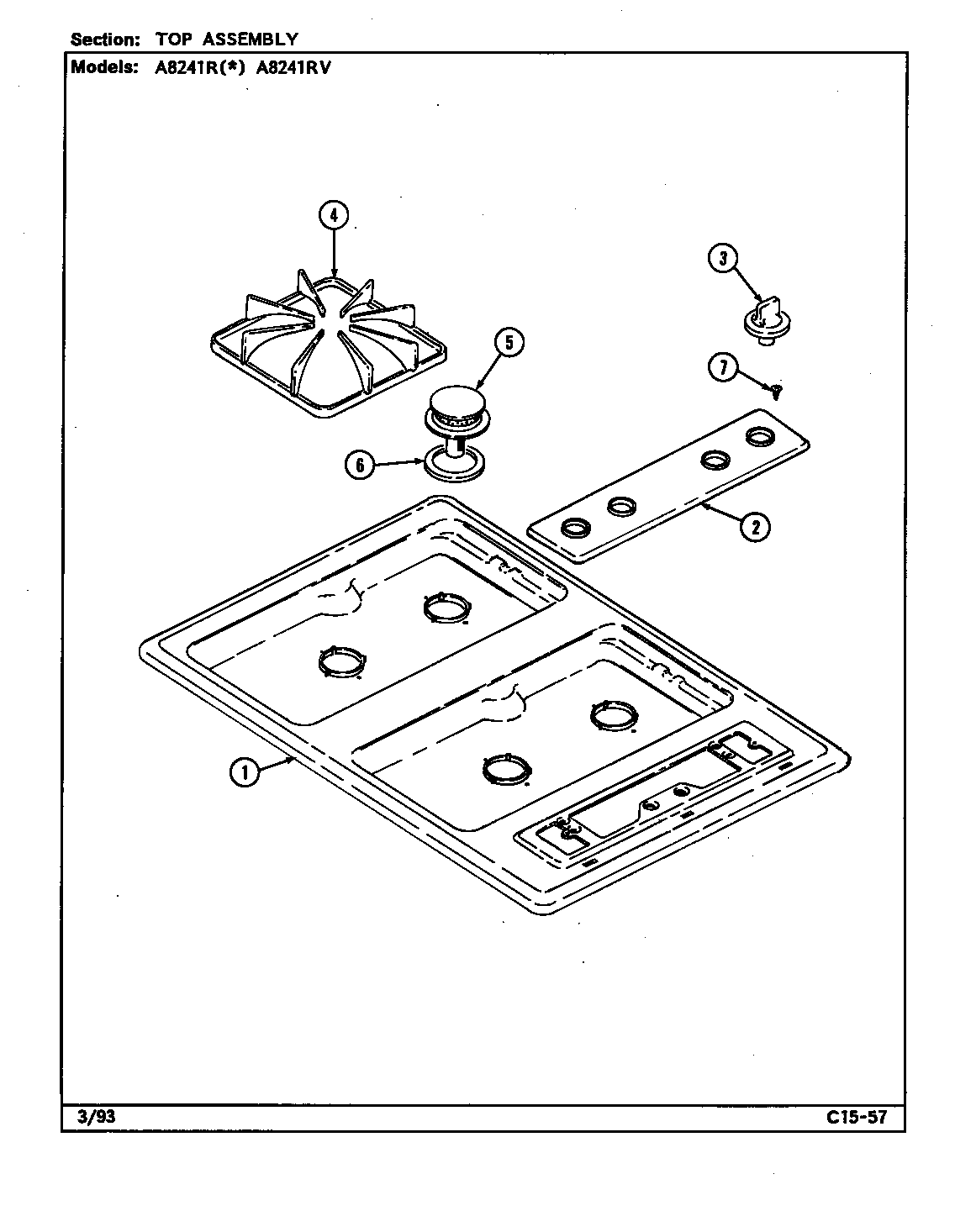

    Top assy. diagram

    Burner Seal

    Part #3412D017-26

    Replaced by #WP3412D024-26

    Info Icon
    Manufacturer substitution
    This part replaces 3412D017-26. Substitute parts can look different from the original.
    In Stock
    $54.96
    10% OFF Phone Price : $60.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Admiral A8241RS - Part WP74004005

    Top assy. diagram

    Screw

    Part #7101P076-60

    Replaced by #WP74004005

    Info Icon
    Manufacturer substitution
    This part replaces 7101P076-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Burner Manifold Seal for Admiral A8241RS - Part WP74001380

    Body diagram

    Manifold Seal

    Part #7208P019-60

    Replaced by #WP74001380

    Info Icon
    Manufacturer substitution
    This part replaces 7208P019-60. Substitute parts can look different from the original.
    In Stock
    $64.11
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Assembly for Admiral A8241RS - Part WP3412D024-09

    Top assy. diagram

    Burner Seal

    Part #3412D018-09

    Replaced by #WP3412D024-09

    Info Icon
    Manufacturer substitution
    This part replaces 3412D018-09. Substitute parts can look different from the original.
    In Stock
    $64.80
    8% OFF Phone Price : $70.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Admiral A8241RS - Part WP7101P126-60

    Body diagram

    Screw

    Part #7101P059-60

    Replaced by #WP7101P126-60

    Info Icon
    Manufacturer substitution
    This part replaces 7101P059-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.95
    17% OFF Phone Price : $5.95Info Icon
    Minus Item
    Qty
    Plus Item
