Frigidaire FRFS2823AS1 refrigerator Parts

Bottom-mount refrigerators like the Frigidaire FRFS2823AS1 are often “better” for many kitchens because the fresh-food section sits at eye and waist level, so everyday items are easier to reach, while the freezer stays in lower pull-out baskets.

What “better” usually means in day-to-day use

A bottom-mount design tends to work best when you use the refrigerator section more than the freezer.

• Less bending for milk, produce, leftovers, and condiments
• Wide shelves and door bins make it easier to organize fresh food
• Freezer drawers help separate frozen foods into zones (top vs. lower baskets)
• French-door styles can reduce cold-air loss compared with a single full-width door
• Good fit for meal prep and frequent snacking because the fridge is the main focus

For model-specific features and storage layout details, we recommend checking the FRFS2823AS1 use & care manual.

When a bottom-mount might not be the best choice

Bottom-mount is not automatically the best option for every household.

• If you use the freezer more than the fridge, you may not like bending for frozen items
• Deep freezer drawers can make small items harder to see without bins/dividers
• If you want the lowest upfront cost, top-freezer models are often simpler

Quick comparison

Layout	Best for	Common tradeoff
Bottom-mount (like FRFS2823AS1)	Fresh-food-first households	Freezer access is lower
Top-freezer	Budget and freezer-heavy use	Fridge items are lower
Side-by-side	Narrow kitchens, equal use	Narrower shelf width

Why it matters

Choosing the right layout affects comfort, organization, and how often doors stay open. With the FRFS2823AS1 style, the biggest win is ergonomic access to the fresh-food compartment where most people reach multiple times per day.

Last updated: January 2026

For the Frigidaire FRFS2823AS1, the most common customer-reported issues are cooling problems (fresh food section warm, freezer frost buildup) and ice maker or water dispenser trouble. Many cases trace back to airflow restrictions, door sealing issues, or a restricted water filter.

What to check first (fast, no-parts steps)

• Confirm the controls are set to 37°F refrigerator and 0°F freezer (recommended for this model).
• Make sure doors close fully and the gaskets seal all the way around.
• Avoid blocking air ports; food placed too close to vents can freeze or restrict airflow.
• If the unit was just installed or recently unplugged, allow up to 24 hours to stabilize.
• If the ice maker is on but there is no water supply connected, turn the ice maker off to prevent valve noise.

Common symptoms and likely causes

Symptom	Most common cause	What to do next
Fridge warm, freezer OK	Airflow issue or evaporator fan problem	Check for blocked vents; listen for fan operation
Freezer frost buildup	Door not sealing or door left ajar	Inspect gasket and door alignment
Slow ice production or small cubes	Low water flow, often a clogged filter	Replace the water filter and flush the system
No water dispensing	Air in line or restricted filter	Prime the dispenser and replace filter if overdue

Parts that often solve the issue

If troubleshooting points to a restriction or sealing problem, these model-compatible parts are common fixes:

• Frigidaire refrigerator water filter FPPWFU01
• Frigidaire refrigerator freezer door gasket (gray) 5304537408

Why it matters

Cooling and ice maker complaints often start small (slower ice, warmer temps) but can lead to food spoilage, excess frost, and longer run times. Addressing airflow, sealing, and filtration early helps the FRFS2823AS1 run efficiently.

For model-specific operating and troubleshooting steps, use the FRFS2823AS1 use & care manual.

Last updated: January 2026

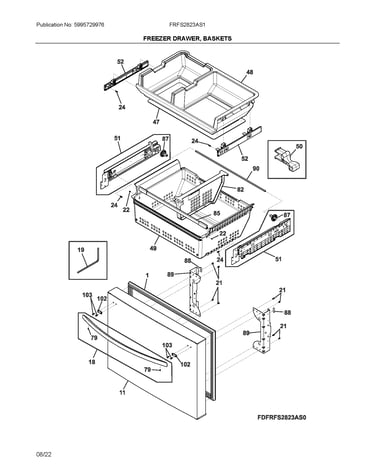

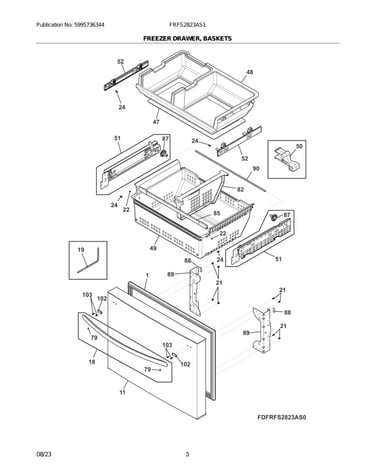

On the Frigidaire FRFS2823AS1, the “bottom part” most often means the freezer drawer (the lower pull-out compartment). If you mean the panel at the very bottom that covers the cooling components, that’s the compressor access cover; see the FRFS2823AS1 use & care manual.

Common names people use

Depending on what you’re pointing at, the bottom area may be called:

• Freezer drawer: the lower pull-out storage compartment
• Freezer baskets: the bins inside the freezer drawer
• Slide rails: the left and right tracks the drawer rides on
• Compressor access cover: the lower rear panel that shields the machine area

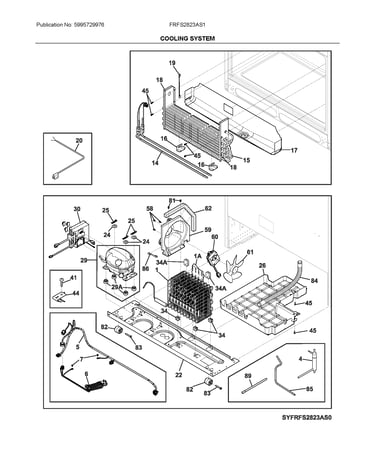

• Machine compartment: the space behind the access cover where cooling-system parts sit

Quick guide: what you see vs. what it’s called

If you mean this…	Common name	What it does
Bottom drawer you pull out	Freezer drawer	Stores frozen food
Bins inside the drawer	Freezer baskets	Organize frozen items
Tracks on each side	Slide rails	Support and guide drawer movement
Panel at the lower rear	Compressor access cover	Protects and hides cooling components

Parts that may be involved (if something is broken)

If the “bottom part” is loose, missing, or not sliding right, these FRFS2823AS1-COMPATIBLE parts may apply:

• Refrigerator compressor access cover 5304520905 (rear lower cover panel)
• Refrigerator freezer basket slide rail assembly, left 5304507979 (left-side slide rail)
• Refrigerator freezer basket slide rail assembly, right 5304507978 (right-side slide rail)

Why it matters

Using the right name helps us match the correct diagram and replacement part. A “freezer drawer” issue usually points to baskets, rails, or alignment, while an “access cover” issue is about protection, airflow, and fit.

Last updated: January 2026
