KitchenAid KBMC147HWH03 built-in microwave Parts

Name: KitchenAid KBMC147HWH03 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: KBMC147HWH03
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KBMC147HWH03 built-in microwave, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

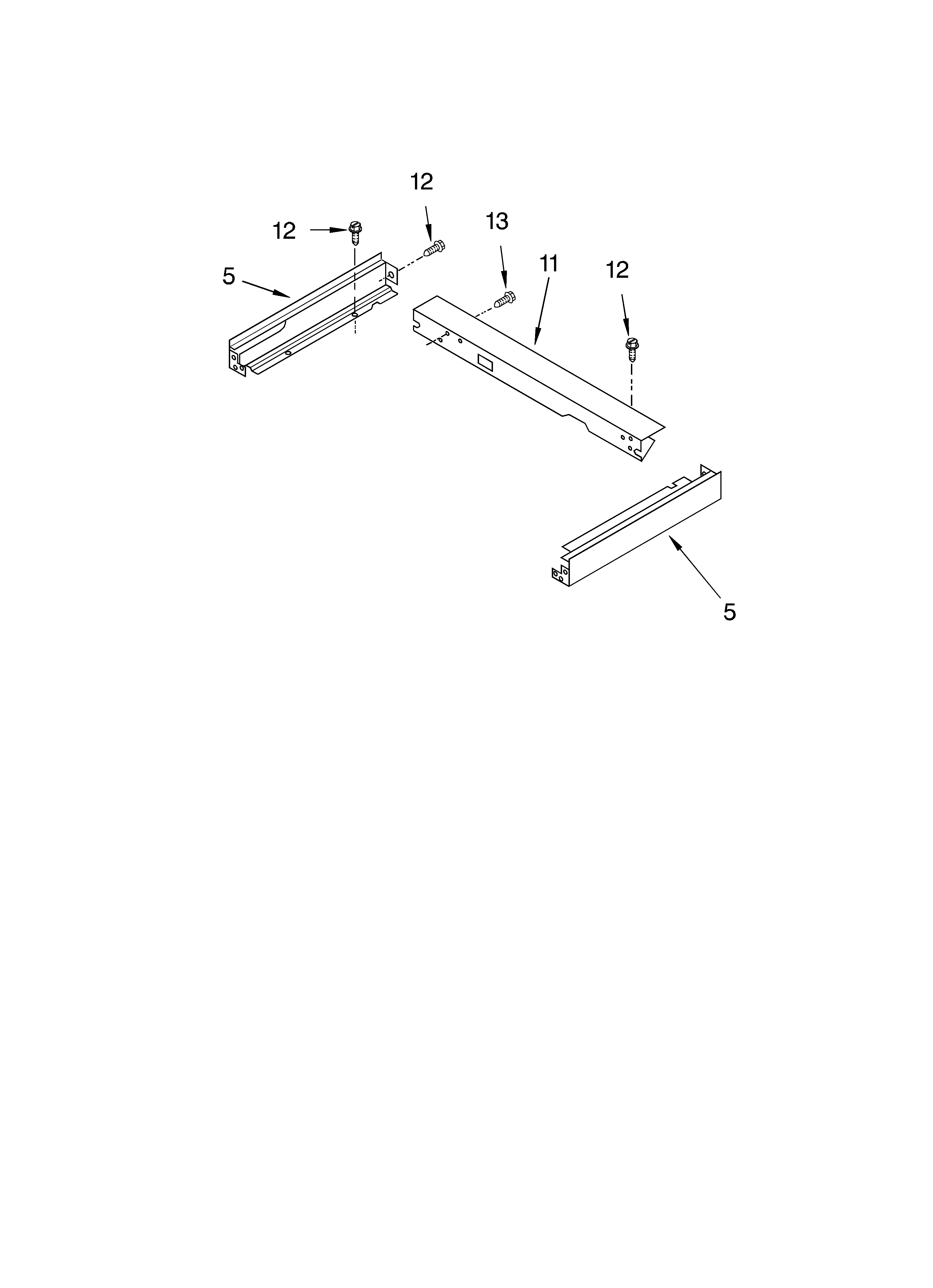

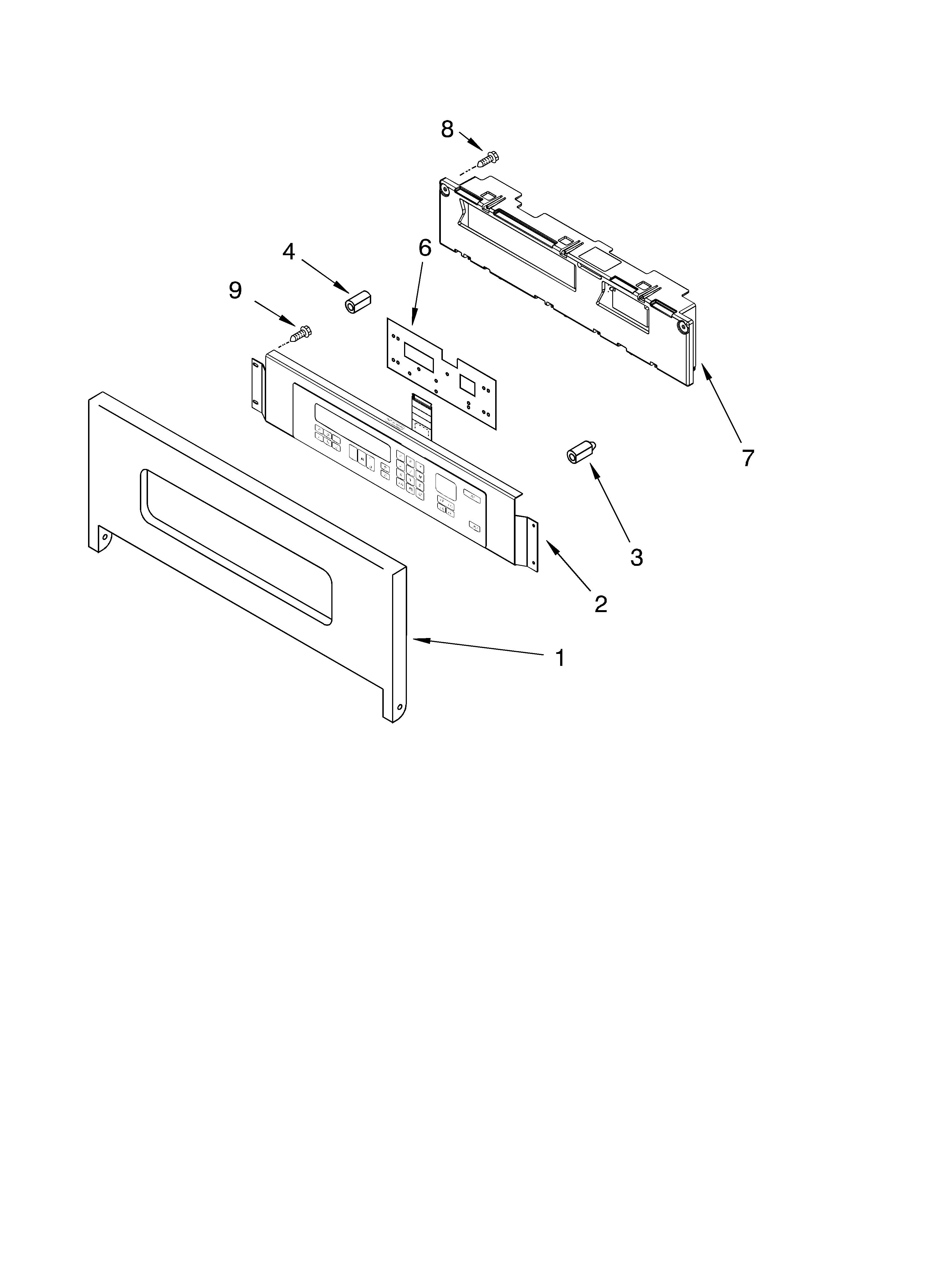

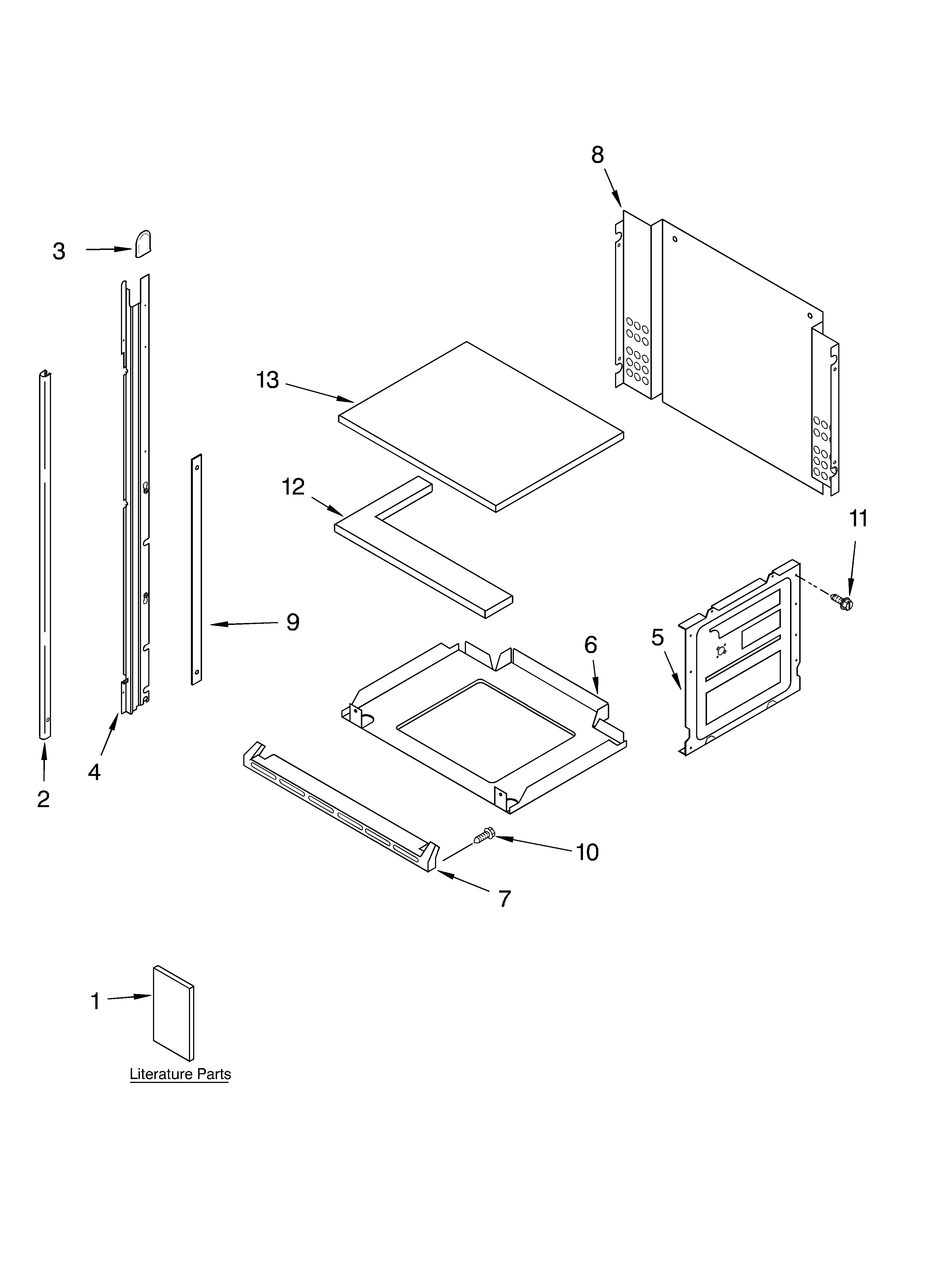

Browse Parts for KBMC147HWH03 Microwaves

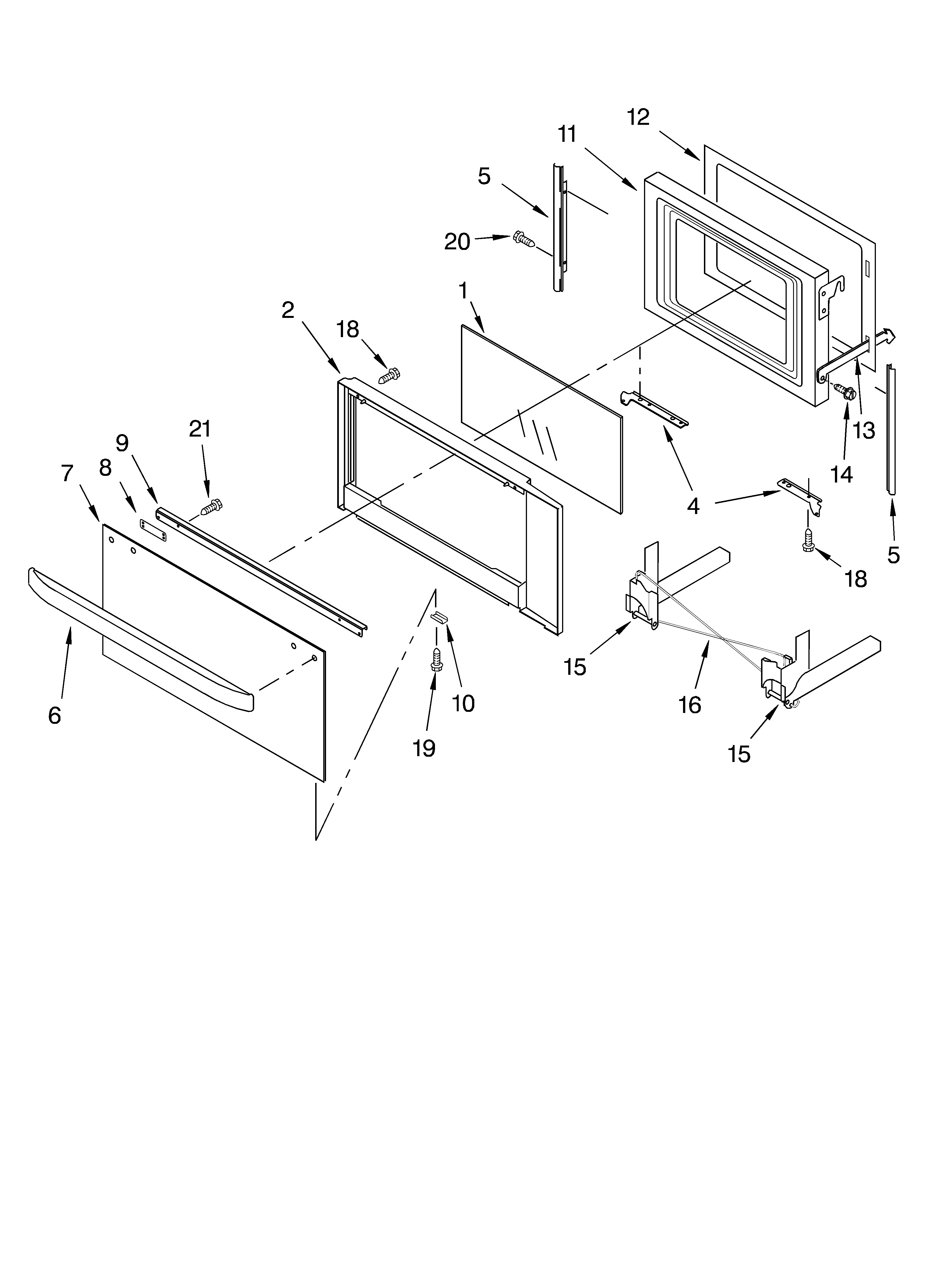

Microwave door parts, optional parts diagram
Adhesive
Part #482338
Replaced by #WP482338
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
In Stock
$24.46
27% OFF Was : $33.32
Qty

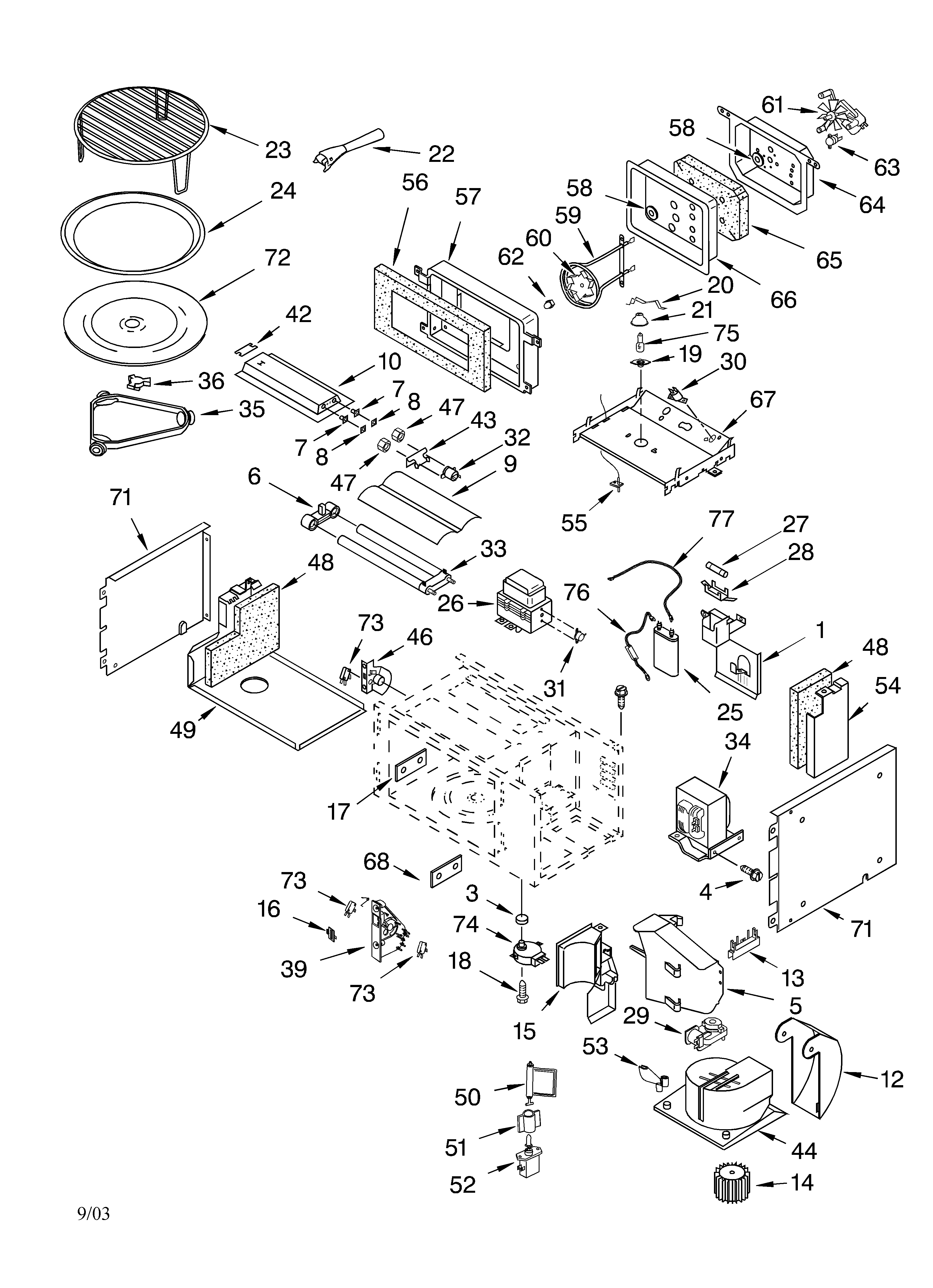

Cabinet and stirrer parts diagram
Fuse (black)
Part #4375321
Replaced by #WP4375321
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
In Stock
$17.12
10% OFF Phone Price : $19.12
Qty

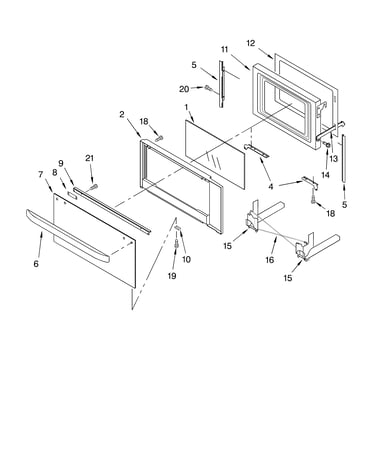

Microwave door parts, optional parts diagram
Microwave Door Torsion Spring
Part #4452395
Replaced by #WP4452395
Manufacturer substitution
This part replaces 4452395. Substitute parts can look different from the original.
In Stock
$86.13
7% OFF Phone Price : $92.13
Qty
Screw
Part #3400832
Replaced by #WP3400832
Manufacturer substitution
This part replaces 3400832. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.14
16% OFF Phone Price : $6.14
Qty

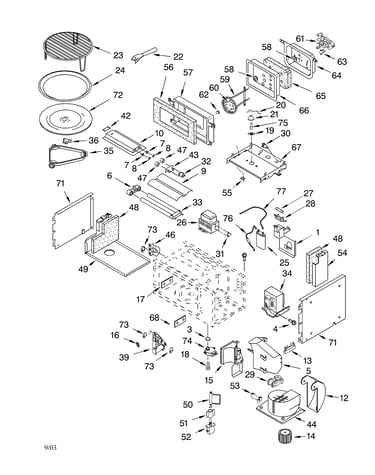

Cabinet and stirrer parts diagram
Transforma
Part #4375438
Replaced by #WP4375286
Manufacturer substitution
This part replaces 4375438. Substitute parts can look different from the original.
In Stock
$285.86
$12.00 OFF Phone Price : $297.86
Qty
Microwave door parts, optional parts diagram
Range Screw
Part #WPW10132940
This item is not returnable
In Stock
$6.14
14% OFF Phone Price : $7.14
Qty
Cabinet and stirrer parts diagram
Wall Oven Microwave Convection Cooking Rack
Part #4452220
In Stock
$71.93
8% OFF Phone Price : $77.93
Qty

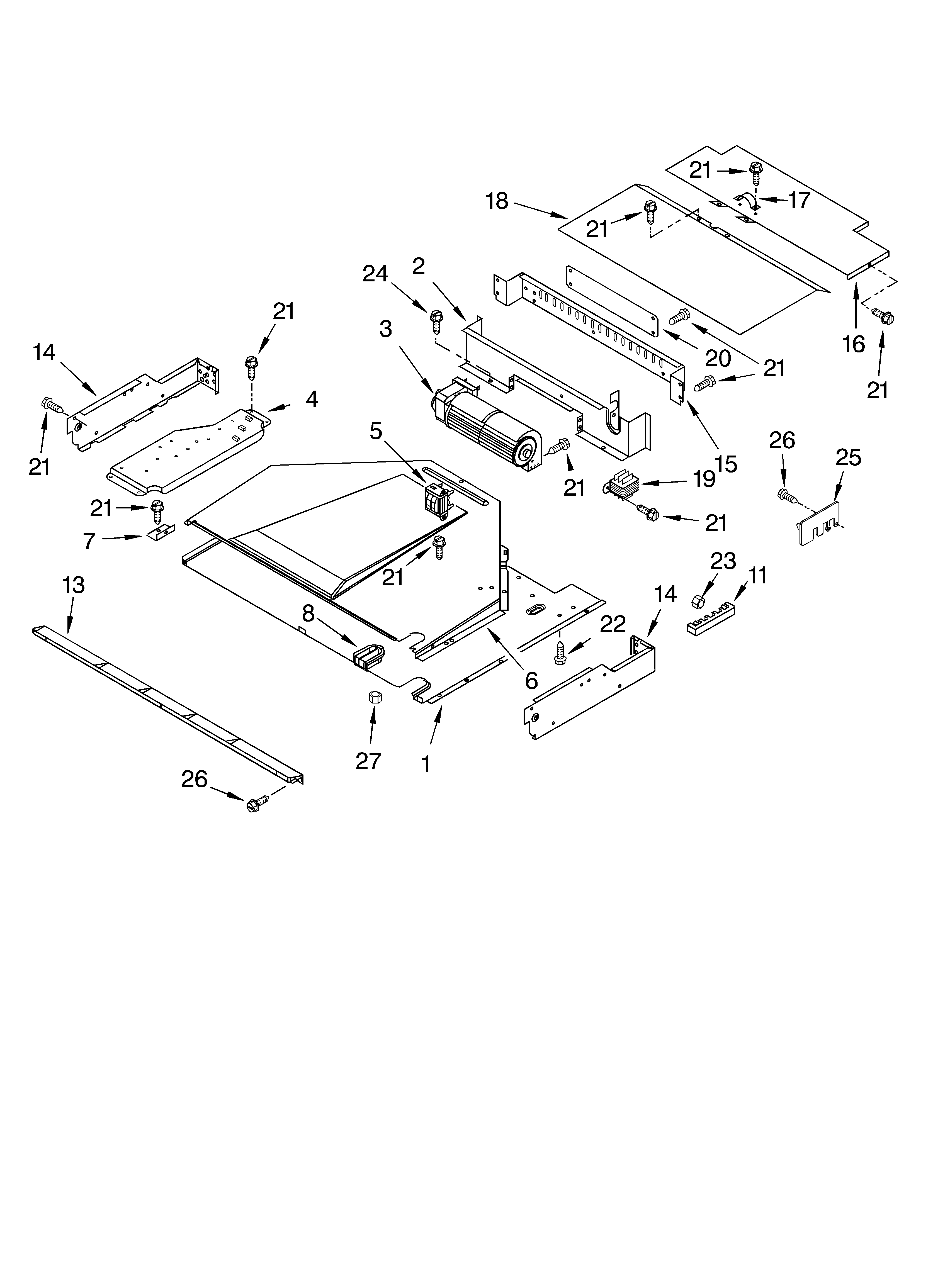

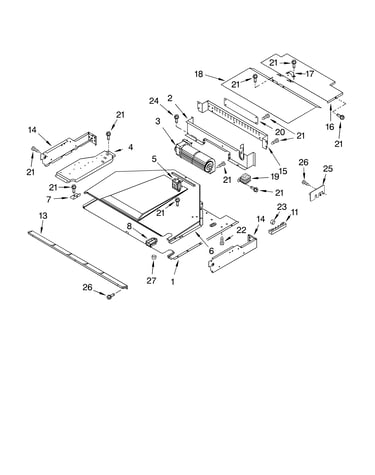

Top venting parts diagram
Nut
Part #112432
Replaced by #WP112432
Manufacturer substitution
This part replaces 112432. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Microwave door parts, optional parts diagram
Oven Door Hinge
Part #4375323
Replaced by #WP4375323
Manufacturer substitution
This part replaces 4375323. Substitute parts can look different from the original.
In Stock
$50.83
34% OFF Was : $76.74
Qty
Cabinet and stirrer parts diagram
Wall Oven Microwave Thermostat
Part #4375430
Replaced by #W11607085
Manufacturer substitution
This part replaces 4375430. Substitute parts can look different from the original.
In Stock
$27.19
18% OFF Phone Price : $33.19
Qty
