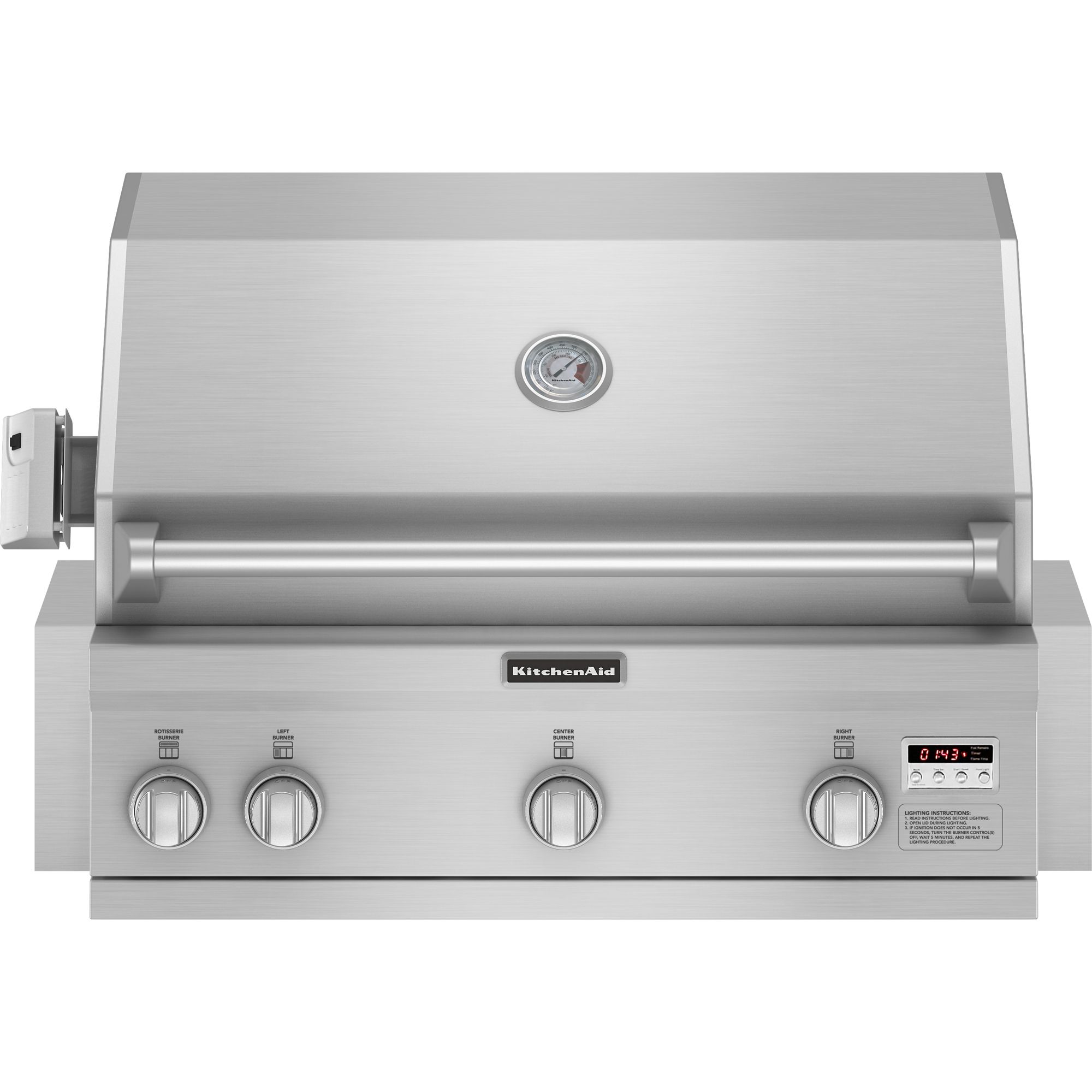

KitchenAid KBNU367VSS00 gas grill Parts
Here are the diagrams and repair parts for KitchenAid KBNU367VSS00 gas grill, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for KBNU367VSS00 Outdoor Grills

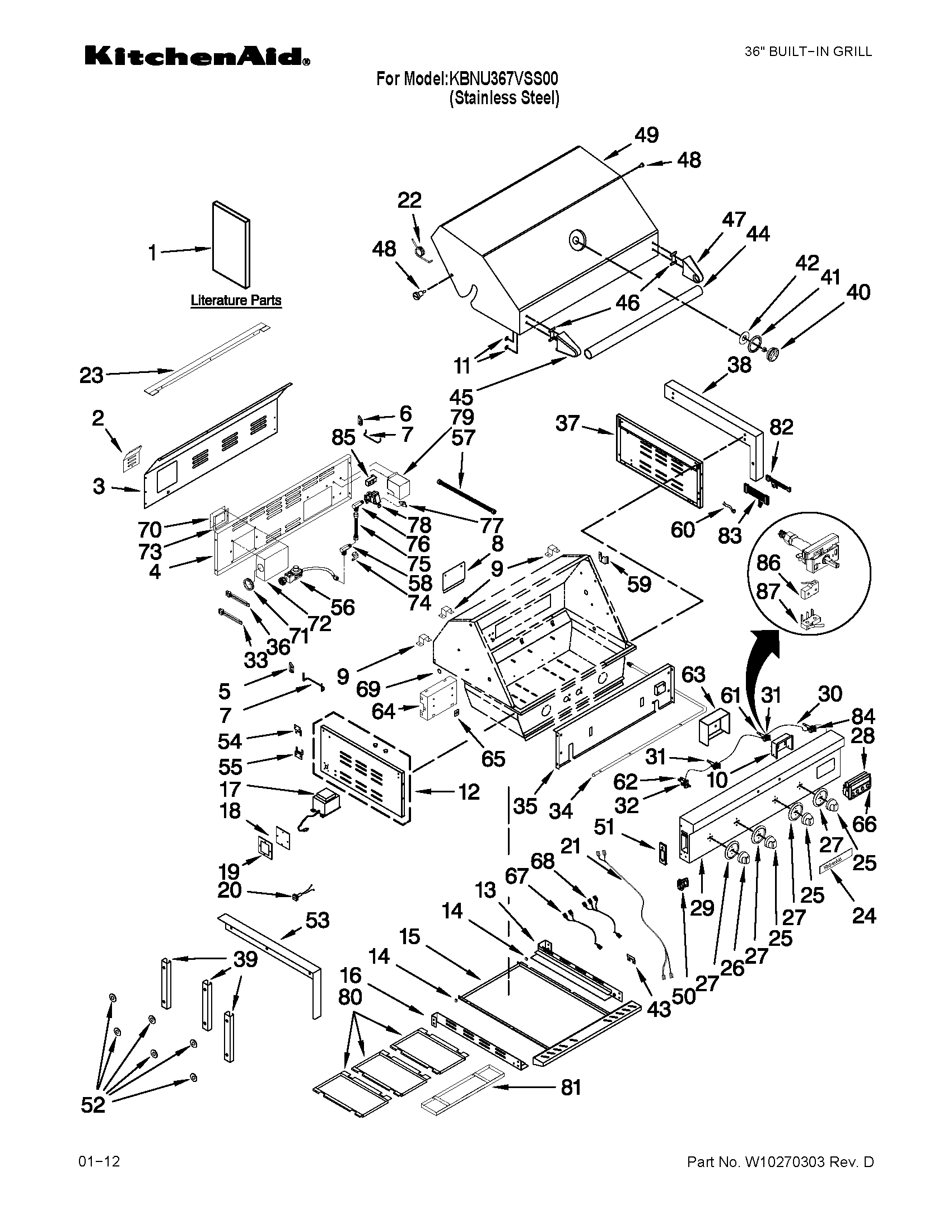

Grill parts diagram
Bezel
Part #W10128779
The manufacturer no longer makes this part, and there's no substitute part

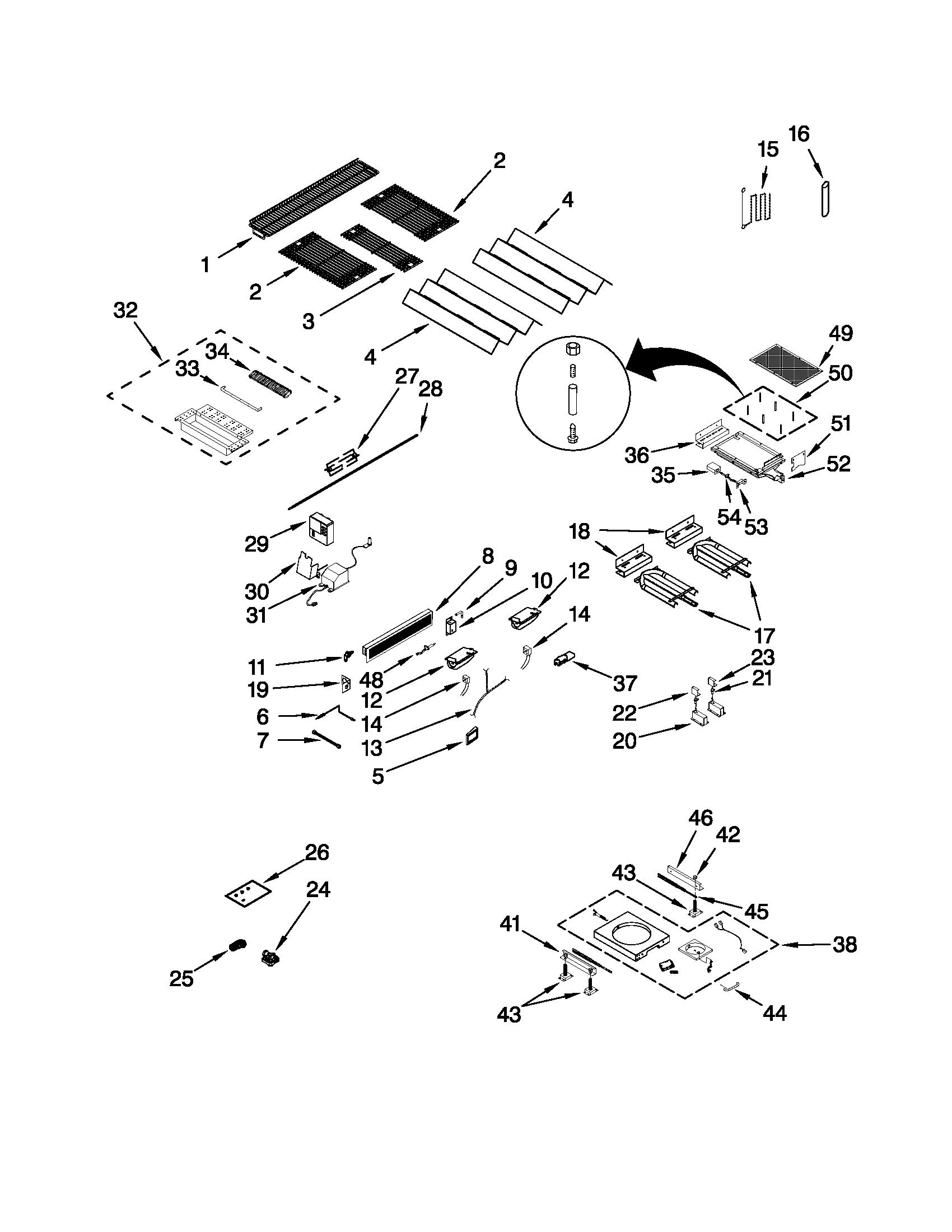

Burners, grates, and lights parts diagram
Bracket Support
Part #W10244197
The manufacturer no longer makes this part, and there's no substitute part
Grill parts diagram
Bracket
Part #W10132697
The manufacturer no longer makes this part, and there's no substitute part
Grill parts diagram
Flex Tube
Part #W10244195
The manufacturer no longer makes this part, and there's no substitute part
Optional parts diagram
Orifice
Part #W10118107
The manufacturer no longer makes this part, and there's no substitute part
Optional parts diagram
Gas Grill Natural Gas Conversion Kit
Part #W10118098
The manufacturer no longer makes this part, and there's no substitute part
Grill parts diagram
Bracket
Part #W10132694
The manufacturer no longer makes this part, and there's no substitute part
Grill parts diagram
Gas Grill Lid Handle End Cap, Left
Part #W10128785
The manufacturer no longer makes this part, and there's no substitute part
Grill parts diagram
Flange
Part #W10244337
The manufacturer no longer makes this part, and there's no substitute part
Burners, grates, and lights parts diagram
Collector Box
Part #W10244198
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your outdoor grills
Choose a symptom to see related gas grill repairs.
Main cause: worn wheel…
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill pressure regulator
You can install a new pressure regulator on your gas grill if the pressure regulator won’t let gas flow.…
Repair time and Difficulty
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair time and Difficulty
15 minutes or less
How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
Low flame ruining your cookout? Even with a full propane tank, clogs or regulator issues can cut gas flow. Here’s how to…
Tired of low flames ruining your grill nights? Learn how your gas grill regulator works, how to spot failures, and why r…
Don’t let your grill go from hero to hazard. This checklist helps you clean it, check it, and fire it up with confidence…
