Model # DM15H-5 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM15H-5 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

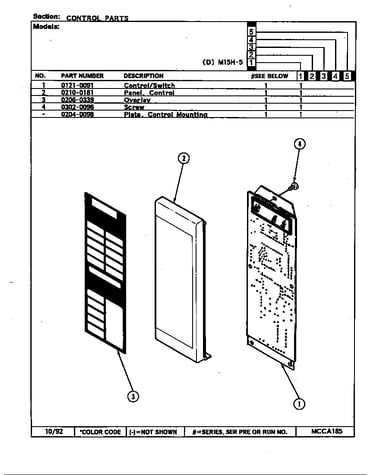

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Capacitor 01020021
#5

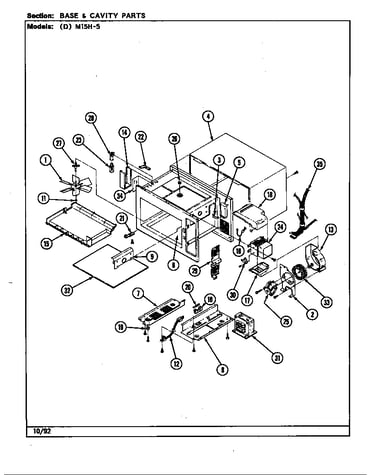

Base & cavity diagram

Capacitor

Part #01020021

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 01020021. Substitute parts can look different from the original.
$85.65 |
14% OFF MSRP : $100.00
In Stock
Screw 03020087
Screw

Part #03020087

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 03020087. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03020068
#35E

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cover 02300032
#13

Base & cavity diagram

Cover

Part #02300032

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 02130004
#35D

Base & cavity diagram

Mounting bracket

Part #02130004

The manufacturer no longer makes this part, and there's no substitute part

1/2x1/2x18 F 8270P005-60
#30E

Base & cavity diagram

1/2x1/2x18 f

Part #8270P005-60

The manufacturer no longer makes this part, and there's no substitute part

Microwave Canoe Clip 03110061
#9A

Base & cavity diagram

Microwave canoe clip

Part #03110061

The manufacturer no longer makes this part, and there's no substitute part

Hinge Seal 02120160
#8

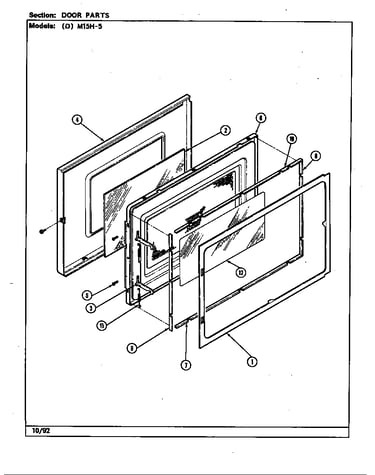

Door diagram

Hinge seal

Part #02120160

The manufacturer no longer makes this part, and there's no substitute part

Transformer 01130040
#31

Base & cavity diagram

Transformer

Part #01130040

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 01100040
#28

Base & cavity diagram

Receptacle

Part #01100040

The manufacturer no longer makes this part, and there's no substitute part
