Gibson GFU20F7FW0 freezer

Gibson GFU20F7FW0 freezer Parts

Here are the diagrams and repair parts for Gibson GFU20F7FW0 freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GFU20F7FW0 Freestanding Freezers

  • Refrigerator Filter Dryer for Gibson GFU20F7FW0 - Part 5303305677

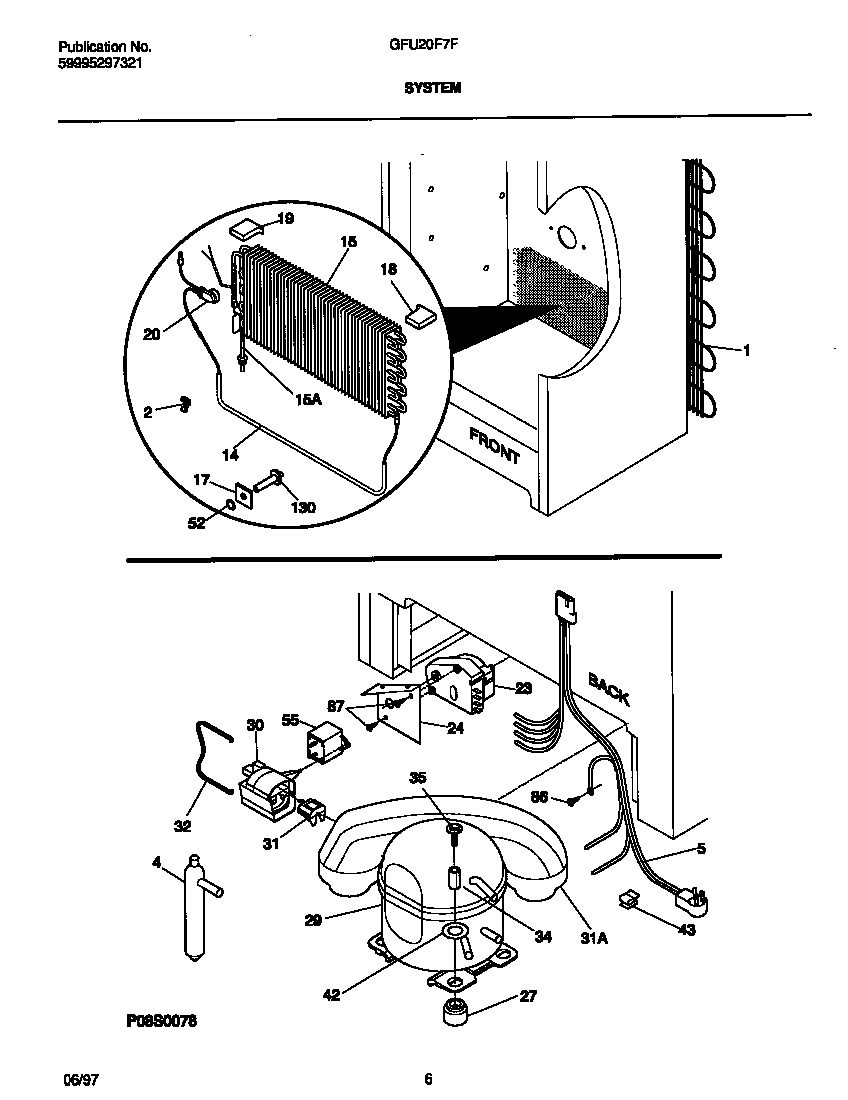

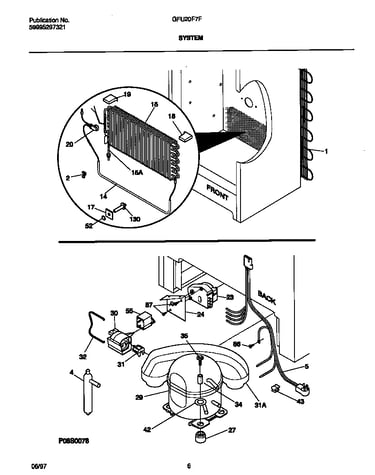

    System diagram

    Filter Drier

    Part #216099900

    Replaced by #5303305677

    Info Icon
    Manufacturer substitution
    This part replaces 216099900. Substitute parts can look different from the original.
    In Stock
    $25.36
    19% OFF Phone Price : $31.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Upright Freezer Defrost Timer for Gibson GFU20F7FW0 - Part 5308037967

    System diagram

    Upright Freezer Defrost Timer

    Part #5308037967

    The manufacturer no longer makes this part, and there's no substitute part

  • Gibson Freezer Door Key for Gibson GFU20F7FW0 - Part 297147700

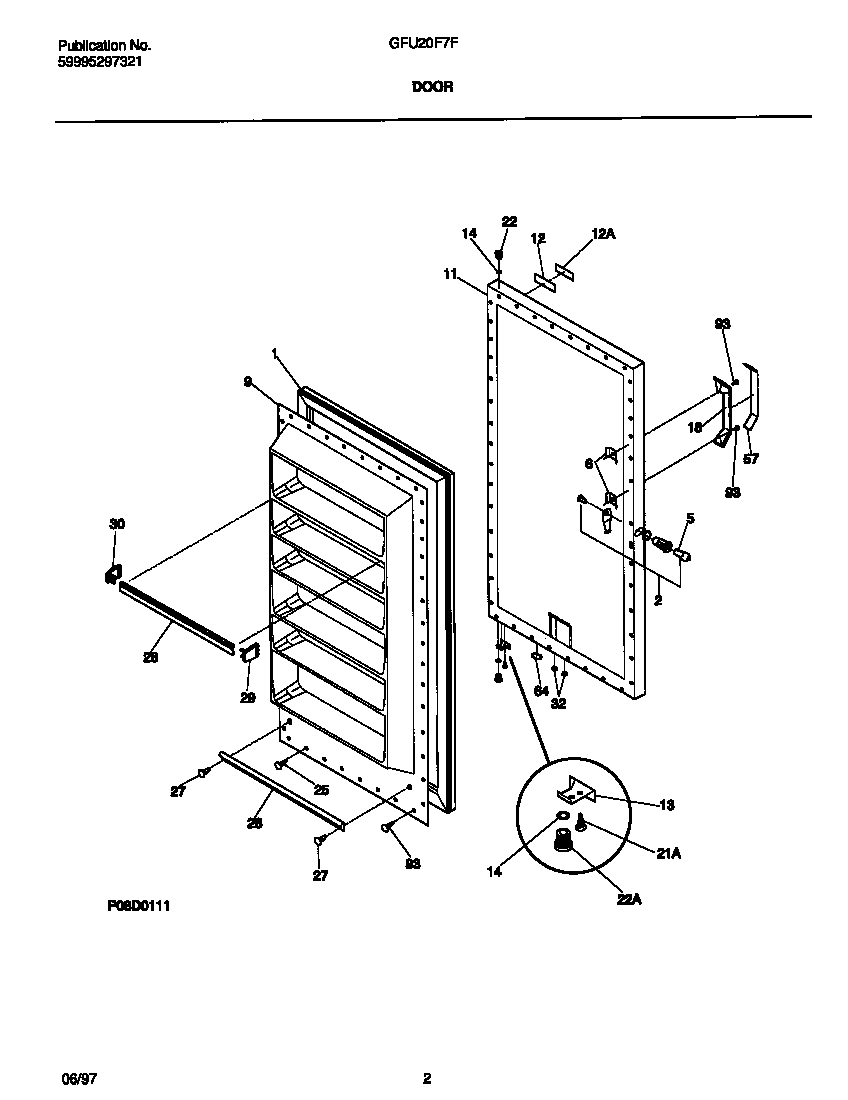

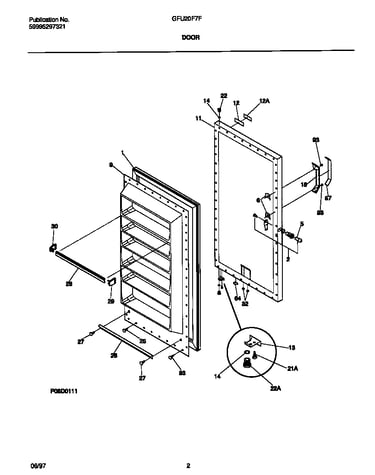

    Door diagram

    Key

    Part #216388700

    Replaced by #297147700

    Info Icon
    Manufacturer substitution
    This part replaces 216388700. Substitute parts can look different from the original.
    In Stock
    $9.31
    10% OFF Phone Price : $10.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Refrigerator Light Bulb for Gibson GFU20F7FW0 - Part 5304517886

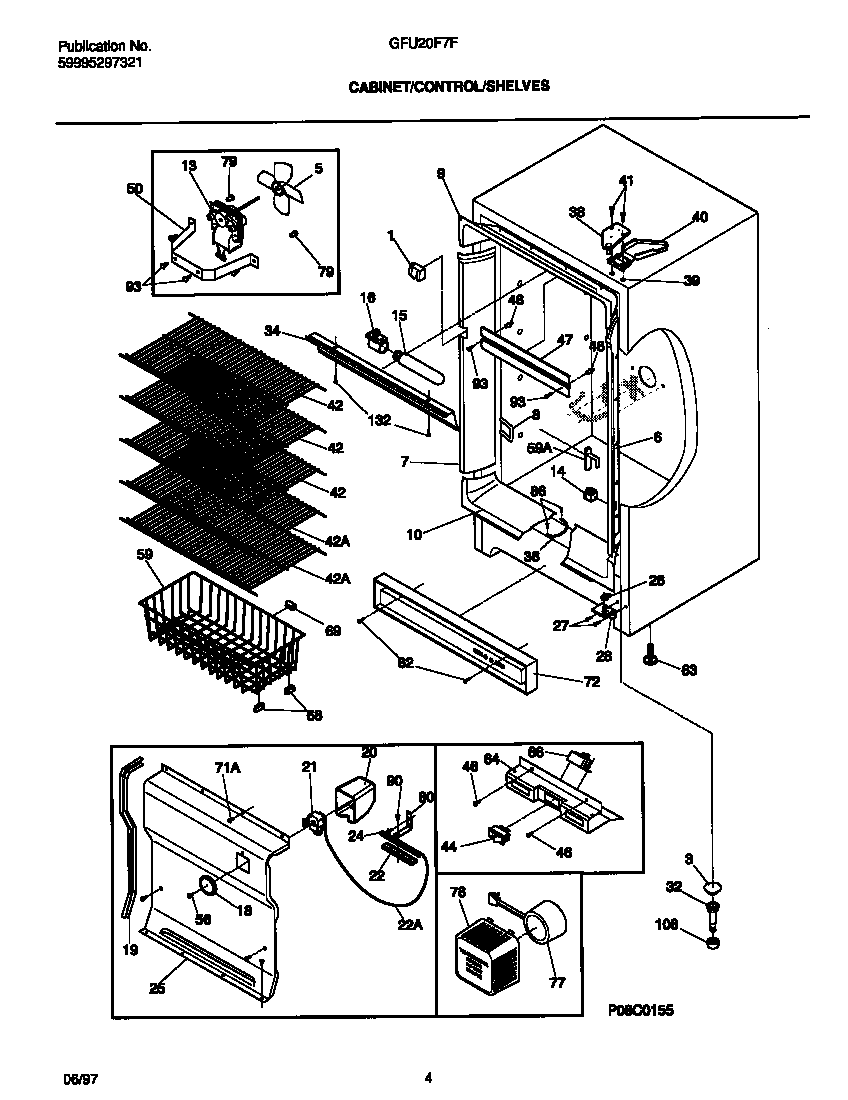

    Cabinet/control/shelves diagram

    Lamp Bulb

    Part #216222700

    Replaced by #5304517886

    Info Icon
    Manufacturer substitution
    This part replaces 216222700. Substitute parts can look different from the original.
    In Stock
    $54.71
    10% OFF Phone Price : $60.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Run Capacitor for Gibson GFU20F7FW0 - Part 5304464438

    System diagram

    Capacitor

    Part #218719201

    Replaced by #5304464438

    Info Icon
    Manufacturer substitution
    This part replaces 218719201. Substitute parts can look different from the original.
    In Stock
    $32.61
    16% OFF Phone Price : $38.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Laundry Appliance Screw, #8-18 X 31/100-in for Gibson GFU20F7FW0 - Part 131168200

    Cabinet/control/shelves diagram

    Grille Screw

    Part #131168200

    Replaced by #131168200

    Info Icon
    Manufacturer substitution
    This part replaces 131168200. Substitute parts can look different from the original.
    In Stock
    $14.08
    12% OFF Phone Price : $16.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Strap for Gibson GFU20F7FW0 - Part 5308000110

    System diagram

    Clip

    Part #06599536

    Replaced by #5308000110

    Info Icon
    Manufacturer substitution
    This part replaces 06599536. Substitute parts can look different from the original.
    In Stock
    $36.26
    32% OFF Was : $53.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Shelf Rail End Cap, Left for Gibson GFU20F7FW0 - Part 216334100

    Door diagram

    Freezer Door Shelf Rail End Cap, Left

    Part #216334100
    This item is not returnable
    In Stock
    $27.39
    18% OFF Phone Price : $33.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Thermostat Sensor Barrier for Gibson GFU20F7FW0 - Part 5303916855

    Cabinet/control/shelves diagram

    Refrigerator Thermostat Sensor Barrier

    Part #5303916855
    In Stock
    $40.16
    25% OFF Was : $53.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Shelf Rail End Cap, Right for Gibson GFU20F7FW0 - Part 216334000

    Door diagram

    Freezer Door Shelf Rail End Cap, Right

    Part #216334000
    In Stock
    $42.55
    12% OFF Phone Price : $48.55Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Freezer Door Shelf Rail End Cap, Right 216334000

Freezer Door Shelf Rail End Cap, Right

Part #216334000
In Stock
$42.55
12% OFF Phone Price : $48.55Info Icon
Minus Item
Qty
Plus Item
Appliance Leveling Leg 216396900

Appliance Leveling Leg

Part #216396900
In Stock
$28.28
18% OFF Phone Price : $34.28Info Icon
Minus Item
Qty
Plus Item

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Read more

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Read more

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Read more

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Read more

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Read more

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Read more

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Read more

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Read more
