Model #11073562210 Kenmore washer

Here are the diagrams and repair parts for Kenmore 11073562210 washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 301 parts

    Laundry Appliance Screw, #10-16 x 1-1/2-in

    #12

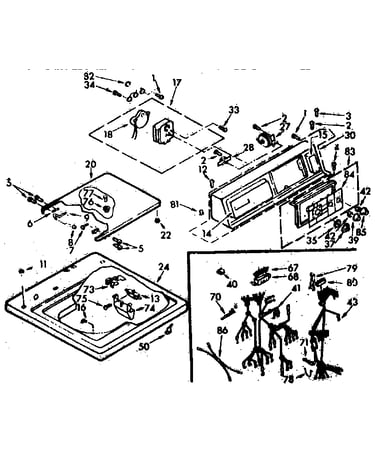

    Top and console assembly Diagram

    $12.49

    In Stock

    Washer Wire Harness Retainer

    #78

    Top and console assembly Diagram

    $13.87 |
    10% OFF MSRP:$15.49

    In Stock

    Washer Suds Saver Drain Outlet Hose

    #4

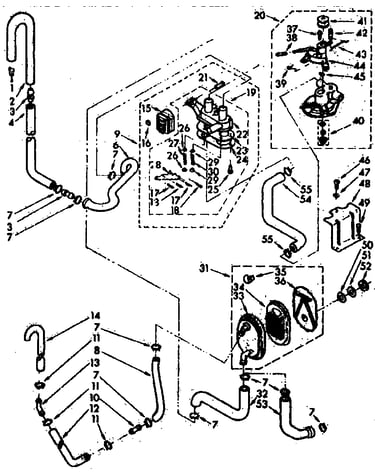

    Water system Diagram

    $31.16

    In Stock

    Washer Gear Case Brake Line and Guide

    #3

    Gearcase/transmission Diagram

    $28.28

    In Stock

    Washer Wigwag

    #75

    Gearcase/transmission Diagram

    Washer wigwag

    Part #84867
    $18.07 |
    54% OFF MSRP:$39.65

    In Stock

    Hinge Pad

    #30

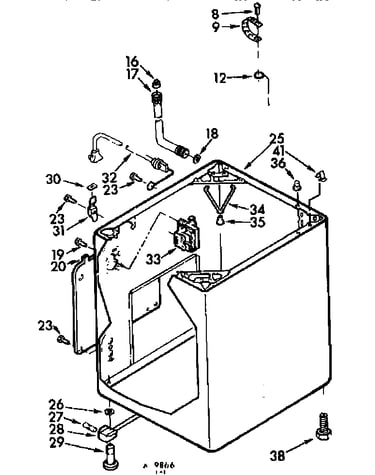

    Cabinet parts Diagram

    Hinge pad

    Part #18849
    $12.49

    In Stock

    Washer Screw

    #7

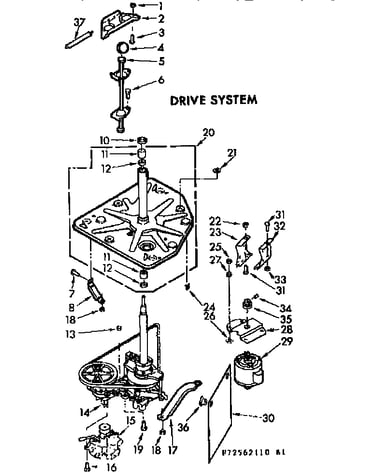

    Drive system Diagram

    Washer screw

    Part #WP3400516
    ?
    Manufacturer substitution
    This part replaces 355653. Substitute parts can look different from the original.
    This part replaces 355653
    This item is not returnable
    $3.54

    In Stock

    Washer Water-Level Pressure Switch Hose

    #19

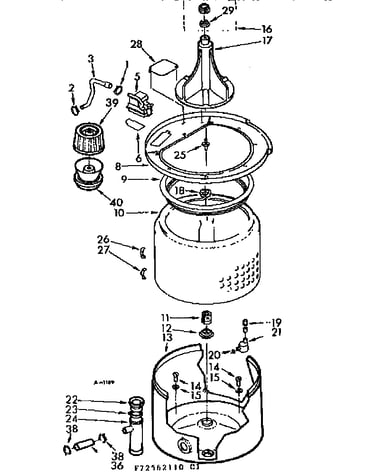

    Tub and basket assembly Diagram

    Washer water-level pressure switch hose

    Part #WP353244
    ?
    Manufacturer substitution
    This part replaces 353401. Substitute parts can look different from the original.
    This part replaces 353401
    $20.49 |
    38% OFF MSRP:$33.00

    In Stock

    Carriage Bolt

    #3B

    Drive system Diagram

    Carriage bolt

    Part #126211

    The manufacturer no longer makes this part, and there's no substitute part

    Washing Machine Washer

    #18

    Cabinet parts Diagram

    Washing machine washer

    Part #WP16123
    ?
    Manufacturer substitution
    This part replaces 16123. Substitute parts can look different from the original.
    This part replaces 16123
    This item is not returnable
    $3.39

    In Stock

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
