Tappan 98-1668-00-02 upright freezer - lt30890050 Parts
Here are the diagrams and repair parts for Tappan 98-1668-00-02 upright freezer - lt30890050, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 98-1668-00-02 Freestanding Freezers
Insulation
Part #F116171-50Replaced by #5303925098
Manufacturer substitutionThis part replaces F116171-50. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52
Qty

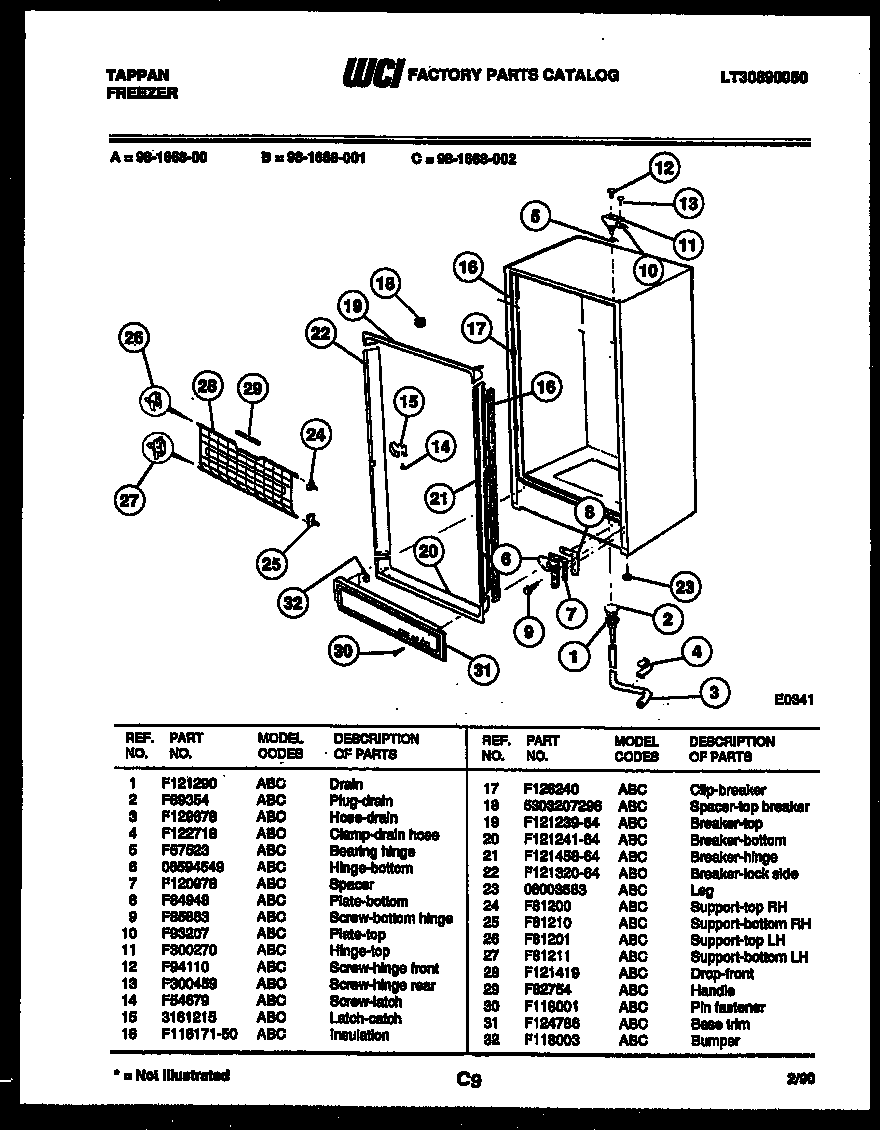

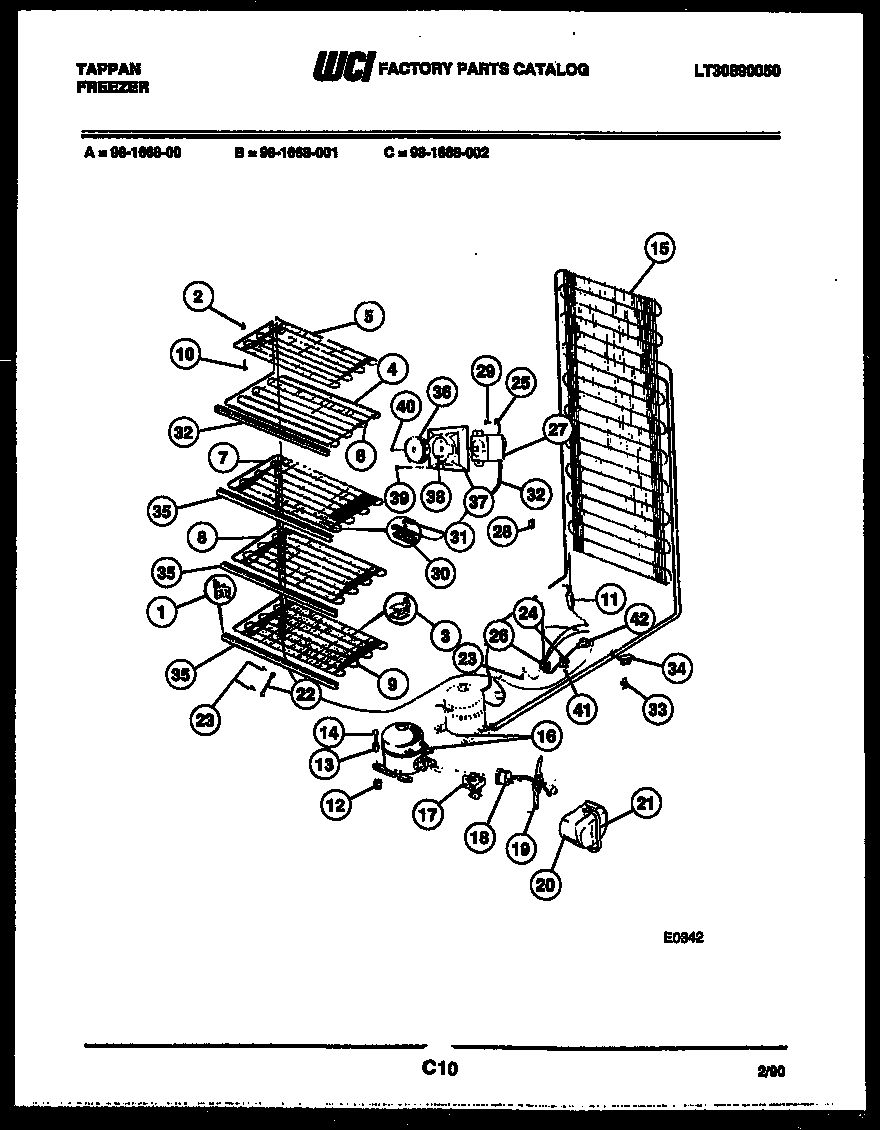

System and electrical parts diagram
First Shelf
Part #F129786Replaced by #08037939
Manufacturer substitutionThis part replaces F129786. Substitute parts can look different from the original.In Stock$198.36QtyCabinet parts diagram
Retainer
Part #F84948Replaced by #06594550
Manufacturer substitutionThis part replaces F84948. Substitute parts can look different from the original.In Stock$25.75QtySystem and electrical parts diagram
Shelf
Part #F129807Replaced by #08037940
Manufacturer substitutionThis part replaces F129807. Substitute parts can look different from the original.In Stock$152.20QtySystem and electrical parts diagram
Overload
Part #3204568Replaced by #5303270406
Manufacturer substitutionThis part replaces 3204568. Substitute parts can look different from the original.In Stock$110.56QtySystem and electrical parts diagram
Shelf Grid T
Part #F121179Replaced by #5300121179
Manufacturer substitutionThis part replaces F121179. Substitute parts can look different from the original.In Stock$211.41QtySystem and electrical parts diagram
Spacer
Part #F81445Replaced by #5300081445
Manufacturer substitutionThis part replaces F81445. Substitute parts can look different from the original.In Stock$27.73QtySystem and electrical parts diagram
Relay
Part #3204565Replaced by #216594300
Manufacturer substitutionThis part replaces 3204565. Substitute parts can look different from the original.In Stock$16.4742% OFF Was : $28.18QtyCabinet parts diagram
Bumper
Part #F118003Replaced by #5300118003
Manufacturer substitutionThis part replaces F118003. Substitute parts can look different from the original.In Stock$25.82QtySystem and electrical parts diagram
First Shelf
Part #F129785Replaced by #08037939
Manufacturer substitutionThis part replaces F129785. Substitute parts can look different from the original.In Stock$198.36Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
