Maytag
Chest Freezer

Model # MQC2257BEW Official Maytag chest freezer

Here are the diagrams and repair parts for Official Maytag MQC2257BEW chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

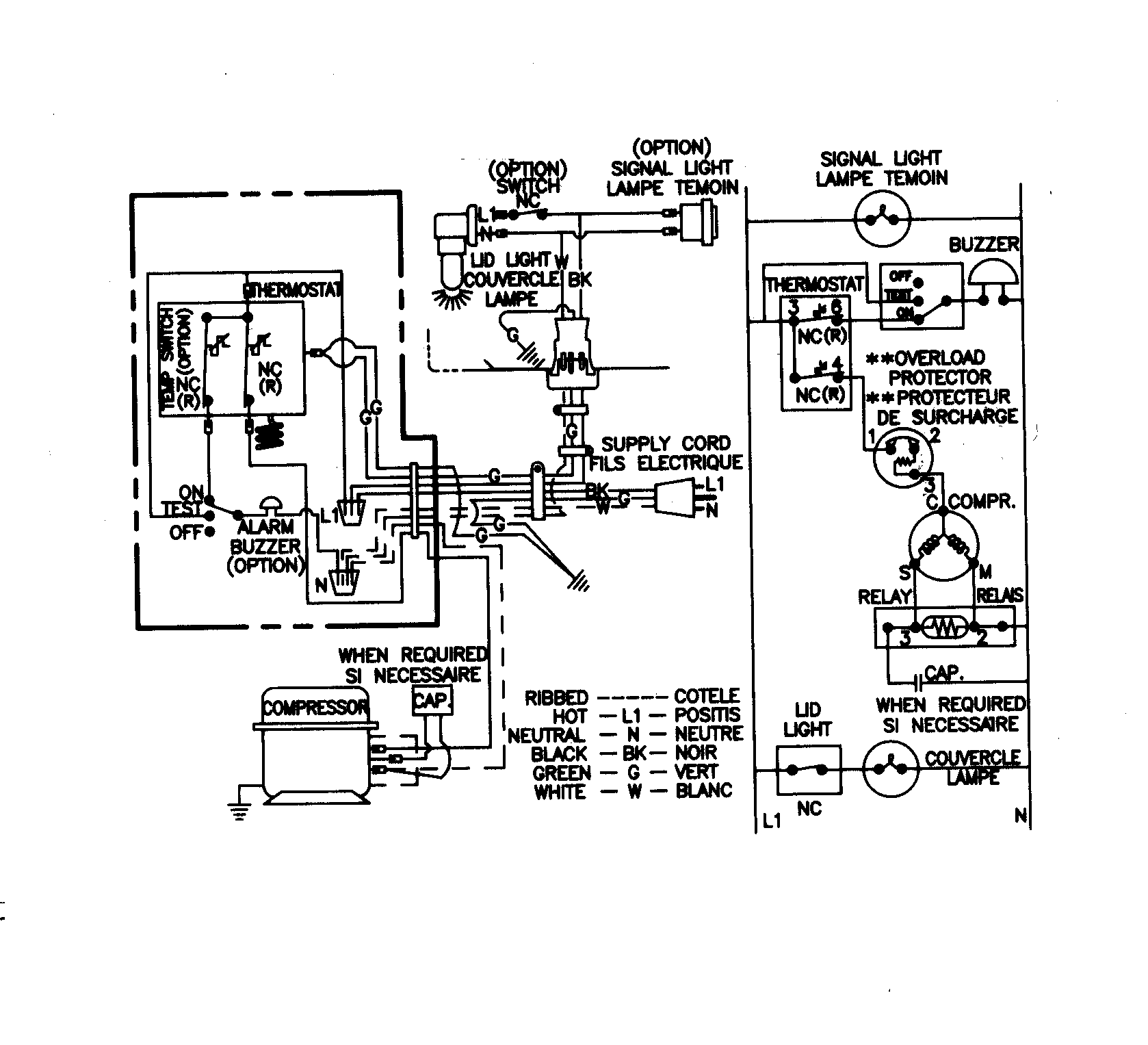

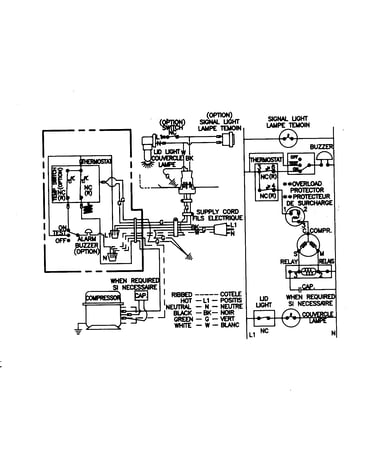

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Light Bulb Y09100073
#18

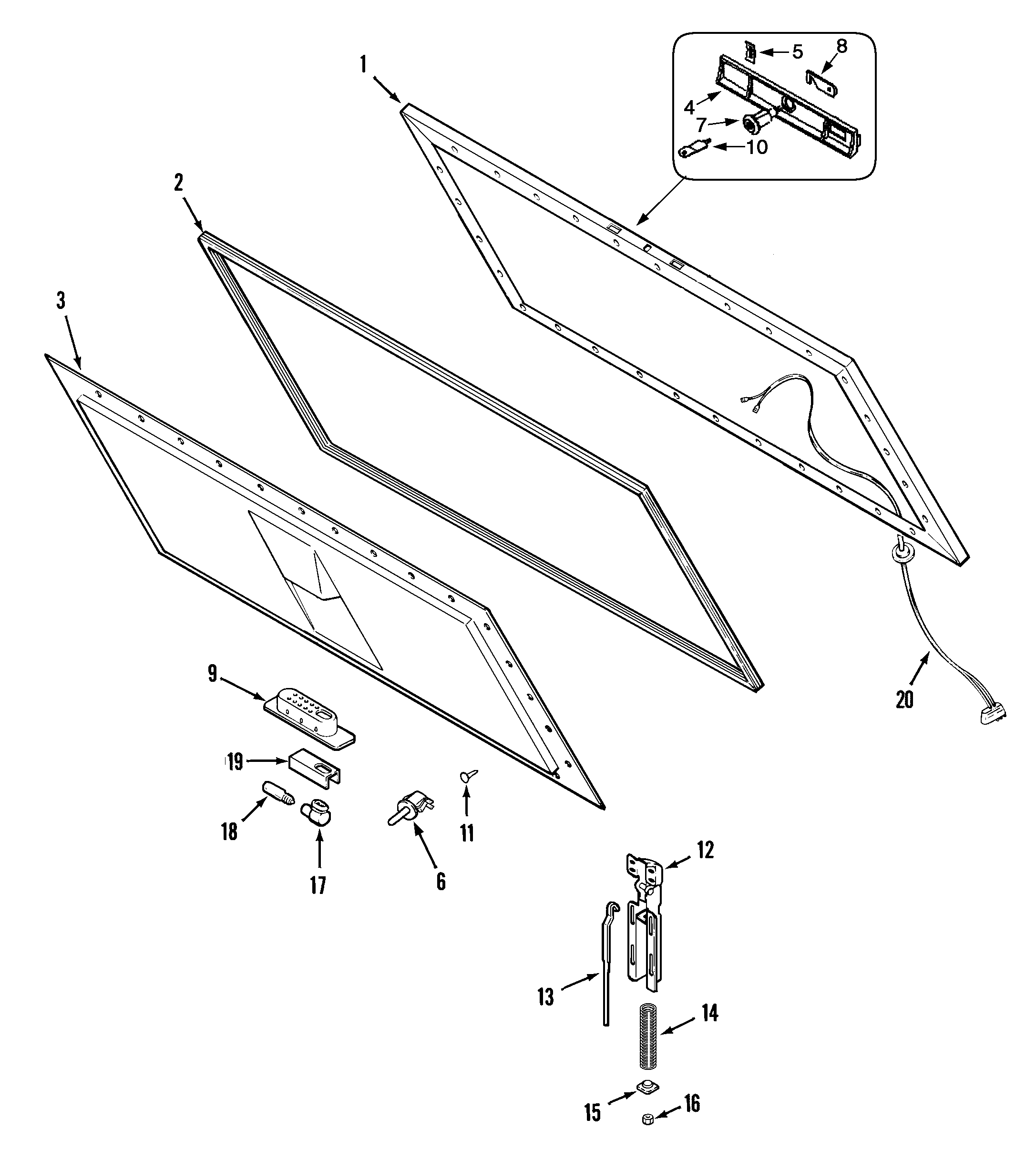

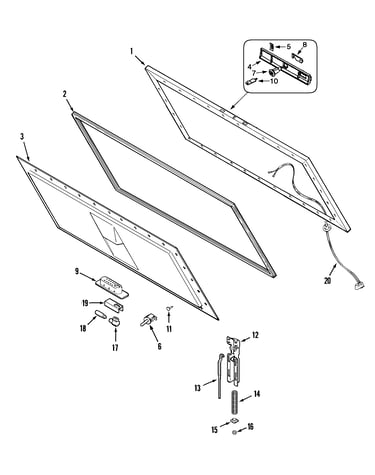

Lid diagram

Light bulb

Part #Y09100073

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces Y09100073. Substitute parts can look different from the original.
BEST SELLER
$18.12
10% OFF Phone Price : $20.12
In Stock
Refrigerator Uv Dye Dryer 13900-1
#6

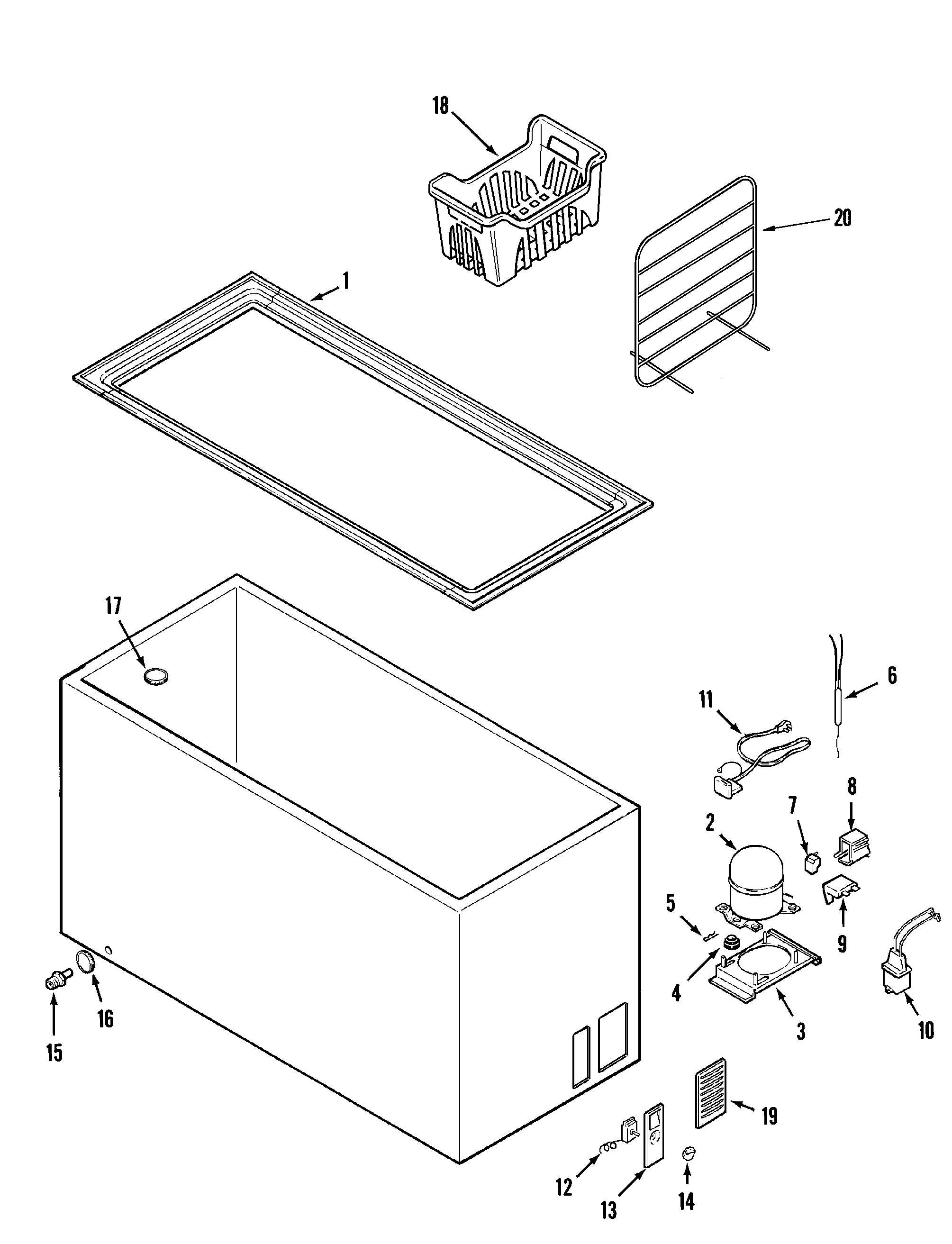

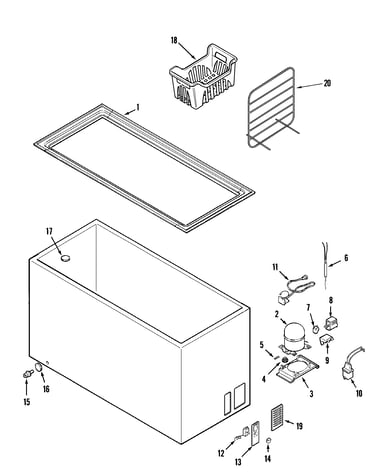

Cabinet diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
$20.87
33% OFF MSRP : $31.00
In Stock
Screw 68001156
#8A

Lid diagram

Screw

Part #68001156

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 68001156. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Gasket Kit 68001269
#2

Lid diagram

Gasket kit

Part #68001269

Replaced by #4-35260-006

?
Manufacturer substitution
This part replaces 68001269. Substitute parts can look different from the original.
$117.82
21% OFF MSRP : $150.00
In Stock
Wiring Harness R0000143
#11

Cabinet diagram

Wiring harness

Part #R0000143

Replaced by #4-35136-002

?
Manufacturer substitution
This part replaces R0000143. Substitute parts can look different from the original.
$82.62
25% OFF MSRP : $110.00
In Stock
Screw Y09100105
#12A

Lid diagram

Screw

Part #Y09100105

Replaced by #4356491

?
Manufacturer substitution
This part replaces Y09100105. Substitute parts can look different from the original.
In Stock
Handle Clip Y09100002
#5

Lid diagram

Handle clip

Part #Y09100002

Replaced by #3-24059-024

?
Manufacturer substitution
This part replaces Y09100002. Substitute parts can look different from the original.
In Stock
Hinge Shim 68001171
#12B

Lid diagram

Hinge shim

Part #68001171

Replaced by #1-17548-006

?
Manufacturer substitution
This part replaces 68001171. Substitute parts can look different from the original.
In Stock
Kit Temperature Box 68001633
#13

Cabinet diagram

Kit temperature box

Part #68001633

Replaced by #W10682894

?
Manufacturer substitution
This part replaces 68001633. Substitute parts can look different from the original.
$26.49
16% OFF Phone Price : $31.49
In Stock
Screw 68001170
#13A

Cabinet diagram

Screw

Part #68001170

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces 68001170. Substitute parts can look different from the original.
This item is not returnable
In Stock
