Model # FFRE06L3Q14 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRE06L3Q14 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

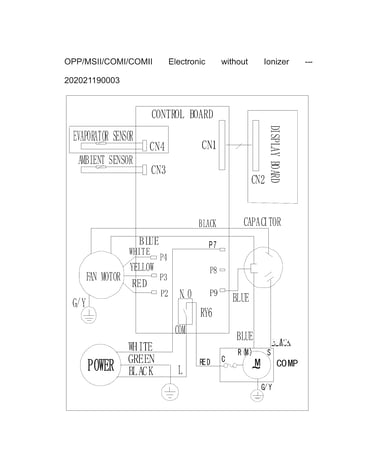

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Room Air Conditioner Installation Kit 5304491953
#41

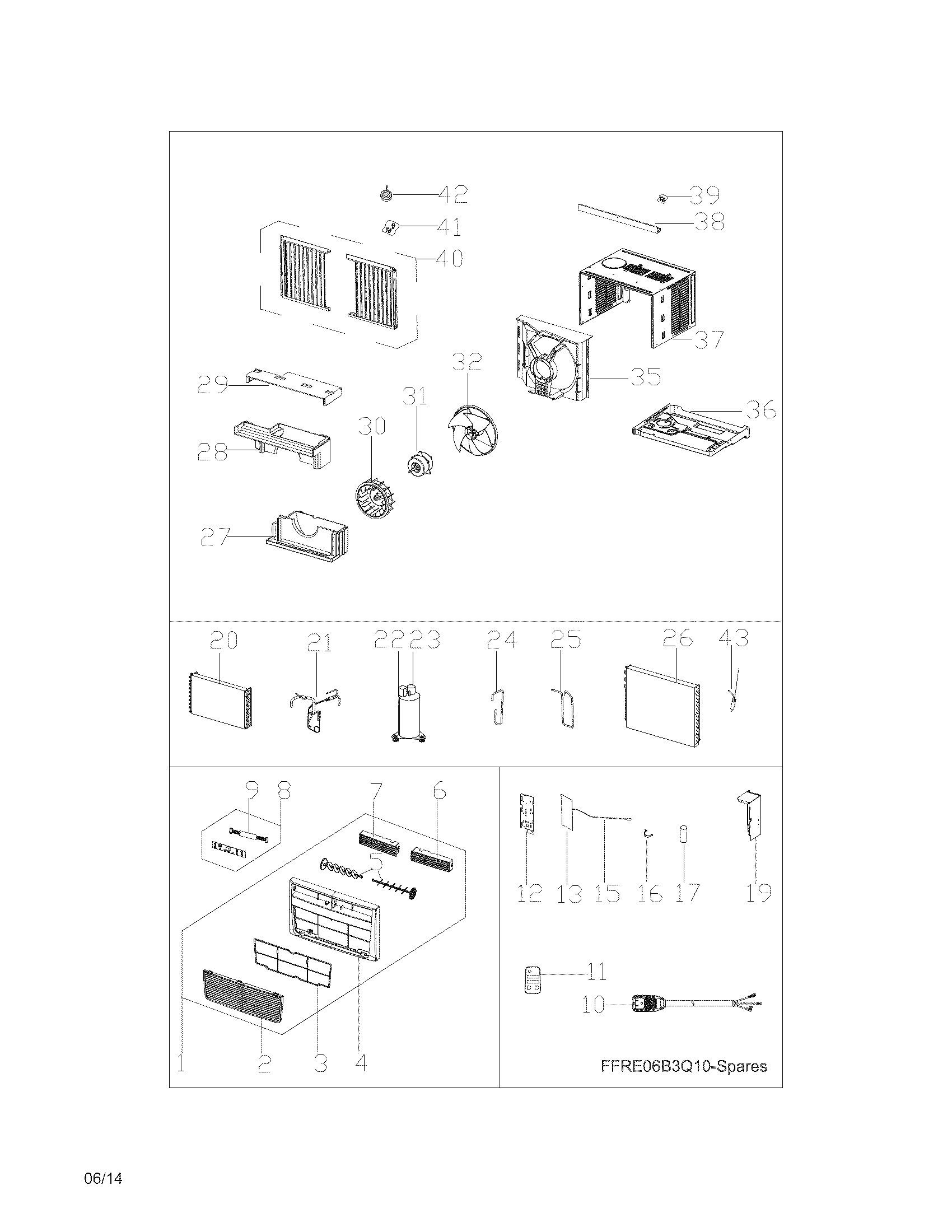

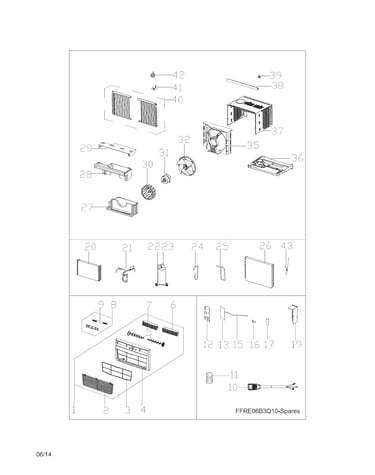

Recommended spare parts diagram

Room air conditioner installation kit

Part #5304491953

This item is not returnable
$19.76
9% OFF Phone Price : $21.76
In Stock
Room Air Conditioner Ambient Thermistor 5304487548
#15

Recommended spare parts diagram

Room air conditioner ambient thermistor

Part #5304487548

This item is not returnable
$21.49
19% OFF Phone Price : $26.49
In Stock
Room Air Conditioner Accordion Filler Assembly 5304495917
#40

Recommended spare parts diagram

Room air conditioner accordion filler assembly

Part #5304495917

$93.36
5% OFF Phone Price : $98.36
In Stock
Room Air Conditioner Front Grille Assembly 5304477069
#1

Recommended spare parts diagram

Room air conditioner front grille assembly

Part #5304477069

Replaced by #5304525618

?
Manufacturer substitution
This part replaces 5304477069. Substitute parts can look different from the original.
In Stock
Louver 5304477073
#5

Recommended spare parts diagram

Louver

Part #5304477073

This item is not returnable
In Stock
Scroll 5304486039
#29

Recommended spare parts diagram

Scroll

Part #5304486039

In Stock
Condenser 5304495914
#26

Recommended spare parts diagram

Condenser

Part #5304495914

In Stock
Louver 5304477075
#7

Recommended spare parts diagram

Louver

Part #5304477075

In Stock
Cover 5304495908
#12

Recommended spare parts diagram

Cover

Part #5304495908

This item is not returnable
In Stock
Capacitor 5304476049
#17

Recommended spare parts diagram

Capacitor

Part #5304476049

In Stock
