What is the difference between 1.7 and 1.9 cu ft microwave?
A 1.9 cu. ft. microwave gives you about 0.2 cu. ft. more usable cavity space than a 1.7 cu. ft. model, so it fits slightly larger dishes and taller containers more comfortably. For an over-the-range unit like Whirlpool WMH2175XVS4, exterior fit is often similar, but you should confirm cutout and mounting requirements in the installation guide.
What changes in real-world use
That extra 0.2 cu. ft. usually shows up as a little more room for:
- Larger casserole dishes and wider dinner plates
- Taller microwave-safe containers (less chance of rubbing the ceiling)
- More even spacing around food (helps reduce hot and cold spots)

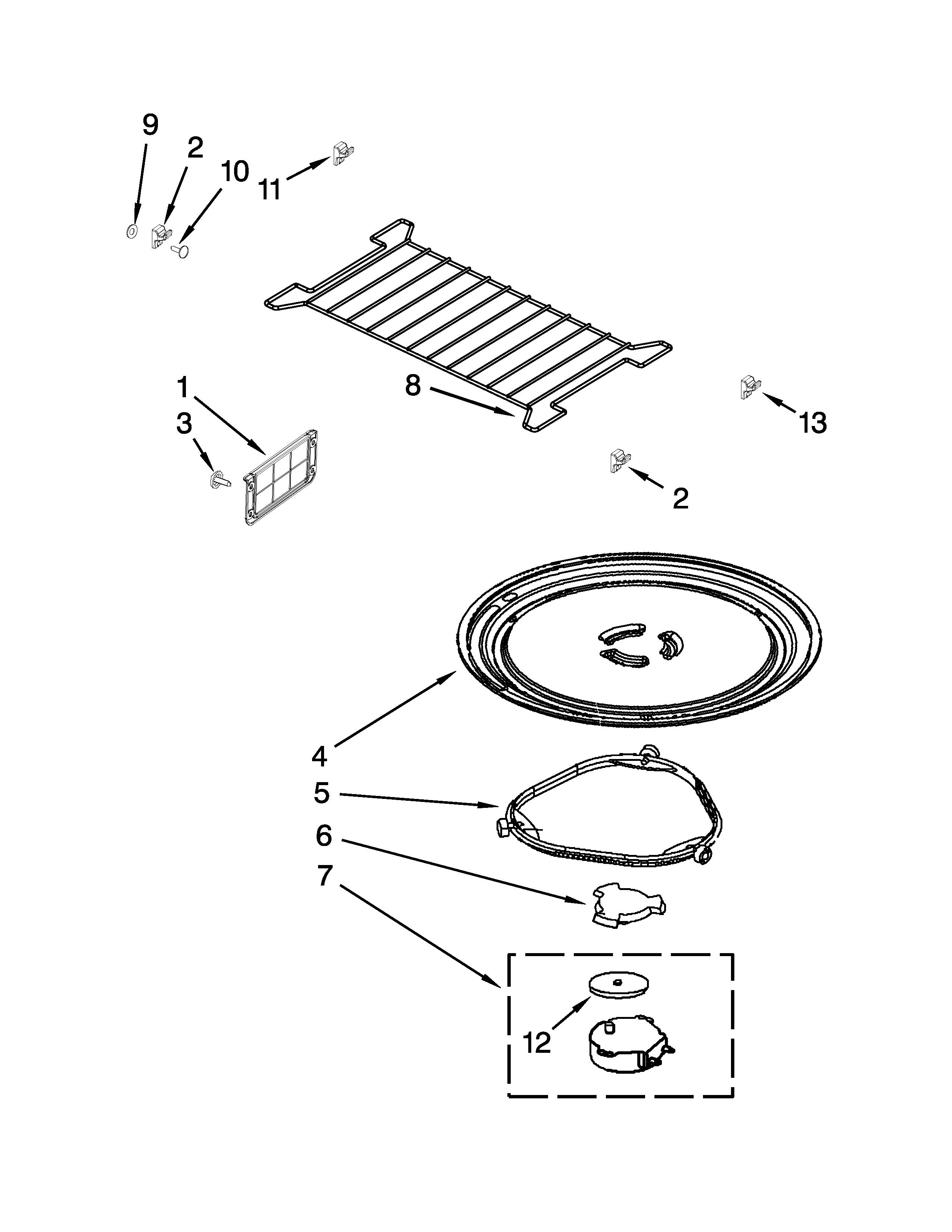

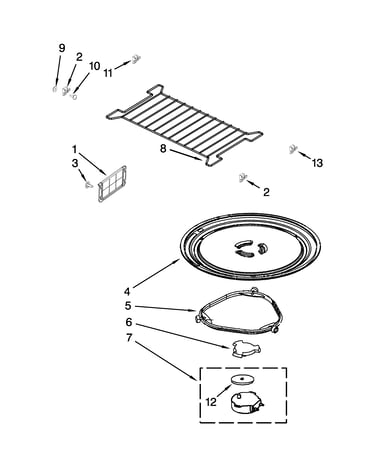

- Fewer “won’t rotate” issues when using the turntable
Typical differences you may see (not guaranteed)
Capacity alone does not tell you wattage, venting power, or features. Many 1.9 cu. ft. models are paired with higher output or stronger ventilation, but it varies by exact model.
| Spec or feature | 1.7 cu. ft. (typical) | 1.9 cu. ft. (typical) |
|---|---|---|
| Interior capacity | Smaller | Larger |
| Exterior width (OTR) | Often ~30 in. | Often ~30 in. |
| Cooking power | Often ~900 to 1100W | Often ~1000 to 1200W |
| Vent fan airflow | Often ~300 CFM | Often ~300 to 400 CFM |
Fit and installation: what to check first
For over-the-range microwaves, the cabinet opening and mounting method matter more than the capacity number.
- Confirm the required cabinet opening and clearances
- Verify the mounting plate and upper-cabinet bolt locations
- Plan your venting route (roof venting, wall venting, or recirculating)
- Avoid flexible metal venting; rigid metal venting performs better
- Make sure the damper has clearance to open freely
The venting and damper clearance details are covered in the installation guide.
Why it matters
Choosing 1.7 vs. 1.9 cu. ft. is mainly about day-to-day usability (dish size and headroom). Installation success depends on matching your cabinet cutout, wall stud mounting, and venting design to the microwave’s requirements.
Last updated: February 2026
How do I know what wattage my Whirlpool microwave is?
For your Whirlpool WMH2175XVS4 microwave/hood combo, the most reliable way to confirm cooking wattage is to check the specifications section in the owner's manual or read the model and serial label located on the front facing of the microwave oven opening, behind the door.
Where to find the wattage (fastest options)
- Owner’s manual: Look for “Specifications” or “Electrical requirements” in the owner's manual.
- Model and serial label: Open the door and look on the front facing of the microwave opening, behind the door.
- Product listing details: If you are comparing parts or features, keep the model number WMH2175XVS4 handy so you match the correct configuration.
What “wattage” usually means on a microwave
Microwaves commonly list more than one wattage number. Here is how to interpret what you see:
| What you see | What it refers to | Why it matters |
|---|---|---|
| Cooking/output watts | Heating power delivered to food | Best number for cooking time comparisons |
| Input watts (power consumption) | Electrical power the unit draws | Helps with circuit load questions |
| Hood fan or cooktop light watts | Vent fan motor or light bulb rating | Helps when replacing bulbs or diagnosing fan issues |
If you cannot find a clear wattage number
Use this quick check so you still get a practical answer for cooking:
- Heat 1 cup of cold water on High for 2 minutes.
- If it is barely warm, heating performance may be reduced.
- If it does not heat at all, focus troubleshooting on common heating circuit components.
For heating problems, we use the same symptom-based approach covered in why is my microwave not heating.
Why it matters
Cooking wattage affects real-world results: higher output wattage typically means shorter cook times and more consistent reheating. Knowing the correct wattage also helps you follow recipe instructions that say “adjust for 900W vs 1100W,” and it prevents misdiagnosing a normal cook time as a heating failure.
Last updated: February 2026
Are all Whirlpool microwaves the same size?
No. Whirlpool microwaves are not all the same size; dimensions and capacity vary by style (countertop, built-in, and over-the-range). For your Whirlpool WMH2175XVS4 microwave/hood combo, use the installation cutout and mounting requirements in the installation guide to confirm the exact fit.
Typical size ranges you can expect
Microwave sizes vary most by installation type and cabinet opening:
- Interior capacity: about 1.0 to 2.2 cu. ft. (many over-the-range models land around 1.6 to 2.0 cu. ft.)
- Common cabinet widths: 24 in., 27 in., or 30 in. (built-in applications often align to these)
- Typical depth: about 20 to 25 in. with the door closed (more clearance is needed with the door open)
- Mounting height and venting space: varies by model and whether you vent outside or recirculate
How we recommend confirming the correct size for WMH2175XVS4
Use these checks before ordering trim, filler panels, or planning cabinetry changes:
- Match the model number WMH2175XVS4 on the rating label (behind the door)
- Verify the required cabinet opening and mounting plate location
- Confirm whether your setup is top vent, rear vent, or recirculating
- Measure the existing opening width and compare to the guide
- Plan clearance for the door swing and upper cabinet depth
Quick comparison: “same size” vs “same fit”
| What people mean | What’s actually true | What to check |
|---|---|---|
| Same outside width | Many are similar, not identical | Cabinet opening width and mounting points |
| Same depth | Depth varies by door design and venting | Door-closed depth and door swing clearance |
| Same installation | Over-the-range units still differ | Venting path, damper, and templates |
Why it matters
Microwave/hood combos mount to a wall and upper cabinet, so a small difference in width, depth, or vent location can prevent proper mounting or cause vent misalignment. Using the model-specific installation specs helps you avoid rework and ensures safe, stable mounting.
Last updated: February 2026
What are the dimensions of WMH2175XVS4?
The Whirlpool WMH2175XVS4 microwave/hood combo is a standard over-the-range size; most units in this series measure about 30 inches wide, about 17 1/4 inches high, and about 16 1/4 inches deep. For the exact fit and required clearances, use the installation guide.
Dimensions to use for planning
Use these as the practical measurements that determine whether the microwave fits your space:
- Overall width: about 30 in.
- Overall height: about 17 1/4 in.
- Overall depth: about 16 1/4 in.
- Minimum clearance above cooktop (typical): 30 in. (varies by range/cooktop)
Installation dimensions that matter most
The installation guide for WMH2175XVS4 focuses on cabinet and venting clearances that can prevent a proper install even when the overall size looks right:
- Upper cabinet must contain a grounded 3-prong outlet
- Typical mounting height is 30 in. above the cooking surface
- Vent cutout must be clear so the damper blade opens freely
- For some roof-vent setups, allow about 3 in. clearance above the microwave for damper operation
Quick fit checklist (measure these before you install)
- Inside width of the upper cabinet opening
- Upper cabinet depth (front edge to back wall)
- Distance from cooktop to the bottom of the upper cabinet
- Vent path size and direction (wall venting vs roof venting)
Fit check table
| What you are measuring | Target to compare against | Why it matters |
|---|---|---|
| Microwave overall size | About 30 W x 17 1/4 H x 16 1/4 D | Confirms the body fits the opening |
| Cooktop-to-microwave height | Typically 30 in. minimum | Helps protect cabinets and improves capture of steam/smoke |
| Vent clearance | Damper opens fully, no obstructions | Prevents poor airflow and damper sticking |
Why it matters
Over-the-range microwaves are sized to match common 30-inch ranges, but cabinet depth, outlet placement, and venting clearances determine whether the WMH2175XVS4 installs securely and vents correctly.
Last updated: February 2026
