Model # 131978230 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 131978230 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |

Blade 69334
Blade

Part #69334

Replaced by #406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Lawn & Garden Equipment Washer (replaces 532057079, 5320570-79) 57079
#14

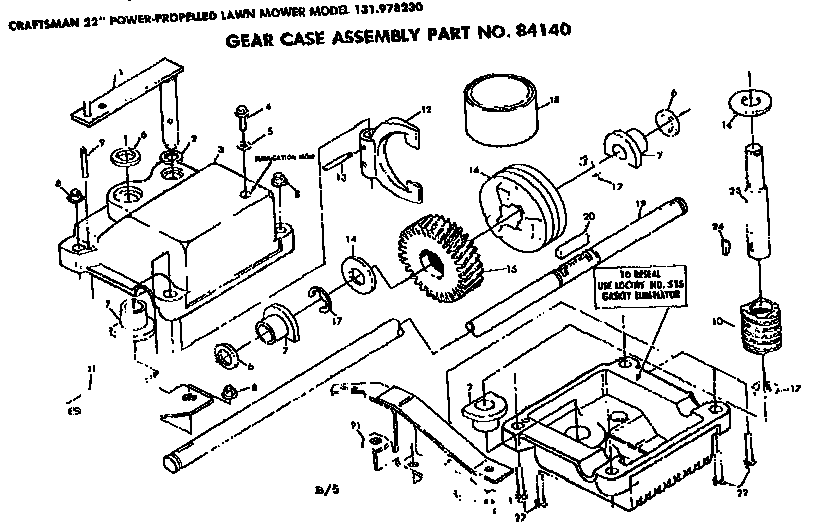

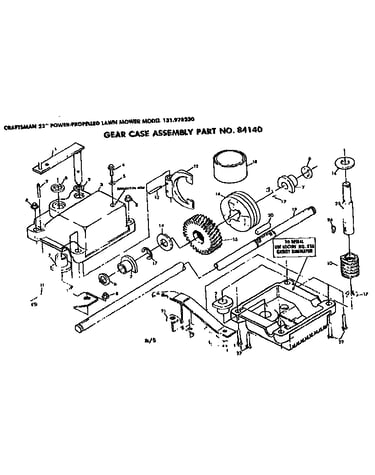

Gear case assem. diagram

Lawn & garden equipment washer (replaces 532057079, 5320570-79)

Part #57079

BEST SELLER
This item is not returnable
$3.09
24% OFF Phone Price : $4.09
In Stock
Screw 81276
#35

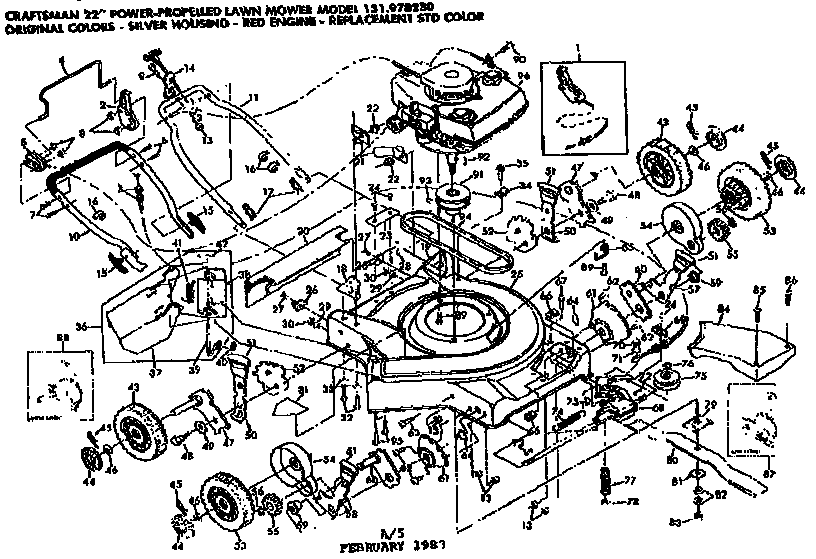

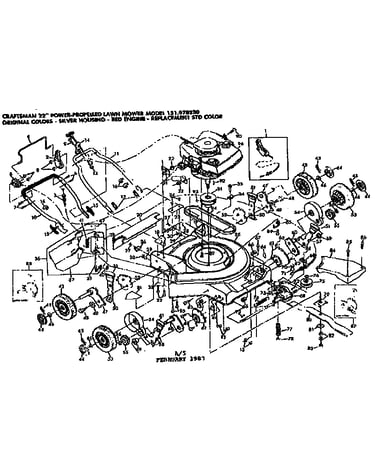

Mower deck diagram

Screw

Part #81276

Replaced by #750634

?
Manufacturer substitution
This part replaces 81276. Substitute parts can look different from the original.
This item is not returnable
$3.79
21% OFF Phone Price : $4.79
In Stock
Wheel And Tire Assembly 78890
#43

Mower deck diagram

Wheel and tire assembly

Part #78890

Replaced by #33781

?
Manufacturer substitution
This part replaces 78890. Substitute parts can look different from the original.
$13.19
13% OFF Phone Price : $15.19
In Stock
Decal 78850
#31

Mower deck diagram

Decal

Part #78850

Replaced by #539913010

?
Manufacturer substitution
This part replaces 78850. Substitute parts can look different from the original.
This item is not returnable
In Stock
Selector Knob 77865
#51

Mower deck diagram

Selector knob

Part #77865

Replaced by #532132800

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut, #10-24 STD541410
#8

Mower deck diagram

Lock nut, #10-24

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Washer 59289
#33

Mower deck diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut, 1/4-20 STD541425
#78

Mower deck diagram

Lock nut, 1/4-20

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Washer 52160
#46

Mower deck diagram

Washer

Part #52160

Replaced by #532052160

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$3.99
20% OFF Phone Price : $4.99
In Stock
