Model # KDDT07BAL0 Official KitchenAid 30" gas slide-in cooktop with electric convection oven

Here are the diagrams and repair parts for Official KitchenAid KDDT07BAL0 30" gas slide-in cooktop with electric convection oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 258 parts  |
Light Bulb 311255
#29

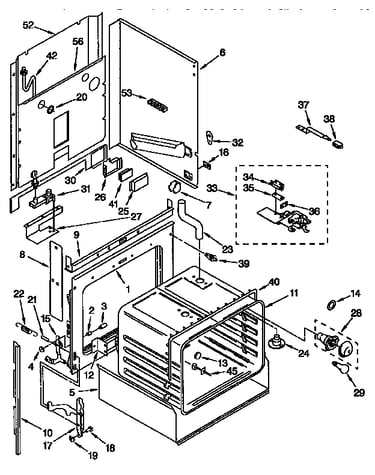

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.39 |
12% OFF Phone Price : $17.39
In Stock
Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 3182346
#20B

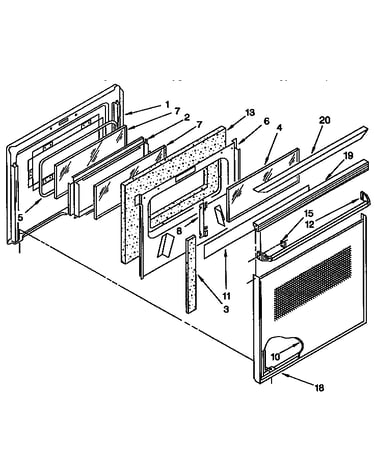

Door and drawer parts diagram

Screw

Part #3182346

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 3182346. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
69% OFF MSRP : $14.00
In Stock
Grommet-bl 3180079
#2B

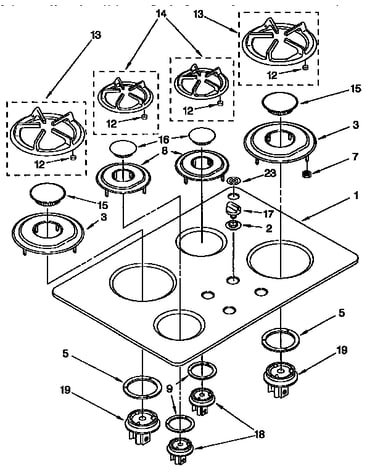

Cooktop, burner and grate diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Grid Pan 3147563
#3

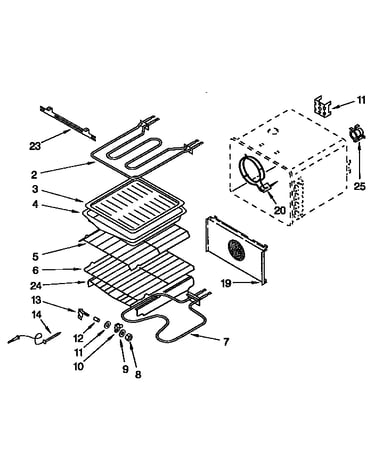

Internal oven diagram

Grid pan

Part #3147563

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147563. Substitute parts can look different from the original.
$29.55 |
24% OFF MSRP : $39.00
In Stock
Broiler Pan 3147845
#4

Internal oven diagram

Broiler pan

Part #3147845

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147845. Substitute parts can look different from the original.
$29.55 |
24% OFF MSRP : $39.00
In Stock
Grommet-wh 3180081
#2A

Cooktop, burner and grate diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.59 |
13% OFF Phone Price : $7.59
In Stock
Spark Module 3187409
#41A

Oven diagram

Spark module

Part #3187409

Replaced by #WP4454392

?
Manufacturer substitution
This part replaces 3187409. Substitute parts can look different from the original.
$187.89 |
18% OFF MSRP : $230.00
In Stock
Range Burner Control Knob 3182569
#17C

Cooktop, burner and grate diagram

Range burner control knob

Part #3182569

Replaced by #WP3182569

?
Manufacturer substitution
This part replaces 3182569. Substitute parts can look different from the original.
This item is not returnable
$23.48 |
18% OFF Phone Price : $28.48
In Stock
Range Bake Element 661416
#7A

Internal oven diagram

Range bake element

Part #661416

Replaced by #WP661416

?
Manufacturer substitution
This part replaces 661416. Substitute parts can look different from the original.
$74.18 |
11% OFF MSRP : $83.00
In Stock
