Model # KGCT055GWH0 Official KitchenAid gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCT055GWH0 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Cooktop Installation Bracket (replaces 4455917, W10163327)

#NI

All parts diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89
13% OFF Phone Price : $37.89
In Stock
Bushing

#NI

All parts diagram

Bushing

Part #4173634

$8.49
11% OFF Phone Price : $9.49
In Stock
Cooktop Burner Manifold Bracket
#9

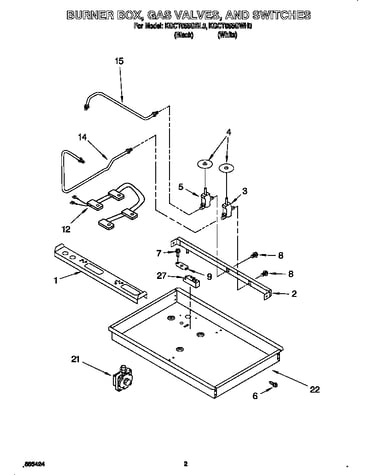

Burner box, gas valves, switches diagram

Cooktop burner manifold bracket

Part #3192491

In Stock
Cooktop Burner Knob Skirt (White)
#2B

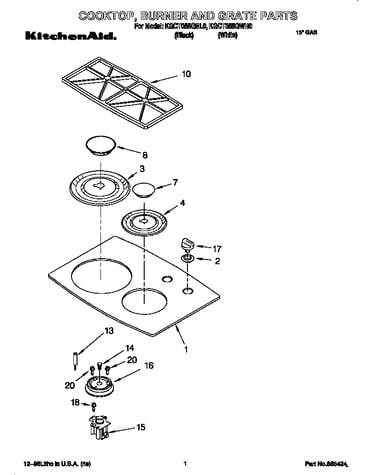

Cooktop, burner, grate diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.59
13% OFF Phone Price : $7.59
In Stock
Power Cord

#NI

All parts diagram

Power cord

Part #3192231

Replaced by #W10392007

?
Manufacturer substitution
This part replaces 3192231. Substitute parts can look different from the original.
In Stock
Range Screw
Range screw

Part #4449809

Replaced by #WP4449809

?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Cooktop Knob Grommet
#2A

Cooktop, burner, grate diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Orifice
#14B

Cooktop, burner, grate diagram

Orifice

Part #3192524

Replaced by #WP9753930

?
Manufacturer substitution
This part replaces 3192524. Substitute parts can look different from the original.
In Stock
Range Screw, #7-18 x 3/4-in (replaces 3368921)
#20

Cooktop, burner, grate diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
$2.80
77% OFF MSRP : $12.00
In Stock
Cooktop Igniter Switch and Harness Assembly
#12

Burner box, gas valves, switches diagram

Cooktop igniter switch and harness assembly

Part #3191334

Replaced by #WP3191334

?
Manufacturer substitution
This part replaces 3191334. Substitute parts can look different from the original.
In Stock
