Model # SWTH21WN Official Speed Queen commercial washer

Here are the diagrams and repair parts for Official Speed Queen SWTH21WN commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

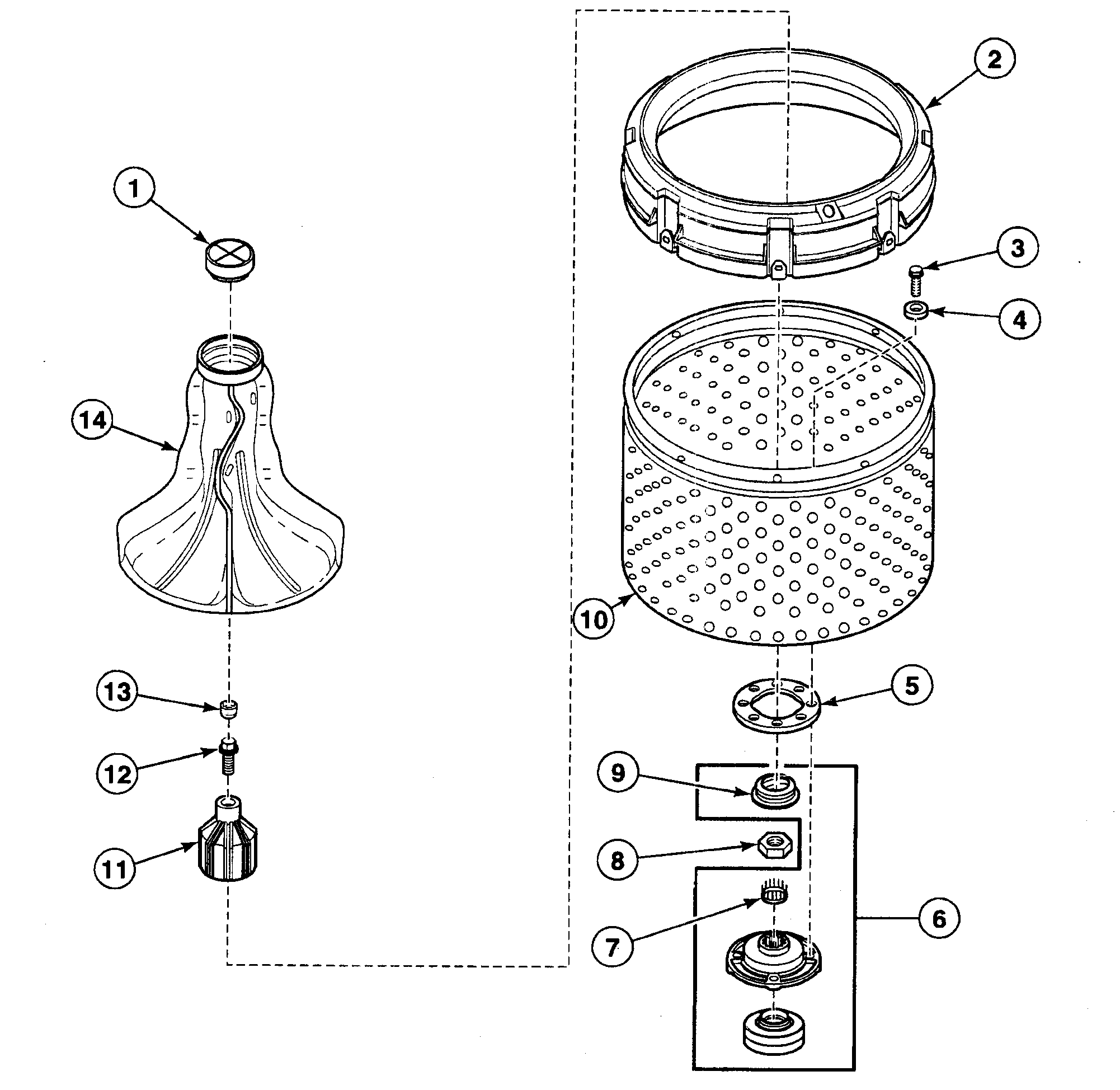

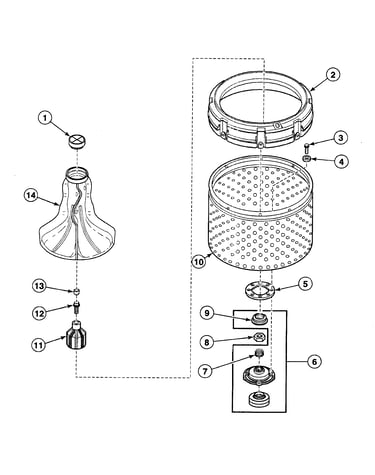

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |

Screw 503688
#6

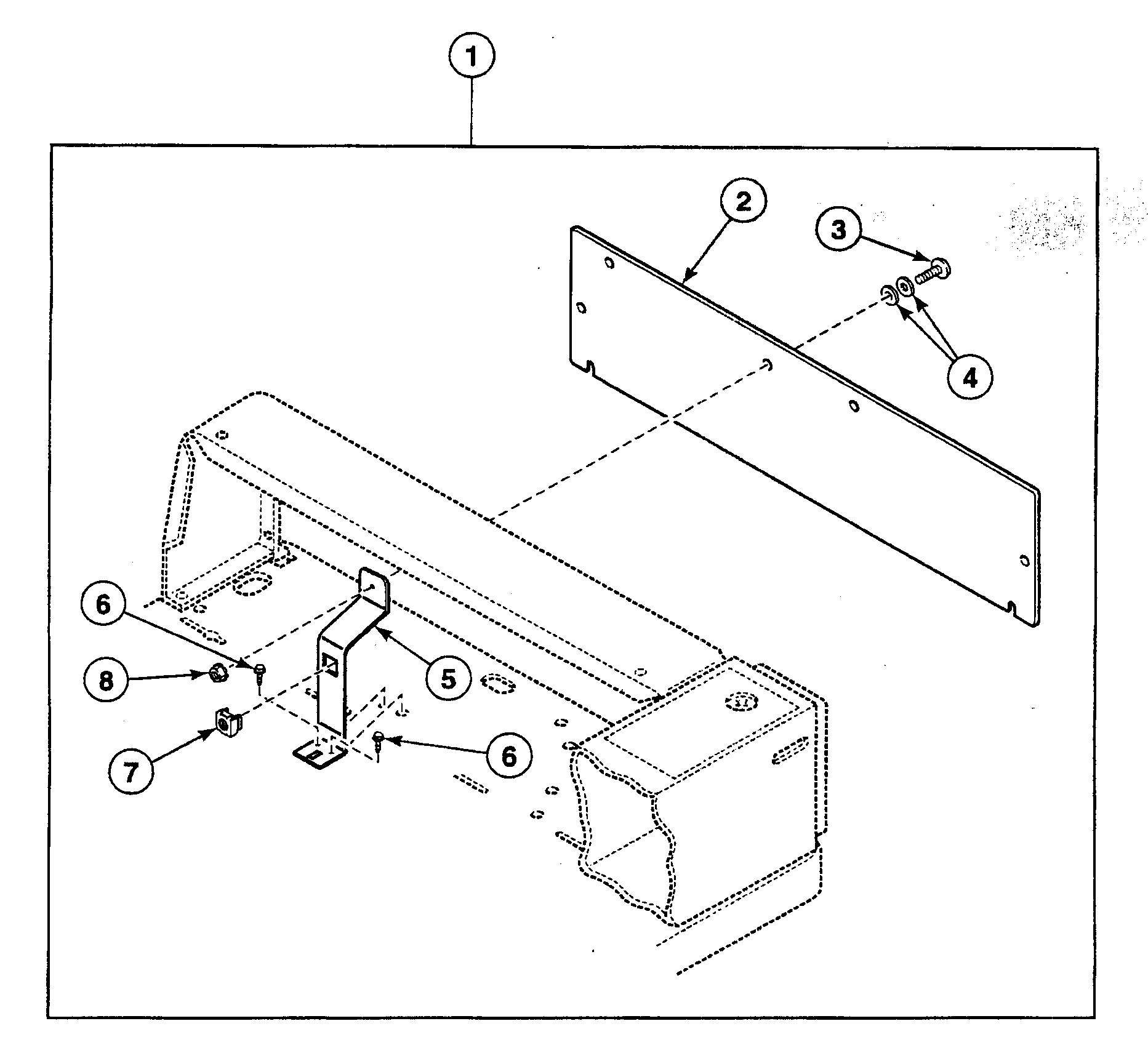

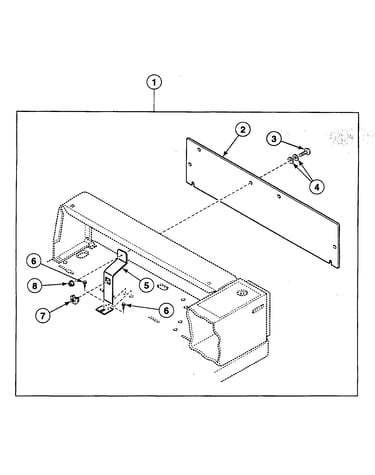

Security kit diagram

Screw

Part #503688

The manufacturer no longer makes this part, and there's no substitute part

Washer 02431
#20

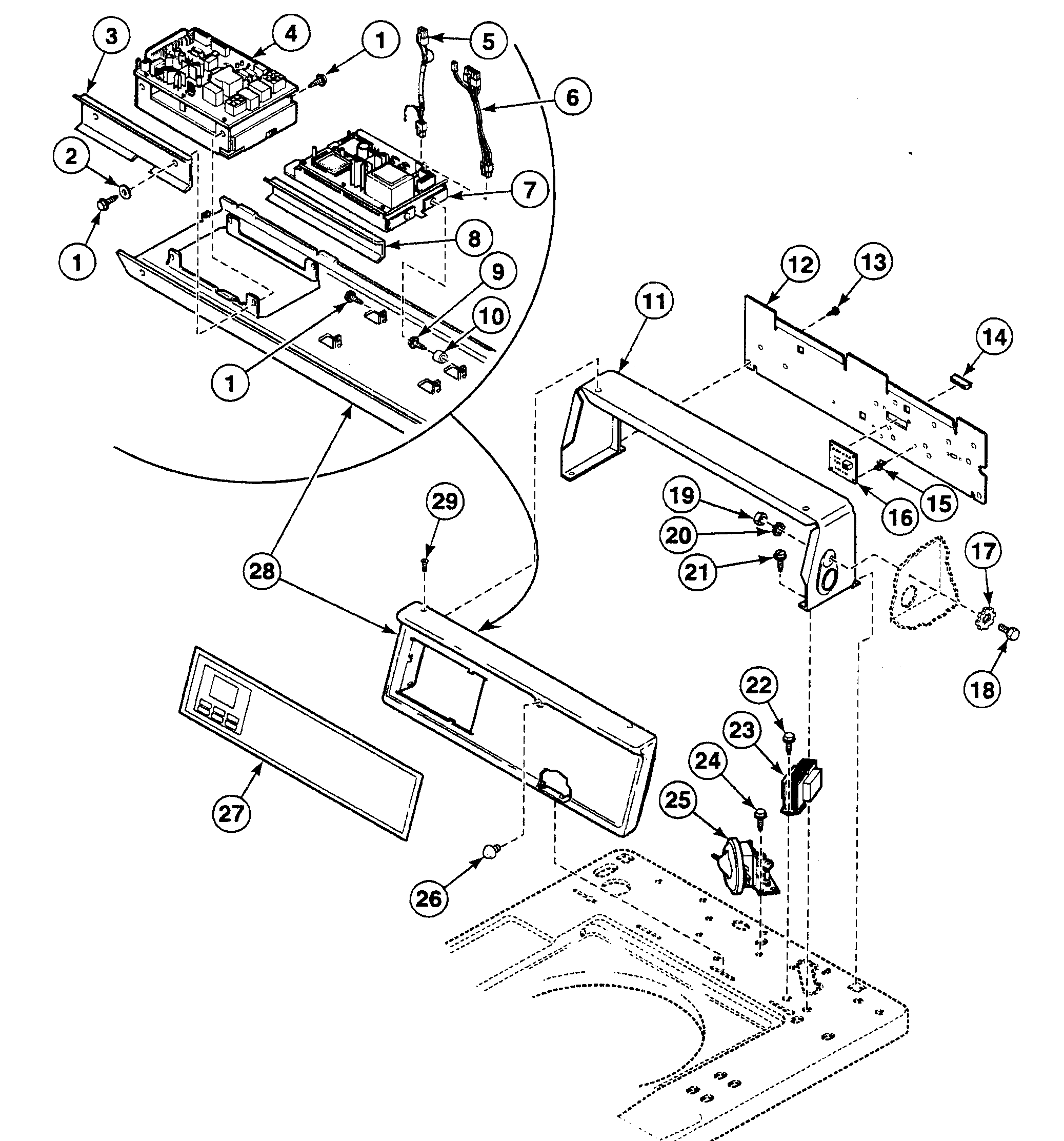

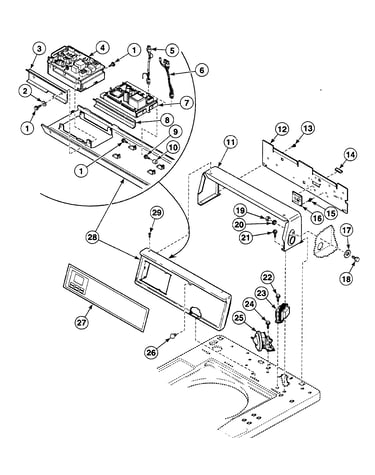

Control panel diagram

Washer

Part #02431

The manufacturer no longer makes this part, and there's no substitute part

Nut 30647
Nut

Part #30647

The manufacturer no longer makes this part, and there's no substitute part

Gasket 26354
#10

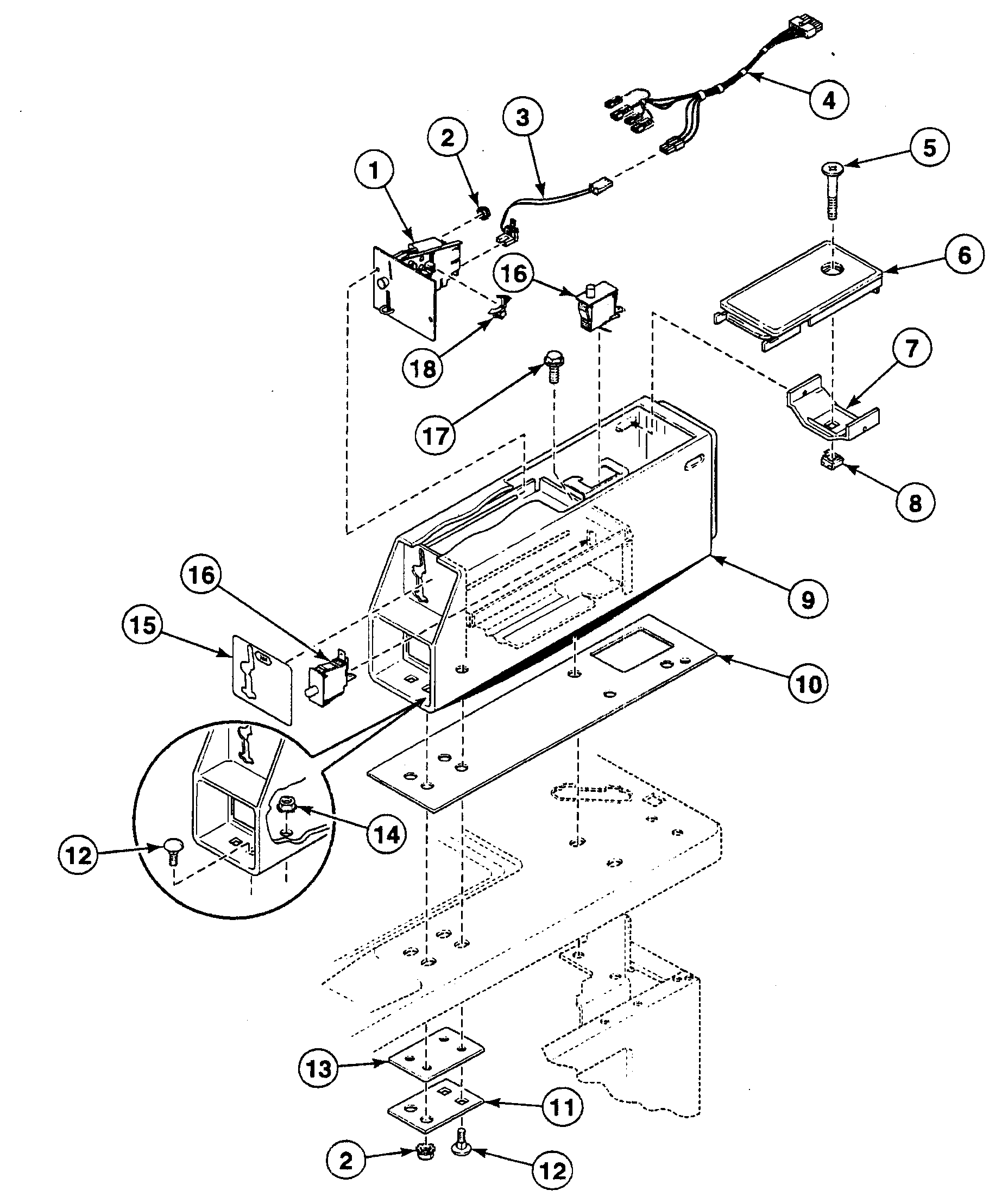

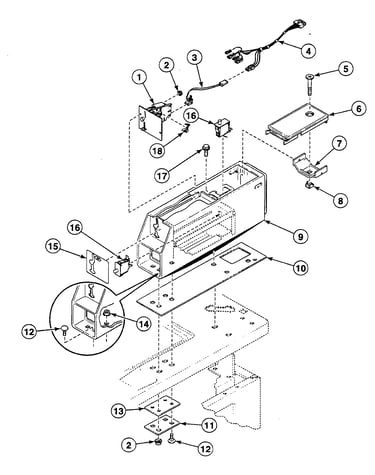

Meter case diagram

Gasket

Part #26354

The manufacturer no longer makes this part, and there's no substitute part

Commercial Laundry Appliance Coin Box Ratchet Tool 310P4
#5

Tools 2 diagram

Commercial laundry appliance coin box ratchet tool

Part #310P4

The manufacturer no longer makes this part, and there's no substitute part

Bracket 30642
#7

Meter case diagram

Bracket

Part #30642

The manufacturer no longer makes this part, and there's no substitute part

Door 39874WP
#6

Meter case diagram

Door

Part #39874WP

The manufacturer no longer makes this part, and there's no substitute part

Motor Switch 35632P
#30

Motor assy diagram

Motor switch

Part #35632P

The manufacturer no longer makes this part, and there's no substitute part

Washer Suspension Spring 37576
#12

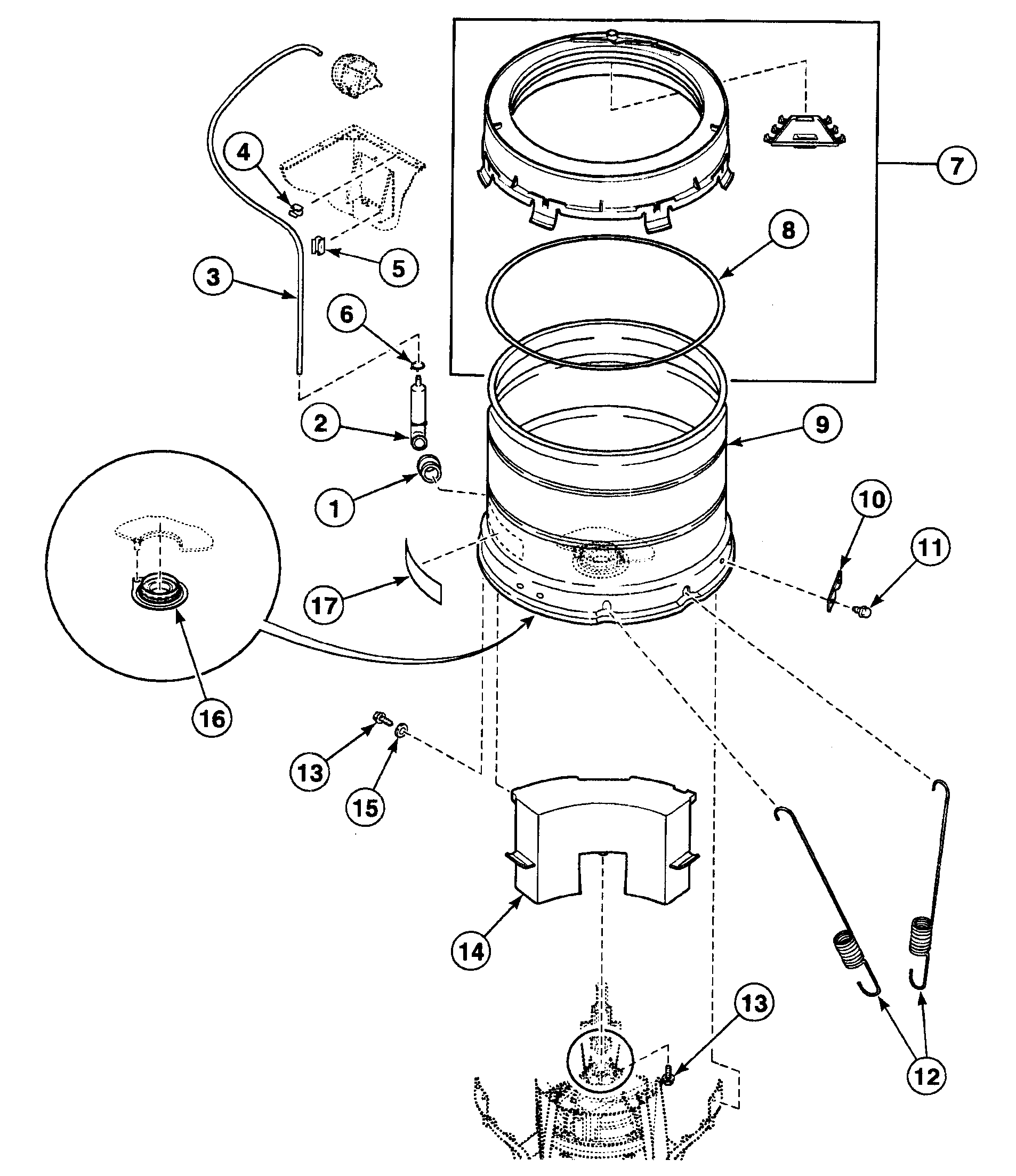

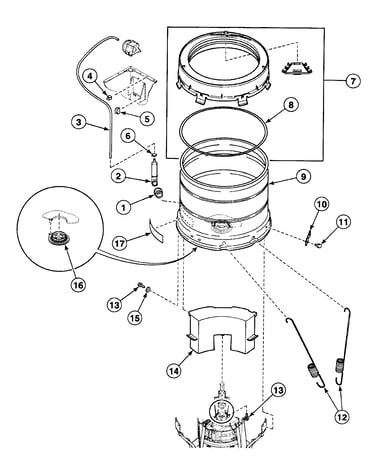

Tub assy diagram

Washer suspension spring

Part #37576

The manufacturer no longer makes this part, and there's no substitute part

Pullet 38225P
#15

Motor assy diagram

Pullet

Part #38225P

The manufacturer no longer makes this part, and there's no substitute part
