Model # U5172-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5172-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Vacuum Power Cord Hook 39442048
#17

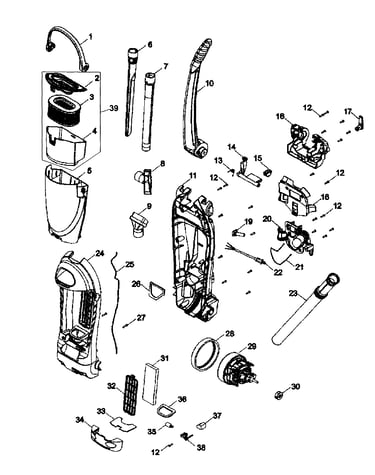

Main body diagram

Vacuum power cord hook

Part #39442048

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 48414132
#14

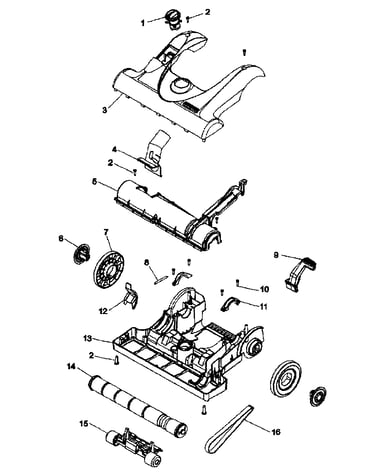

Base assy diagram

Vacuum beater bar

Part #48414132

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 36426061
#32

Main body diagram

Vacuum filter

Part #36426061

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 38775098
#5

Main body diagram

Dirt cup

Part #38775098

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Tube 38634092
#7

Main body diagram

Vacuum handle tube

Part #38634092

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 214793DA
#27

Main body diagram

Vacuum screw

Part #214793DA

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 28161075
#15

Main body diagram

Vacuum on/off switch

Part #28161075

The manufacturer no longer makes this part, and there's no substitute part

Spring 38355016
#13

Main body diagram

Spring

Part #38355016

The manufacturer no longer makes this part, and there's no substitute part

Toolholder 36433182
#18

Main body diagram

Toolholder

Part #36433182

The manufacturer no longer makes this part, and there's no substitute part

Drive Debris 37257312
#12

Base assy diagram

Drive debris

Part #37257312

The manufacturer no longer makes this part, and there's no substitute part
