Model # MTAP1200D1WW Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint MTAP1200D1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Split Ring WH02X1195
#313

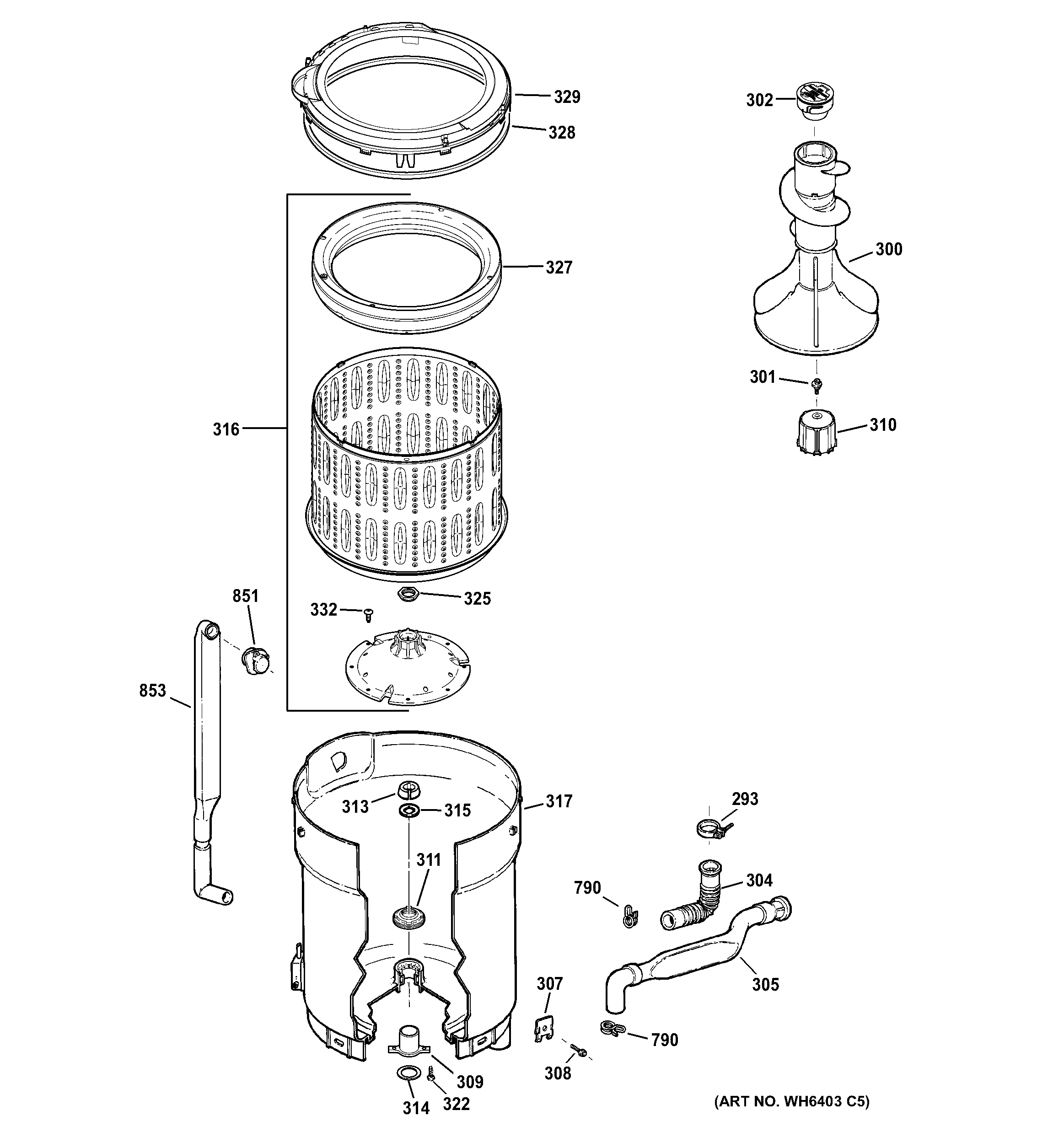

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Drive Shaft And Shifter Assembly WH38X10019
#320

Suspension, pump & drive components diagram

Washer drive shaft and shifter assembly

Part #WH38X10019

BEST SELLER
$213.37 |
5% OFF Phone Price : $225.37
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Lid Switch Assembly WH12X10334
#388

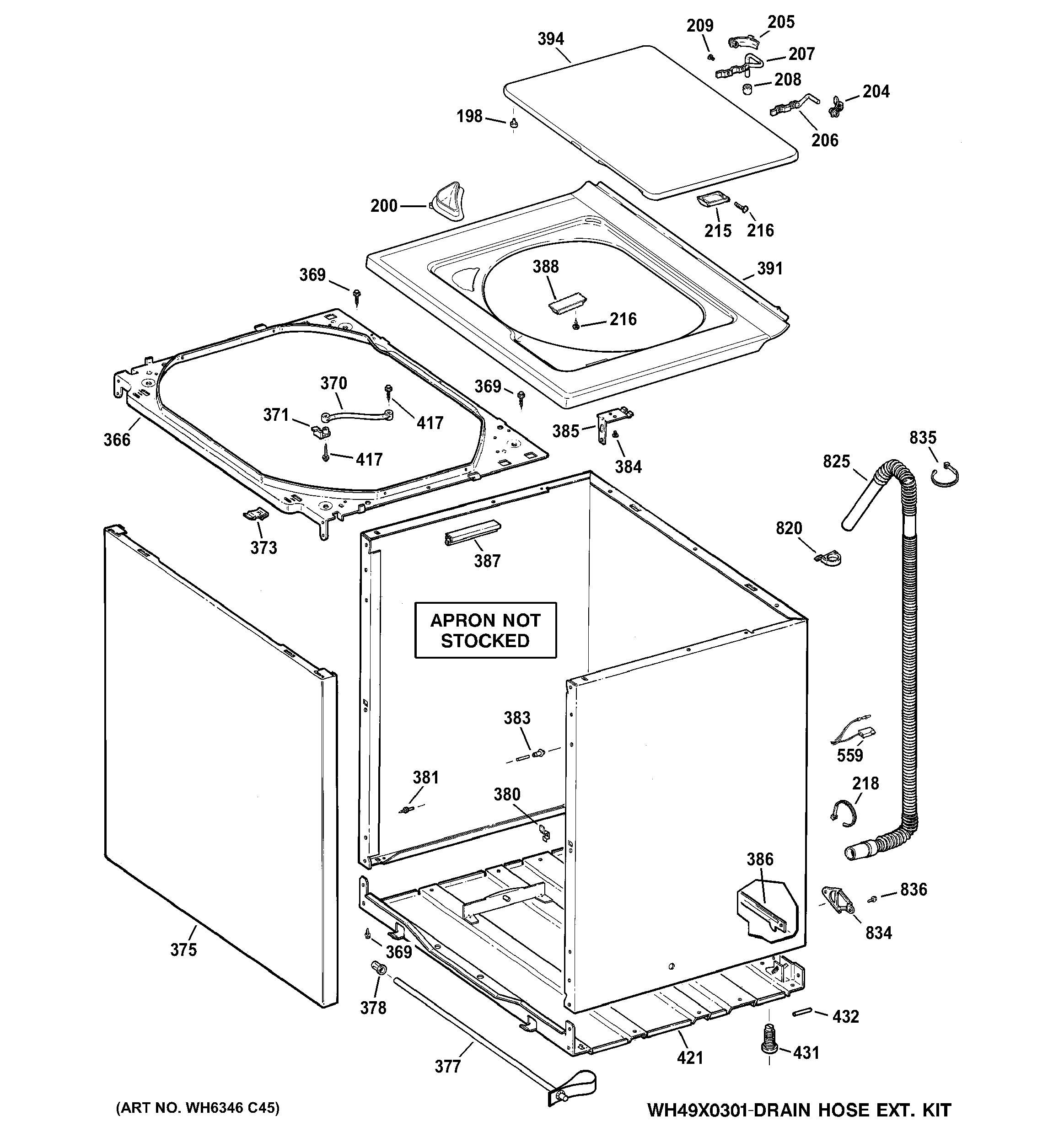

Cabinet, cover & front panel diagram

Washer lid switch assembly

Part #WH12X10334

BEST SELLER
$34.95 |
15% OFF Phone Price : $40.95
In Stock
Washer Timer WH12X10527
#100

Controls & backsplash diagram

Washer timer

Part #WH12X10527

BEST SELLER
$87.19 |
6% OFF Phone Price : $93.19
In Stock
Washer Outer Tub (replaces Wh45x10111) WH45X20473
#317

Tub, basket & agitator diagram

Washer outer tub (replaces wh45x10111)

Part #WH45X20473

BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Washer Agitator Coupler WH43X10032
#310

Tub, basket & agitator diagram

Washer agitator coupler

Part #WH43X10032

BEST SELLER
$24.86 |
19% OFF Phone Price : $30.86
In Stock
Strap Dampng WH01X10046
#370

Cabinet, cover & front panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Washer Screw WH02X10237
#301

Tub, basket & agitator diagram

Washer screw

Part #WH02X10237

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drive Pulley (replaces Wh07x10018) WH07X10019
#725

Suspension, pump & drive components diagram

Washer drive pulley (replaces wh07x10018)

Part #WH07X10019

BEST SELLER
$75.82 |
7% OFF Phone Price : $81.82
In Stock
