Kenmore 91142475890 30" counter unit Parts

Yes. On the Kenmore 91142475890 electric cooktop, the top surface (the maintop/cooktop top) is a replaceable part; replacement is typically done by shutting off power, lifting or removing the cooktop unit, transferring components as needed, and reinstalling the new top per the owner's manual.

What “top” means on this model

On this cooktop, customers usually mean one of these parts:

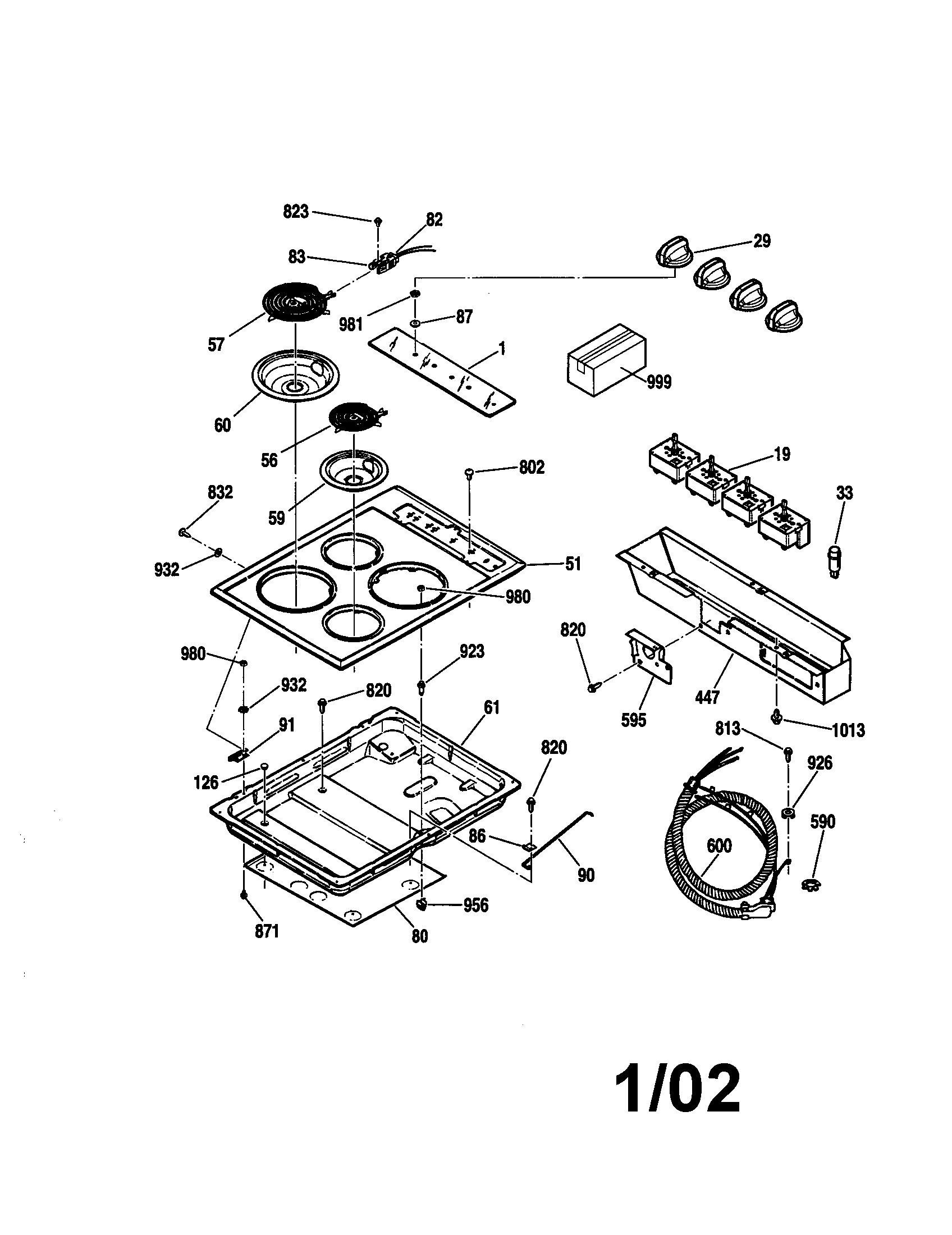

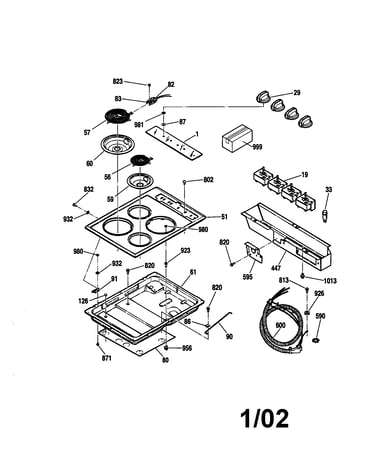

• Main top (the cooktop top surface): main top WB62K5119
• Glass control panel (the control area overlay): glass control panel WB57T10064
• Drip pans (the bowls under coil elements): range drip pan WB31K5025 or range drip pan (chrome) WB31K5024

Before you buy: confirm what needs replacing

Use these quick checks so you order the right cooktop part:

• If the surface is cracked, badly chipped, or warped, you usually need the main top.
• If only the control area is damaged, you may only need the glass control panel.
• If you see burn marks or melting at the power connection, inspect the terminal block: terminal block assembly 330031.
• If a burner “top” issue is really a heating problem, the coil element may be the fix: surf unit 8" WB30X253 or surf unit 6" WB30X254.

Typical replacement scope (what gets moved over)

When replacing the main top, you commonly transfer reusable items from the old top to the new one.

Item	Often transferred?	Notes
Surface elements (coils)	Yes	Replace only if they do not heat consistently.
Drip pans	Yes	Replace if rusted, pitted, or deformed.
Knobs	Yes	Remove before lifting the cooktop for service.
Wiring/connectors	Yes	Keep wire positions identical to avoid miswiring.

Why it matters

Replacing only the top can restore a safe, stable cooking surface without replacing the entire 30-inch counter unit. It also helps prevent further damage to wiring and burner box components if the old top is cracked or no longer seats correctly.

Ordering the correct top

We recommend ordering replacement parts for Kenmore 91142475890 from the parts list for this model; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

To check the model on your Kenmore electric cooktop, look for the model and serial tag underneath the cooktop unit; for this parts page, the model number is 91142475890. Using the exact model number ensures you get the correct parts list and the right instructions in the owner's manual.

Where to find the model number on this cooktop

On Kenmore cooktops like 91142475890, the model and serial number are on a tag underneath the unit.

• Turn all surface controls to OFF and let the cooktop cool completely
• Look under the cooktop for the model/serial tag
• Write down both the model number and serial number
• Match the full model number exactly when searching parts (all digits matter)

How to use the model number for parts and troubleshooting

Once you have the model number, use it to match the correct diagrams and replacement parts for your cooktop.

What you need	Why it matters	Example for this cooktop
Model number	Identifies the exact cooktop design and parts list	91142475890
Serial number	Helps identify production variation for some parts	From the tag underneath
Part ID or part number	Ensures you order the correct replacement	WB30X253, WB30X254

Common mistakes that cause wrong-part orders

• Using only a partial model (missing digits)
• Mixing up similar Kenmore model families (numbers can look alike)
• Ordering by appearance instead of matching the model-based parts list
• Replacing electrical parts without confirming fit and wiring connections

Why it matters

Kenmore model numbers are the fastest way to match the correct cooktop parts, wiring layout, and care instructions. That is especially important for items like surface elements and electrical connections.

If you need to order parts beyond the list shown for model 91142475890, we recommend searching by model number on Sears PartsDirect.

Last updated: February 2026

On the Kenmore 91142475890 electric cooktop, the top is designed to lift up for cleaning. We remove the control knobs, lift the front edge of the cooktop, then set the support rod so the cooktop stays safely raised while we clean underneath (burner box bottom). See the owner's manual for the exact lift-up and support-rod steps.

Steps to lift the cooktop (model 91142475890)

• Turn all surface element controls OFF and let everything cool completely.
• Pull all cooktop control knobs straight off.
• Stand at the front of the cooktop and grasp the front edge.
• Lift up from the front until the cooktop is raised.
• Raise the support rod into place to hold the cooktop while you clean.
• When finished, carefully return the support rod, lower the cooktop, and press into place so it latches.

Safety and handling tips

• Keep fingers clear of pinch points as the cooktop pivots.
• Do not bump the support rod while working underneath.
• Lower the cooktop slowly; the porcelain enamel surface can chip if dropped.
• If you are also removing coil elements, lift them only slightly and pull straight out.

What you can clean once it is lifted

Area	What to do	Common result
Burner box bottom (under the top)	Wipe spills and grease	Reduces smoke and odors
Drip pans	Remove and wash, then dry fully	Prevents staining and burning smells
Around receptacles	Clean carefully, keep dry	Helps elements sit flat and heat evenly

Why it matters

Lifting the cooktop the correct way protects the hinge/support hardware and helps prevent chipped enamel. Regular cleaning under the main top also reduces burned-on residue that can cause smoke, odors, and uneven heating.

If you find heat damage, melting, or loose wiring while the top is raised, replace the damaged connection parts before using the cooktop again; the terminal block assembly 330031 is one of the common electrical connection parts for this model. You can also search by model number on Sears PartsDirect if you need additional cooktop parts.
