Model # 758140101 Official Kenmore console humidifier

Here are the diagrams and repair parts for Official Kenmore 758140101 console humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Screw 29433
#2

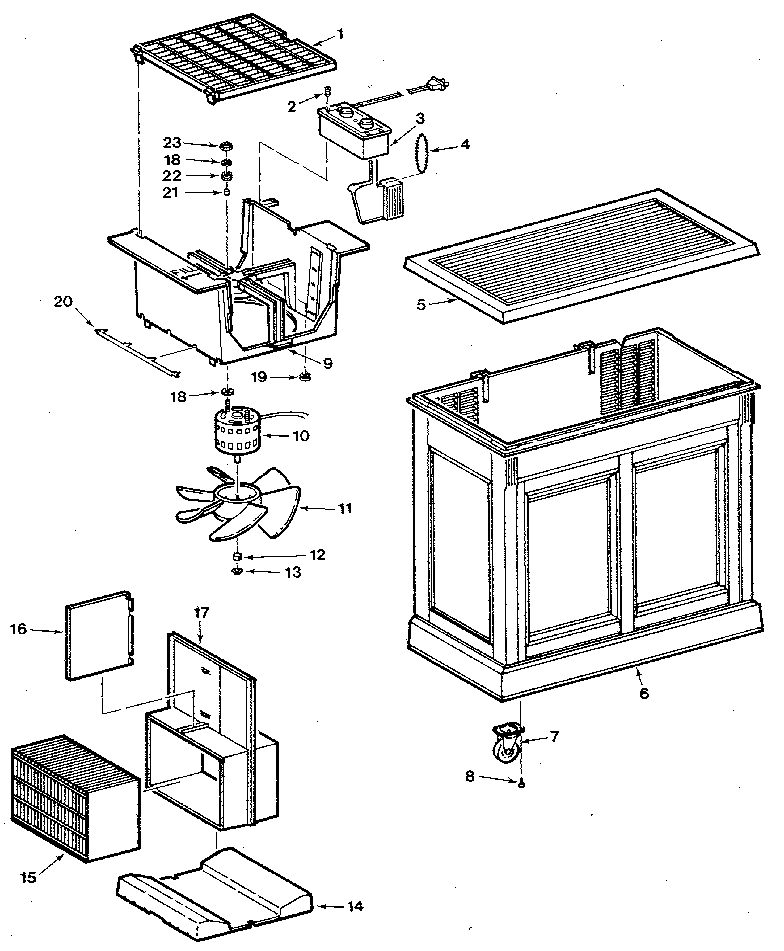

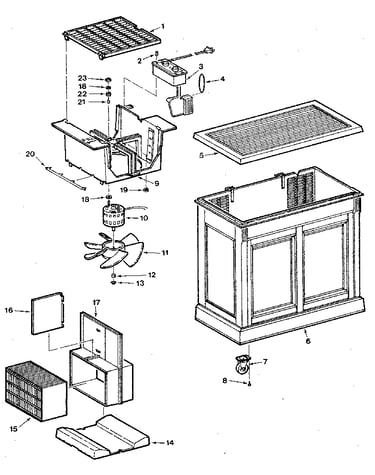

Unit parts diagram

Screw

Part #29433

The manufacturer no longer makes this part, and there's no substitute part

Filter 42-14000
#15

Unit parts diagram

Filter

Part #42-14000

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Fan Motor 818087-1
#10

Unit parts diagram

Humidifier fan motor

Part #818087-1

The manufacturer no longer makes this part, and there's no substitute part

Lid 817452
#5

Unit parts diagram

Lid

Part #817452

The manufacturer no longer makes this part, and there's no substitute part

Hsing-filter 817196
#17

Unit parts diagram

Hsing-filter

Part #817196

The manufacturer no longer makes this part, and there's no substitute part

Grommet 817966
#19

Unit parts diagram

Grommet

Part #817966

The manufacturer no longer makes this part, and there's no substitute part

Control 508114
#3

Unit parts diagram

Control

Part #508114

The manufacturer no longer makes this part, and there's no substitute part

Fan Guard 817241
#1

Unit parts diagram

Fan guard

Part #817241

The manufacturer no longer makes this part, and there's no substitute part

Splash Guard 817769
#16

Unit parts diagram

Splash guard

Part #817769

The manufacturer no longer makes this part, and there's no substitute part

Spacer 817964
#21

Unit parts diagram

Spacer

Part #817964

The manufacturer no longer makes this part, and there's no substitute part
