Craftsman 917371620 lawn mower

Craftsman 917371620 lawn mower Parts

Here are the diagrams and repair parts for Craftsman 917371620 lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 917371620 Walk-Behind Mowers

  • Pinion.14.teeth.fgd for Craftsman 917371620 - Part 532403849

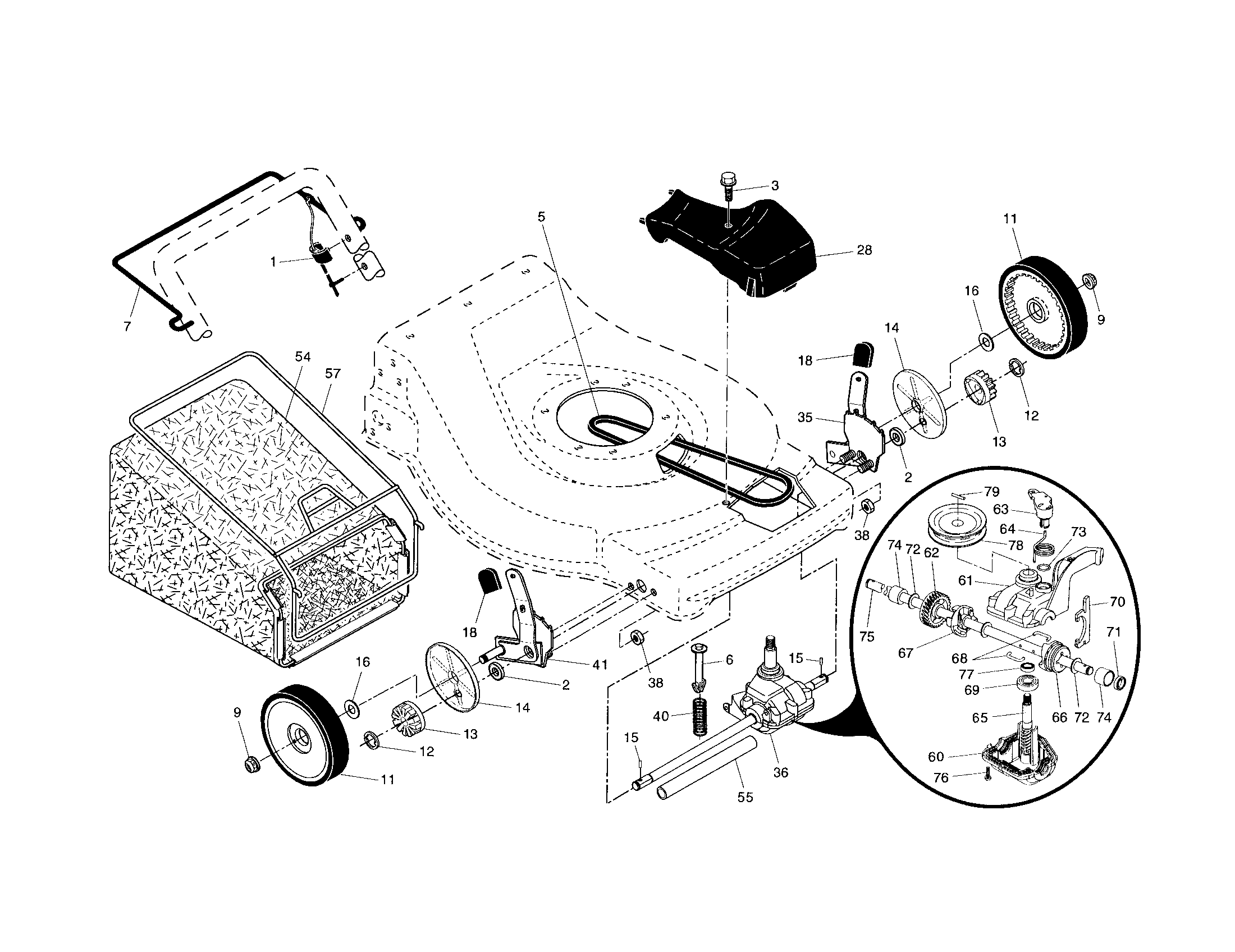

    Drive control/gear case/wheels diagram

    Pinion.14.te

    Part #403849

    Replaced by #532403849

    Info Icon
    Manufacturer substitution
    This part replaces 403849. Substitute parts can look different from the original.
    In Stock
    $11.35
    15% OFF Phone Price : $13.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Grass Bag for Craftsman 917371620 - Part 583327401

    Drive control/gear case/wheels diagram

    Bagger

    Part #410276

    Replaced by #583327401

    Info Icon
    Manufacturer substitution
    This part replaces 410276. Substitute parts can look different from the original.
    In Stock
    $69.57
    8% OFF Phone Price : $75.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Drive Control Cable for Craftsman 917371620 - Part 532194653

    Drive control/gear case/wheels diagram

    Lawn Mower Drive Control Cable

    Part #194653

    Replaced by #532194653

    Info Icon
    Manufacturer substitution
    This part replaces 194653. Substitute parts can look different from the original.
    In Stock
    $23.20
    21% OFF Phone Price : $29.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Height Adjuster Knob for Craftsman 917371620 - Part 532701037

    Husqvarna Lawn Mower Height Adjuster Knob

    Part #701037

    Replaced by #532701037

    Info Icon
    Manufacturer substitution
    This part replaces 701037. Substitute parts can look different from the original.
    In Stock
    $8.92
    10% OFF Phone Price : $9.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Mower Deflector Shield Torsion Spring for Craftsman 917371620 - Part 532193000

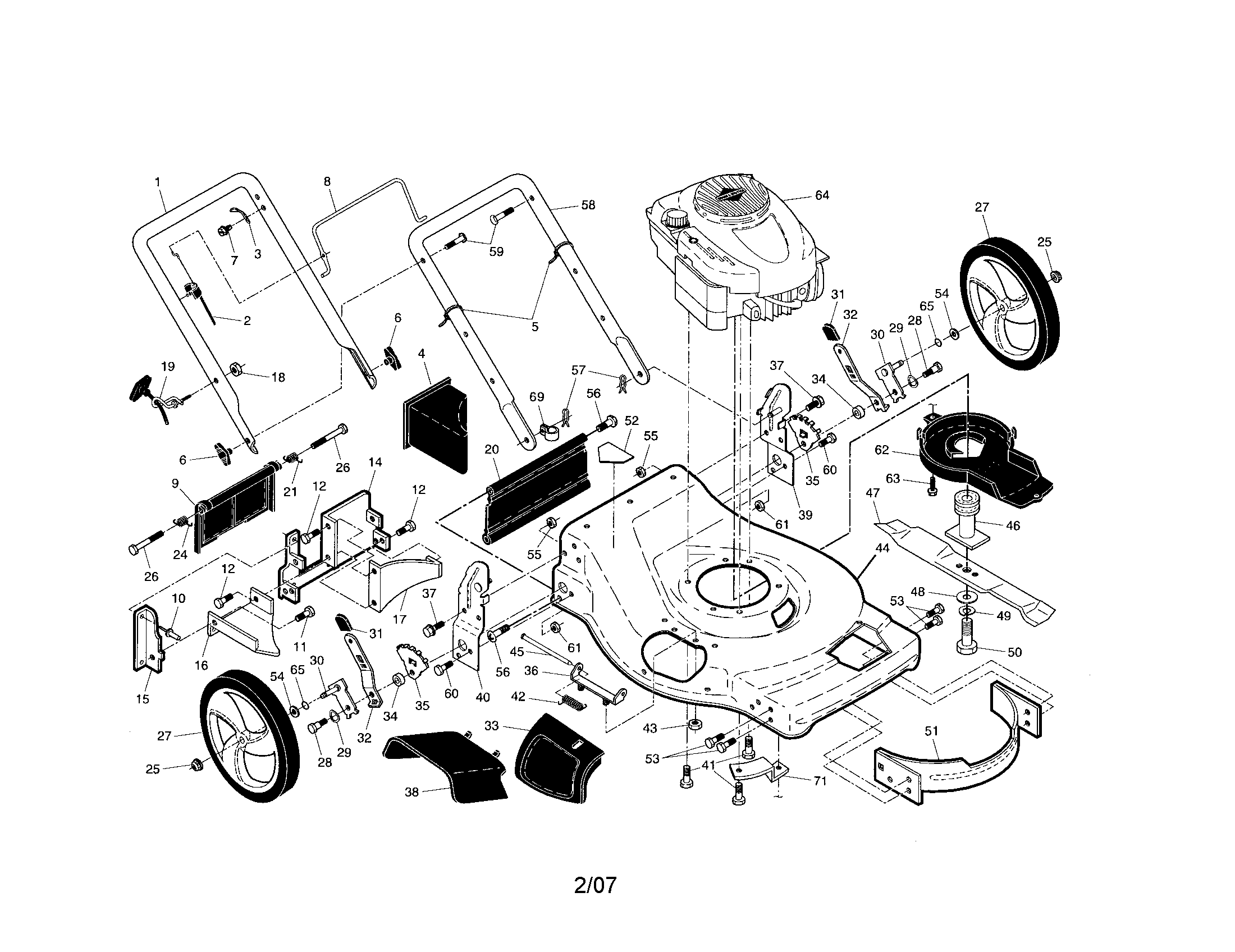

    Engine/housing/handle diagram

    Lawn Mower Deflector Shield Torsion Spring

    Part #193000

    Replaced by #532193000

    Info Icon
    Manufacturer substitution
    This part replaces 193000. Substitute parts can look different from the original.
    In Stock
    $14.26
    12% OFF Phone Price : $16.26Info Icon
    Minus Item
    Qty
    Plus Item
  • American Yard Products Lawn & Garden Equipment Washer for Craftsman 917371620 - Part 532088348

    Engine/housing/handle diagram

    American Yard Products Lawn & Garden Equipment Washer

    Part #88348

    Replaced by #532088348

    Info Icon
    Manufacturer substitution
    This part replaces 88348. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.09
    14% OFF Phone Price : $7.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Wheel Adjusting Bracket for Craftsman 917371620 - Part 532700325

    Engine/housing/handle diagram

    Lawn Mower Height Adjuster Plate

    Part #700325X005

    Replaced by #532700325

    Info Icon
    Manufacturer substitution
    This part replaces 700325X005. Substitute parts can look different from the original.
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Height Adjuster Bearing for Craftsman 917371620 - Part 587070202

    Drive control/gear case/wheels diagram

    Bearing

    Part #191039

    Replaced by #587070202

    Info Icon
    Manufacturer substitution
    This part replaces 191039. Substitute parts can look different from the original.
    In Stock
    $31.23
    16% OFF Phone Price : $37.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw, Hex Hd Tapping #10-24 1 for Craftsman 917371620 - Part 532175262

    Drive control/gear case/wheels diagram

    Husqvarna Lawn & Garden Equipment Pan Head Screw

    Part #175262

    Replaced by #532175262

    Info Icon
    Manufacturer substitution
    This part replaces 175262. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.28
    14% OFF Phone Price : $7.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn Mower Washer for Craftsman 917371620 - Part 532067725

    Drive control/gear case/wheels diagram

    Washer

    Part #67725

    Replaced by #532067725

    Info Icon
    Manufacturer substitution
    This part replaces 67725. Substitute parts can look different from the original.
    In Stock
    $10.08
    17% OFF Phone Price : $12.08Info Icon
    Minus Item
    Qty
    Plus Item

Craftsman Lawn Mower 917371620 FAQs

Gas walk-behind mowers like the Craftsman 917371620 are not being phased out everywhere at once, but the market is shifting toward battery-electric models as some states and local areas restrict new sales of certain gas-powered outdoor equipment. Your mower can still be used and maintained normally; check local rules for new purchases.

What’s changing (and what isn’t)

  • Some regions are limiting new sales of certain gas-powered lawn equipment to reduce emissions and noise.
  • Many retailers are expanding electric mower options because they are quieter and need less routine engine maintenance.
  • Existing gas mowers are still commonly serviced with standard parts like blades, belts, wheels, and cables.
  • Commercial and heavy-duty mowing often keeps gas equipment longer because of runtime and refueling speed.
  • Rules vary by location; the biggest changes tend to be at the state or city level.

How to keep a gas mower reliable long-term

Even as electric grows, a well-maintained gas mower stays dependable for years.

  • Keep the blade sharp and replace it if bent or damaged.
  • Use fresh fuel; stale fuel is a common no-start cause.
  • Keep the air filter clean and the spark plug in good condition.
  • Clean grass and debris from the drive wheel area so the wheels turn freely.
  • Store the mower only after the engine cools; avoid storing fuel indoors where fumes could ignite.

For model-specific safety, operation, and maintenance intervals, follow the 917371620 owner's manual.

Quick comparison: gas vs. battery walk-behind mowers

Feature Gas mower (like 917371620) Battery-electric mower
Startup/operation Pull-start, fuel-based Push-button/lever, battery-based
Routine upkeep Oil, spark plug, air filter, fuel care Blade care, battery care
Noise and exhaust Louder, exhaust present Quieter, no exhaust
Runtime Refuel quickly Limited by battery capacity

Why it matters

If your area tightens rules on new gas mower sales, parts support and DIY maintenance become even more important for keeping an existing mower running safely. Items like a sharp blade and clean drive wheels directly affect cut quality, traction, and safe operation.

Last updated: January 2026

For Craftsman walk-behind mower model 917371620, use fresh regular unleaded gasoline with a minimum of 87 octane (AKI). Using 93 octane will not increase power on this type of small engine; fuel freshness and correct storage prevent most starting and running problems.

What to use (and what to avoid)

  • Use 87 octane (AKI) or higher regular unleaded.
  • Buy fuel you can use within 30 days for best results, or add fuel stabilizer if it will sit longer.
  • Store gasoline in a clean, approved container with the cap tightly sealed.
  • Keep fuel away from heat sources and avoid leaving the can vented.
  • Do not use fuel that is water-contaminated or smells sour or varnish-like.

Quick comparison: 87 vs 93 octane

Fuel choice Works in 917371620? Best use case What you will notice
87 octane (regular) Yes Normal mowing, everyday use Normal starting and performance
93 octane (premium) Yes Only if 87 is unavailable Typically no performance gain

Storage guidance (so gas does not go bad)

For seasonal storage or long gaps between mowing, follow the fuel and storage steps in the 917371620 owner's manual. In general, stabilized fuel stays usable longer and helps prevent carburetor varnish.

Why it matters

Octane mainly prevents knock in high-compression engines. Most walk-behind mower engines are designed for 87 octane, so the bigger risks are stale fuel, carburetor deposits, and hard starting after storage.

If the mower runs rough or will not start

Last updated: January 2026

For most homeowners shopping under $300, the best gas walk-behind mower is the one that fits your yard size and is easy to maintain. If you already own a Craftsman 917371620, keeping it tuned and the blade sharp typically delivers the best cut quality and value without replacing the mower.

What to look for in a sub-$300 gas mower

Focus on features that affect cut quality, reliability, and upkeep.

  • Deck size: Most budget gas mowers are around 21 to 22 inches, which is a good all-around size for small to medium lawns.
  • Drive type: Self-propelled is easier on slopes; push mowers cost less and have fewer drive parts.
  • Cut options: Mulch, bag, and side discharge flexibility helps with seasonal conditions.
  • Maintenance access: Easy oil checks, air filter access, and blade service matter long-term.
  • Parts availability: Common wear parts like blades, wheels, and belts should be easy to source.

How Craftsman 917371620 compares (practical buying checklist)

If you are comparing a new mower to what you have now, use this as a quick baseline.

Item Craftsman 917371620 (from manual) What to expect under $300
Fuel capacity 1.6 quarts (unleaded regular) Typically 1 to 2 quarts
Oil type guidance SAE 30 above 32°F; SAE 5W-30 below 32°F Similar guidance on most gas mowers
Blade bolt torque 35 to 40 ft-lbs Similar range on many 21 to 22-inch decks

For model-specific operating and maintenance details, use the 917371620 owner's manual.

If your current mower cuts poorly, fix these first

A “bad mower” is often just a dull blade or a drive issue.

  • Sharpen or replace the blade; a bent blade should be replaced.
  • Clean grass buildup under the deck (use a scraper, not a pressure washer).
  • Check that the drive wheels spin freely; clean debris from the wheel gear area.
  • Inspect the drive system if it is self-propelled; a worn belt can cause slipping.

Helpful DIY guidance: how to sharpen a lawn mower blade.

Parts that commonly restore performance on this model

If you are refreshing a Craftsman 917371620, these are common wear items.

Why it matters

A budget mower can be a good buy, but long-term value comes from cut quality and easy upkeep. A sharp blade, clean deck, and properly working drive system usually make a bigger difference than engine size alone.

Last updated: January 2026

Most common symptoms to help you fix your walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…

Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…

Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…

Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…

Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
