Bottom-Mount Refrigerator

Model # EI23BC60KS5A Official Electrolux refrigerator

Here are the diagrams and repair parts for Official Electrolux EI23BC60KS5A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

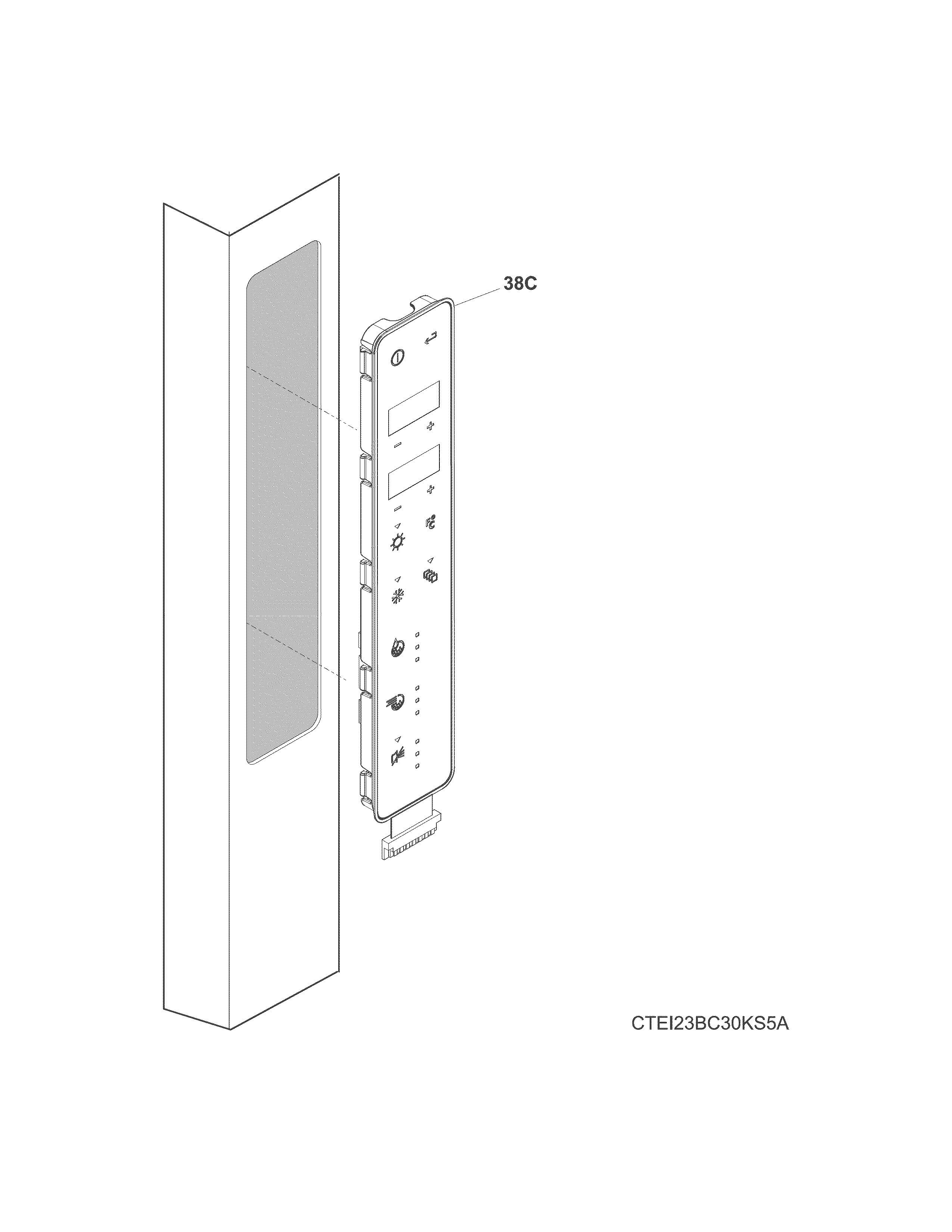

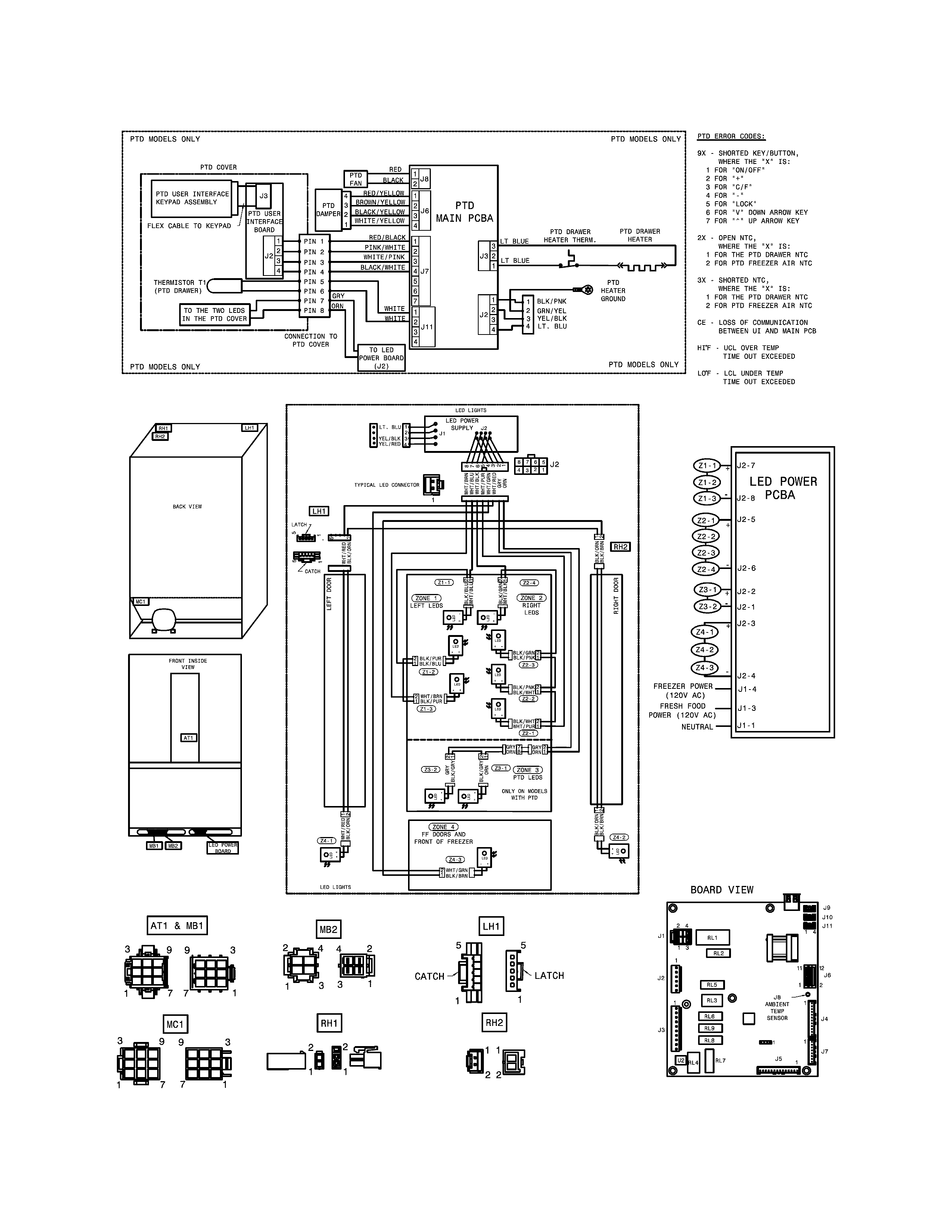

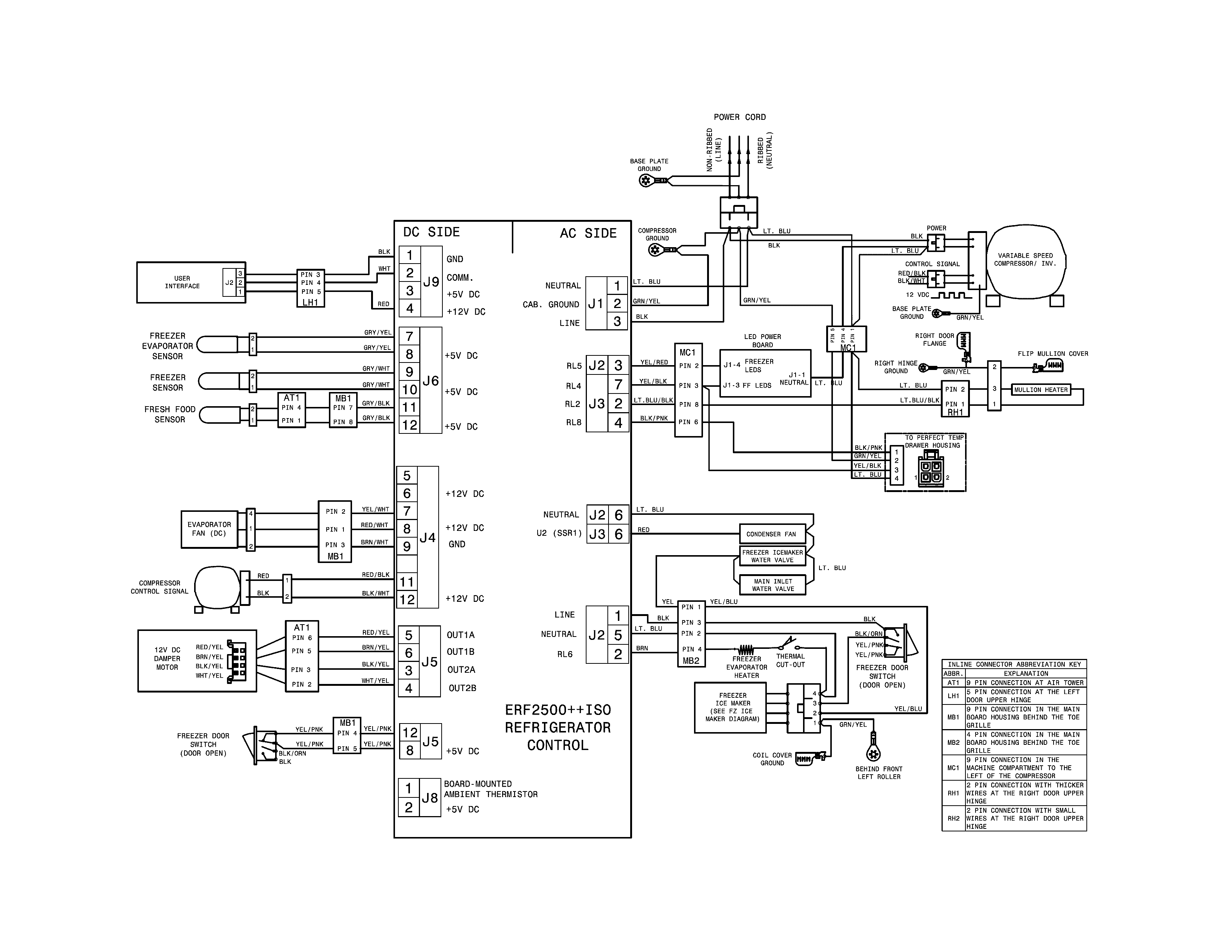

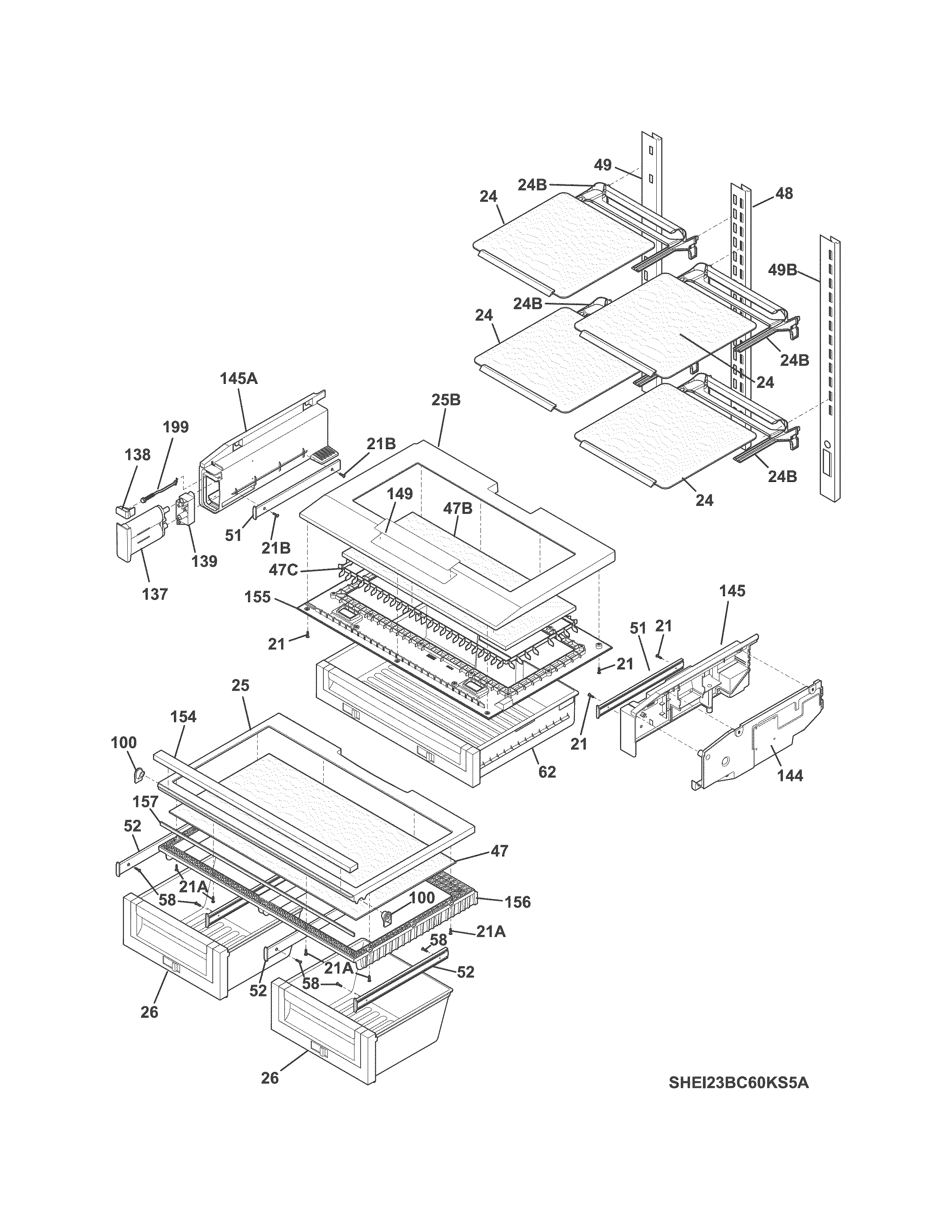

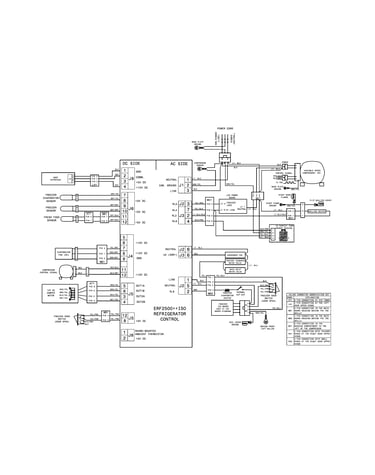

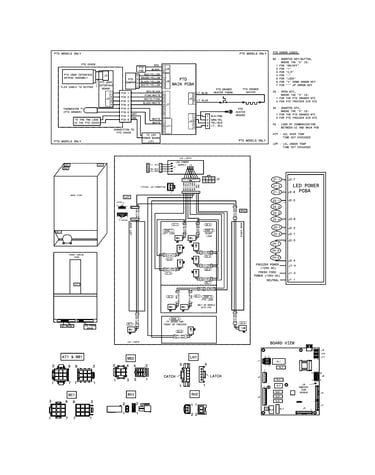

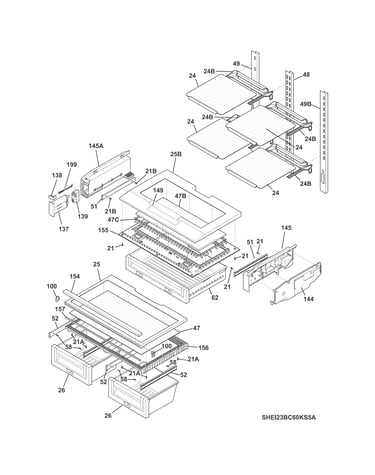

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |

Refrigerator Door Air Filter 242047801
#95

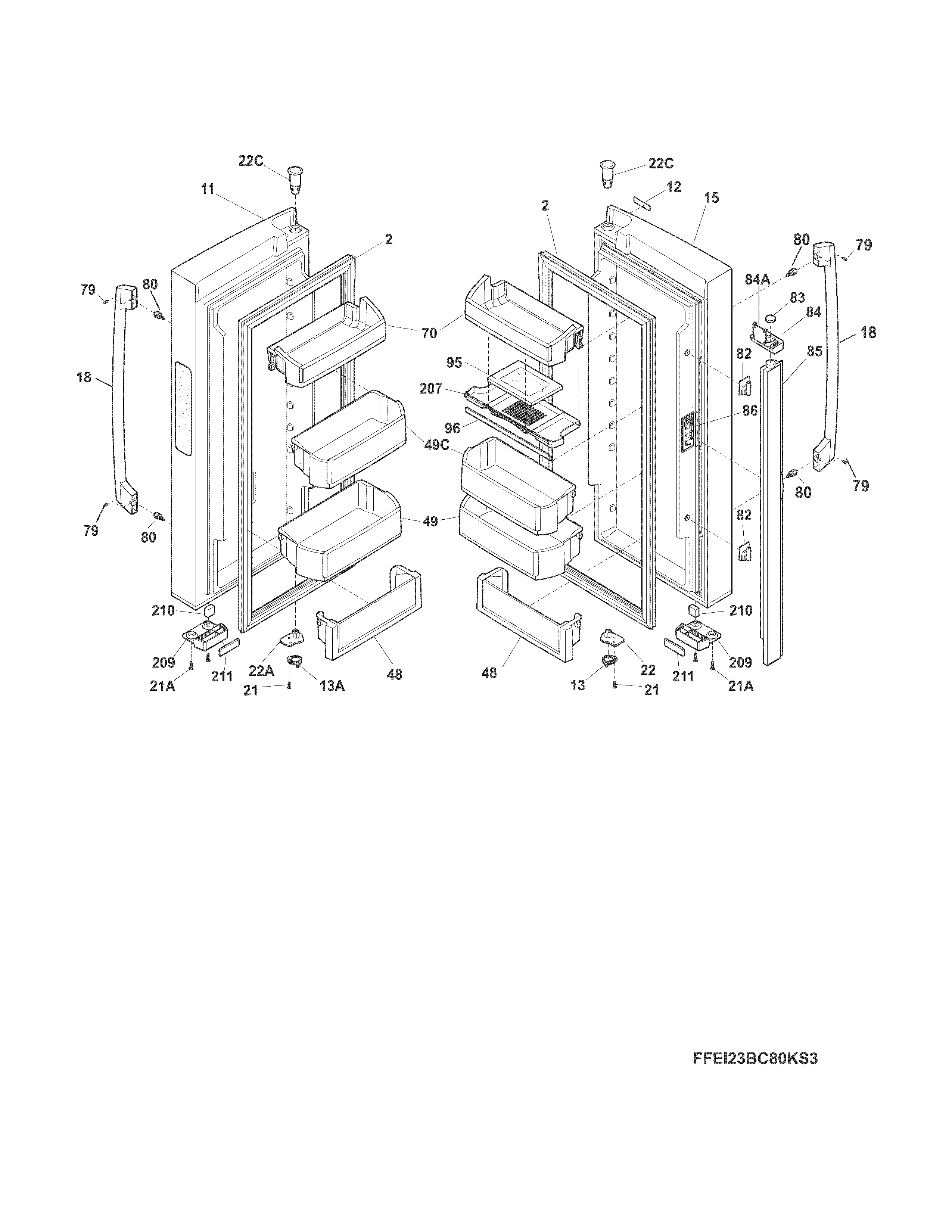

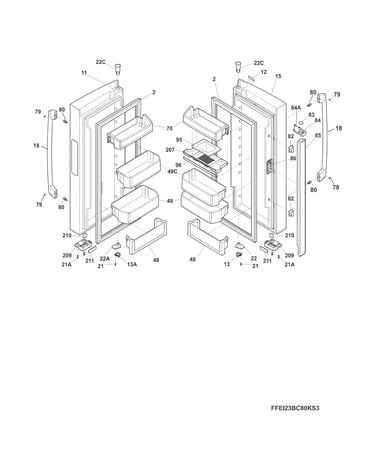

Fresh food doors diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39
15% OFF Phone Price : $32.39
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

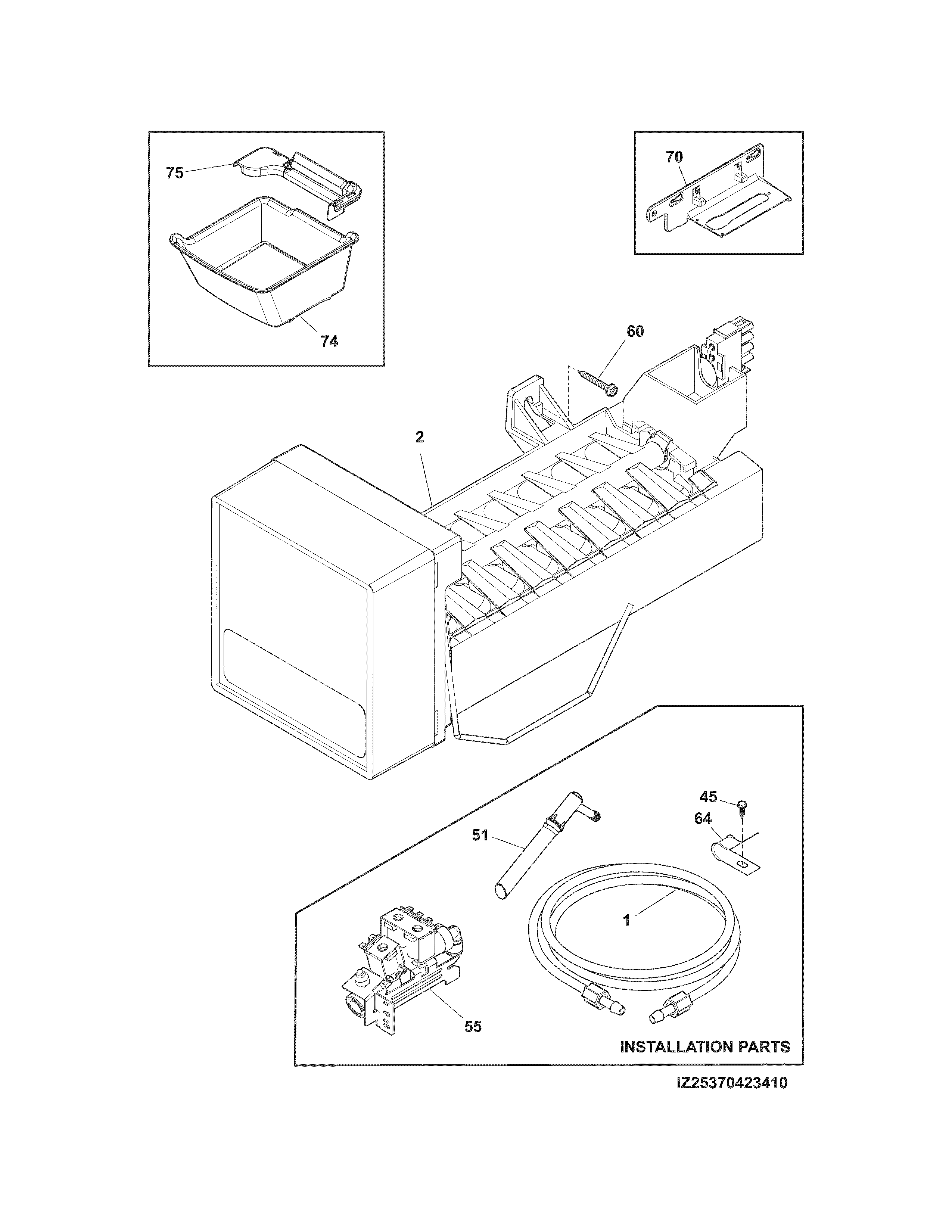

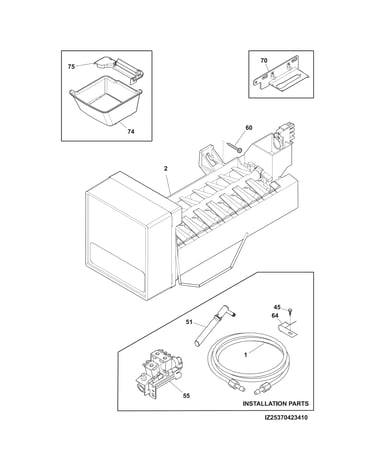

Ice maker diagram

Refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
$85.41
6% OFF Phone Price : $90.41
In Stock
Refrigerator Filter Dryer 242047603
#4

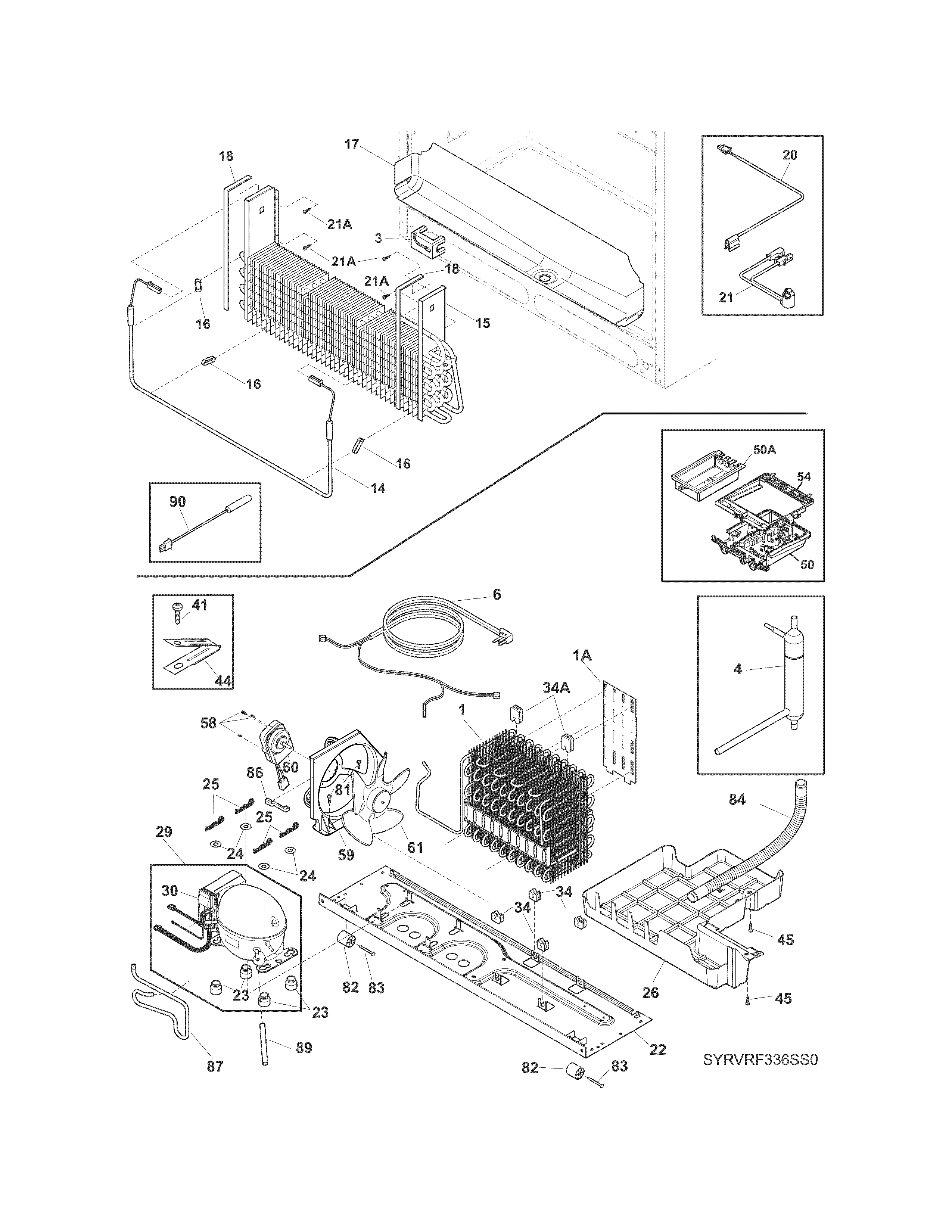

Cooling system diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71
22% OFF MSRP : $16.34
In Stock
Refrigerator Door Gasket (gray) 241778307
#2

Fresh food doors diagram

Refrigerator door gasket (gray)

Part #241778307

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Gasket (replaces 241778308) 5304501270
#1

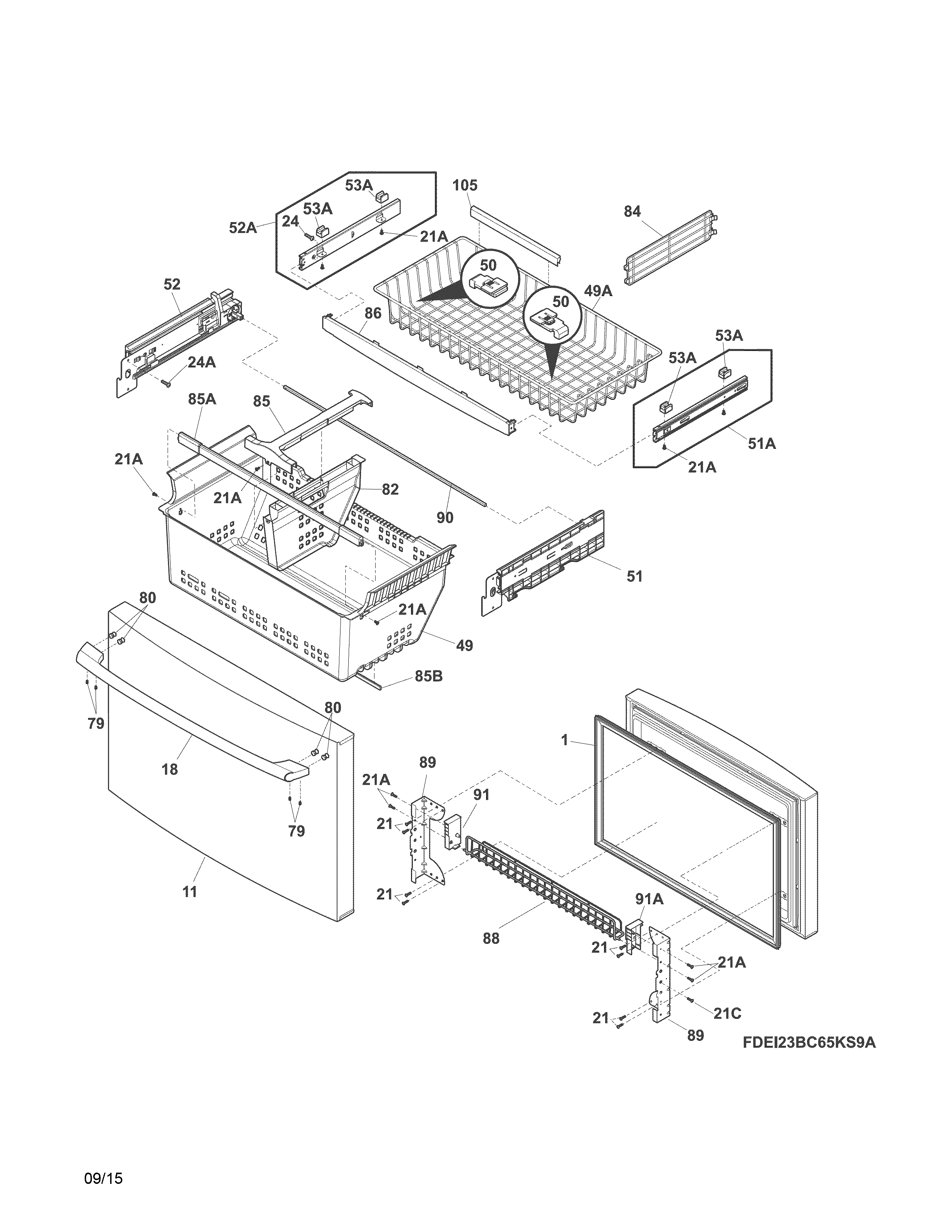

Freezer drawer, baskets diagram

Refrigerator freezer door gasket (replaces 241778308)

Part #5304501270

BEST SELLER
$133.00
7% OFF Phone Price : $143.00
In Stock
Refrigerator Evaporator Fan Motor (replaces 241509401, 7241509402) 241509402
#13

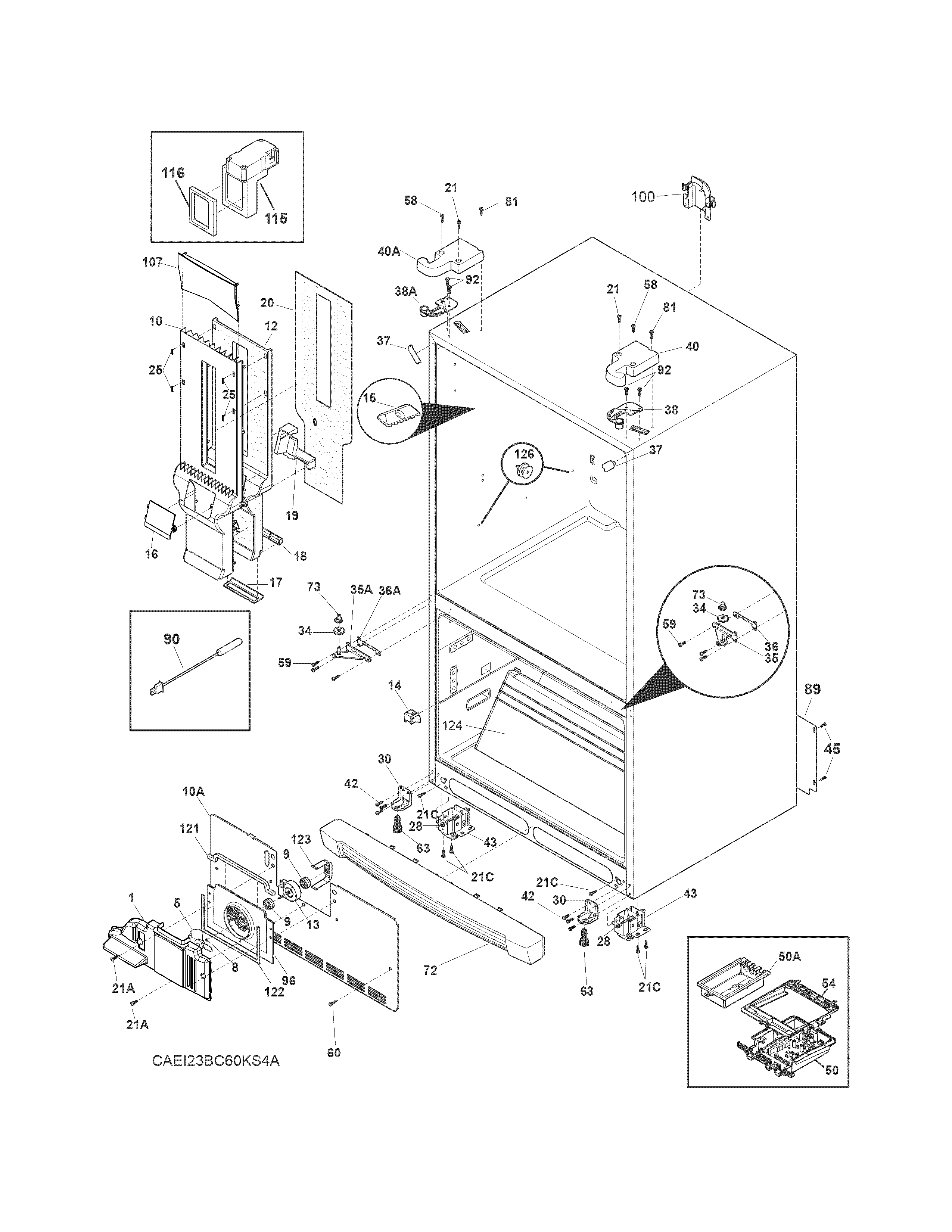

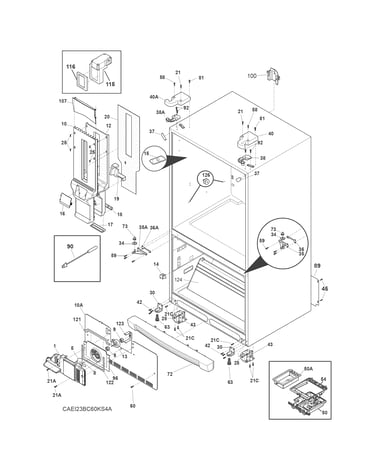

Cabinet diagram

Refrigerator evaporator fan motor (replaces 241509401, 7241509402)

Part #241509402

BEST SELLER
$120.86
8% OFF Phone Price : $130.86
In Stock
Refrigerator Door Hinge (replaces 7241779401) 241779401
#82

Fresh food doors diagram

Refrigerator door hinge (replaces 7241779401)

Part #241779401

BEST SELLER
$18.22
10% OFF Phone Price : $20.22
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.57
11% OFF Phone Price : $45.57
In Stock
Refrigerator Ice Maker 241798219
#2

Ice maker diagram

Refrigerator ice maker

Part #241798219

Replaced by #5303918493

?
Manufacturer substitution
This part replaces 241798219. Substitute parts can look different from the original.
BEST SELLER
$181.44
5% OFF Phone Price : $191.44
In Stock
Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
Refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$11.40
15% OFF Phone Price : $13.40
In Stock
