KitchenAid KDFE304RBS0 dishwasher Parts

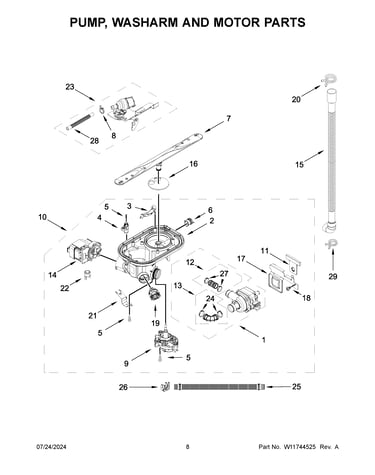

Here are the diagrams and repair parts for KitchenAid KDFE304RBS0 dishwasher, as well as links to manuals and error code tables, if available.

KitchenAid KDFE304RBS0 dishwasher
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKDFE304RBS0 DISHWASHER

  • Front Pnl As for KitchenAid KDFE304RBS0 - Part W11625194

    Front Panel (includes 4, 7, 11, 16 & Ui Assembly) (stainless)

    Part #W11554522

    Replaced by #W11625194

    Info Icon
    Manufacturer substitution
    This part replaces W11554522. Substitute parts can look different from the original.
    In Stock
    $394.09
    Minus Item
    Qty
    Plus Item
  • Dishwasher Spray Arm, Upper for KitchenAid KDFE304RBS0 - Part W11573766

    Dishwasher Spray Arm, Upper

    Part #W11039869

    Replaced by #W11573766

    Info Icon
    Manufacturer substitution
    This part replaces W11039869. Substitute parts can look different from the original.
    In Stock
    $14.75
    12% OFF Phone Price : $16.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Pronged Washer for KitchenAid KDFE304RBS0 - Part WP3378128

    Dishwasher Pronged Washer

    Part #3378128

    Replaced by #WP3378128

    Info Icon
    Manufacturer substitution
    This part replaces 3378128. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Screw for KitchenAid KDFE304RBS0 - Part WPW10277003

    Dishwasher Screw

    Part #W10277003

    Replaced by #WPW10277003

    Info Icon
    Manufacturer substitution
    This part replaces W10277003. Substitute parts can look different from the original.
    In Stock
    $28.57
    Minus Item
    Qty
    Plus Item
  • Leveling Leg for KitchenAid KDFE304RBS0 - Part W11561254

    Leg, Leveling

    Part #W11455395

    Replaced by #W11561254

    Info Icon
    Manufacturer substitution
    This part replaces W11455395. Substitute parts can look different from the original.
    In Stock
    $33.70
    Minus Item
    Qty
    Plus Item
  • Dishwasher Dishrack Slide Rail Stop, Rear for KitchenAid KDFE304RBS0 - Part W11579392

    Dishwasher Dishrack Slide Rail Stop, Rear

    Part #W11084872

    Replaced by #W11579392

    Info Icon
    Manufacturer substitution
    This part replaces W11084872. Substitute parts can look different from the original.
    In Stock
    $14.40
    12% OFF Phone Price : $16.40Info Icon
    Minus Item
    Qty
    Plus Item
  • 6-19 X .750 for KitchenAid KDFE304RBS0 - Part W11708397

    6-19 X .750

    Part #W11376395

    Replaced by #W11708397

    Info Icon
    Manufacturer substitution
    This part replaces W11376395. Substitute parts can look different from the original.
    In Stock
    $36.87
    Minus Item
    Qty
    Plus Item
  • Tub Assy-ser for KitchenAid KDFE304RBS0 - Part W11409866

    Tub-dishwr

    Part #W11120458

    Replaced by #W11409866

    Info Icon
    Manufacturer substitution
    This part replaces W11120458. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $412.79
    $12.00 OFF Phone Price : $424.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Detergent Dispenser Assembly for KitchenAid KDFE304RBS0 - Part W11412300

    Dispenser As

    Part #W11092649

    Replaced by #W11412300

    Info Icon
    Manufacturer substitution
    This part replaces W11092649. Substitute parts can look different from the original.
    In Stock
    $106.98
    10% OFF Phone Price : $118.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Owi-global 3 for KitchenAid KDFE304RBS0 - Part W11410464

    Indicator, Optical Wash

    Part #W11126174

    Replaced by #W11410464

    Info Icon
    Manufacturer substitution
    This part replaces W11126174. Substitute parts can look different from the original.
    In Stock
    $20.54
    23% OFF Phone Price : $26.54Info Icon
    Minus Item
    Qty
    Plus Item
