Model # PV-V402 Official Panasonic videocassette recorder

Here are the diagrams and repair parts for Official Panasonic PV-V402 videocassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Tuner ENG56717G1
#743

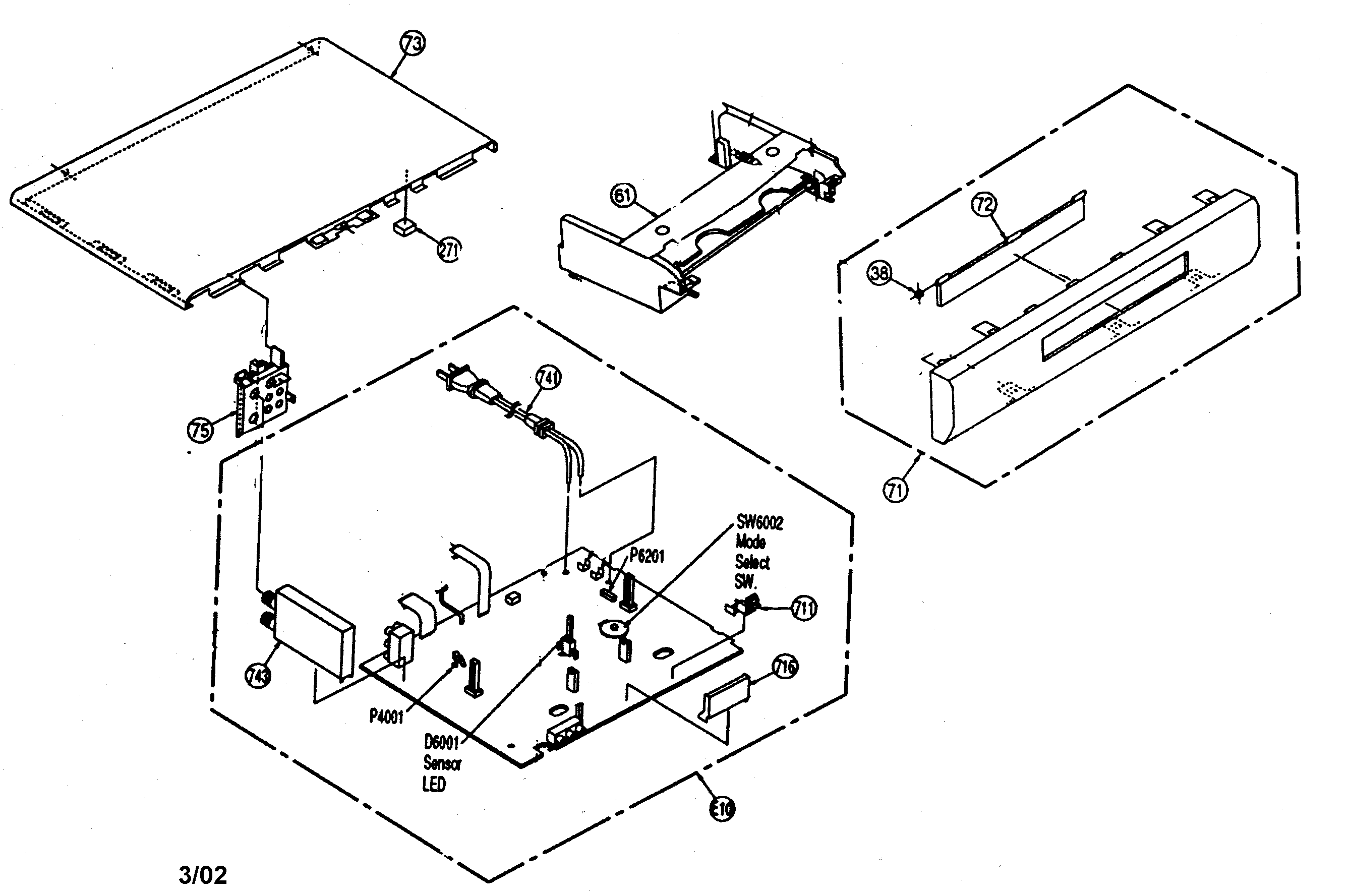

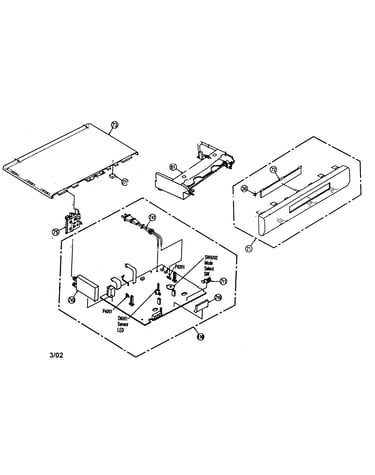

Cabinet parts diagram

Tuner

Part #ENG56717G1

The manufacturer no longer makes this part, and there's no substitute part

Main Circuit Board Assembly LSEP2006HA
#E10B

Cabinet parts diagram

Main circuit board assembly

Part #LSEP2006HA

The manufacturer no longer makes this part, and there's no substitute part

Lid VYPS7084
#72

Cabinet parts diagram

Lid

Part #VYPS7084

The manufacturer no longer makes this part, and there's no substitute part

Cylinder LSEG0015
#NI

Cabinet parts diagram

Cylinder

Part #LSEG0015

The manufacturer no longer makes this part, and there's no substitute part

Gear LSDG0110
#NI

Cabinet parts diagram

Gear

Part #LSDG0110

The manufacturer no longer makes this part, and there's no substitute part

Gear Reel LSDG0116
#NI

Cabinet parts diagram

Gear reel

Part #LSDG0116

The manufacturer no longer makes this part, and there's no substitute part

Serv Man SM-PVV402
#NI

Cabinet parts diagram

Serv man

Part #SM-PVV402

The manufacturer no longer makes this part, and there's no substitute part

Cylinder LSEG0014
#NI

Cabinet parts diagram

Cylinder

Part #LSEG0014

The manufacturer no longer makes this part, and there's no substitute part

Arm VXLS1099
#NI

Cabinet parts diagram

Arm

Part #VXLS1099

The manufacturer no longer makes this part, and there's no substitute part

Panel VYPS7118
#71A

Cabinet parts diagram

Panel

Part #VYPS7118

The manufacturer no longer makes this part, and there's no substitute part
