Kenmore
Countertop Microwave

Model # 7218912091 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218912091 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

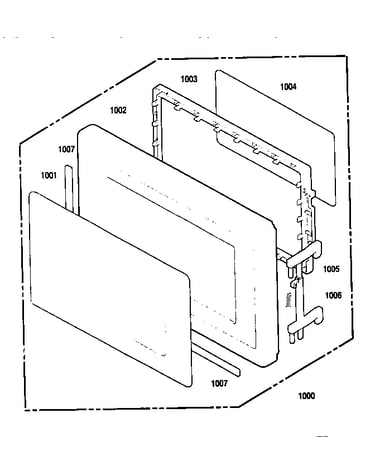

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Oven Switch 503387
#4002

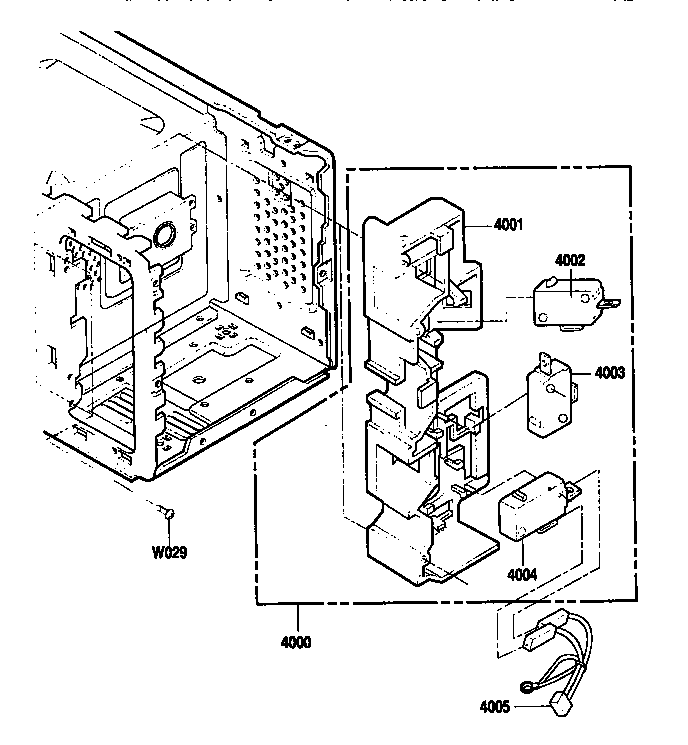

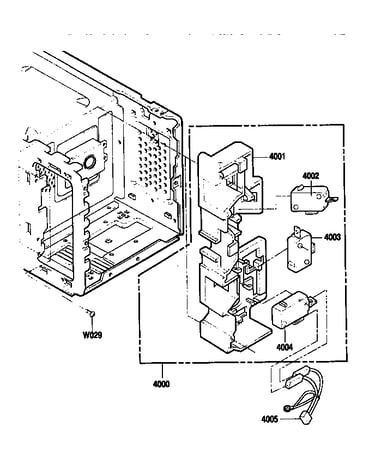

Latch board diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Lamp 505975
#5013

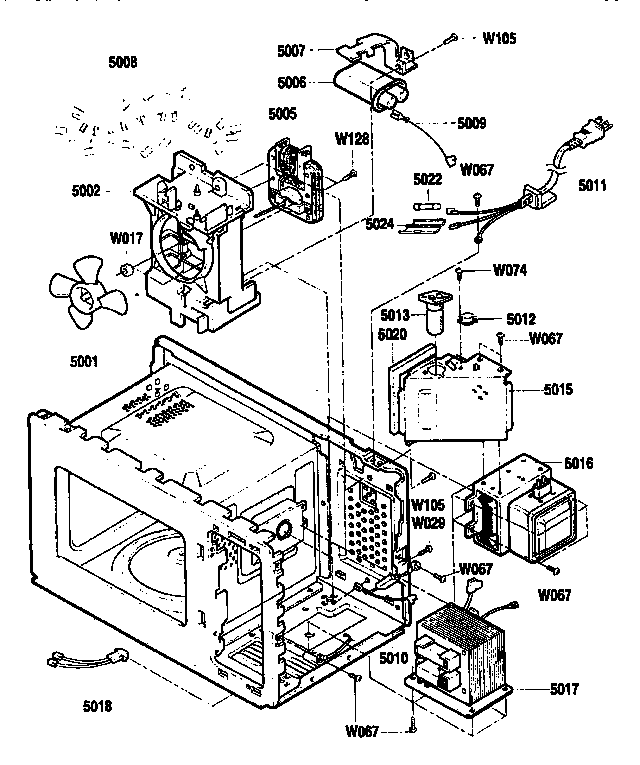

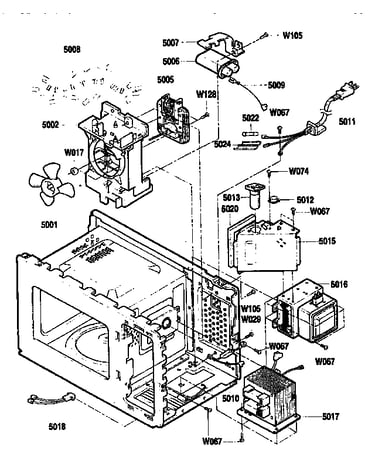

Oven interior diagram

Lamp

Part #505975

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 505975. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Pan Head T 502612
#W081

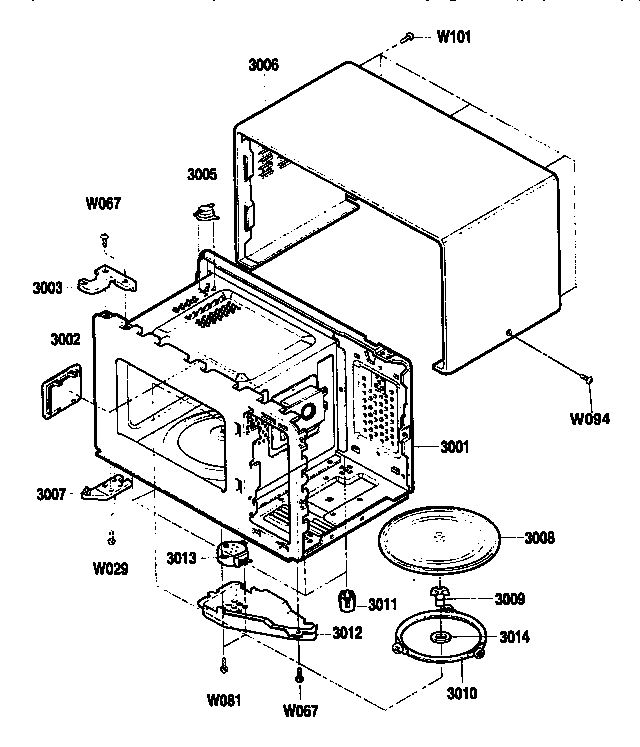

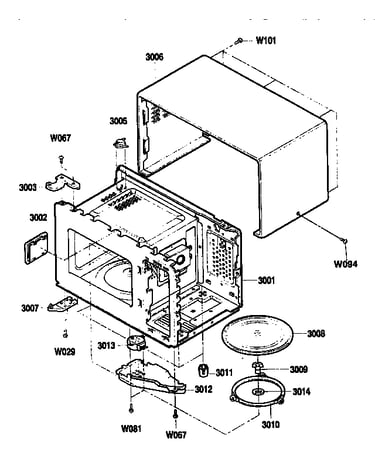

Oven cavity diagram

Pan head t

Part #502612

Replaced by #1TPL0402418

?
Manufacturer substitution
This part replaces 502612. Substitute parts can look different from the original.
This item is not returnable
$18.83
In Stock
Ring 507010
#3010

Oven cavity diagram

Ring

Part #507010

Replaced by #5889W2A005B

?
Manufacturer substitution
This part replaces 507010. Substitute parts can look different from the original.
$8.10
In Stock
Screw 500063
#W074

Oven interior diagram

Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part

Truss Head 504672
#W094

Oven cavity diagram

Truss head

Part #504672

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 504672. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Spring 500359
#2002

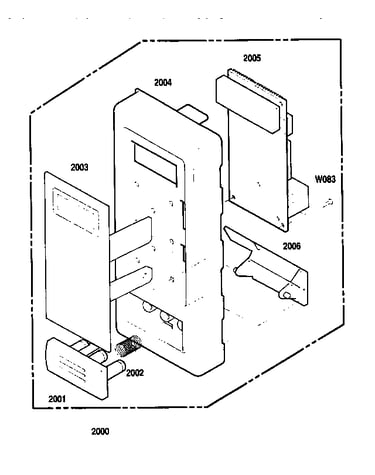

Control panel diagram

Spring

Part #500359

Replaced by #4B72023A

?
Manufacturer substitution
This part replaces 500359. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Resistor 507026
#47

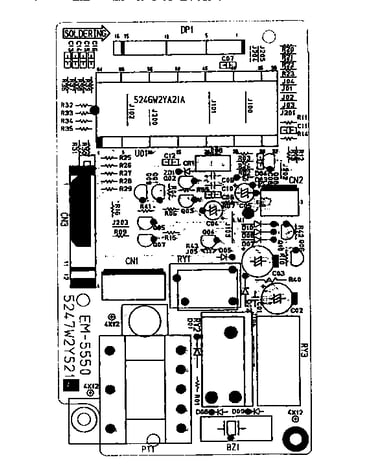

Power and control circuit board diagram

Resistor

Part #507026

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500584
Capacitor

Part #500584

The manufacturer no longer makes this part, and there's no substitute part

Transformer 507016
#5017

Oven interior diagram

Transformer

Part #507016

Replaced by #6010WRH005A

?
Manufacturer substitution
This part replaces 507016. Substitute parts can look different from the original.
$37.49
In Stock
