Model # DSC-T5 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-T5 digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Rear Cabinet 263749601
#10

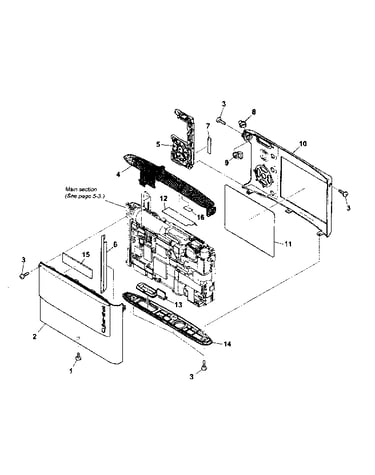

Cabinet parts diagram

Rear cabinet

Part #263749601

The manufacturer no longer makes this part, and there's no substitute part

Flex Board A1129577A
#56

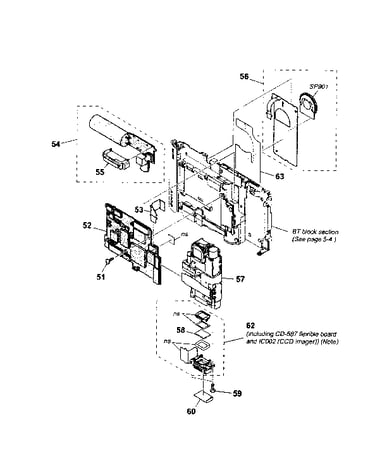

Main assy diagram

Flex board

Part #A1129577A

The manufacturer no longer makes this part, and there's no substitute part

Diode 650109601
#NI

Cabinet parts diagram

Diode

Part #650109601

Replaced by #650109601

?
Manufacturer substitution
This part replaces 650109601. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
Sy-134 Brd A1146568A
#52C

Main assy diagram

Sy-134 brd

Part #A1146568A

The manufacturer no longer makes this part, and there's no substitute part

Retaining Frame 263749201
#102

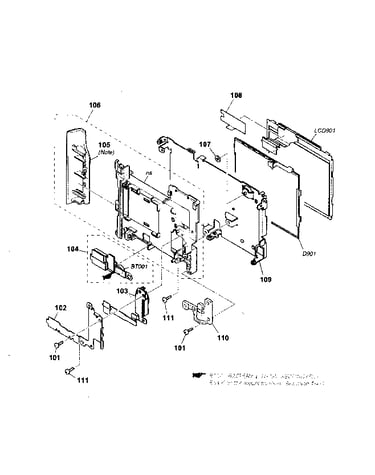

Bt block assy diagram

Retaining frame

Part #263749201

Replaced by #263749201

?
Manufacturer substitution
This part replaces 263749201. Substitute parts can look different from the original.
$8.26
In Stock
St-126 Brd A1129574A
#54

Main assy diagram

St-126 brd

Part #A1129574A

The manufacturer no longer makes this part, and there's no substitute part

Sy-134 Brd A1146566A
#52A

Main assy diagram

Sy-134 brd

Part #A1146566A

The manufacturer no longer makes this part, and there's no substitute part

Guide Light 147938111
#D901

Bt block assy diagram

Guide light

Part #147938111

The manufacturer no longer makes this part, and there's no substitute part

Lsv-1040a A1118808A
#57

Main assy diagram

Lsv-1040a

Part #A1118808A

The manufacturer no longer makes this part, and there's no substitute part

Main Frame 263749301
#109

Bt block assy diagram

Main frame

Part #263749301

Replaced by #263749301

?
Manufacturer substitution
This part replaces 263749301. Substitute parts can look different from the original.
$21.07
In Stock
