Craftsman
Gas Walk-Behind Mower

Model #917387061 Craftsman rotary lawn mower

Here are the diagrams and repair parts for Craftsman 917387061 rotary lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 186 parts

    Lawn & Garden Equipment Washer

    #59

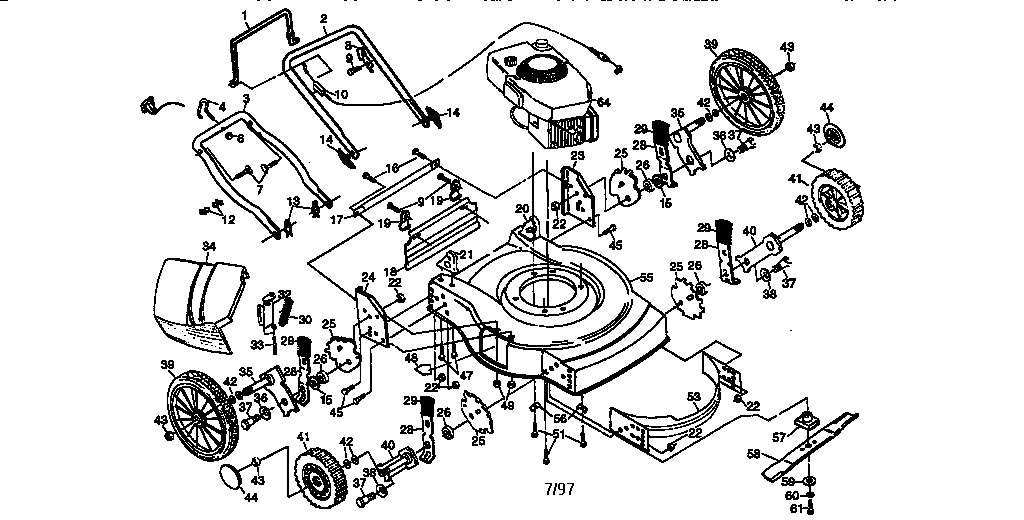

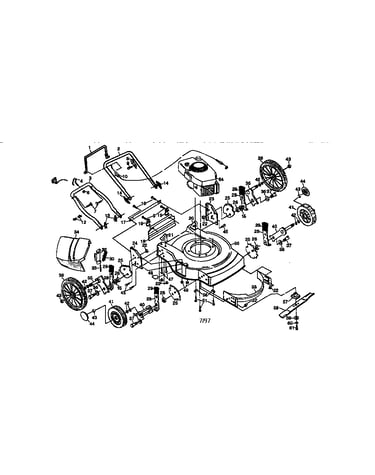

    Replacement parts Diagram

    Lawn & garden equipment washer

    Part #851074
    This item is not returnable
    $2.88

    In Stock

    Lawn & Garden Equipment Bolt

    #51

    Replacement parts Diagram

    Lawn & garden equipment bolt

    Part #150406
    This item is not returnable
    $4.67

    In Stock

    Lawn & Garden Equipment Washer

    #15

    Replacement parts Diagram

    Lawn & garden equipment washer

    Part #88348
    This item is not returnable
    $5.24

    In Stock

    Lawn Mower Height Adjuster Knob

    #29

    Replacement parts Diagram

    Lawn mower height adjuster knob

    Part #532701037
    ?
    Manufacturer substitution
    This part replaces 701037. Substitute parts can look different from the original.
    This part replaces 701037
    This item is not returnable
    $3.69

    In Stock

    Lawn Mower 22-in Deck Mulching Blade

    #58

    Replacement parts Diagram

    Lawn mower 22-in deck mulching blade

    Part #532406713
    ?
    Manufacturer substitution
    This part replaces 850973. Substitute parts can look different from the original.
    This part replaces 850973

    Get free shipping with Automatic Reorder

    $13.35 |
    33% OFF MSRP:$20.00

    In Stock

    Nut

    #6

    Replacement parts Diagram

    Nut

    Part #63601

    The manufacturer no longer makes this part, and there's no substitute part

    Gas Can 2.5

    #NI

    All parts Diagram

    Gas can 2.5

    Part #33623

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn Mower Bail Control Bar Stop Bracket

    #8

    Replacement parts Diagram

    Lawn mower bail control bar stop bracket

    Part #532850733
    ?
    Manufacturer substitution
    This part replaces 850733X004. Substitute parts can look different from the original.
    This part replaces 850733X004
    This item is not returnable
    $5.00 |
    6% OFF MSRP:$5.30

    In Stock

    Lawn Mower Height Adjuster Lever Spacer

    #26

    Replacement parts Diagram

    Lawn mower height adjuster lever spacer

    Part #532401629
    ?
    Manufacturer substitution
    This part replaces 146630. Substitute parts can look different from the original.
    This part replaces 146630
    This item is not returnable
    $3.40

    In Stock

    Lawn & Garden Equipment Engine O-Ring Kit

    #42

    Replacement parts Diagram

    Lawn & garden equipment engine o-ring kit

    Part #428450
    ?
    Manufacturer substitution
    This part replaces 57143. Substitute parts can look different from the original.
    This part replaces 57143
    $8.04

    In Stock

    Symptoms for gas walk-behind mowers

    Choose a symptom to see related walk-behind mower repairs.

    Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
    Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
    Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
    Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
    Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
    Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
