Model # YKHMS1850SB0 Official KitchenAid microwave/hood combo

Here are the diagrams and repair parts for Official KitchenAid YKHMS1850SB0 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

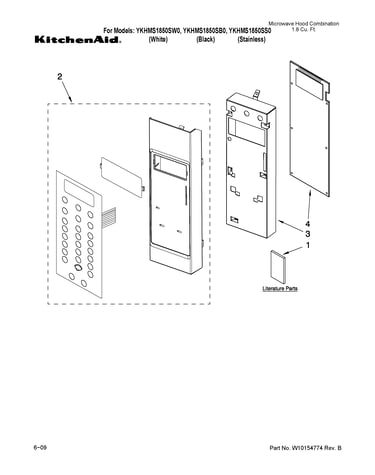

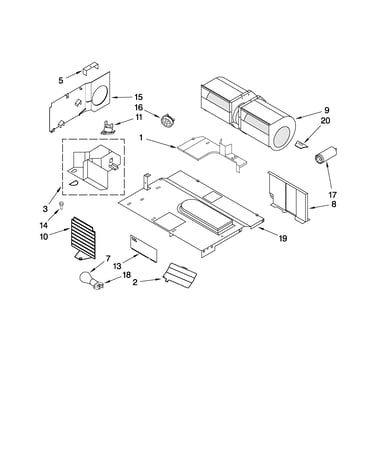

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Microwave/hood Micro-switch 8206347
#24

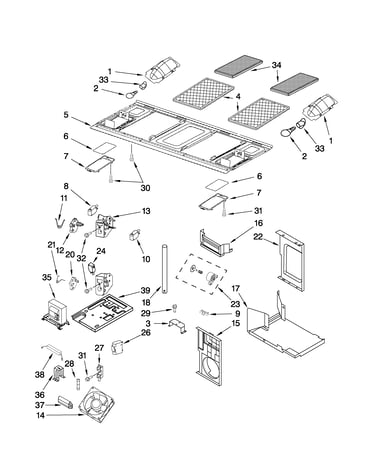

Interior and ventilation parts diagram

Microwave/hood micro-switch

Part #8206347

Replaced by #W10269458

?
Manufacturer substitution
This part replaces 8206347. Substitute parts can look different from the original.
BEST SELLER
$25.93 |
30% OFF MSRP : $37.00
In Stock
Microwave/hood Switch 8206345
#8

Interior and ventilation parts diagram

Microwave/hood switch

Part #8206345

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 8206345. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Microwave Screw 8169704
#NI

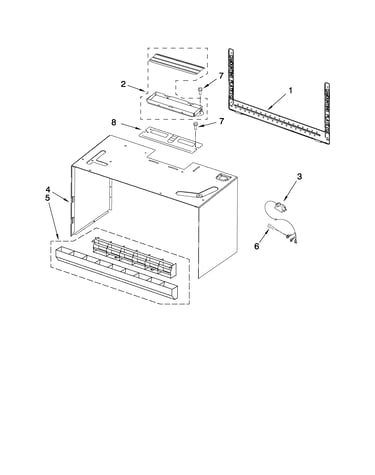

Cabinet and installation parts diagram

Microwave screw

Part #8169704

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 8169704. Substitute parts can look different from the original.
This item is not returnable
$4.99 |
17% OFF Phone Price : $5.99
In Stock
Diode W10163432
#38

Interior and ventilation parts diagram

Diode

Part #W10163432

Replaced by #WPW10492276

?
Manufacturer substitution
This part replaces W10163432. Substitute parts can look different from the original.
$21.86 |
19% OFF Phone Price : $26.86
In Stock
Microwave Damper Assembly 8206442
#2

Cabinet and installation parts diagram

Microwave damper assembly

Part #8206442

Replaced by #W10843943

?
Manufacturer substitution
This part replaces 8206442. Substitute parts can look different from the original.
$59.02 |
8% OFF Phone Price : $64.02
Back Order
Microwave Screw 8169479
Microwave screw

Part #8169479

This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 8169477
#32

Interior and ventilation parts diagram

Screw

Part #8169477

Replaced by #8169479

?
Manufacturer substitution
This part replaces 8169477. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Microwave Vent Grille (replaces W10242802) W10250593
#5B

Cabinet and installation parts diagram

Microwave vent grille (replaces w10242802)

Part #W10250593

$110.59 |
8% OFF MSRP : $120.00
In Stock
Washer 8204691
#5

Door parts diagram

Washer

Part #8204691

Replaced by #WP8533914

?
Manufacturer substitution
This part replaces 8204691. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Wire Harness 8206185
#NI

Cabinet and installation parts diagram

Wire harness

Part #8206185

$36.42
In Stock
