Craftsman
Hedge Trimmer

Model # 316792490 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 316792490 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Line Trimmer Hedge Trimmer Attachment Drive Shaft Housing 753-05616
#2

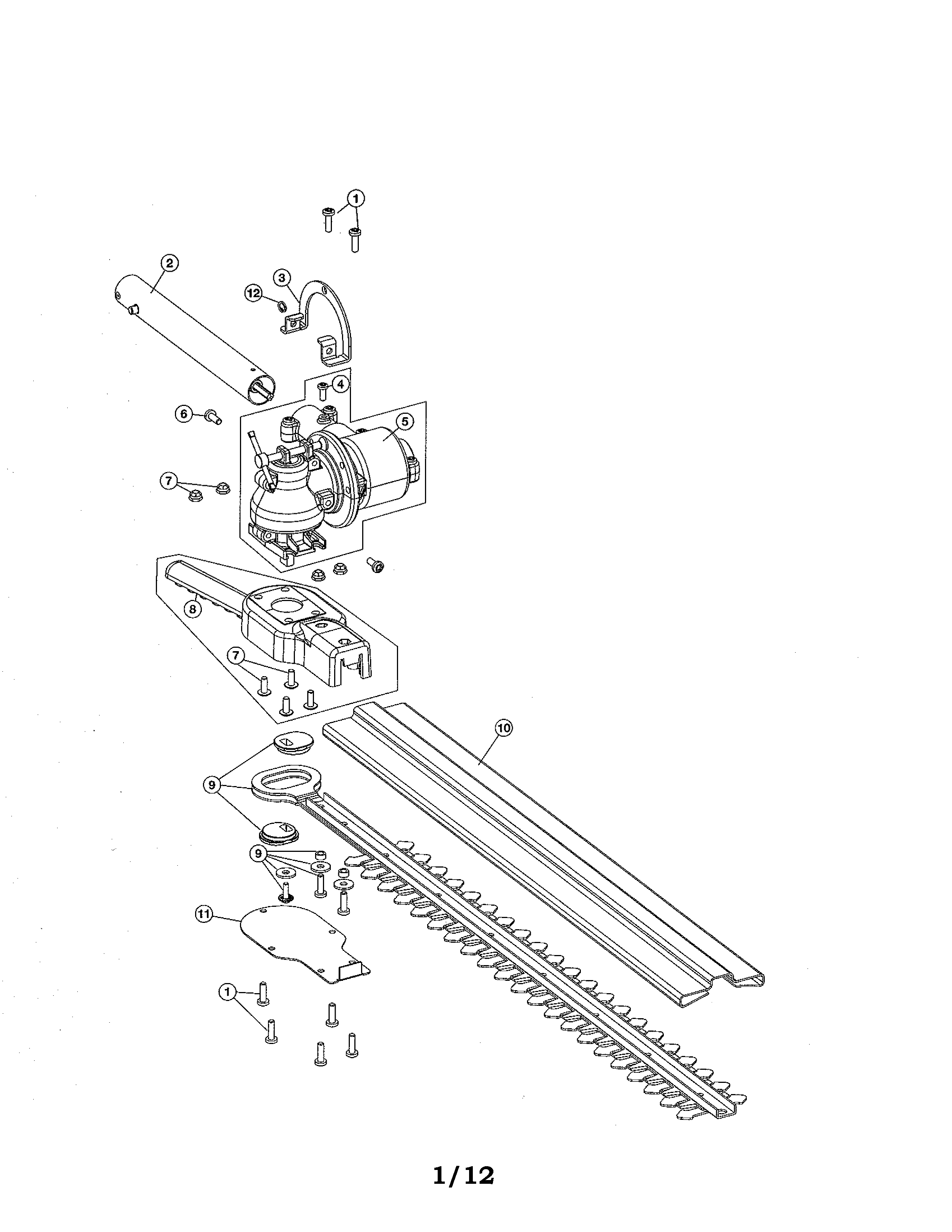

Hedge trimmer attachment diagram

Line trimmer hedge trimmer attachment drive shaft housing

Part #753-05616

Replaced by #753-08007

?
Manufacturer substitution
This part replaces 753-05616. Substitute parts can look different from the original.
This item is not returnable
$18.87 |
10% OFF Phone Price : $20.87
In Stock
Lawn & Garden Equipment Hanger Accessory 791-612605

#NI

All parts diagram

Lawn & garden equipment hanger accessory

Part #791-612605

Replaced by #731-08926

?
Manufacturer substitution
This part replaces 791-612605. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 753-05698
#4

Hedge trimmer attachment diagram

Screw

Part #753-05698

Replaced by #7039

?
Manufacturer substitution
This part replaces 753-05698. Substitute parts can look different from the original.
This item is not returnable
$7.28 |
12% OFF Phone Price : $8.28
In Stock
Lock Washer 791-182215
#12

Hedge trimmer attachment diagram

Lock washer

Part #791-182215

Replaced by #936-0329

?
Manufacturer substitution
This part replaces 791-182215. Substitute parts can look different from the original.
This item is not returnable
$7.17
In Stock
Screw 753-05619
#6

Hedge trimmer attachment diagram

Screw

Part #753-05619

Replaced by #710-04394

?
Manufacturer substitution
This part replaces 753-05619. Substitute parts can look different from the original.
$11.17
In Stock
Scr, 10-24x. 791-182886
#1

Hedge trimmer attachment diagram

Scr, 10-24x.

Part #791-182886

The manufacturer no longer makes this part, and there's no substitute part

Guard 753-05624
#10

Hedge trimmer attachment diagram

Guard

Part #753-05624

The manufacturer no longer makes this part, and there's no substitute part

Hardware 753-05620
#7

Hedge trimmer attachment diagram

Hardware

Part #753-05620

The manufacturer no longer makes this part, and there's no substitute part

Ring 753-05617
#3

Hedge trimmer attachment diagram

Ring

Part #753-05617

The manufacturer no longer makes this part, and there's no substitute part

Blade 753-05625
#11

Hedge trimmer attachment diagram

Blade

Part #753-05625

The manufacturer no longer makes this part, and there's no substitute part
