Model #RGB528GET2AD Official Hotpoint gas range

Here are the diagrams and repair parts for Hotpoint RGB528GET2AD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes
Search within this model
Parts List

Showing 10 of 164 parts

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)#235

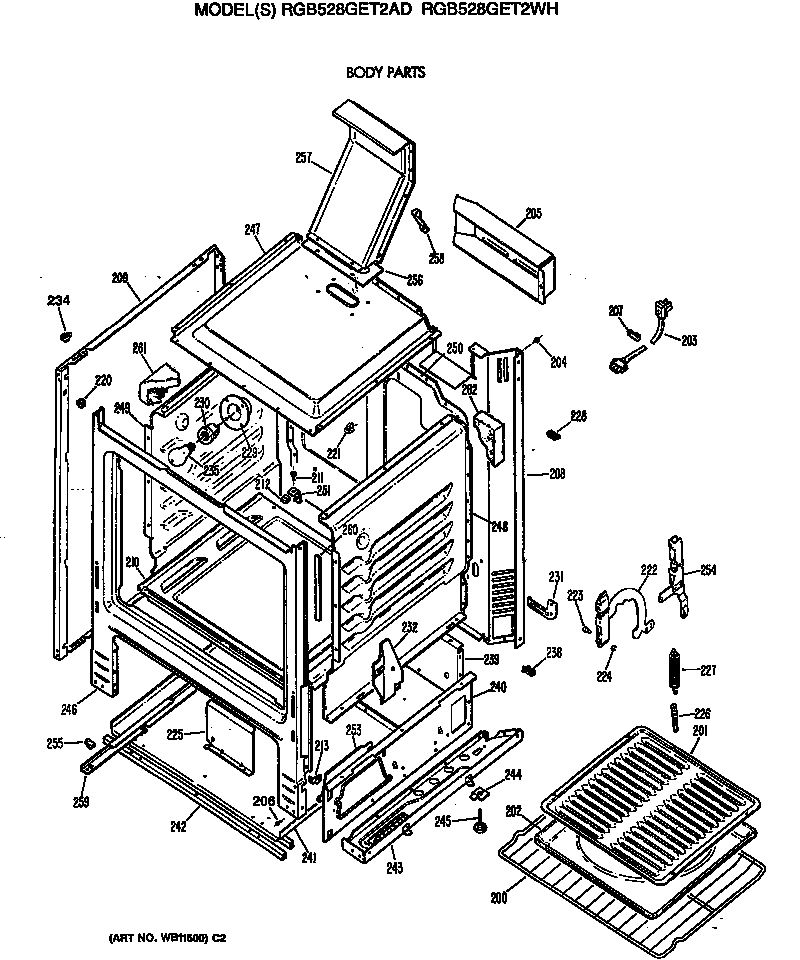

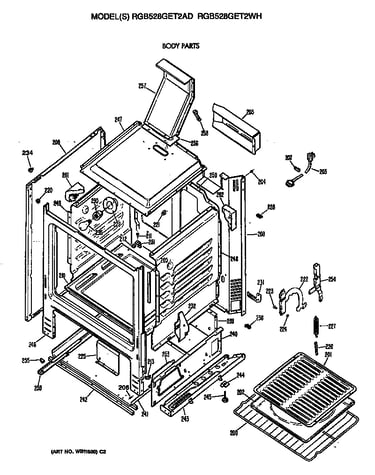

Body parts Diagram

40a15bulb

Part #STD372401
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
Back Order
$16.43
Range Oven Control Board (replaces WB11K0044, WB11K10016, WB11K22, WB11K23, WB11K27, WB11K28, WB11K33, WB11K58, WB12K31, WB27K10028)#105

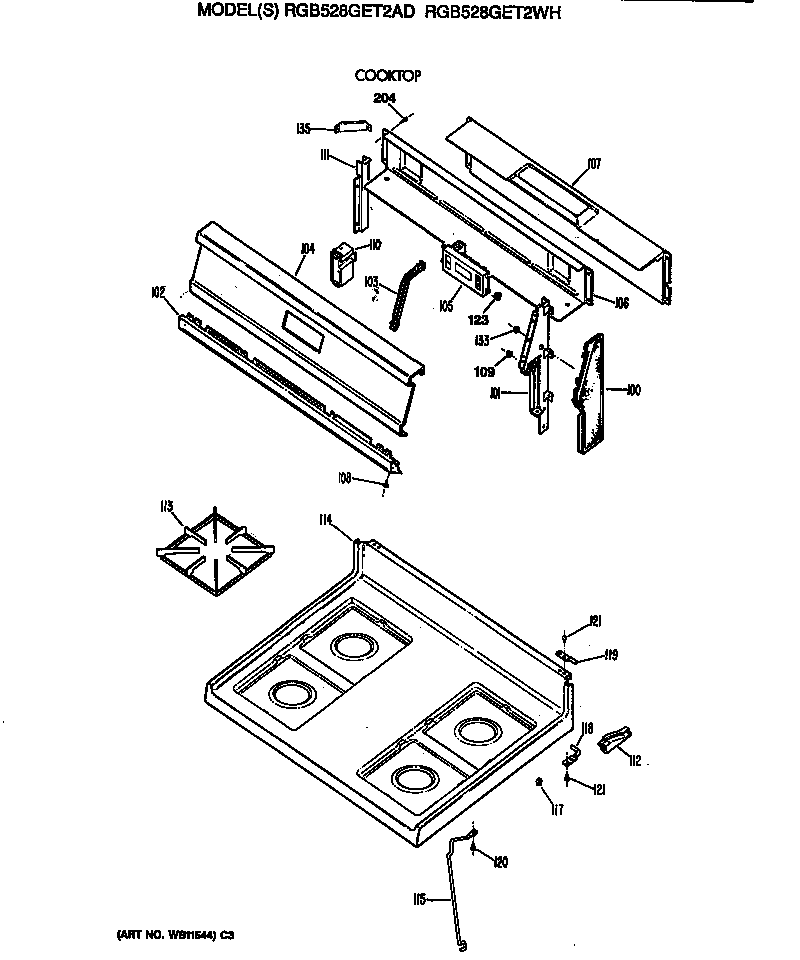

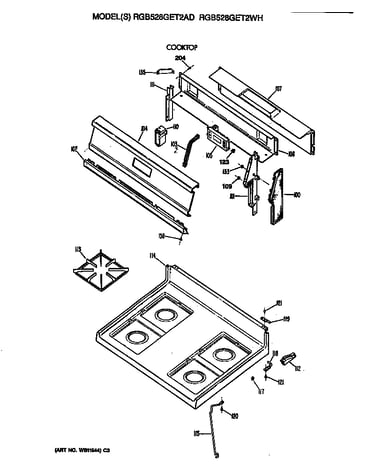

Cooktop Diagram

Clock timer

Part #WB11K23
Replaced by #WB27T10469
?
Manufacturer substitution
This part replaces WB11K23. Substitute parts can look different from the original.
In Stock
$106.08 |
9% OFF
Phone Price: $116.08
Range Double Burner Assembly (replaces WB16K10003, WB29K1, WB29K17)#4

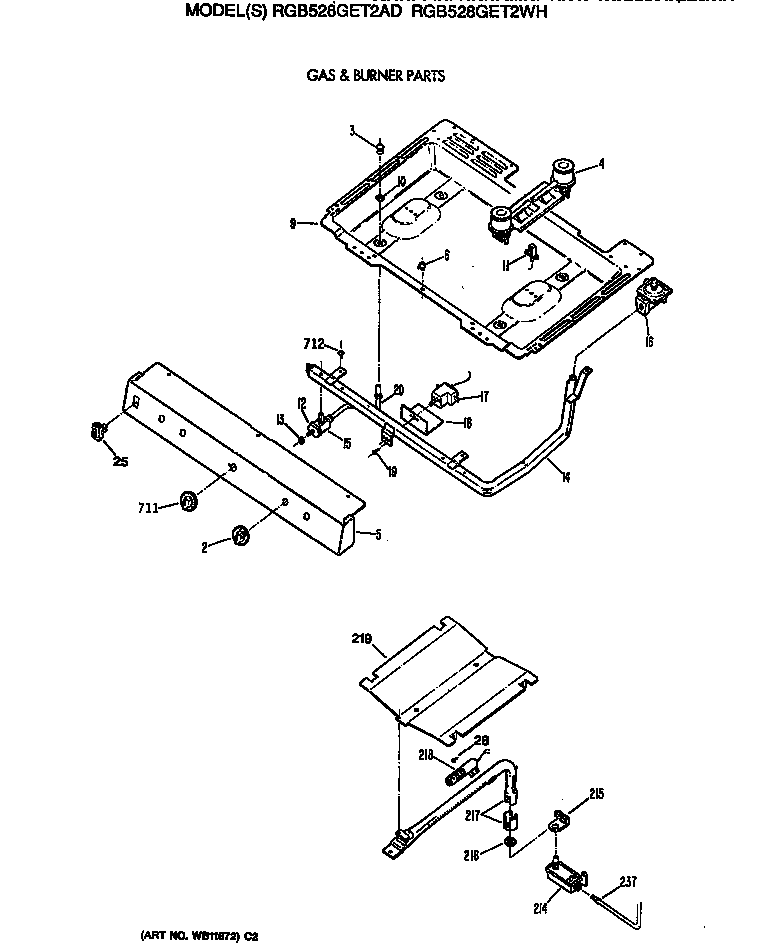

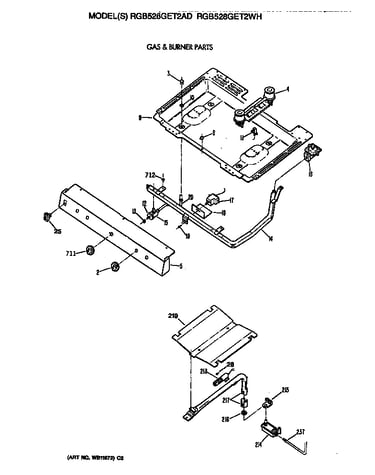

Gas & burner parts Diagram

Double burner

Part #WB29K17
Replaced by #WB16K10026
?
Manufacturer substitution
This part replaces WB29K17. Substitute parts can look different from the original.
Back Order
$55.13 |
8% OFF
Phone Price: $60.13
Range Door Bumper (replaces WB02K0015, WB02X10905)#311

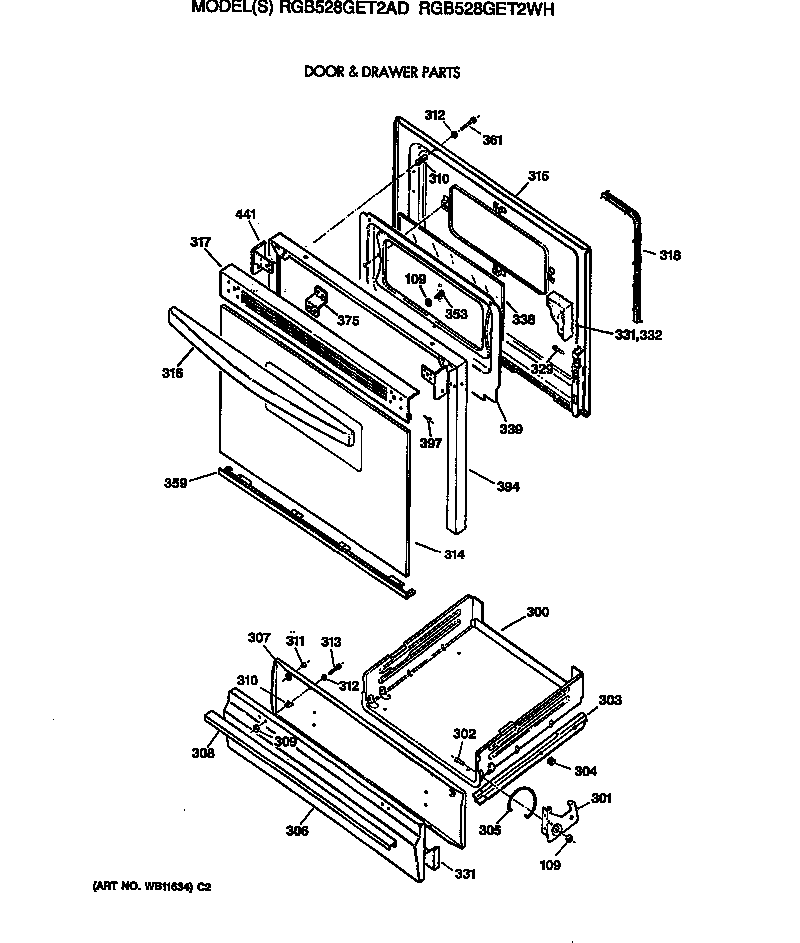

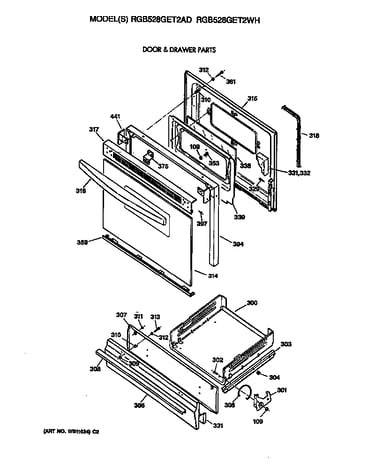

Door & drawer parts Diagram

In Stock
$7.88 |
11% OFF
Phone Price: $8.88
Range Surface Burner Igniter, Left Front (replaces WB19K10075, WB19K20)#11

Gas & burner parts Diagram

Range surface burner igniter

Part #WB19K20
Replaced by #WB18X26988
?
Manufacturer substitution
This part replaces WB19K20. Substitute parts can look different from the original.
In Stock
$15.26 |
12% OFF
Phone Price: $17.26
Range Screw

See All Related Diagrams

Range screw

Part #WB1K42
Replaced by #WB1K5062
?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
Range Screw (replaces WB01X1293, WB1K50)#28

Gas & burner parts Diagram

Screw

Part #WB1K50
Replaced by #WB1X1293
?
Manufacturer substitution
This part replaces WB1K50. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
Range Pressure Regulator (replaces WB19K27)#16

Gas & burner parts Diagram

Range pressure regulator

Part #WB19K27
Replaced by #WB19K10055
?
Manufacturer substitution
This part replaces WB19K27. Substitute parts can look different from the original.
In Stock
$63.33 |
7% OFF
Phone Price: $68.33
Range Oven Door Hinge Support Bracket, Right#254B

Body parts Diagram

Range oven door hinge support bracket, right

Part #WB10K13
This item is not returnable
In Stock
$23.59 |
17% OFF
Phone Price: $28.59
Range Bac#208

Body parts Diagram

Range bac

Part #WB63K20
In Stock
$63.00
