Model # GFC705V-02 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFC705V-02 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Nut 1/4-20ss WC1X285
#2067

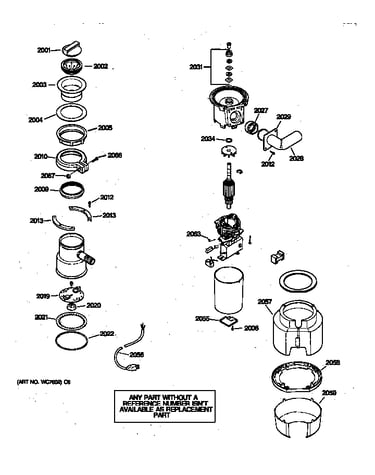

Unit parts diagram

Nut 1/4-20ss

Part #WC1X285

This item is not returnable
$2.16
In Stock
Splash Guard WC3X125
#2002

Unit parts diagram

Splash guard

Part #WC3X125

Replaced by #WC11X20163

?
Manufacturer substitution
This part replaces WC3X125. Substitute parts can look different from the original.
$14.56 |
12% OFF Phone Price : $16.56
In Stock
Seal Kit WC4X38
#2031

Unit parts diagram

Seal kit

Part #WC4X38

The manufacturer no longer makes this part, and there's no substitute part

Clamp Nut WC1X282
#2005

Unit parts diagram

Clamp nut

Part #WC1X282

The manufacturer no longer makes this part, and there's no substitute part

Strainer WC20X25
#2021

Unit parts diagram

Strainer

Part #WC20X25

The manufacturer no longer makes this part, and there's no substitute part

Guard Seal WC4X37
#2020

Unit parts diagram

Guard seal

Part #WC4X37

The manufacturer no longer makes this part, and there's no substitute part

Gasket WC3X128
#2004

Unit parts diagram

Gasket

Part #WC3X128

The manufacturer no longer makes this part, and there's no substitute part

Stopper WC11X58
#2001

Unit parts diagram

Stopper

Part #WC11X58

The manufacturer no longer makes this part, and there's no substitute part

Support Ring WC5X114
#2010

Unit parts diagram

Support ring

Part #WC5X114

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring WC2X389
#2063

Unit parts diagram

Brush spring

Part #WC2X389

The manufacturer no longer makes this part, and there's no substitute part
