Model # 44-2408-00-03 Official Tappan laundry center - lt31789010

Here are the diagrams and repair parts for Official Tappan 44-2408-00-03 laundry center - lt31789010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

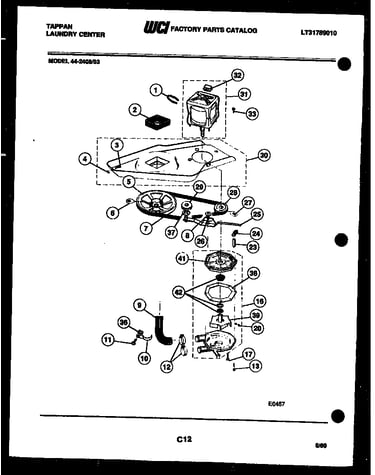

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 291 parts  |
Screw 3161239
Screw

Part #3161239

Replaced by #131302800

?
Manufacturer substitution
This part replaces 3161239. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Heater 3161109
#29A

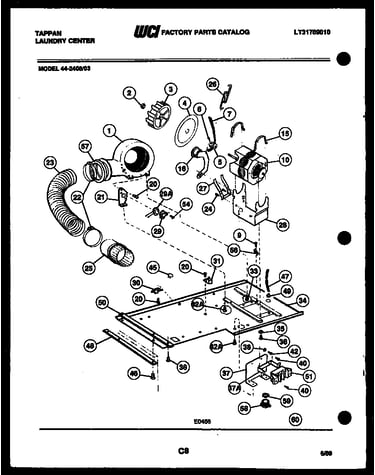

Dryer motor, blower and belt diagram

Heater

Part #3161109

Replaced by #131658100

?
Manufacturer substitution
This part replaces 3161109. Substitute parts can look different from the original.
$62.60
In Stock
Washer 3161296
#66

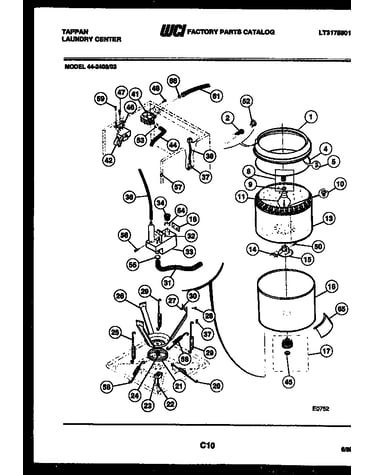

Tubs, water valve and lid switch diagram

Washer

Part #3161296

Replaced by #5303161296

?
Manufacturer substitution
This part replaces 3161296. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Seal 3161307
#5

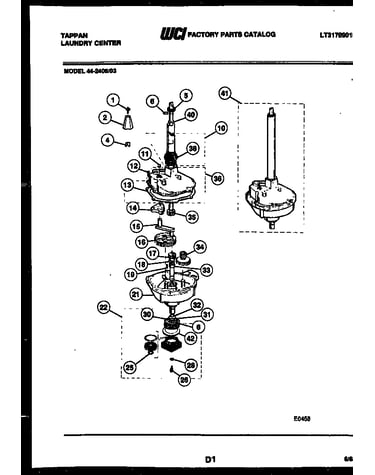

Transmission parts diagram

Seal

Part #3161307

Replaced by #5303161307

?
Manufacturer substitution
This part replaces 3161307. Substitute parts can look different from the original.
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Paint 3161012

#NI

All parts diagram

Paint

Part #3161012

Replaced by #350956

?
Manufacturer substitution
This part replaces 3161012. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
19% OFF Phone Price : $25.89
In Stock
Panel 3017952
#18

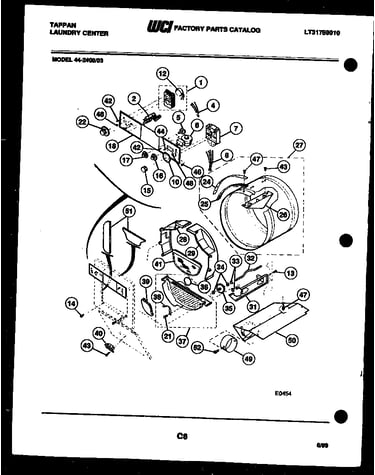

Console, control and drum diagram

Panel

Part #3017952

$24.49
In Stock
Clip 3161288
#42A

Console, control and drum diagram

Clip

Part #3161288

This item is not returnable
$2.19
In Stock
Strap 3161250
#63A

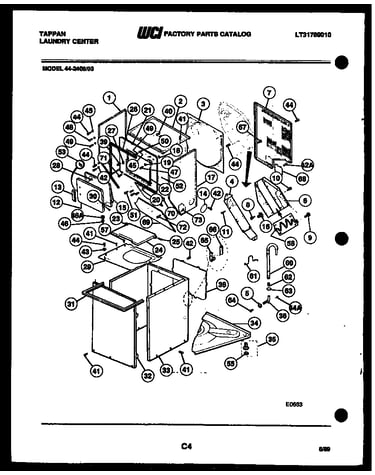

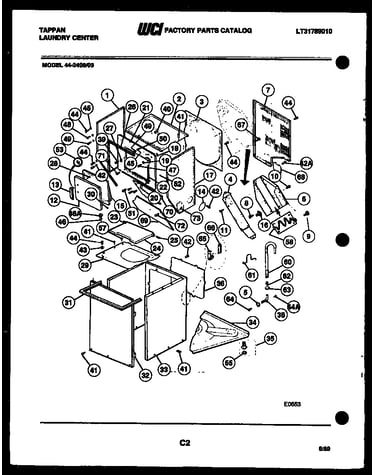

Cabinet parts and heater diagram
