GE
Electric Wall Oven

Model # PTS9200SN1SS Official GE electric oven

Here are the diagrams and repair parts for Official GE PTS9200SN1SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

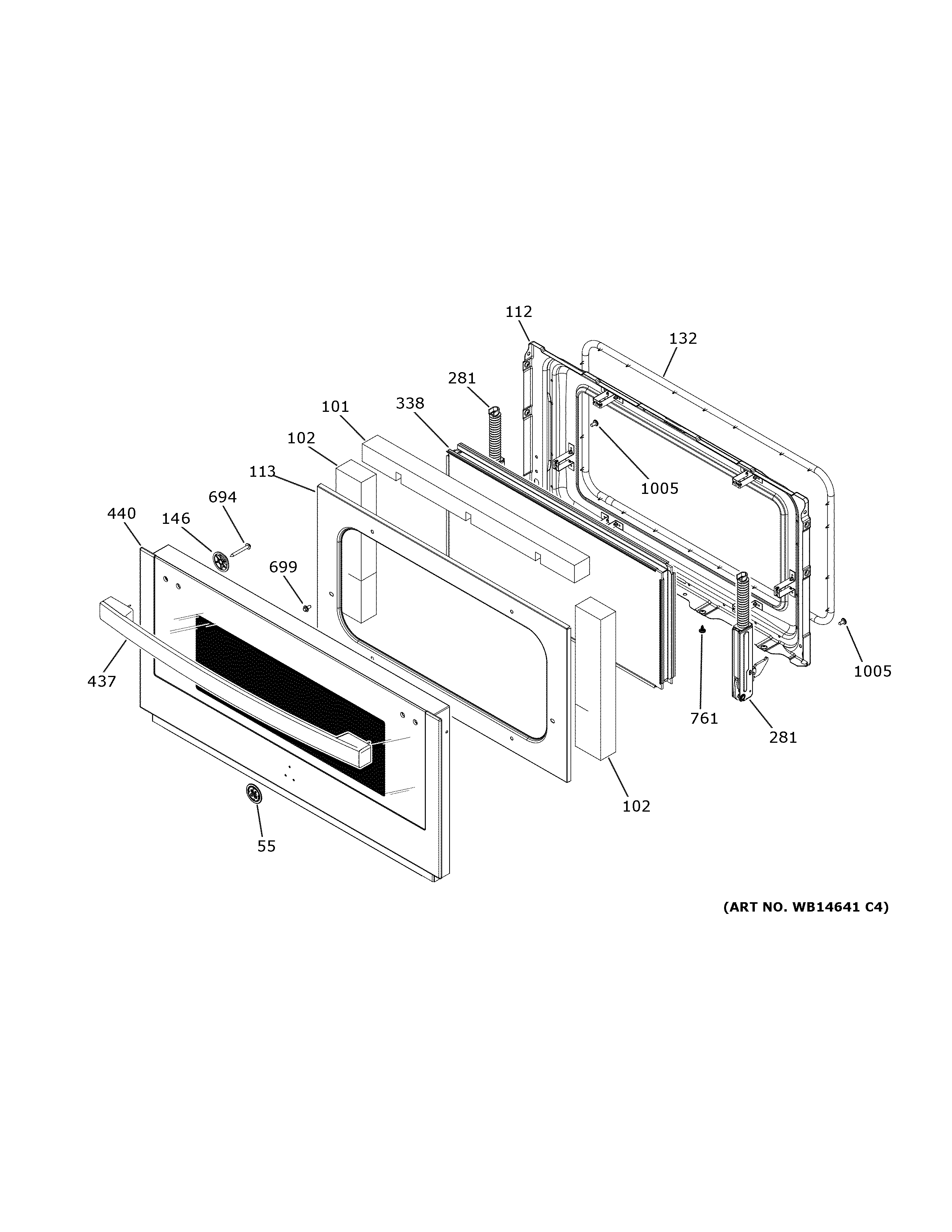

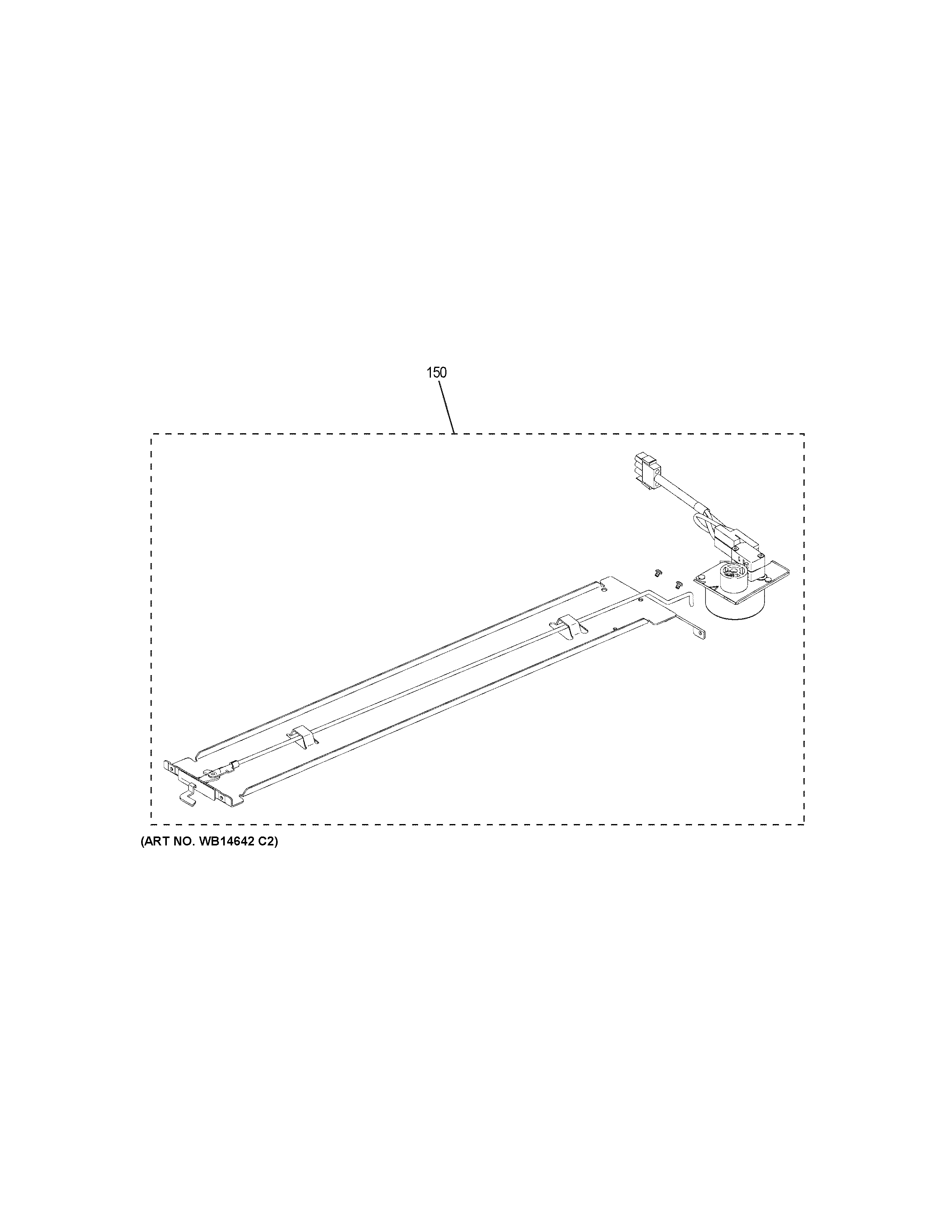

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
Range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$25.95 |
16% OFF Phone Price : $30.95
In Stock
Wall Oven Cooling Fan Assembly (replaces Wb26x23477) WB26X31060
#32

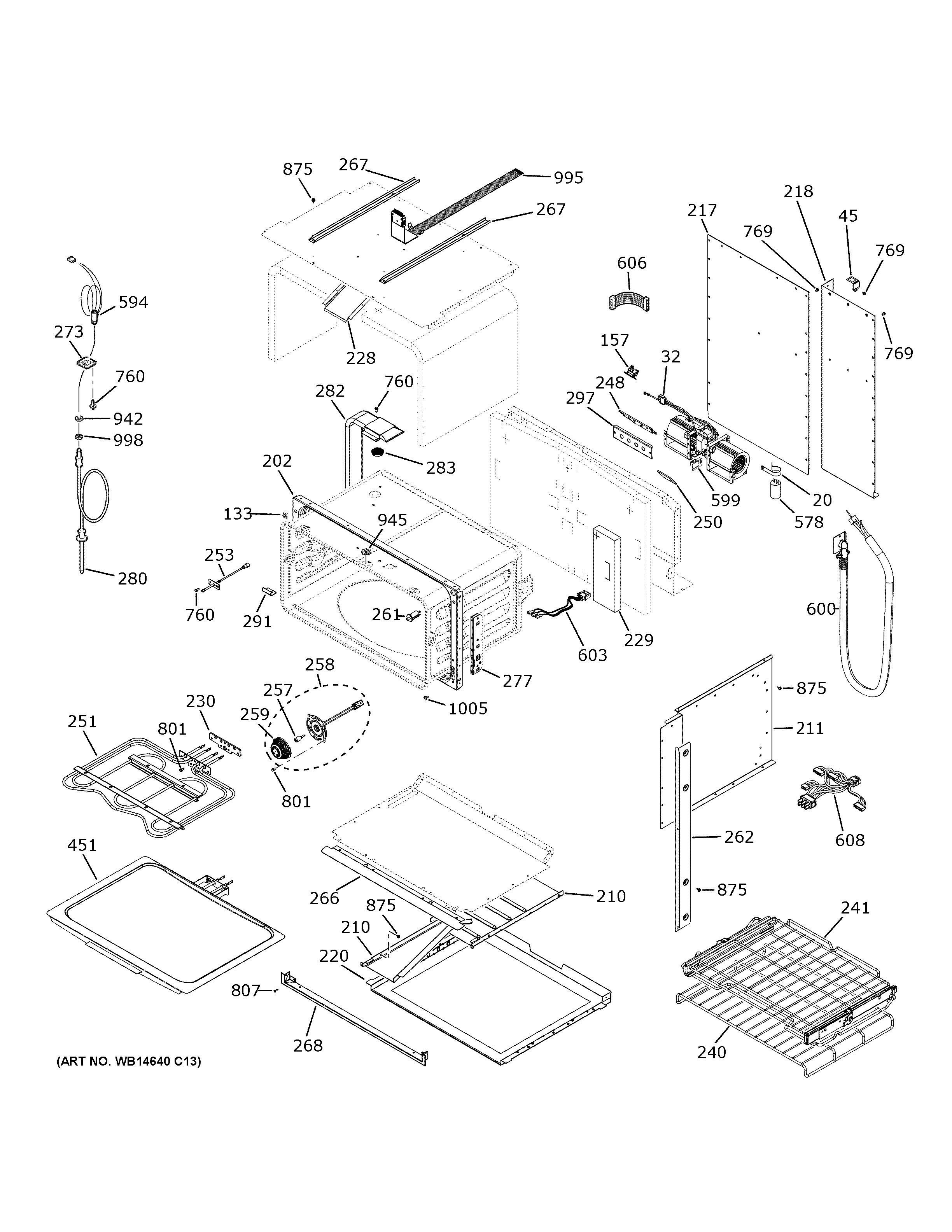

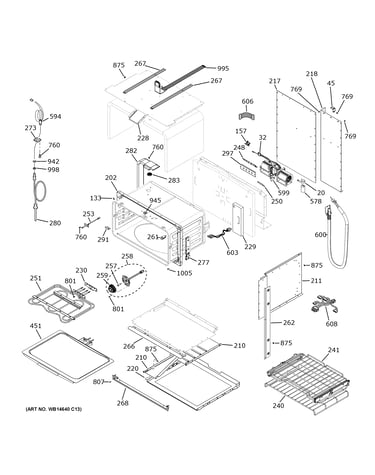

Lower oven diagram

Wall oven cooling fan assembly (replaces wb26x23477)

Part #WB26X31060

BEST SELLER
$76.06 |
6% OFF Phone Price : $81.06
In Stock
Relay Daught WB27X29201
#555

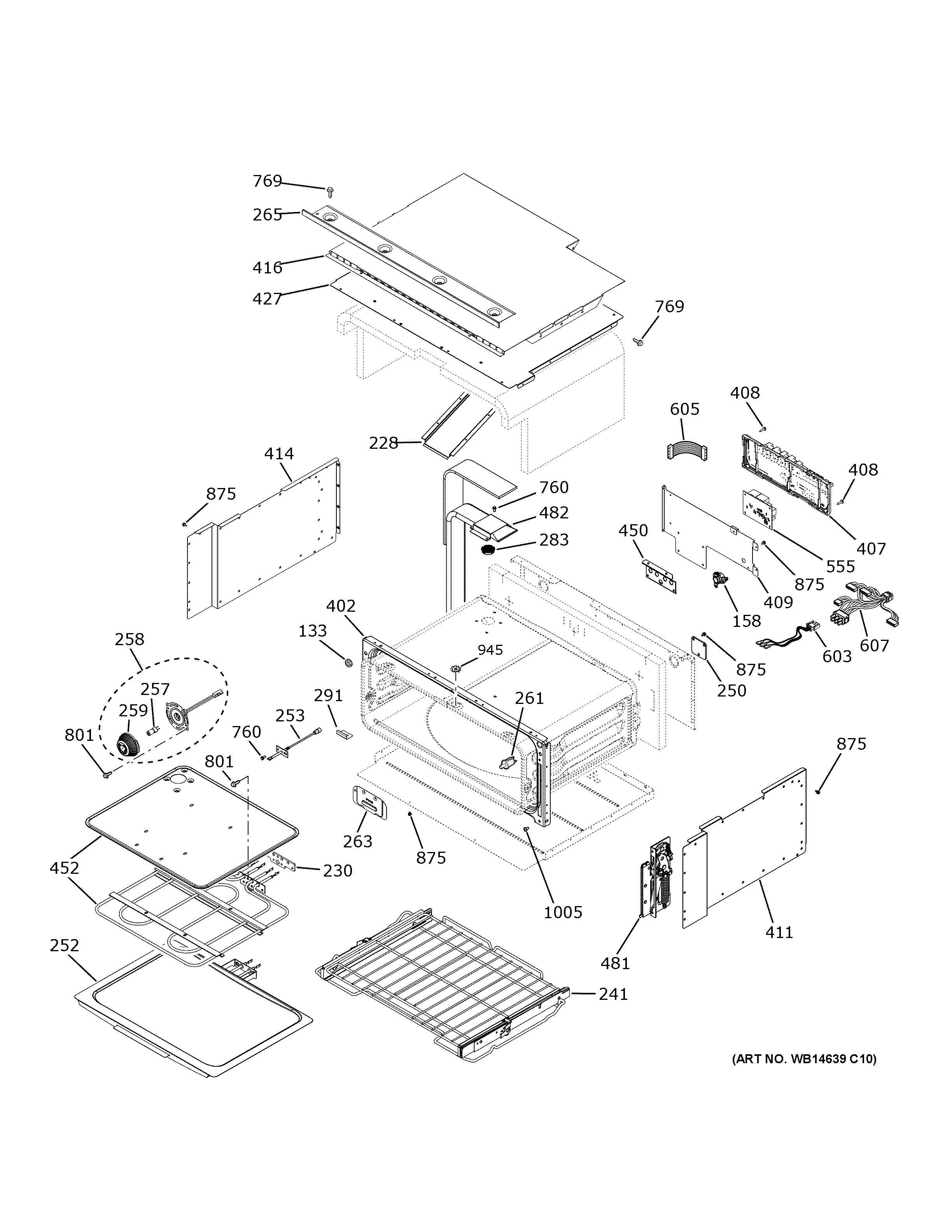

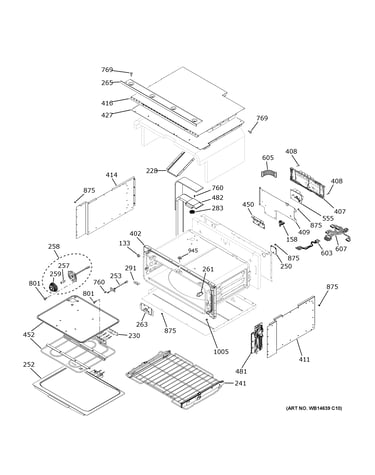

Upper oven diagram

Relay daught

Part #WB27X29201

$87.01 |
5% OFF Phone Price : $92.01
In Stock
Nut WB02T10017
#977

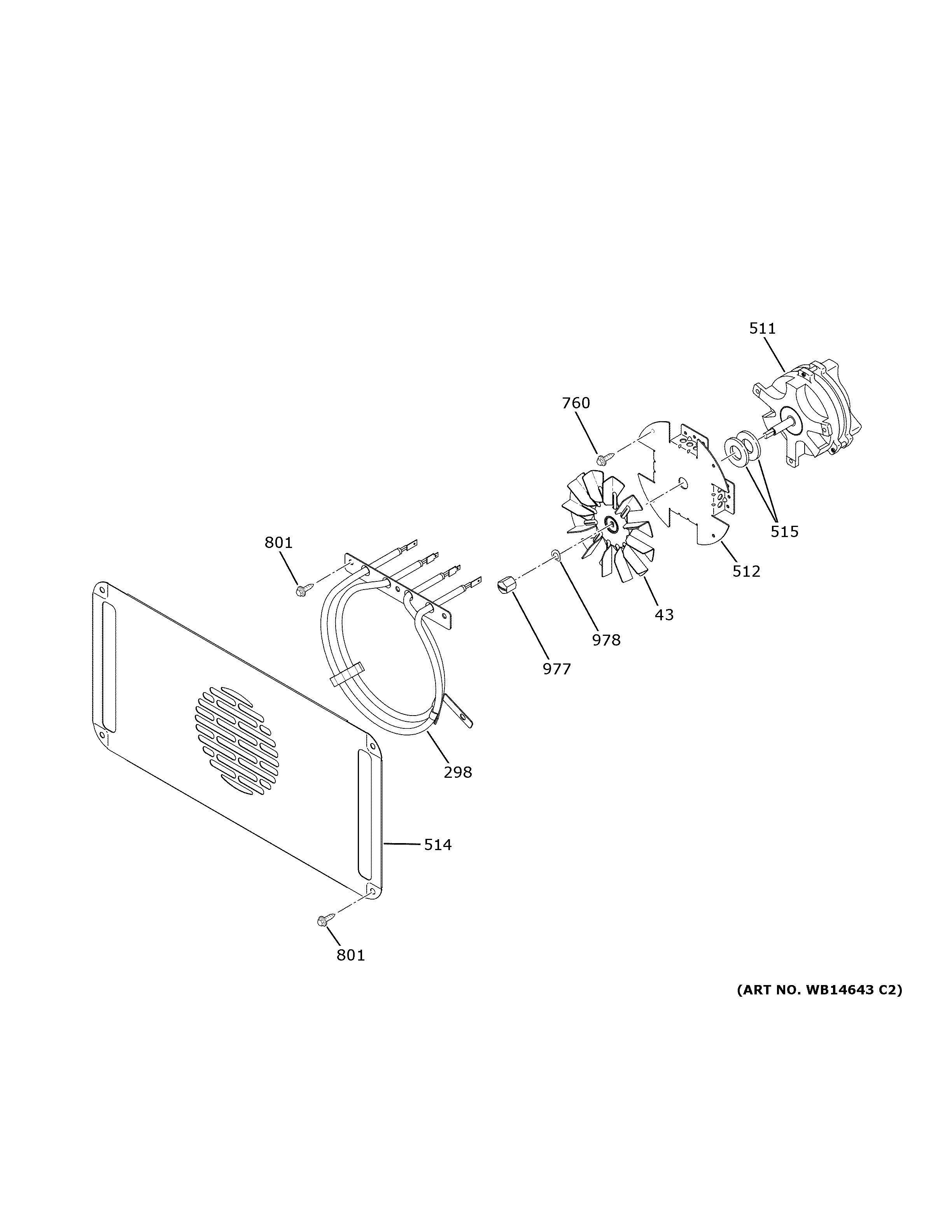

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Trim WB07T10647
#268

Lower oven diagram

Trim

Part #WB07T10647

$40.02 |
11% OFF Phone Price : $45.02
In Stock
Range Oven Door Gasket WB35X27911
#332

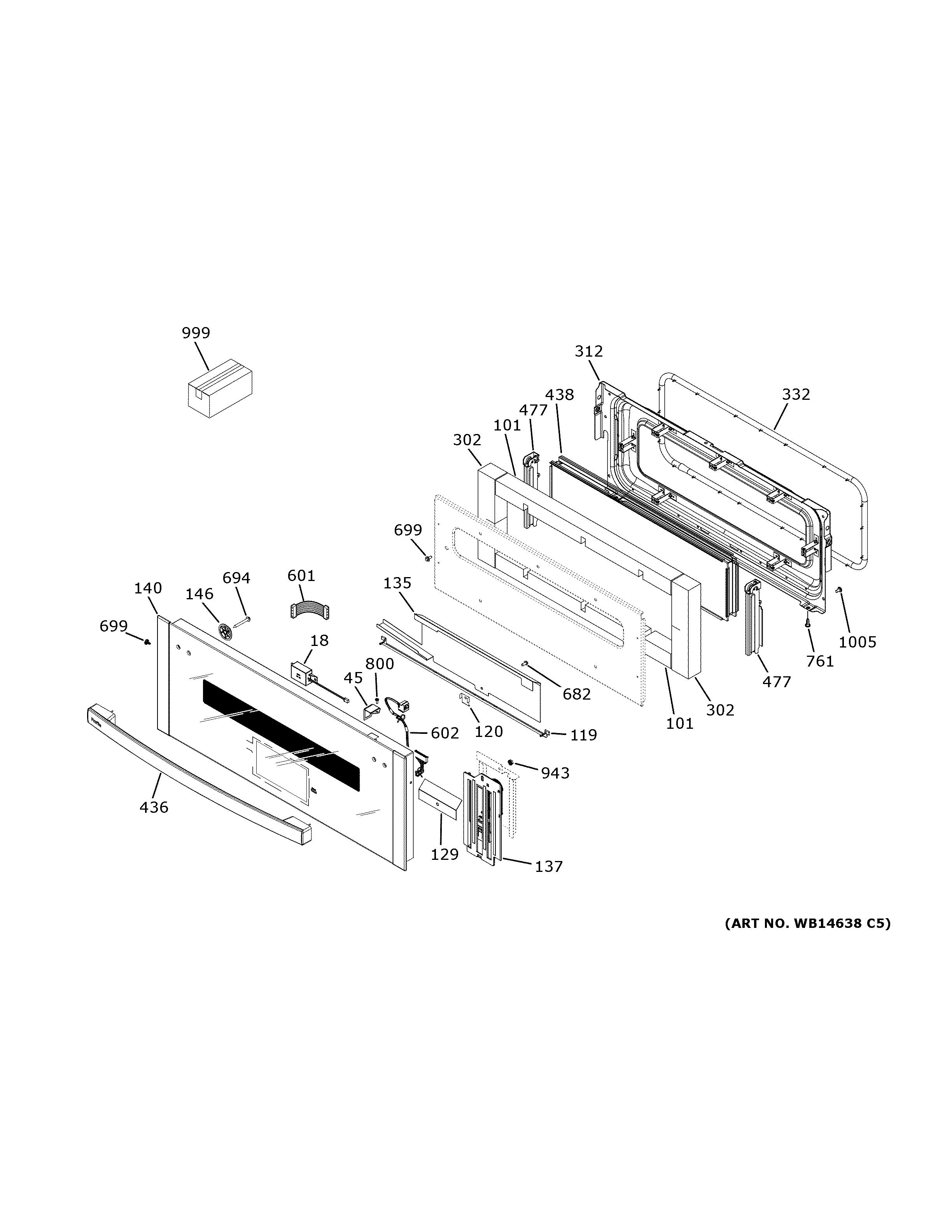

Control panel & upper door diagram

Range oven door gasket

Part #WB35X27911

$40.78 |
11% OFF Phone Price : $45.78
In Stock
Motor Convection Fan WB26X34631
#511

Convection fan diagram

Motor convection fan

Part #WB26X34631

$106.40
In Stock
Hinge Assembly Right WB10X40041
#481

Upper oven diagram

Hinge assembly right

Part #WB10X40041

$74.67
In Stock
Nut Keps 8-3 WB01T10074
#943

Control panel & upper door diagram

Nut keps 8-3

Part #WB01T10074

This item is not returnable
$4.35
In Stock
Capacitor Bracket WB02T10152
#20

Lower oven diagram

Capacitor bracket

Part #WB02T10152

$8.11
In Stock
