Model #1067761811 Official Kenmore air conditioner
Here are the diagrams and repair parts for Kenmore 1067761811 air conditioner, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

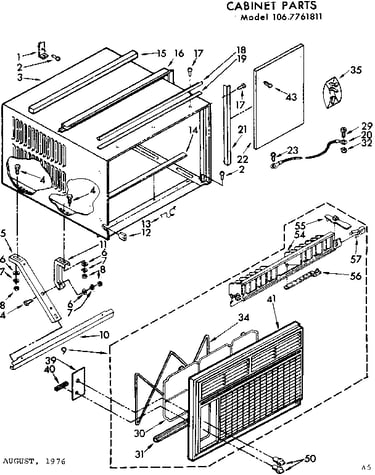

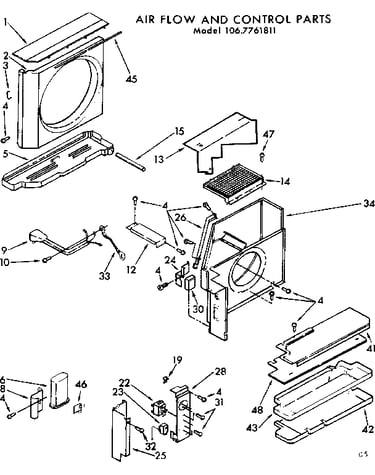

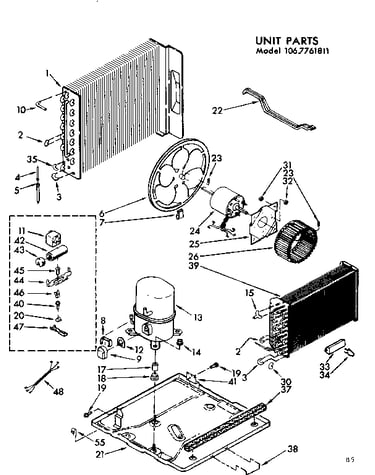

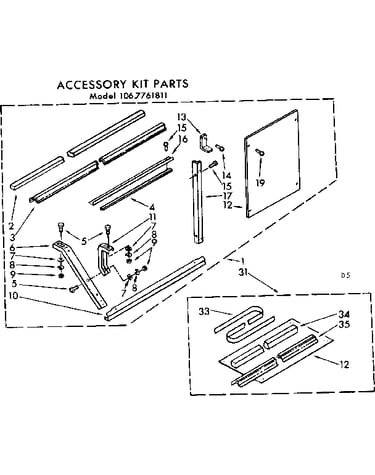

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 150 parts
See All Related Diagrams
Washer
Part #488808
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts Diagram
Valve kit
#NI
All parts Diagram
Valve kit
#NI
All parts Diagram
Capacitor
See All Related Diagrams
Screw
Part #488720
The manufacturer no longer makes this part, and there's no substitute part
Filter
Part #47-9186
The manufacturer no longer makes this part, and there's no substitute part
Ground wire
