Craftsman
Gas Leaf Blower

Model # 358794963 Official Craftsman blower

Here are the diagrams and repair parts for Official Craftsman 358794963 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#30

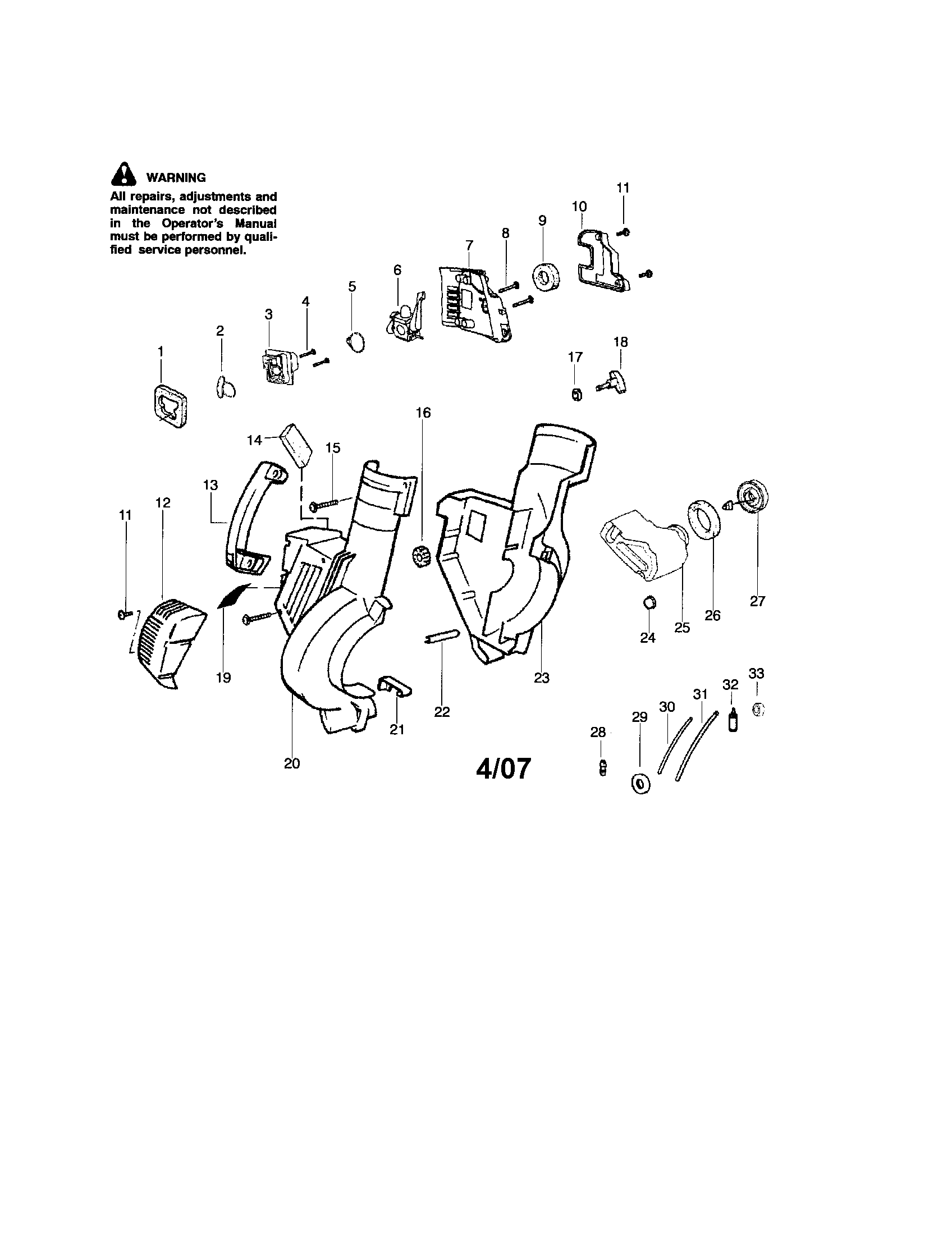

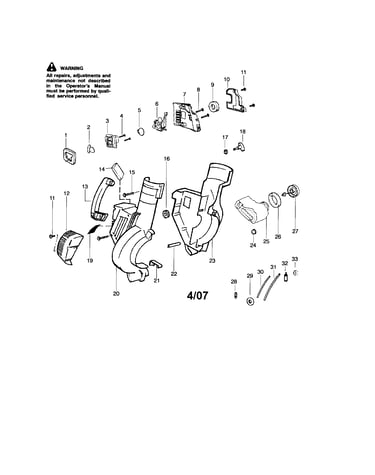

Housing/handle diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
This item is not returnable
$6.23
14% OFF Phone Price : $7.23
In Stock
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#32

Housing/handle diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
This item is not returnable
$4.68
18% OFF Phone Price : $5.68
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#31

Housing/handle diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$6.96
13% OFF Phone Price : $7.96
In Stock
Leaf Blower Vacuum Bag (replaces 530-095564, 530095599, 53095564) 530095564
#1

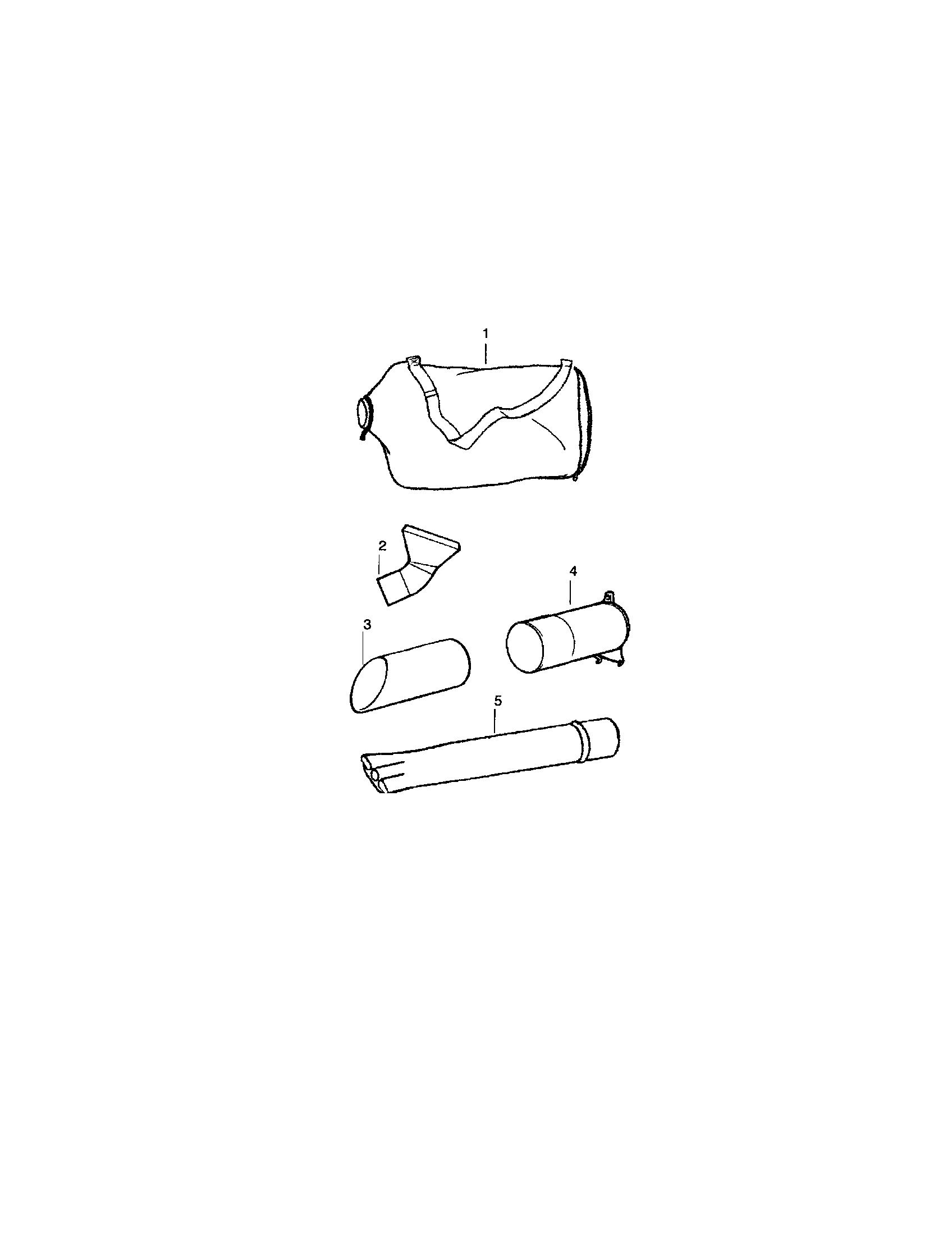

Tube/bag diagram

Leaf blower vacuum bag (replaces 530-095564, 530095599, 53095564)

Part #530095564

BEST SELLER

Get free shipping with Automatic Reorder

$32.84
13% OFF Phone Price : $37.84
In Stock
Piston Ring 530012472
#15

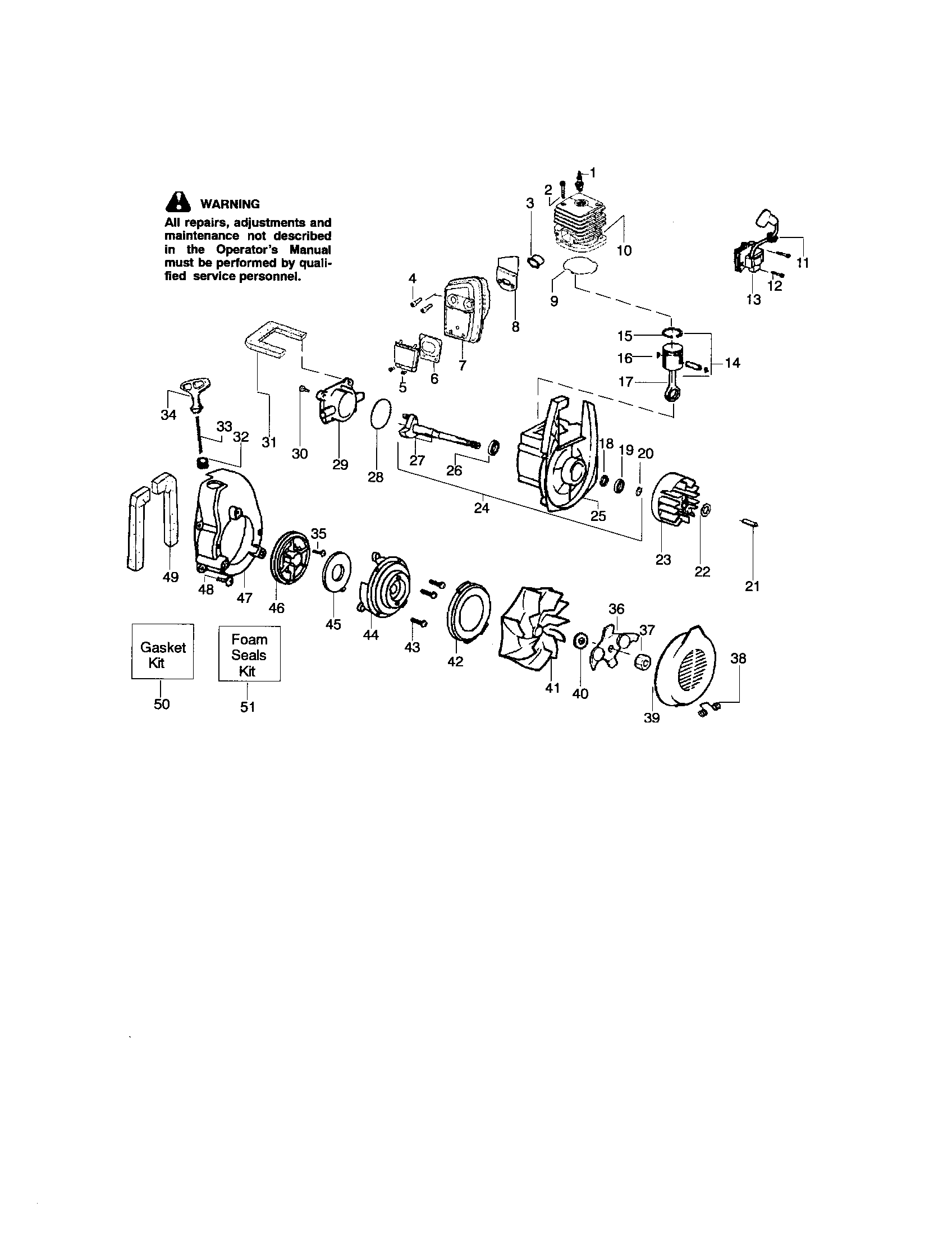

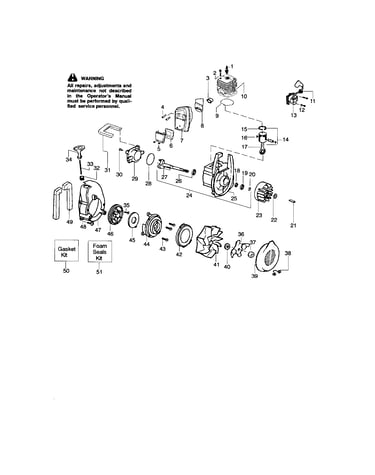

Cylinder/crankshaft/crankcase diagram

Piston ring

Part #530012472

Replaced by #545154009

?
Manufacturer substitution
This part replaces 530012472. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.19
24% OFF Phone Price : $4.19
Back Order
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#28

Housing/handle diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$3.19
24% OFF Phone Price : $4.19
In Stock
Line Trimmer Fuel Cap 530049386
#27

Housing/handle diagram

Line trimmer fuel cap

Part #530049386

Replaced by #578931605

?
Manufacturer substitution
This part replaces 530049386. Substitute parts can look different from the original.
This item is not returnable
$6.74
13% OFF Phone Price : $7.74
In Stock
Lawn & Garden Equipment Screw 530015849
#8

Housing/handle diagram

Lawn & garden equipment screw

Part #530015849

This item is not returnable
In Stock
Start Spring 530042086
#45

Cylinder/crankshaft/crankcase diagram

Start spring

Part #530042086

Replaced by #545008011

?
Manufacturer substitution
This part replaces 530042086. Substitute parts can look different from the original.
This item is not returnable
In Stock
Line Trimmer Engine Piston Pin 530015162
#16

Cylinder/crankshaft/crankcase diagram

Line trimmer engine piston pin

Part #530015162

This item is not returnable
In Stock

Symptoms for gas leaf blowers

Choose a symptom to see related leaf blower repairs.

Main causes: cracked fuel lines, leaky carburetor seals, damaged fuel tank cap, cracked fuel tank…

Main causes: damaged fan blade, engine needs a tune up, dirty carburetor…

Main causes: stale fuel, dirty air filter, bad spark plug, cracked fuel lines, clogged carburetor…

Main causes: mixing too much 2-cycle oil with the gas, dirty air filter, clogged carburetor, engine needs tune up…

Main causes: bad gas, clogged air filter, cracked fuel lines, clogged fuel filter, dirty carburetor, bad spark plug, wor…
