Craftsman
Gas Walk-Behind Mower

Model # 536885601 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 536885601 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

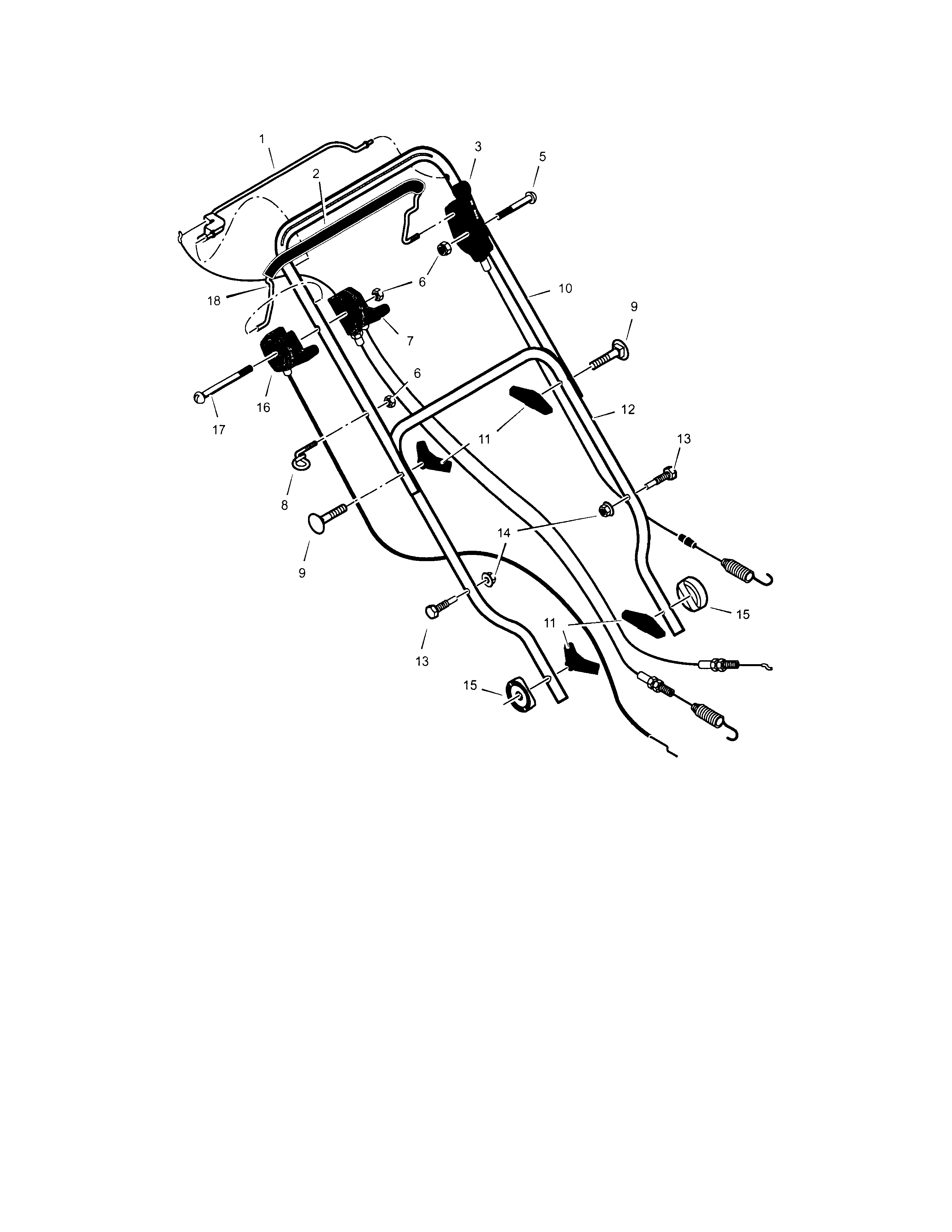

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
T Hex Flange 15X79
T hex flange

Part #15X79

Replaced by #703409

?
Manufacturer substitution
This part replaces 15X79. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
0 Cotter Pin 30X20
#20

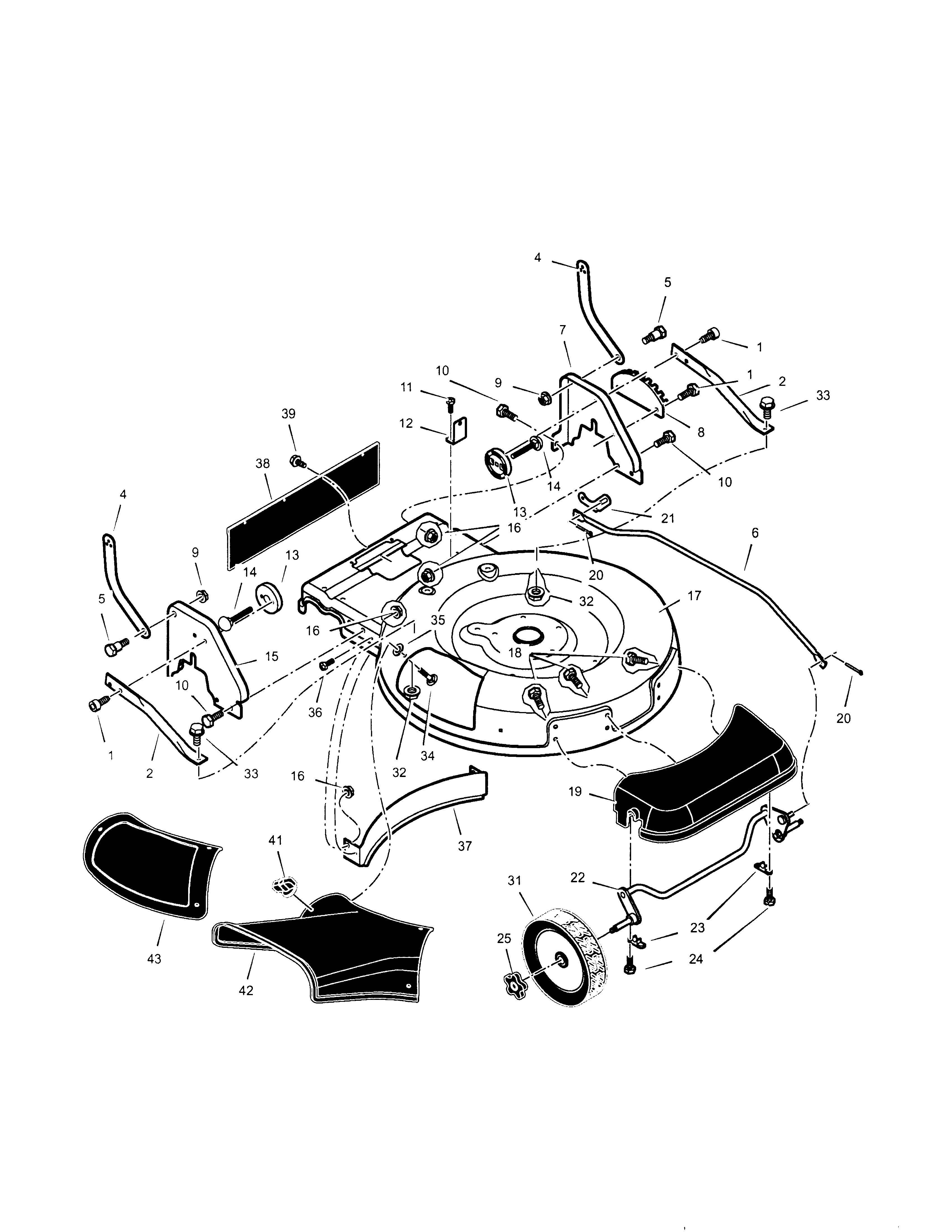

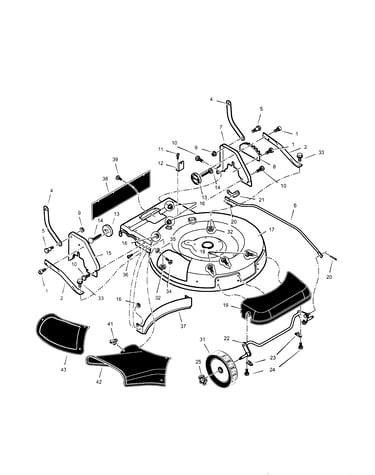

Fixed wheel assembly diagram

0 cotter pin

Part #30X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 30X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Lawn Mower Blade Drive Belt 37X118
#23

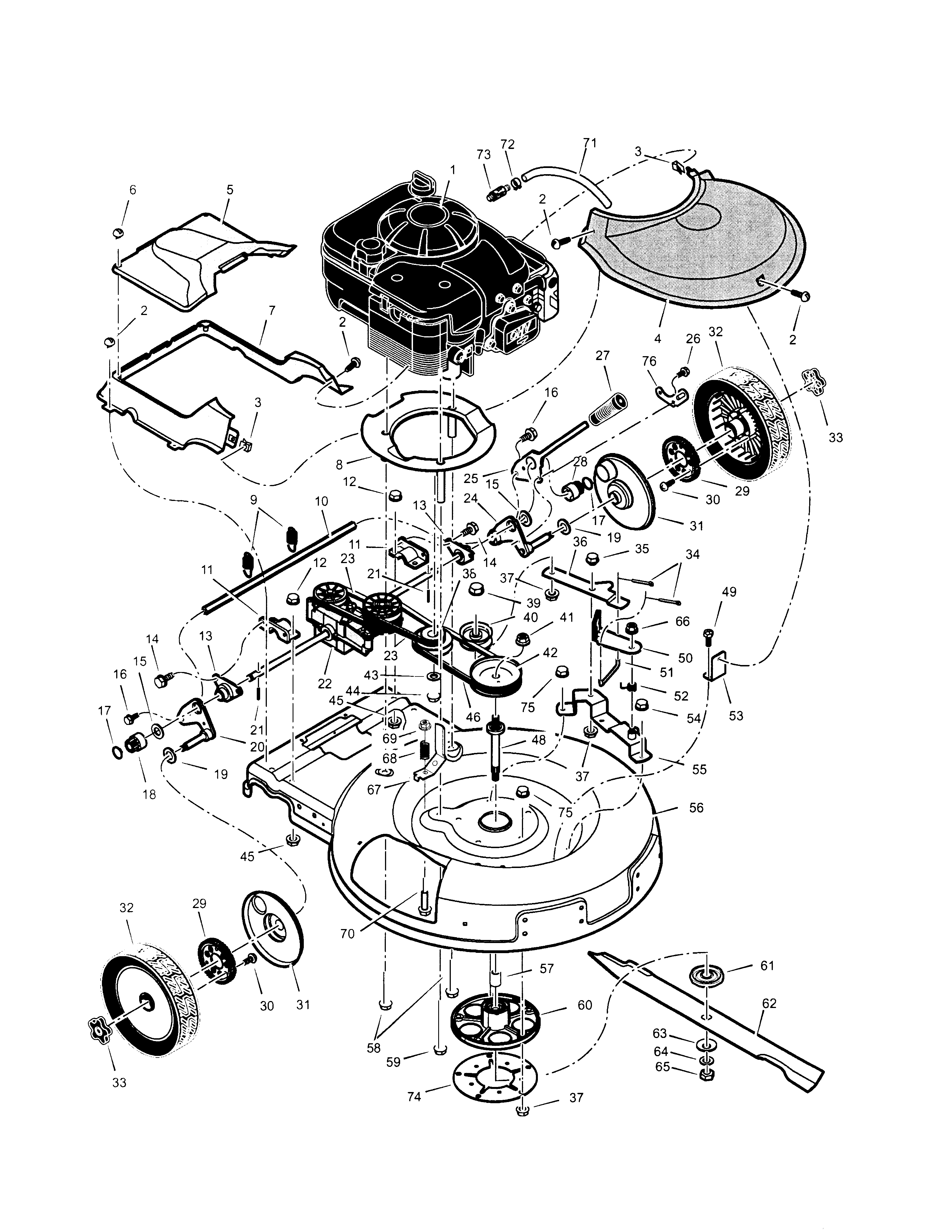

Drive assembly diagram

Lawn mower blade drive belt

Part #37X118

Replaced by #37X118MA

?
Manufacturer substitution
This part replaces 37X118. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$39.69 |
11% OFF Phone Price : $44.69
In Stock
Lock Nut 45171
Lock nut

Part #45171

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 15X84
#37

Drive assembly diagram

Lock nut

Part #15X84

Replaced by #703893

?
Manufacturer substitution
This part replaces 15X84. Substitute parts can look different from the original.
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Washer.62-1. 17X165
#64

Drive assembly diagram

Washer.62-1.

Part #17X165

Replaced by #17X165MA

?
Manufacturer substitution
This part replaces 17X165. Substitute parts can look different from the original.
This item is not returnable
$28.09 |
15% OFF Phone Price : $33.09
In Stock
Nut.56-18 Re 15X100
#65

Drive assembly diagram

Nut.56-18 re

Part #15X100

Replaced by #15X100MA

?
Manufacturer substitution
This part replaces 15X100. Substitute parts can look different from the original.
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Washer.62-1. 17X166
#63

Drive assembly diagram

Washer.62-1.

Part #17X166

Replaced by #17X166MA

?
Manufacturer substitution
This part replaces 17X166. Substitute parts can look different from the original.
This item is not returnable
$22.49 |
18% OFF Phone Price : $27.49
In Stock
Height Adjustment Knob 671297
#27

Drive assembly diagram

Height adjustment knob

Part #671297

Replaced by #671297MA

?
Manufacturer substitution
This part replaces 671297. Substitute parts can look different from the original.
$11.89
In Stock
Blade Belt 37X117
#46

Drive assembly diagram

Blade belt

Part #37X117

Replaced by #37X117MA

?
Manufacturer substitution
This part replaces 37X117. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$27.07 |
16% OFF Phone Price : $32.07
In Stock
