Roper
Gas Cooktop

Model # CGX215VX1 Official Roper gas cooktop

Here are the diagrams and repair parts for Official Roper CGX215VX1 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Screw 786232
#16

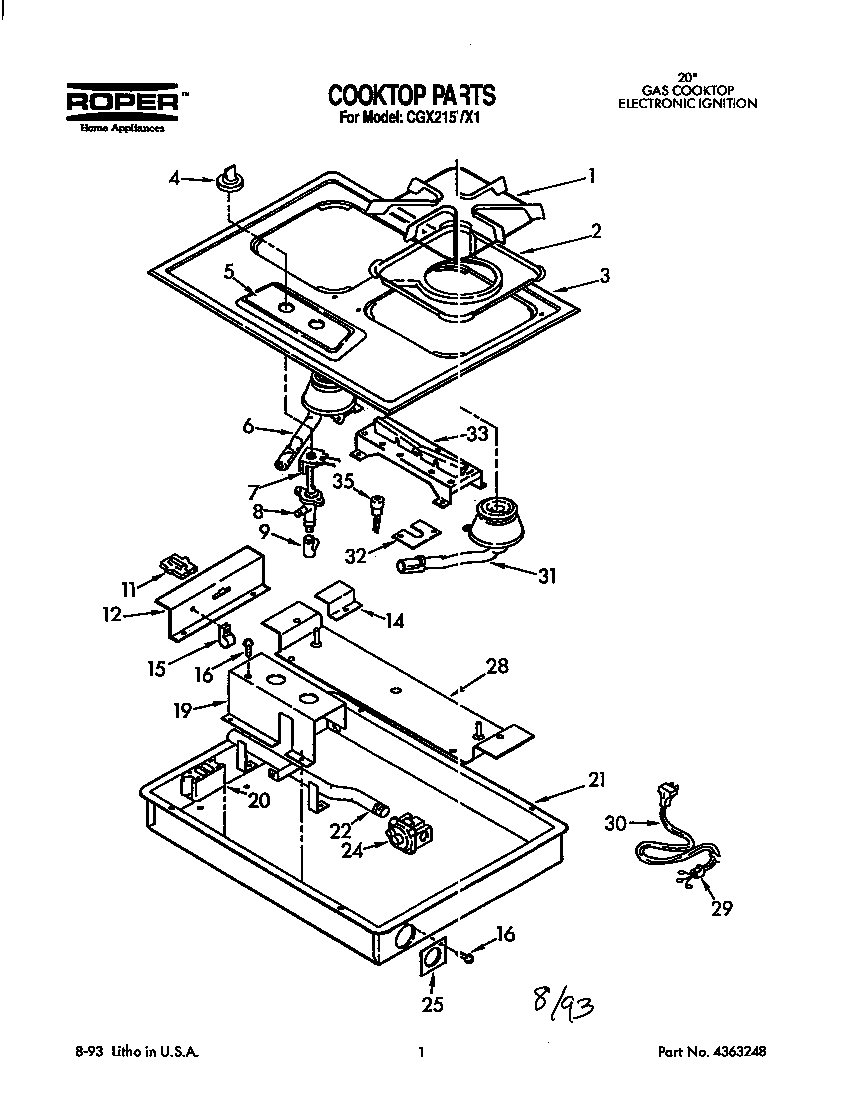

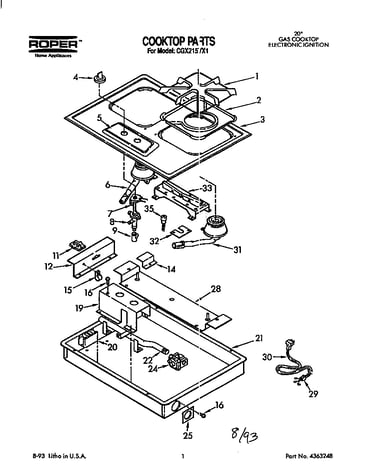

Cooktop parts diagram

Screw

Part #786232

The manufacturer no longer makes this part, and there's no substitute part

Clamp 4157298
#15

Cooktop parts diagram

Clamp

Part #4157298

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl (2) 4315794
#2

Cooktop parts diagram

Burner bowl (2)

Part #4315794

The manufacturer no longer makes this part, and there's no substitute part

Valve, Burner (2) 4363207
#8

Cooktop parts diagram

Valve, burner (2)

Part #4363207

The manufacturer no longer makes this part, and there's no substitute part

Burner, Right 4320301
#31

Cooktop parts diagram

Burner, right

Part #4320301

The manufacturer no longer makes this part, and there's no substitute part

Wire Shield 4320369
#14

Cooktop parts diagram

Wire shield

Part #4320369

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 4320426
#35A

Cooktop parts diagram

Wire harness

Part #4320426

The manufacturer no longer makes this part, and there's no substitute part

Cooktop, Chrome 4320350
#3

Cooktop parts diagram

Cooktop, chrome

Part #4320350

The manufacturer no longer makes this part, and there's no substitute part

Knob, Surface Burner (2) 4315788
#4

Cooktop parts diagram

Knob, surface burner (2)

Part #4315788

The manufacturer no longer makes this part, and there's no substitute part

Manifold Pipe 4320325
#22

Cooktop parts diagram

Manifold pipe

Part #4320325

The manufacturer no longer makes this part, and there's no substitute part
