Model # PF089031 Official Proform everest climber

Here are the diagrams and repair parts for Official Proform PF089031 everest climber, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Nut,hex Nyl 012082
#43

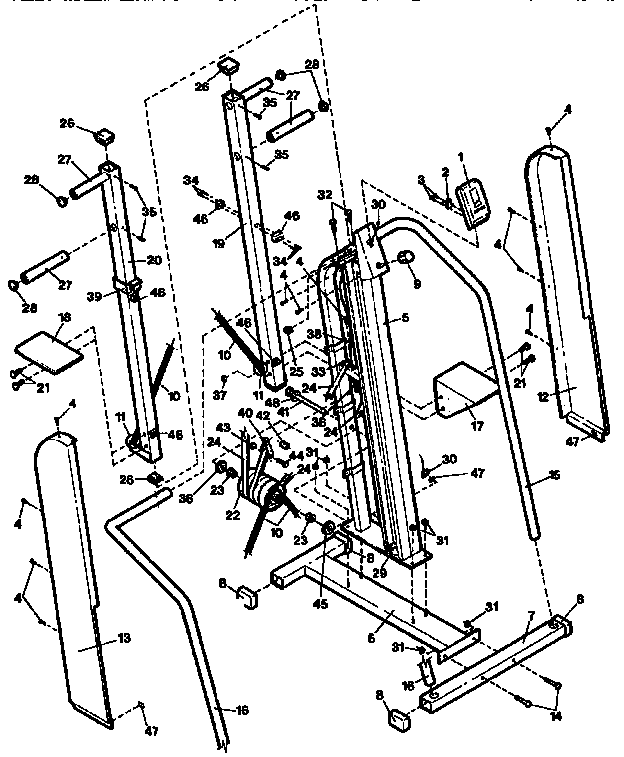

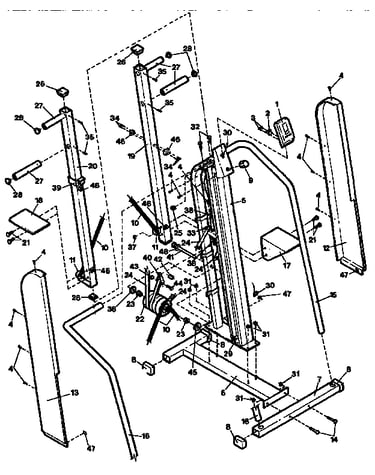

Proform everest climber diagram

Nut,hex nyl

Part #012082

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Nut 012179
#25

Proform everest climber diagram

Exercise equipment nut

Part #012179

This item is not returnable
In Stock
Endcap,int,s 114242
#26

Proform everest climber diagram

Endcap,int,s

Part #114242

Replaced by #113666

?
Manufacturer substitution
This part replaces 114242. Substitute parts can look different from the original.
This item is not returnable
In Stock
Clamp,plstc, 016029

#NI

All parts diagram

Clamp,plstc,

Part #016029

This item is not returnable
In Stock
Magnet,rnd,1 107094
#37

Proform everest climber diagram

Magnet,rnd,1

Part #107094

This item is not returnable
In Stock
Weider Clamp,wire M 016055

#NI

All parts diagram

Weider clamp,wire m

Part #016055

This item is not returnable
In Stock
Wshr,flat,ny 014168
#36

Proform everest climber diagram

Wshr,flat,ny

Part #014168

This item is not returnable
In Stock
Exercise Equipment Screw 013162
#4

Proform everest climber diagram

Exercise equipment screw

Part #013162

This item is not returnable
In Stock
Image Exercise Equipment Carriage Bolt 108674
#14

Proform everest climber diagram

Image exercise equipment carriage bolt

Part #108674

This item is not returnable
In Stock
Exercise Equipment Hex Nut 012108
#31

Proform everest climber diagram

Exercise equipment hex nut

Part #012108

This item is not returnable
In Stock
