Model # 315101531 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315101531 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

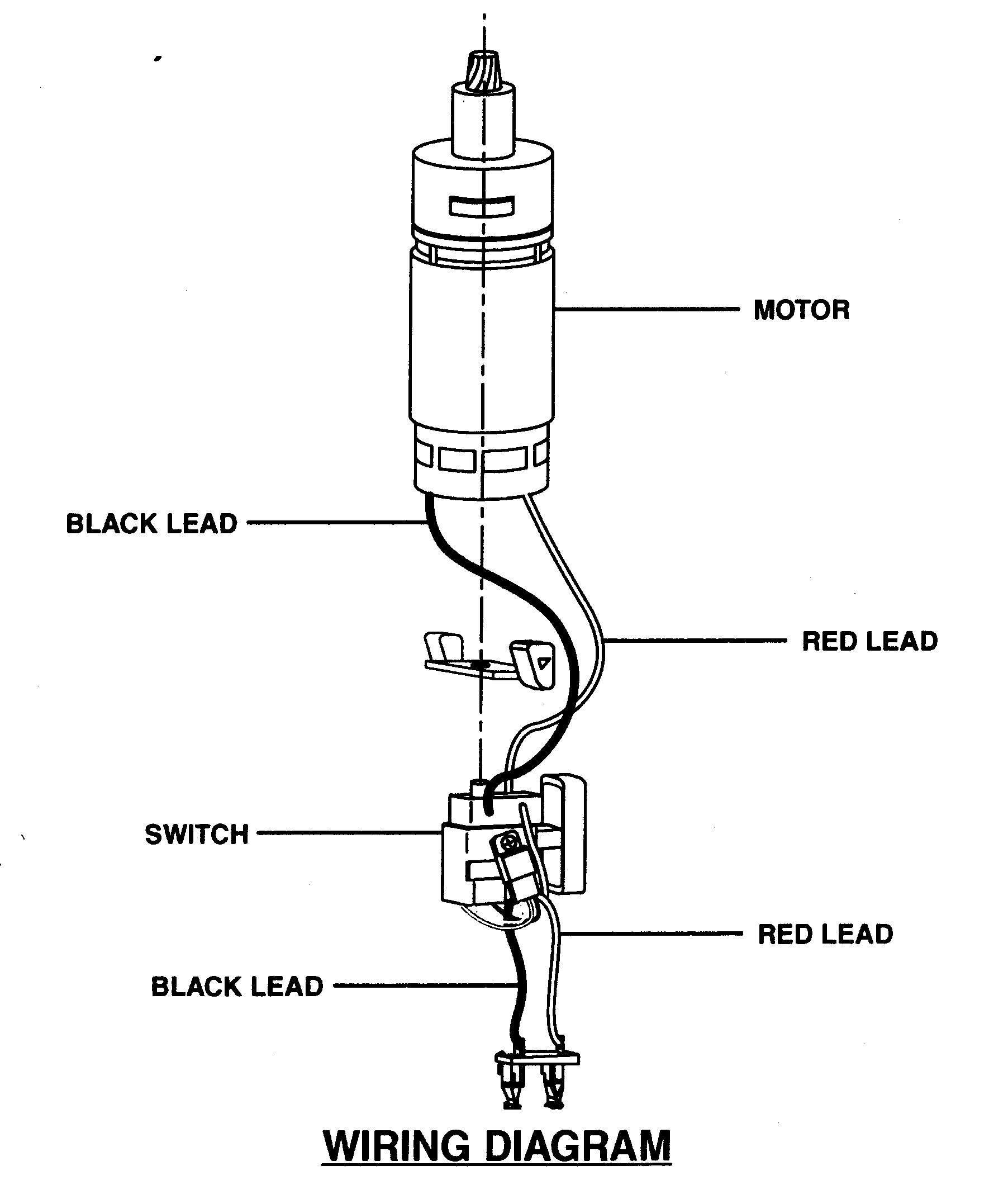

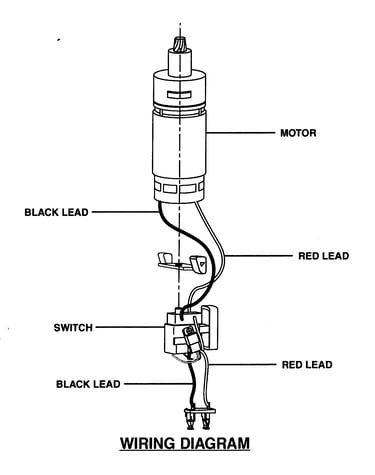

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Clip 6320601
#7

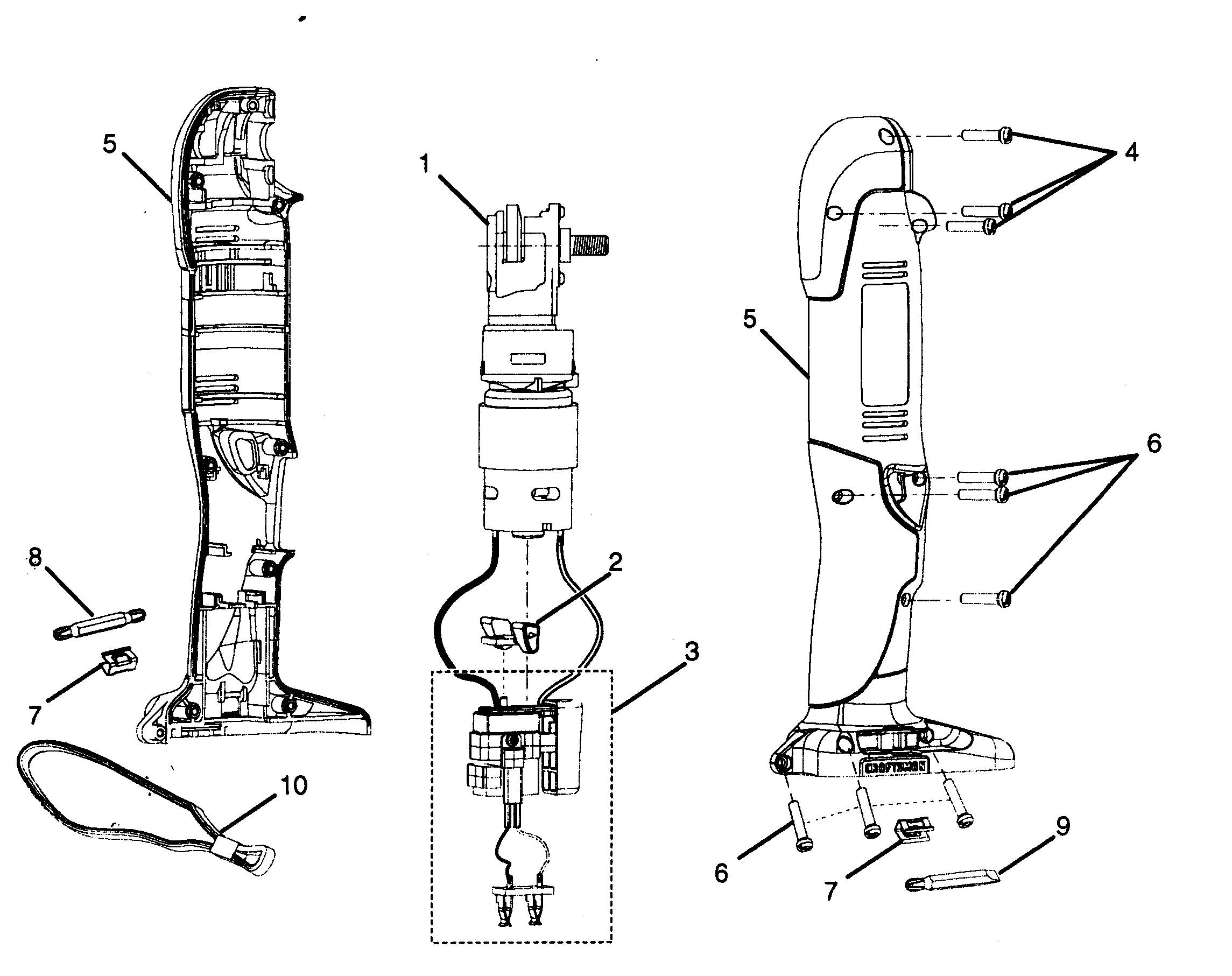

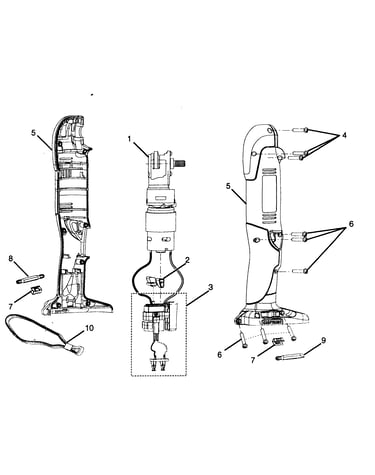

Housing assy diagram

Clip

Part #6320601

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 2701649
#3

Housing assy diagram

Switch assembly

Part #2701649

The manufacturer no longer makes this part, and there's no substitute part

Battery 1325101
#3

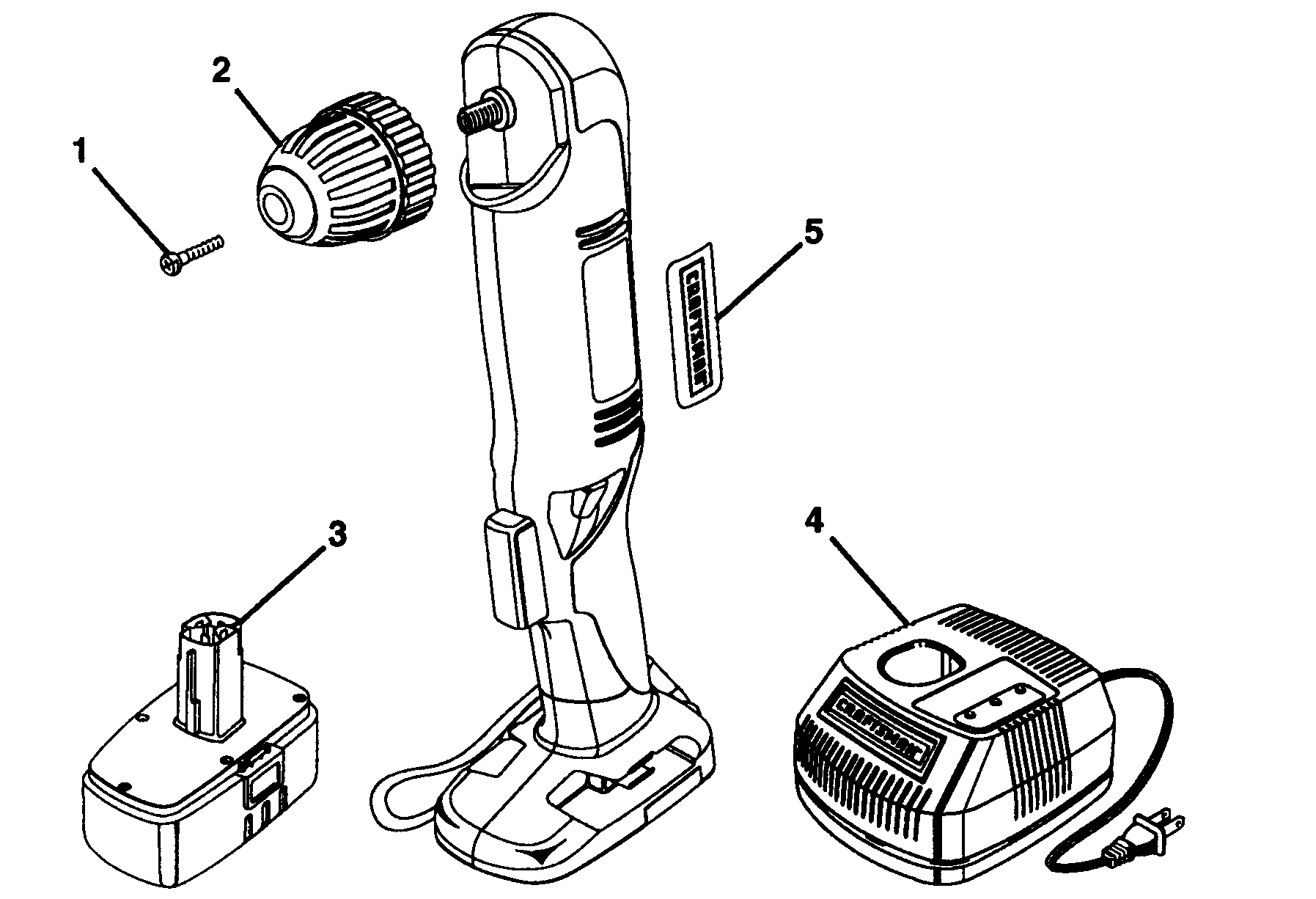

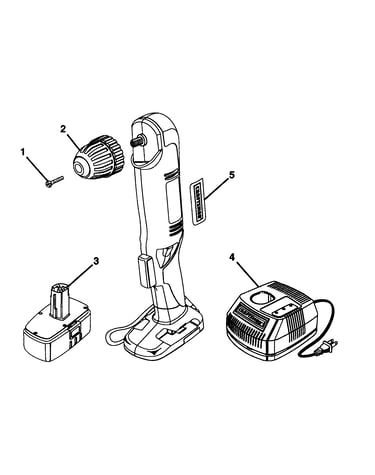

Drill diagram

Battery

Part #1325101

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Phillips Screwdriver Bit 6782106
#9

Housing assy diagram

Drill/driver phillips screwdriver bit

Part #6782106

The manufacturer no longer makes this part, and there's no substitute part

Housing 985156001
#5

Housing assy diagram

Housing

Part #985156001

The manufacturer no longer makes this part, and there's no substitute part

Screw M3.5 X 16mm 6620606
#6

Housing assy diagram

Screw m3.5 x 16mm

Part #6620606

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 9420316
#5

Drill diagram

Logo plate

Part #9420316

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Switch Lever 4089901
#2

Housing assy diagram

Drill/driver switch lever

Part #4089901

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bit, 6 To 7-mm 6782405
#8

Housing assy diagram

Power tool bit, 6 to 7-mm

Part #6782405

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Chuck Screw 6612003
#1

Drill diagram

Drill/driver chuck screw

Part #6612003

The manufacturer no longer makes this part, and there's no substitute part
